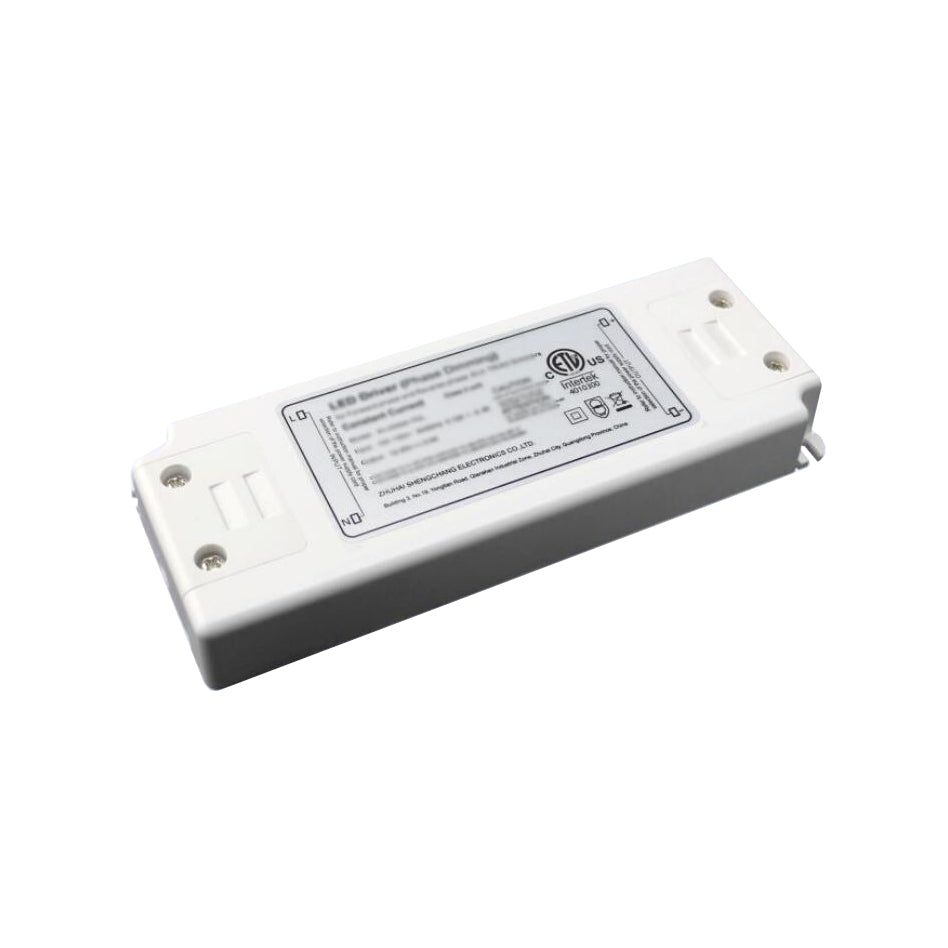

Envo SC-20-24-US Power Supply 20W 24V - Triac dimmable 420mA

triac dimmable, US input

SKU:

SC-20-24-US

Please for Pricing

Notify me when it's back in stock

Description

Output constant voltage
Universal AC input: 100-130VAC
High efficiency :u p to 80%
Protection:short circuit/over loading/over current/ Over temperature
Full protection plastic housing
Easy installation
Cooling by free air convection
Compatible with Forward & Reverse phase
Triac
ELV Dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications and others
Suitable for dry or damp location use
IP20

Specifications

Brand

Envo
Series

SC Envo Series
Power Rating

20 Watt
Output Voltage

24 Volt
Rated Current

0.42 Ampere
Input Voltage

100V~130V
Standards Met

CE,RCM,SAA,TUV
Operation Mode

Constant Voltage
Operating Temperature

-40°C~60°C
Warranty

5 Year
Length

14 cm
Width

5.5 cm
Height

1.95 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of power supply is the Envo SC-20-24-US?

The Envo SC-20-24-US is a constant voltage LED power supply rated for 24V output. It delivers up to 20W and is designed for applications that need a 24V constant voltage source with phase-cut dimming support.

Is the Envo SC-20-24-US dimmable?

Yes. This model is Triac dimmable and is described as compatible with forward phase, reverse phase, and ELV dimmers. It is also specified for strong compatibility and flicker-free dimming performance.

What applications is the Envo SC-20-24-US suitable for?

This 24V 20W model is intended for LED lighting and moving sign applications, along with similar low-power constant voltage uses. It is a practical choice for projects that need compact output, phase-cut dimming, and stable 24V operation.

Can the Envo SC-20-24-US be used in dry or damp locations?

Yes. The product is stated as suitable for dry or damp location use. It is also rated IP20, so it is intended for protected environments rather than direct exposure to water or dust.

What are the main operating and durability specs of the Envo SC-20-24-US?

The Envo SC-20-24-US has a 20W power rating, 24V output voltage, and 0.42A rated current. It operates in ambient temperatures from -40°C to 60°C and comes with a 5-year warranty.

Model	Power	Voltage	Current	IP Rating
Envo SC-20-24 Power Supply 20W 24V - Triac dimmable 830mA	20W	24V	0.83A	Indoor	View
Envo SC-20-12 Power Supply 20W 12V - Triac dimmable 1.67A	20W	12V	1.67A	Indoor	View
