Envo

Envo SC-60-12 Power Supply 60W 12V - Triac dimmable 5A

triac dimmable
SKU SC-60-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 13 in this family

SC-60-12
In stock
|

Overview

SC-60-12 is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 83%@230VAC.

Features

  • Output: Constant Voltage
  • Range: 200-240VAC
  • PFC design: Built-in active PFC function
  • Efficiency: Up to 83%
  • Protections: Short circuit/ over load/ over temperature
  • Heat dissipation: Cooling by free air convection
  • Waterproof performance: IP20
  • Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
  • Dimming range: 0 -100%
  • Warranty: 5 years warranty

Specifications

SC-60-12Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate
TUV / SAA / CCC / CE / CB / RoHS / Reach

Output

DC Voltage
12V
Voltage Tolerance
±0.5V
Voltage Regulation
≤2%
Rated Current
5A
Rated Power
60W
Load Regulation
≤0.5%

Input

Voltage Range
200-240VAC
Frequency Range
47 - 63Hz
THD(Typ.)@ Full Load
≤20% @ 200VAC, 230VAC, 240VAC
Efficiency(Typ.)@ Full Load
83%@230VAC
AC Current (Max.)
0.5A
Inrush Current(Typ.)
80.8A, 186us @ 230VAC
Leakage Current
<0.5mA

Protection

Short Circuit
Hiccup mode, re-power on to recover after fault condition removed
Over Load
≤120% shut down o/p voltage, recovers automatically after fault condition is removed
Over Temperature
Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.

Environment

Working TEMP.
-40~+60°C (see below derating curve)
Working Humidity
20 - 90% RH non-condensing
Storage TEM.,Humidity
-40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient
±0.03%/°C (0 - 50°C)
Vibration
10~500Hz, 2G 10min/1 cycle, period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight
0.35kg
Dimension
178*61*24mm (L*W*H)
Packing
290*215*140mm 20pcs/CTN
Test conditions and notes2
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
  2. 2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

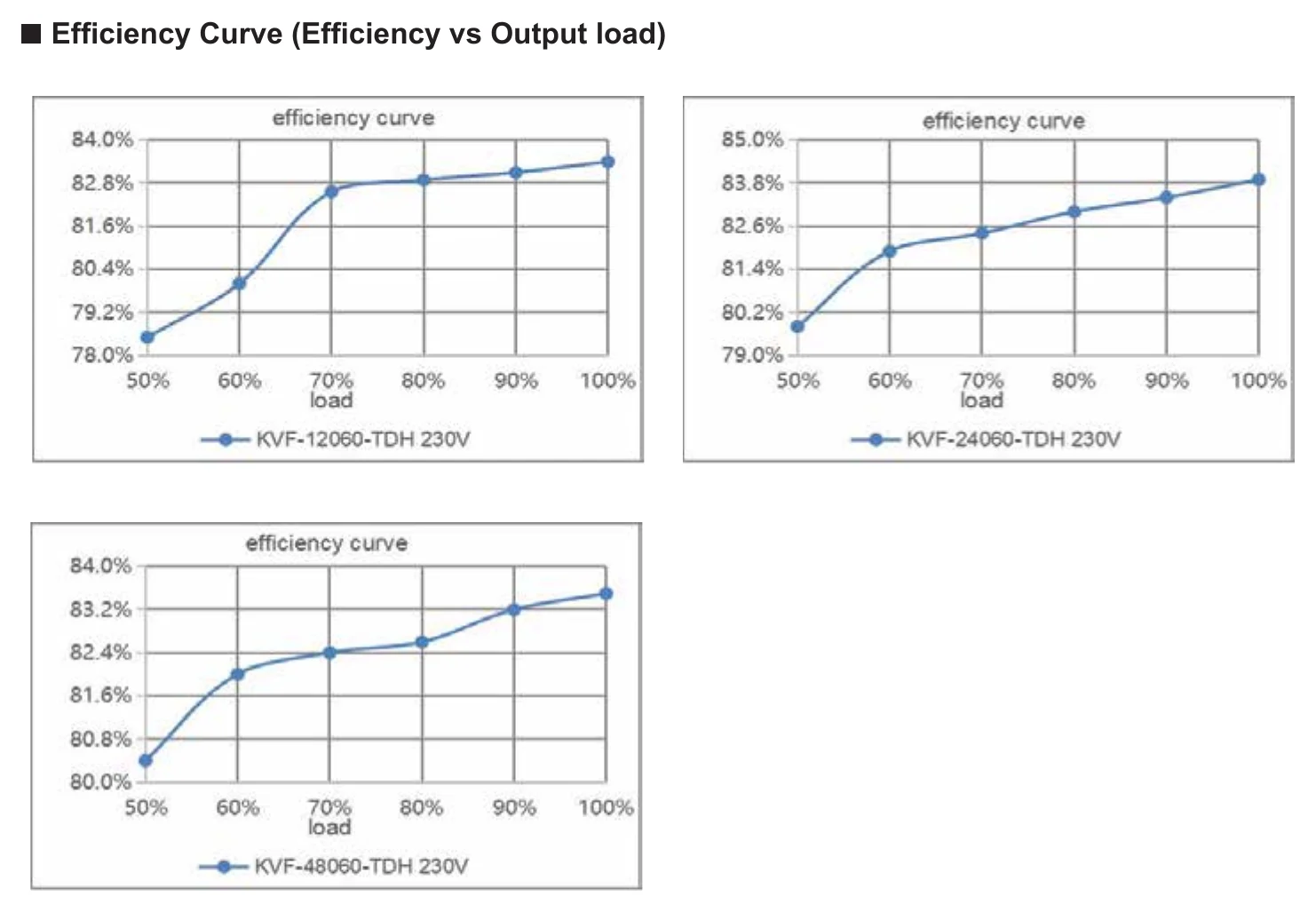

SC-60-12 Efficiency Curve (Efficiency vs Output load)
Efficiency Curve (Efficiency vs Output load)

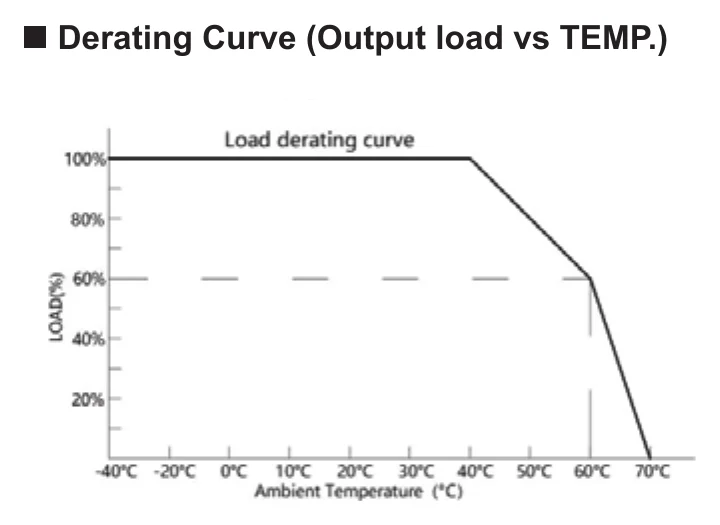

SC-60-12 Derating Curve (Output load vs TEMP.)
Derating Curve (Output load vs TEMP.)

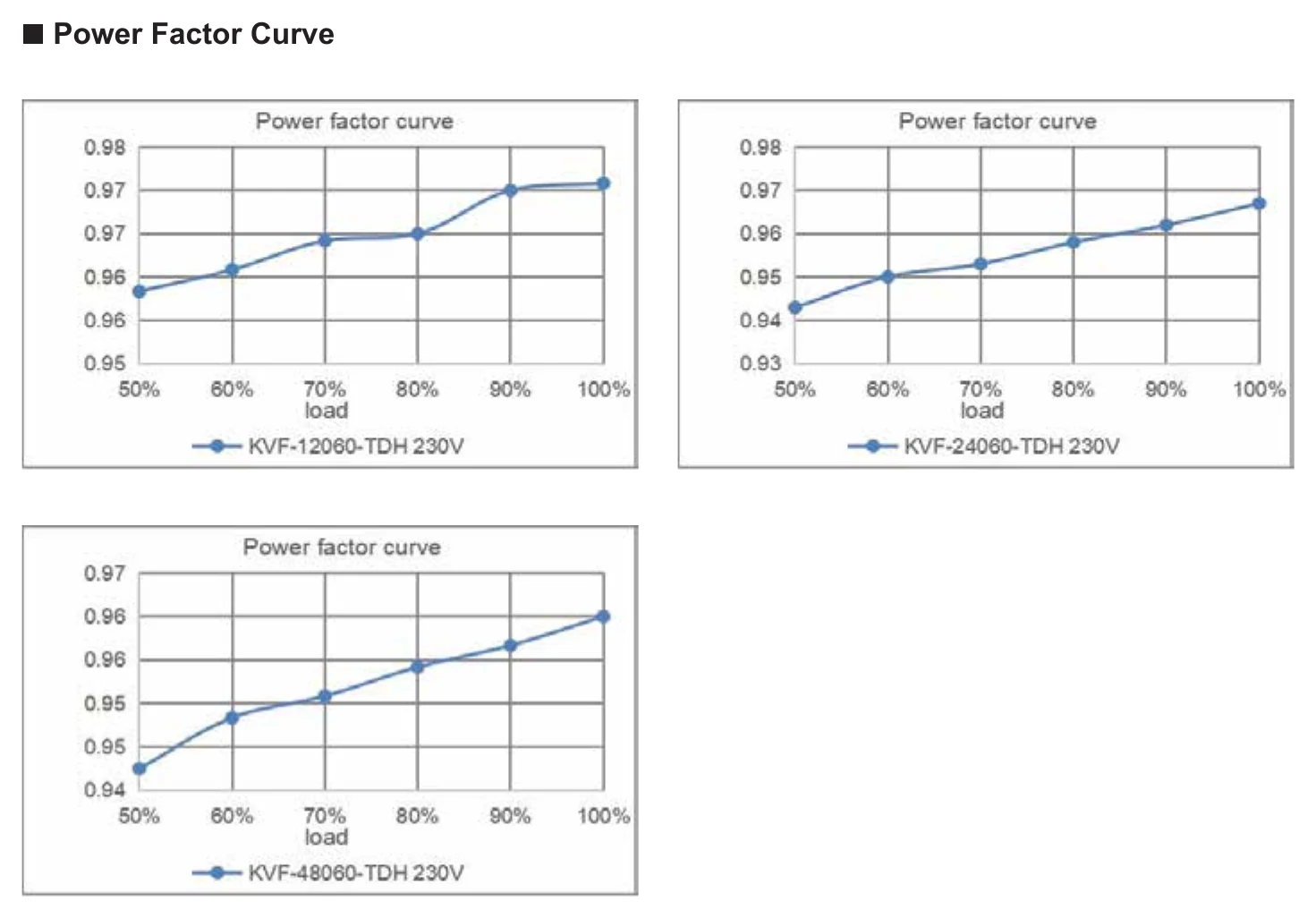

SC-60-12 Power Factor Curve
Power Factor Curve

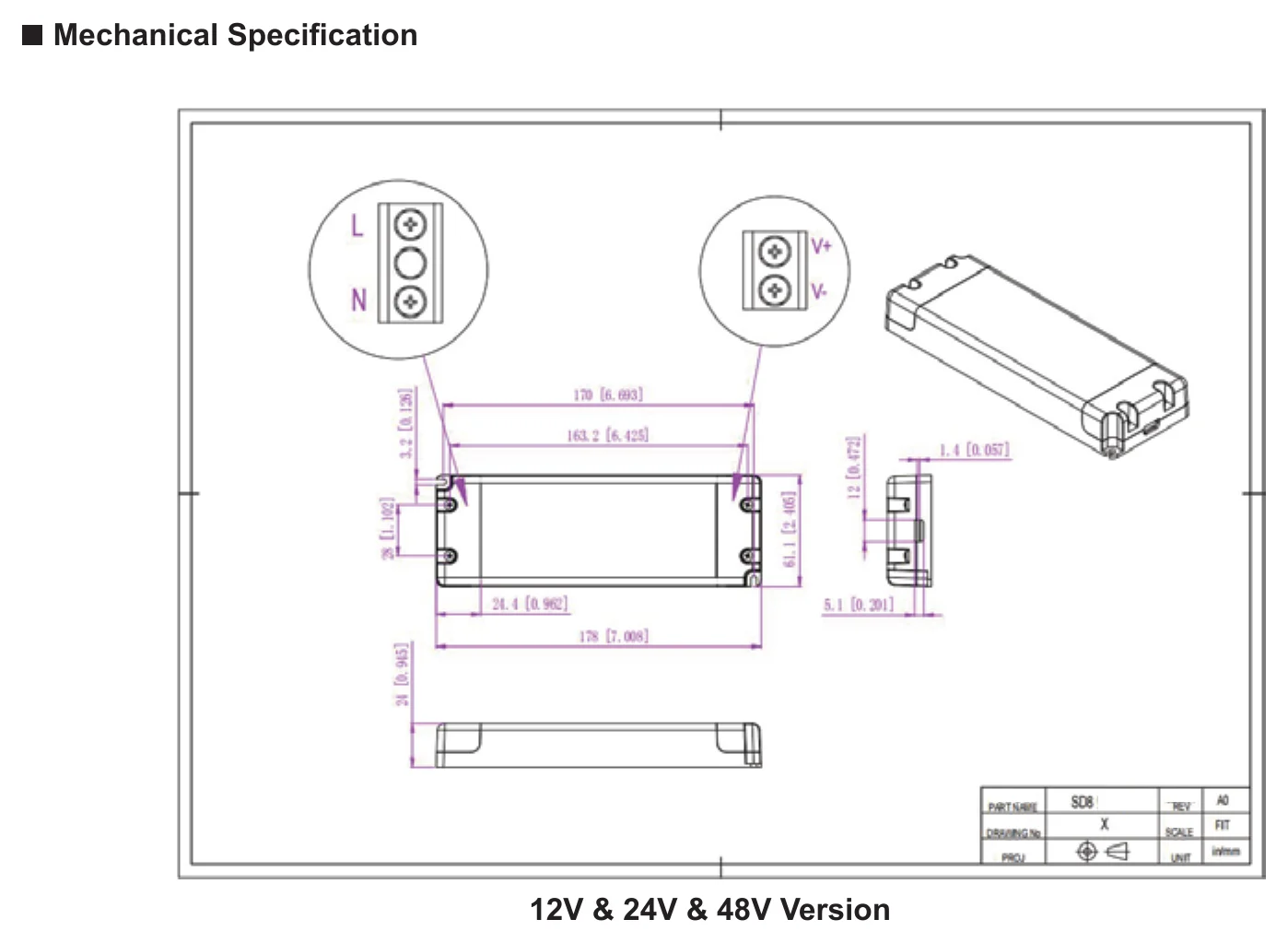

SC-60-12 Mechanical Specification
Mechanical Specification

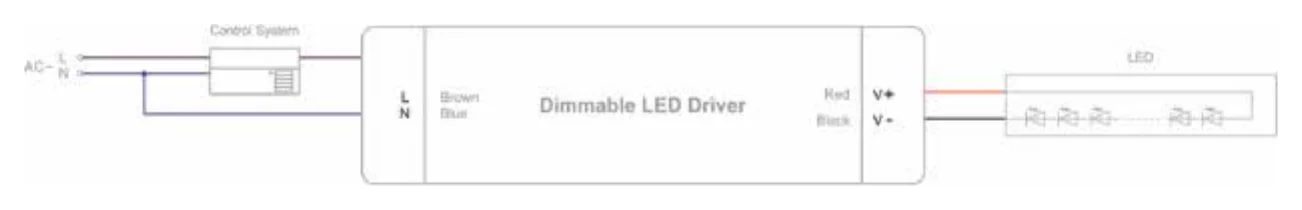

SC-60-12 TRIAC/Phase cut dimming
TRIAC/Phase cut dimming

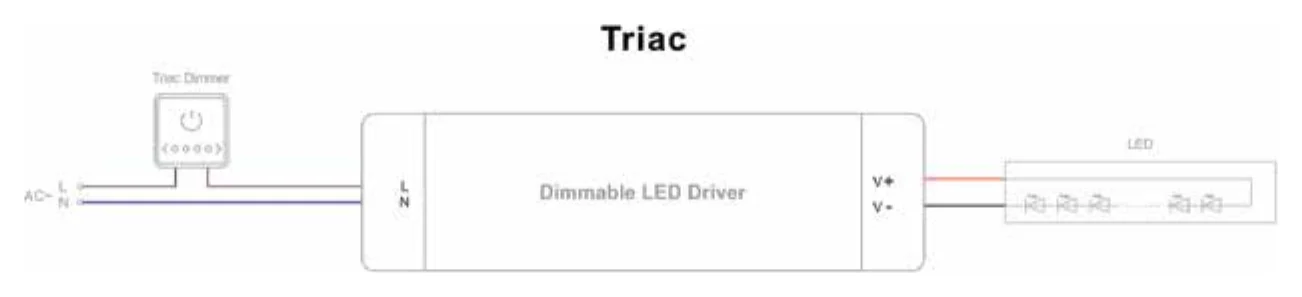

SC-60-12 TRIAC/Phase cut dimming (2)
TRIAC/Phase cut dimming (2)

Typical applications

  • Suitable for the application of LED lighting

Downloads

FAQ

What type of power supply is the Envo SC-60-12?

The Envo SC-60-12 is a constant voltage power supply rated for 12V output. It delivers up to 60W total power with a rated output current of 5A. This model is designed for applications that need a 12V constant voltage source with TRIAC dimming compatibility.

Is the Envo SC-60-12 compatible with TRIAC dimmers?

Yes, this model is specified to work with leading edge, MLV, trailing edge, ELV, and TRIAC dimmers. It supports phase-cut dimming with a range of 0-100%. That makes it suitable for projects where dimming is required.

What applications is the Envo SC-60-12 suitable for?

This power supply is stated as suitable for LED lighting applications. Its constant voltage 12V output and TRIAC dimming support make it relevant for commercial and architectural lighting uses where dimming is needed. Buyers should match the application to the model's 12V, 60W rating.

What input and efficiency details are provided for this model?

The listed input range is 200-240VAC. The product features a built-in active PFC function and achieves an efficiency of up to 83% at 230VAC. These are manufacturer-stated performance characteristics for the SC-60-12.

Can the Envo SC-60-12 be used in demanding temperature conditions?

The specified operating temperature range is -40°C to 60°C. That gives this model a relatively wide environmental range for appropriate commercial or industrial lighting environments. Buyers should still confirm the surrounding enclosure and application conditions are suitable for the product.

What protection and durability features does the Envo SC-60-12 include?

The product description lists protection against short circuit, over load, and over temperature. It also features cooling by free air convection. These features are intended to support durability and reliable operation in lighting-related applications.

What warranty is offered for the Envo SC-60-12?

The listed warranty period for this model is 5 years. That warranty term can matter for commercial buyers comparing lifecycle value and replacement risk. Any specific warranty terms or claim conditions would depend on the seller or manufacturer policy.
