Envo

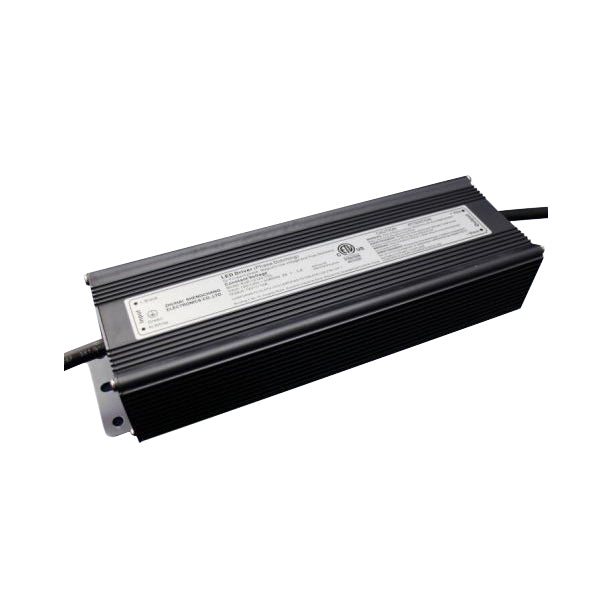

Envo SC-60-24-US Power Supply 60W 24V - Triac dimmable 2.5A

triac dimmableUS input
SKU SC-60-24-US
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

SC-60-24-US is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 85%.

Features

  • Output constant voltage
  • Universal AC input: 100-130VAC
  • High efficiency :up to 87%
  • Protection:short circuit/over loading/over current/ Over temperature
  • Full protection aluminum housing
  • Easy installation
  • Cooling by free air convection
  • Compatible with Forward & Reverse phase, Triac, ELV Dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications and others
  • Provide with a junction box for connection to line voltage
  • Suitable for wet location use, IP66

Specifications

SC-60-24-USSpecifications from the official datasheetDownload datasheet PDF

Certificates

Certificates
ETL,cETL,FCC

Output

DC Voltage
24V
Voltage Tolerance
±0.5V
Rated current
2.5A
Rated power
60W

Input

Voltage Range
100-130VAC
Frequency Range
47-63Hz
Power Factor
PF≥ 0.95 (Full loading)
Efficiency（Typ.）
85%
AC Current（Max.）
0.76A
Leakage current
<0.50mA/120VAC

Protection

Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Current
≤1.2*I out
Over Loading
≤120%
Over temperature
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.

Environment

Working TEMP.
-40 to +60°C
Working Humidity
20-95%RH, non-condensing
Storage TEMP. Humidity
-40 to +80°C, 10-95%RH
TEMP .coefficient
±0.03%/°C (0-50°C)
Vibration
10-500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes

Safety& EMC

Safety standards
UL8750+UL1310 Class 2 unit
Withstand voltage
I/P-O/P:1500VAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B

Others

Net. Weight
1.55Kg (with junction box)
Size
350*77*57mm(L*W*H) (with junction box)
packing
350*85*65mm 10PCS

Technical drawings

SC-60-24-US Mechanical Specification for KV series 60W Phase/Triac…
Mechanical Specification for KV series 60W Phase/Triac…
SC-60-24-US Illustration (page 2)
Illustration (page 2)
SC-60-24-US Label
Label
SC-60-24-US Mechanical Specification for 60W Phase/Triac Dimmable…
Mechanical Specification for 60W Phase/Triac Dimmable…
SC-60-24-US Illustration (page 3)
Illustration (page 3)
SC-60-24-US Illustration (page 3)
Illustration (page 3)
SC-60-24-US Derating Curve
Derating Curve
SC-60-24-US Single Driver Connecting Diagram
Single Driver Connecting Diagram
SC-60-24-US Illustration (page 4)
Illustration (page 4)
SC-60-24-US Multiple Drivers Connecting Diagram
Multiple Drivers Connecting Diagram
SC-60-24-US Illustration (page 5)
Illustration (page 5)

Downloads

FAQ

What type of power supply is the Envo SC-60-24-US?

The Envo SC-60-24-US is a 60W constant-voltage LED power supply with a 24V DC output. It is designed for applications that need stable 24V power and supports TRIAC phase-cut dimming.

Is the Envo SC-60-24-US dimmable?

Yes. This model is designed to work with both leading-edge and trailing-edge TRIAC dimmers. It is described as having strong dimmer compatibility and flicker-free dimming performance.

What is the output rating of this model?

This power supply is rated for 24V output at 2.5A, with a total power rating of 60W. That makes it suitable for 24V constant-voltage LED loads within that output range.

Can the Envo SC-60-24-US be used outdoors?

Yes. It has an IP66-rated housing, which is suitable for wet location use and protection against dust and water exposure. The aluminum housing also supports durability in demanding environments.

What operating temperatures can this power supply handle?

The Envo SC-60-24-US is rated for operation from -40°C to 60°C. This wide temperature range makes it suitable for both cold and hot environments when the product is used within its specified limits.

What kinds of applications is this model intended for?

This model is suitable for LED lighting and moving sign applications that require 24V constant-voltage power. Its TRIAC dimming support also makes it relevant for projects where phase-cut dimming compatibility is important.

What protection features does the Envo SC-60-24-US include?

According to the product data, it includes protection for short circuit, overload, over current, and over temperature conditions. These built-in protections help support reliability in commercial and architectural lighting use cases.

What makes the Envo SC-60-24-US different from a non-dimmable 24V power supply?

The main difference is its support for AC phase-cut dimming, including both leading-edge and trailing-edge TRIAC dimmers. It also combines this dimming capability with an IP66 wet-location-rated housing, which is a useful distinction for projects needing both dimming and weather resistance.
