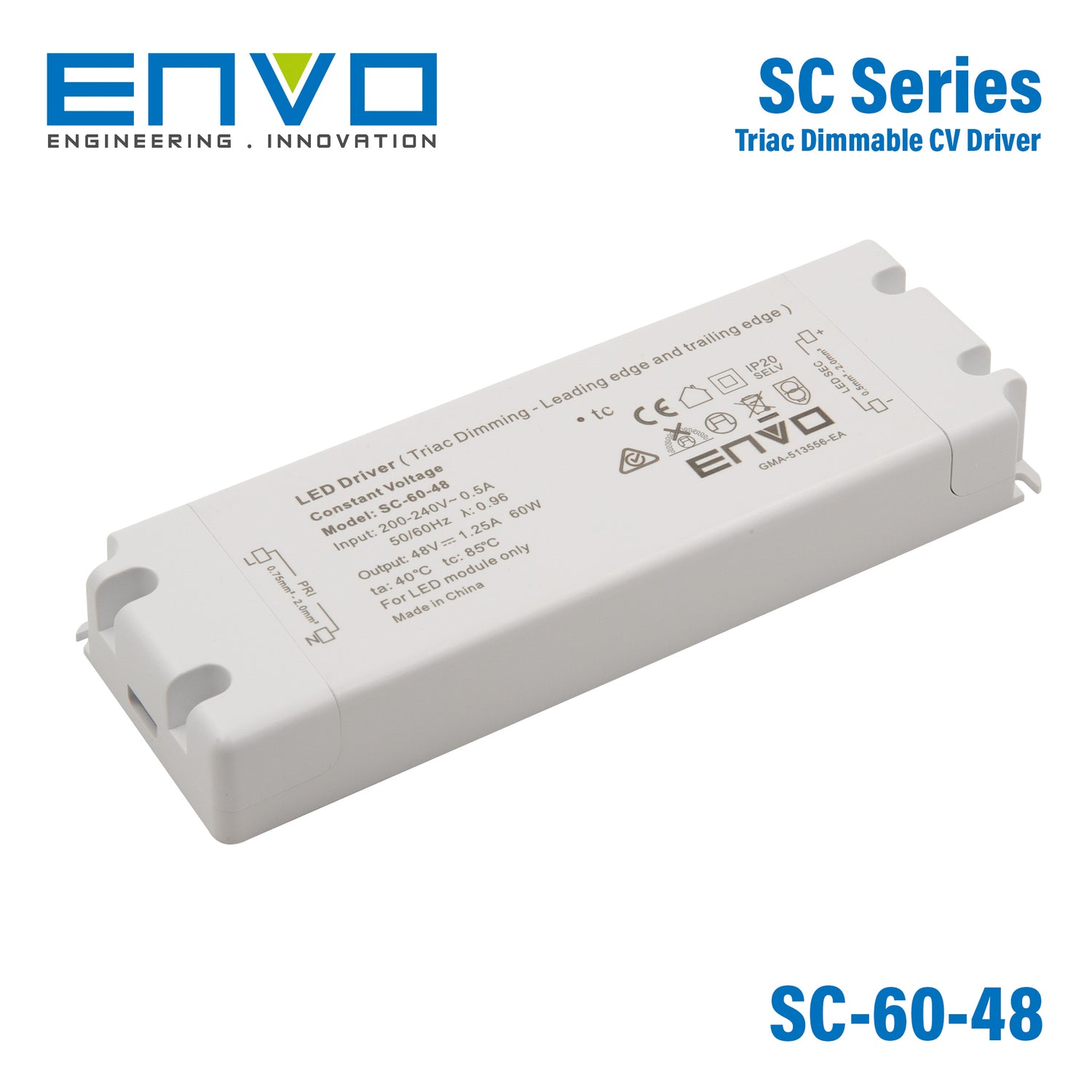

Envo SC-60-48 Power Supply 60W 48V 1.25A - Triac dimmable

triac dimmable

SKU SC-60-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

SC-60-48

SC-60-48 60W 48V Low stock

SC-100-48 100W 48V Low stock

SC-200-48 200W 48V Low stock

Product variants

In stock

Overview

SC-60-48 is the 48V output model of this series: rated current 1.25A, rated power 60W, typical efficiency 83%@230VAC.

Features

Output: Constant Voltage
Range: 200-240VAC
PFC design: Built-in active PFC function
Efficiency: Up to 83%
Protections: Short circuit/ over load/ over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: IP20
Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
Dimming range: 0 -100%
Warranty: 5 years warranty

Specifications

SC-60-48Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate: TUV / SAA / CCC / CE / CB / RoHS / Reach

Output

DC Voltage: 48V
Voltage Tolerance: ±0.5V
Voltage Regulation: ≤1%
Rated Current: 1.25A
Rated Power: 60W
Load Regulation: ≤0.5%

Input

Voltage Range: 200-240VAC
Frequency Range: 47 - 63Hz
THD(Typ.)@ Full Load: ≤20% @200VAC, @230VAC, @240VAC
Efficiency(Typ.)@ Full Load: 83%@230VAC
AC Current (Max.): 0.5A
Inrush Current(Typ.): 80.8A, 186us @230VAC
Leakage Current: <0.5mA

Protection

Short Circuit: Hiccup mode, re-power on to recover after fault condition removed
Over Load: ≤120% shut down o/p voltage, recovers automatically after fault condition is removed
Over Temperature: Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.

Environment

Working TEMP.: -40~+60°C (see below derating curve)
Working Humidity: 20 - 90% RH non-condensing
Storage TEM.,Humidity: -40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient: ±0.03%/°C (0 - 50°C)
Vibration: 10~500Hz, 2G 10min/1 cycle, period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards: EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission: Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight: 0.35kg
Dimension: 178*61*24mm (L*W*H)
Packing: 290*215*140mm 20pcs/CTN

Test conditions and notes2

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

SC-60-48 Efficiency Curve (Efficiency vs Output load) — Efficiency Curve (Efficiency vs Output load)

SC-60-48 Derating Curve (Output load vs TEMP.) — Derating Curve (Output load vs TEMP.)

SC-60-48 Power Factor Curve — Power Factor Curve

SC-60-48 Mechanical Specification — Mechanical Specification

SC-60-48 TRIAC/Phase cut dimming — TRIAC/Phase cut dimming

SC-60-48 TRIAC/Phase cut dimming (2) — TRIAC/Phase cut dimming (2)

Typical applications

Suitable for the application of LED lighting

Downloads

Datasheet1

SC-60-48 datasheetEnvo_SC_60W.pdf PDF Download

FAQ

What type of power supply is the Envo SC-60-48?

The Envo SC-60-48 is a constant voltage LED power supply rated at 60W with a 48V output. It is designed for applications that require a stable 48V DC supply and TRIAC dimming capability.

Is the Envo SC-60-48 dimmable?

Yes, this model is TRIAC dimmable and works with both leading edge and trailing edge phase-cut dimmers. It is described as having strong compatibility and flicker-free dimming for lighting applications.

What is the output rating of the SC-60-48?

This model provides 48V output with a rated current of 1.25A and a total power rating of 60W. Those ratings make it suitable for 48V constant voltage LED lighting loads within that power range.

What applications is the Envo SC-60-48 intended for?

The product is suitable for LED lighting and moving sign applications. Its constant voltage output and TRIAC dimming support make it relevant for projects where dimmable 48V LED power is needed.

Can the SC-60-48 be used in demanding temperature conditions?

The specified operating temperature range is -40°C to 60°C. That gives this model a broad environmental range for many commercial and industrial lighting applications.

What protections and durability features does this power supply include?

The SC-60-48 includes protection for short circuit, over load, and over temperature conditions. It also features a full protection aluminum housing and cooling by free air convection.

What input range and efficiency does the Envo SC-60-48 offer?

This model accepts an AC input range of 200-240VAC and includes an active PFC function. Its stated efficiency is up to 83%, which can help support efficient operation in lighting systems.

What warranty is offered for the SC-60-48?

The listed warranty period for this model is 5 years. That can be an important consideration for buyers comparing long-term support across commercial LED power supplies.
