Envo

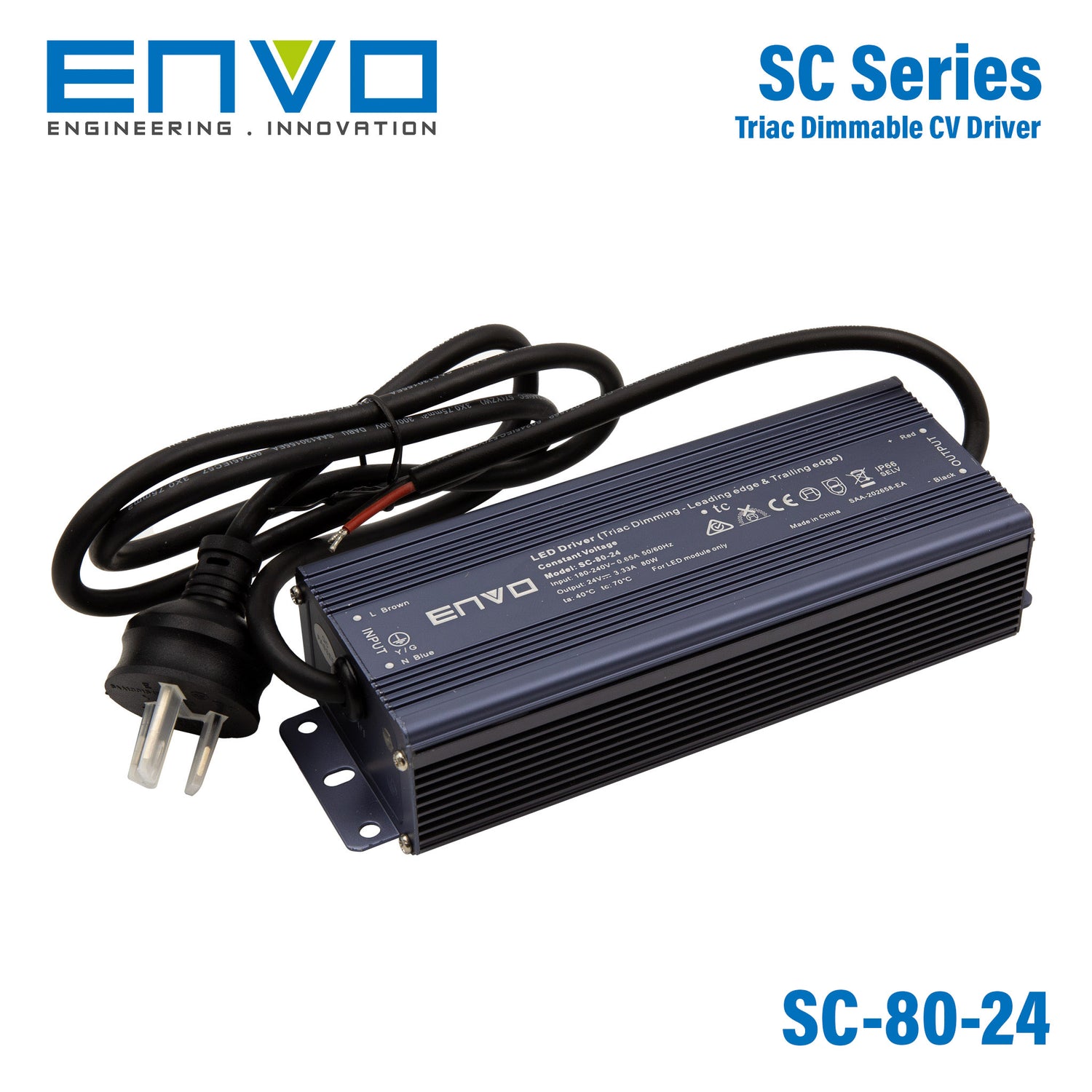

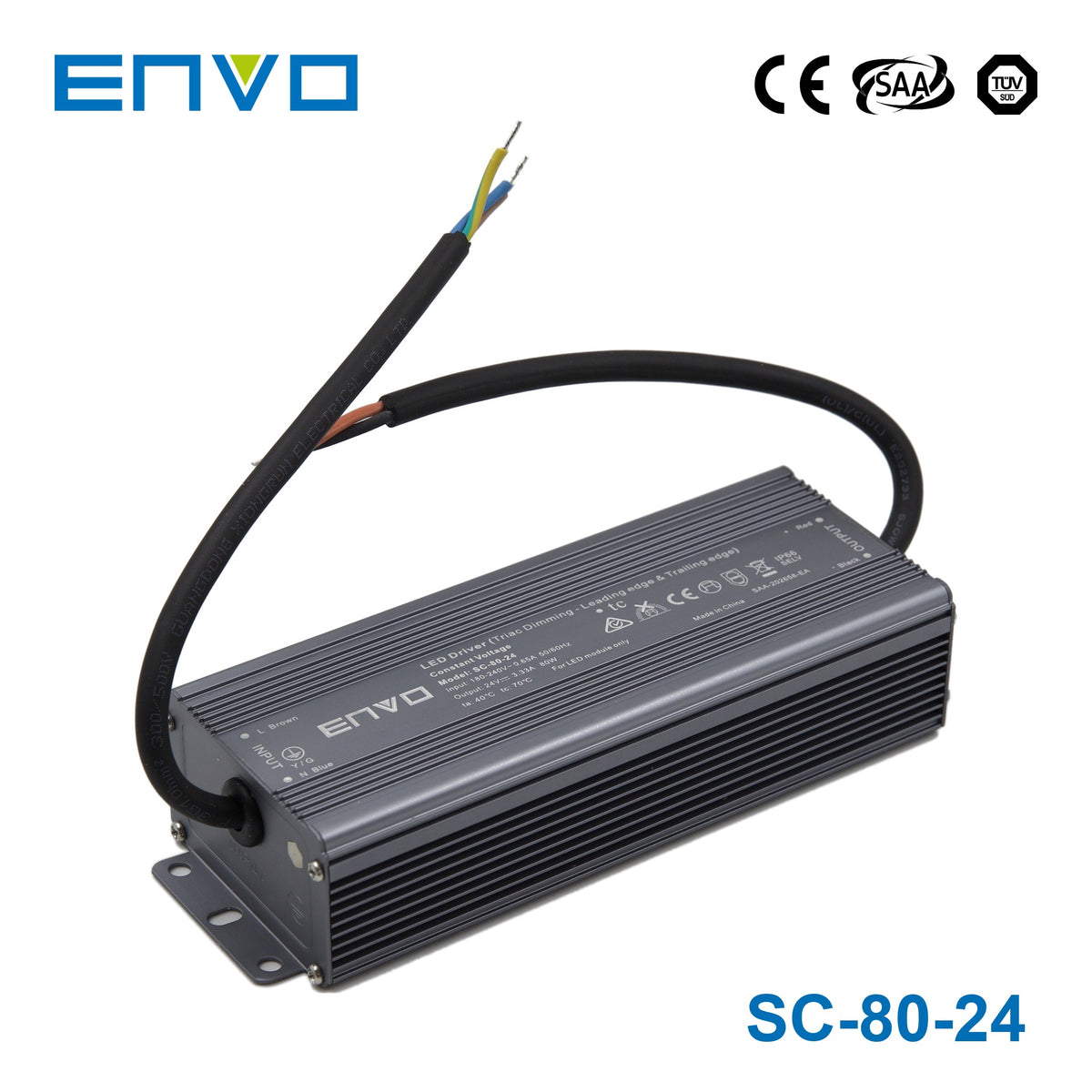

Envo SC-80-24 Power Supply 80W 24V - Triac dimmable 3.33A

triac dimmable
SKU SC-80-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 14 in this family

SC-80-24
In stock
|

Overview

SC-80-24 is the 24V output model of this series: rated current 3.33A, rated power 80W, typical efficiency 83%@230VAC.

Features

  • Output: Constant Voltage
  • Range: 200-240VAC
  • PFC design: Built-in active PFC function
  • Efficiency: Up to 86%
  • Protections: Short circuit/ over load/ over temperature
  • Heat dissipation: Cooling by free air convection
  • Waterproof performance: IP20
  • Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
  • Dimming range: 0 -100%
  • Warranty: 5 years warranty

Specifications

SC-80-24Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate
ENEC / CCC / CE / CB / RoHS / Reach

Output

DC Voltage
24V
Voltage Tolerance
±0.5V
Voltage Regulation
≤1%
Rated Current
3.33A
Rated Power
80W
Load Regulation
≤0.5%

Input

Voltage Range
200-240VAC
Frequency Range
47 - 63Hz
Power Factor (Typ.) @ Full Load
PF≥0.97@200VAC @230VAC @240VAC
Efficiency(Typ.)@ Full Load
83%@230VAC
AC Current (Max.)
0.8A
Inrush Current(Typ.)
56A,280us@230VAC
Leakage Current
<0.5mA

Protection

Short Circuit
Shut down o/p voltage, re-power on to recover after fault condition removed
Over Load
≤120% constant current limiting, recovers automatically after fault condition is removed
Over Temperature
Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops.

Environment

Working TEMP.
-40~+60°C(see below derating curve)
Working Humidity
20 - 95% RH non-condensing
Storage TEM.,Humidity
-40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient
±0.03%/°C (0 - 50°C)
Vibration
10~500Hz, 5G 12min/1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC I/P-FG:0.5KVAC
Isolation resistance
I/P-O/P:100MΩ/ 500VDC / 25°C / 70%RH
EMC Emission
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight
1.04kg
Dimension
226*69.8*24mm(L*W*H)
Packing
355*285*170mm 10pcs/CTN 14.41KG/CTN
Test conditions and notes2
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
  2. 2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

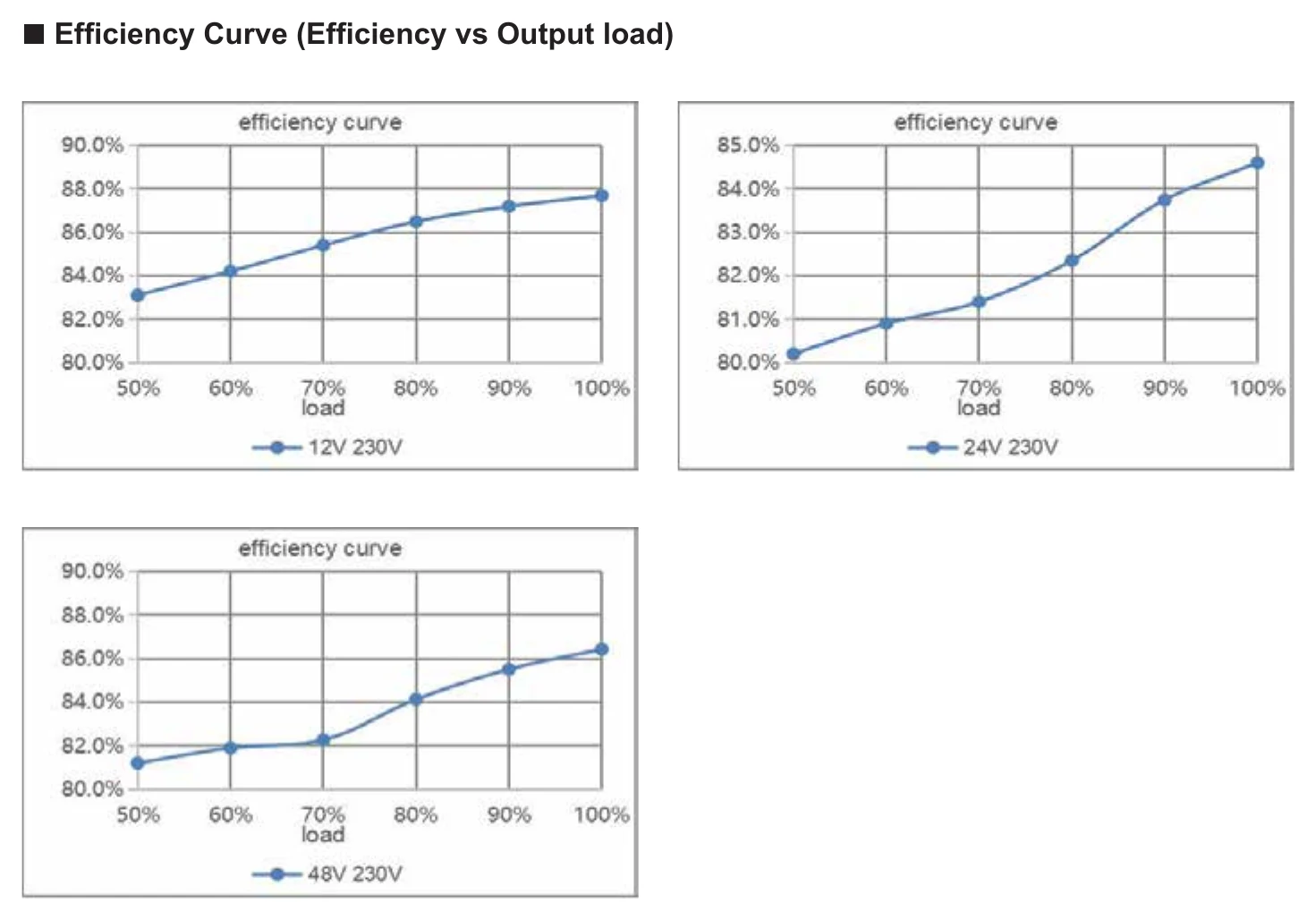

SC-80-24 Efficiency Curve (Efficiency vs Output load)
Efficiency Curve (Efficiency vs Output load)

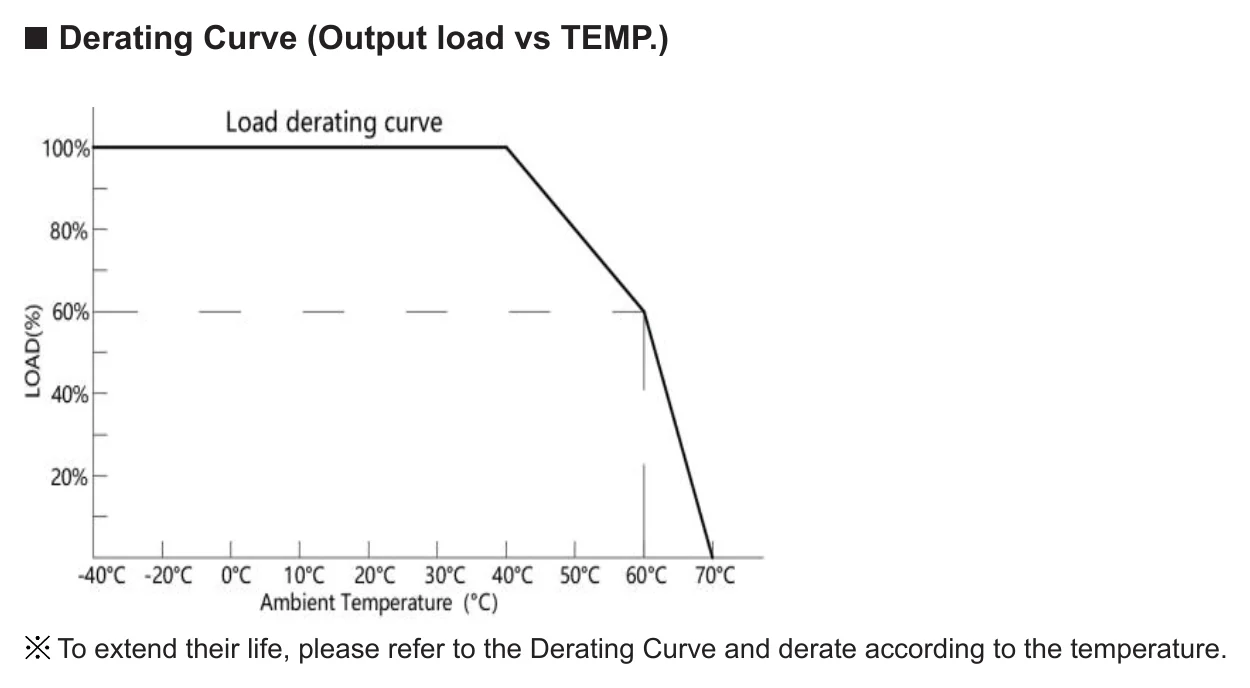

SC-80-24 Derating Curve (Output load vs TEMP.)
Derating Curve (Output load vs TEMP.)

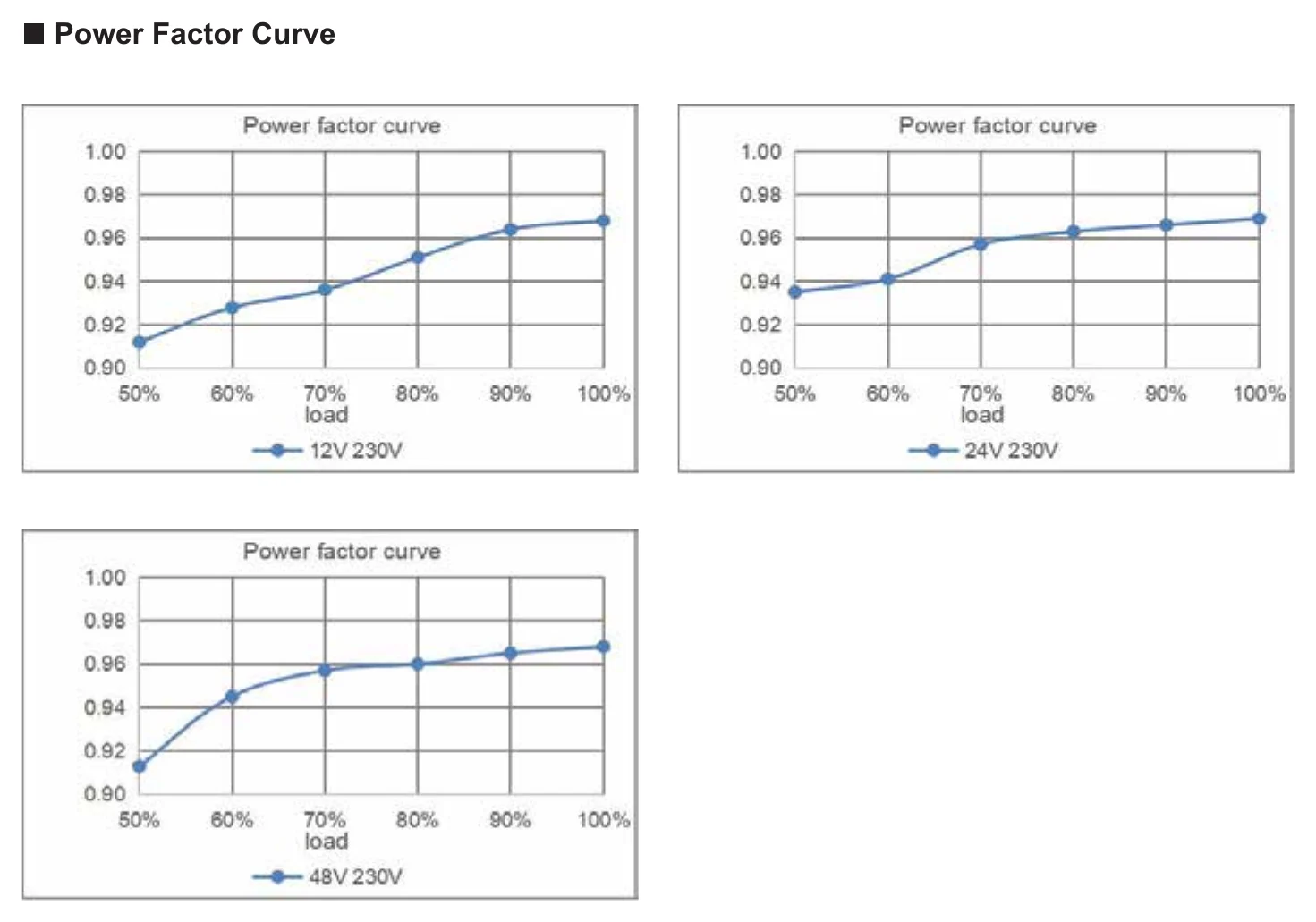

SC-80-24 Power Factor Curve
Power Factor Curve

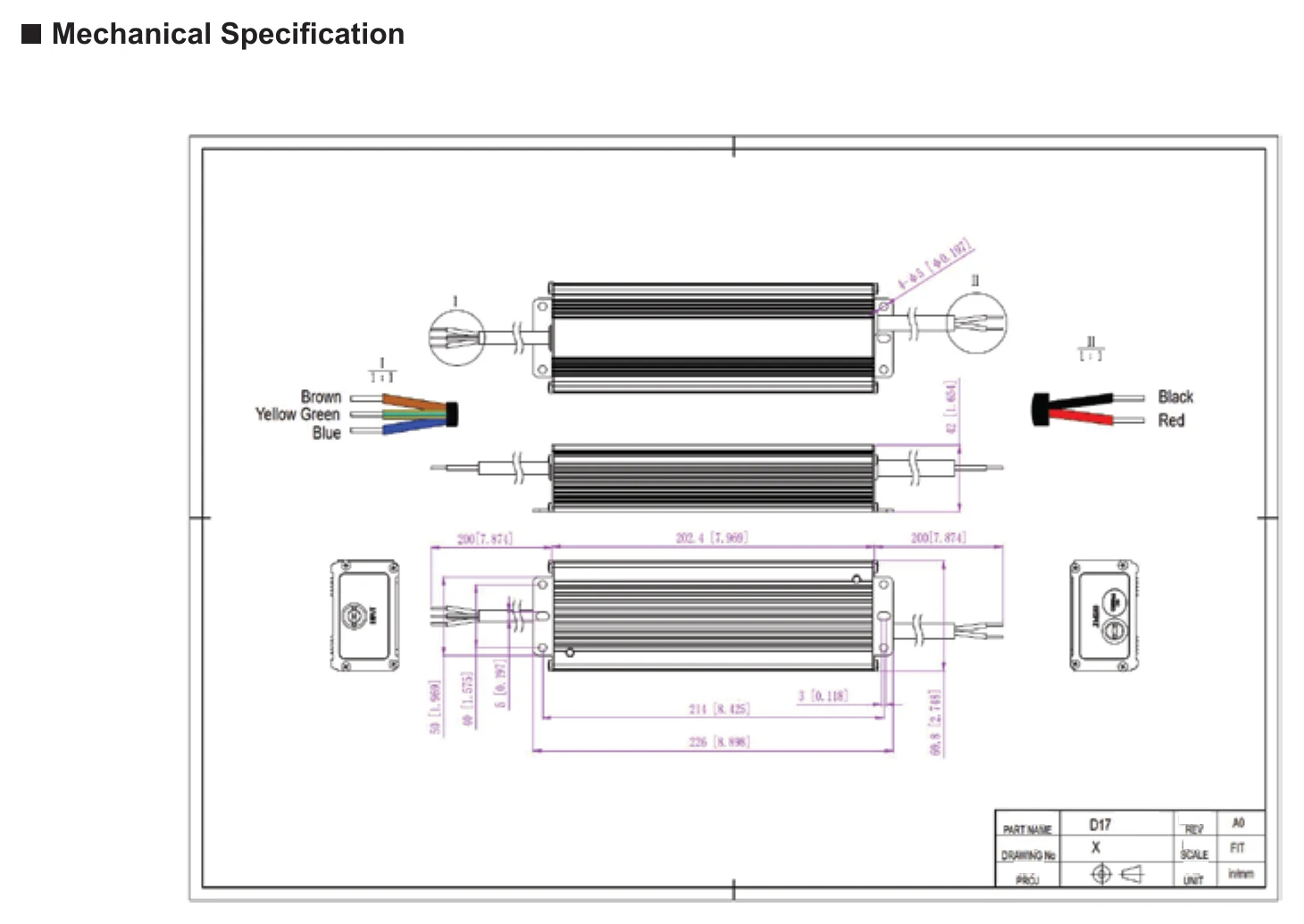

SC-80-24 Mechanical Specification
Mechanical Specification

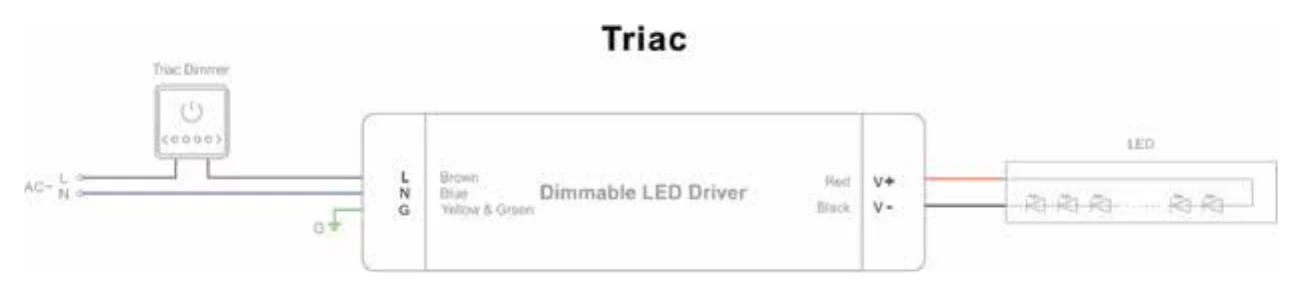

SC-80-24 TRIAC/Phase cut dimming
TRIAC/Phase cut dimming

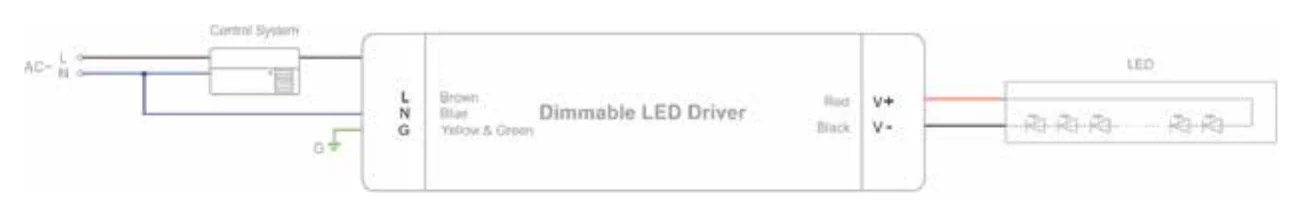

SC-80-24 TRIAC/Phase cut dimming (2)
TRIAC/Phase cut dimming (2)

Typical applications

  • Suitable for the application of LED lighting

Downloads

FAQ

What type of output does the Envo SC-80-24 provide?

The Envo SC-80-24 is a constant voltage power supply with a 24V DC output. It is rated at 80W with a rated current of 3.33A, making it suitable for 24V LED lighting applications that need a stable constant-voltage supply.

Is the Envo SC-80-24 dimmable?

Yes, this model supports phase dimming and works with leading edge, MLV, trailing edge, ELV, and TRIAC dimmers. Its product description also states strong compatibility and flicker-free dimming, which is useful where smoother dimming performance matters.

What kinds of applications is the SC-80-24 intended for?

This model is described as suitable for LED lighting applications. Because it is a 24V constant voltage unit with phase dimming support, it fits projects where dimmable 24V LED loads are required within its 80W rating.

Can the Envo SC-80-24 be used in demanding temperature conditions?

The specified operating temperature range is -40°C to 60°C. That range makes it a practical option for environments that see both low and high ambient temperatures, provided the overall application stays within the product's rated limits.

What protection features does the Envo SC-80-24 include?

According to the product data, the SC-80-24 includes protection for short circuit, over load, and over temperature. It also uses a full protection aluminum housing and free air convection cooling to support reliable operation.

How does the SC-80-24 compare with a non-dimmable 24V power supply?

The main difference is that the SC-80-24 adds phase dimming capability while still providing a 24V constant voltage output. For buyers who need compatibility with leading edge, MLV, trailing edge, ELV, and TRIAC dimmers and flicker-free dimming behavior, this model is more suitable than a standard non-dimmable 24V supply.

What warranty is offered with the Envo SC-80-24?

The listed warranty period for this model is 5 years. That is a meaningful specification for commercial and trade buyers who want longer coverage on a dimmable LED power supply.
