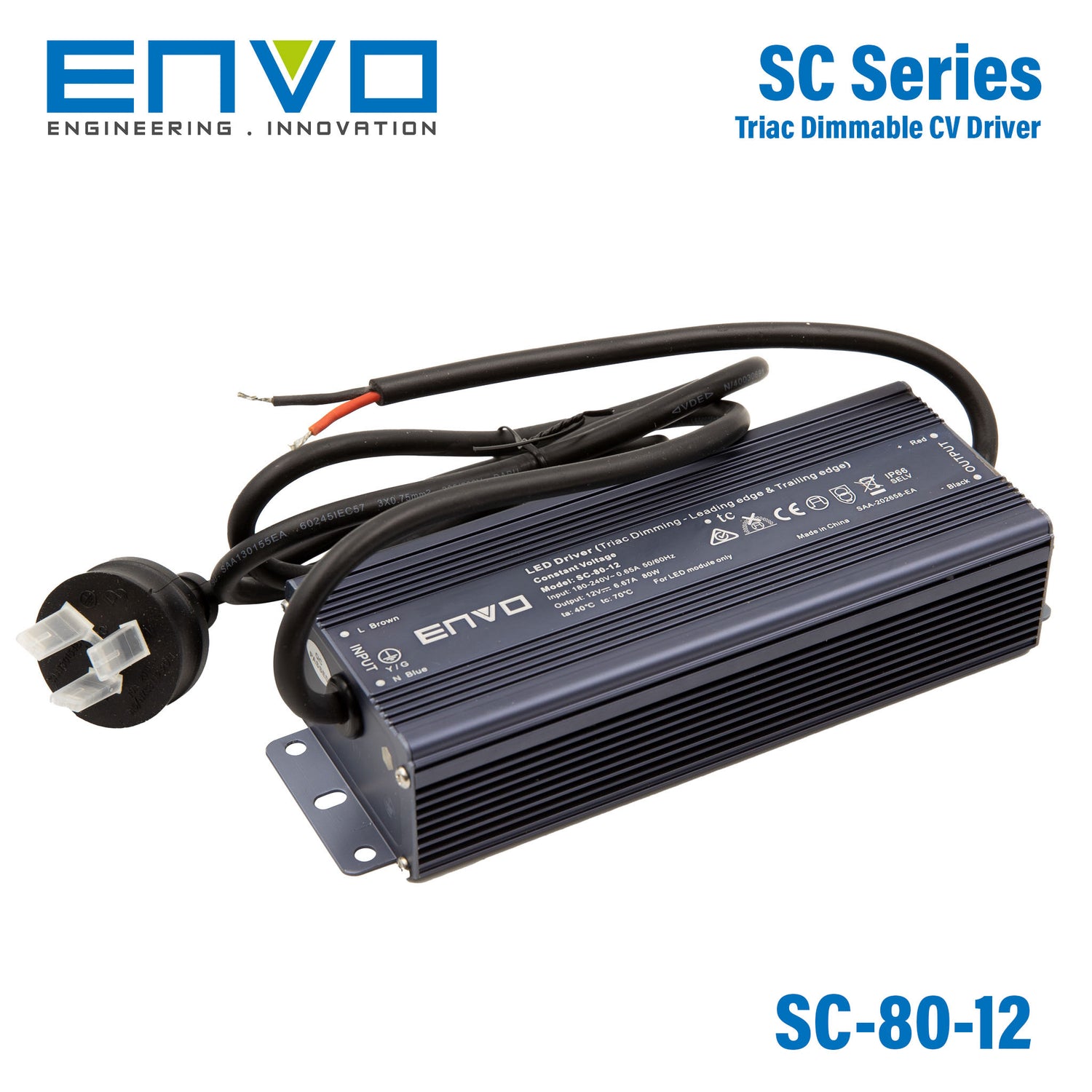

Envo SC-80-12 Power Supply 80W 12V - Triac dimmable
Please Login for Pricing
Description
Description
- Output constant voltage
- Universal AC input:180-240VA
- High efficiency :up to 87%
- Protections:short circuit/over loading/over current
- Full protection aluminum housing
- Easy installation
- Cooling by free air convection
- Work with leading edge TRIAC dimmers
- Strong compatibility
- flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating80 Watt
-
Output Voltage12 Volt
-
Rated Current6.67 Ampere
-
Input Voltage180V~240V
-
Standards MetCE,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length23 cm
-
Width7 cm
-
Height4.6 cm
-
Weight1.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED application is the Envo SC-80-12 designed for?
The Envo SC-80-12 is an 80W constant-voltage power supply with a 12V output, making it suitable for 12V LED lighting applications. It is also described as suitable for moving sign applications where stable 12V constant-voltage output is required.
Is the Envo SC-80-12 dimmable?
Yes. This model is TRIAC dimmable and is designed to work with leading edge TRIAC dimmers. The product description also notes strong compatibility and flicker-free dimming performance.
What are the main electrical specifications of the Envo SC-80-12?
This model is rated at 80W with a 12V output and a rated current of 6.67A. It supports a universal AC input range of 180-240V AC and is listed with efficiency up to 87%.
What protection features does the Envo SC-80-12 include?
The Envo SC-80-12 includes protection for short circuit, over loading, and over current conditions. It also uses a full protection aluminum housing intended for lighting power supply applications.
Can the Envo SC-80-12 be used in demanding temperature conditions?
This model is rated for operation from -40°C to 60°C. That range makes it a practical option for environments where lighting equipment may be exposed to cold starts or elevated ambient temperatures.
What makes the Envo SC-80-12 a good fit compared with a non-dimmable 12V power supply?
A key difference is that the SC-80-12 supports AC phase-cut dimming with leading edge TRIAC dimmers, while a non-dimmable 12V power supply would not offer that control capability. This model also emphasizes flicker-free dimming and compatibility for dimmed LED lighting applications.
What warranty is offered for the Envo SC-80-12?
The listed warranty period for this model is 5 years. That can be useful for buyers evaluating long-term reliability and lifecycle expectations for commercial LED lighting projects.
Other SC-80 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Envo SC-80-24 Power Supply 80W 24V - Triac dimmable | 80W | 24V | 3.33A | IP66 | View |
