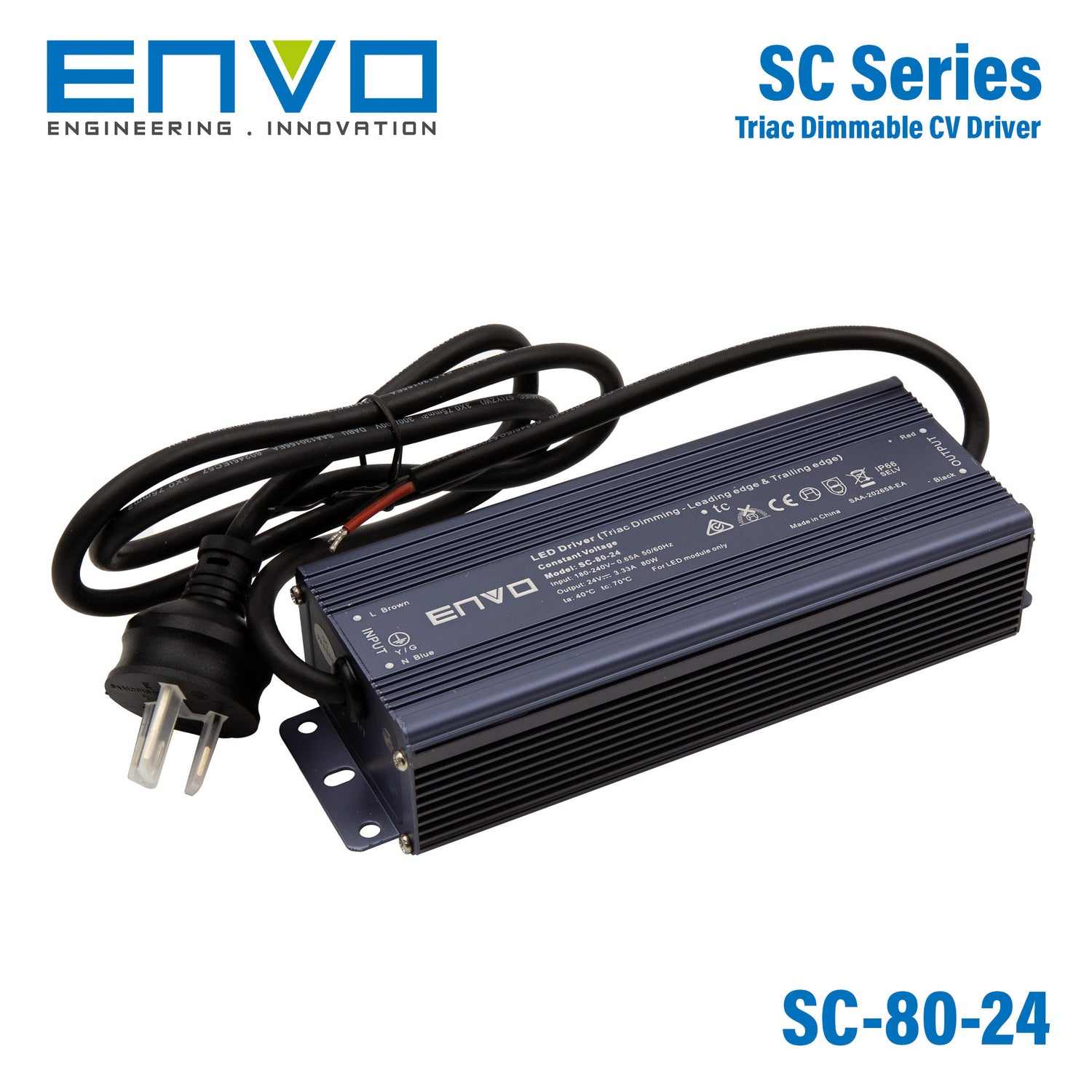

Envo SC-80-24 Power Supply 80W 24V - Triac dimmable 3.33A
Please Login for Pricing
Description
Description
- Output constant voltage
- Universal AC input:180-240VA
- High efficiency :up to 87%
- Protections:short circuit/over loading/over current
- Full protection aluminum housing
- Easy installation
- Cooling by free air convection
- Work with leading edge TRIAC dimmers
- Strong compatibility
- flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating80 Watt
-
Output Voltage24 Volt
-
Rated Current3.33 Ampere
-
Input Voltage180V~240V
-
Standards MetCE,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length23 cm
-
Width7 cm
-
Height4.6 cm
-
Weight1.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of output does the Envo SC-80-24 provide?
The Envo SC-80-24 is a constant voltage power supply with a 24V DC output. It is rated at 80W with a rated current of 3.33A, making it suitable for 24V LED lighting applications that need a stable constant-voltage supply.
Is the Envo SC-80-24 dimmable?
Yes, this model is TRIAC dimmable and is designed to work with leading edge TRIAC dimmers. Its product description also states strong compatibility and flicker-free dimming, which is useful where smoother dimming performance matters.
What kinds of applications is the SC-80-24 intended for?
This model is described as suitable for LED lighting and moving sign applications. Because it is a 24V constant voltage unit with TRIAC dimming support, it fits projects where dimmable 24V LED loads are required within its 80W rating.
Can the Envo SC-80-24 be used in demanding temperature conditions?
The specified operating temperature range is -40°C to 60°C. That range makes it a practical option for environments that see both low and high ambient temperatures, provided the overall application stays within the product's rated limits.
What protection features does the Envo SC-80-24 include?
According to the product data, the SC-80-24 includes protection for short circuit, over loading, and over current. It also uses a full protection aluminum housing and free air convection cooling to support reliable operation.
How does the SC-80-24 compare with a non-dimmable 24V power supply?
The main difference is that the SC-80-24 adds TRIAC dimming capability while still providing a 24V constant voltage output. For buyers who need compatibility with leading edge TRIAC dimmers and flicker-free dimming behavior, this model is more suitable than a standard non-dimmable 24V supply.
What warranty is offered with the Envo SC-80-24?
The listed warranty period for this model is 5 years. That is a meaningful specification for commercial and trade buyers who want longer coverage on a dimmable LED power supply.
