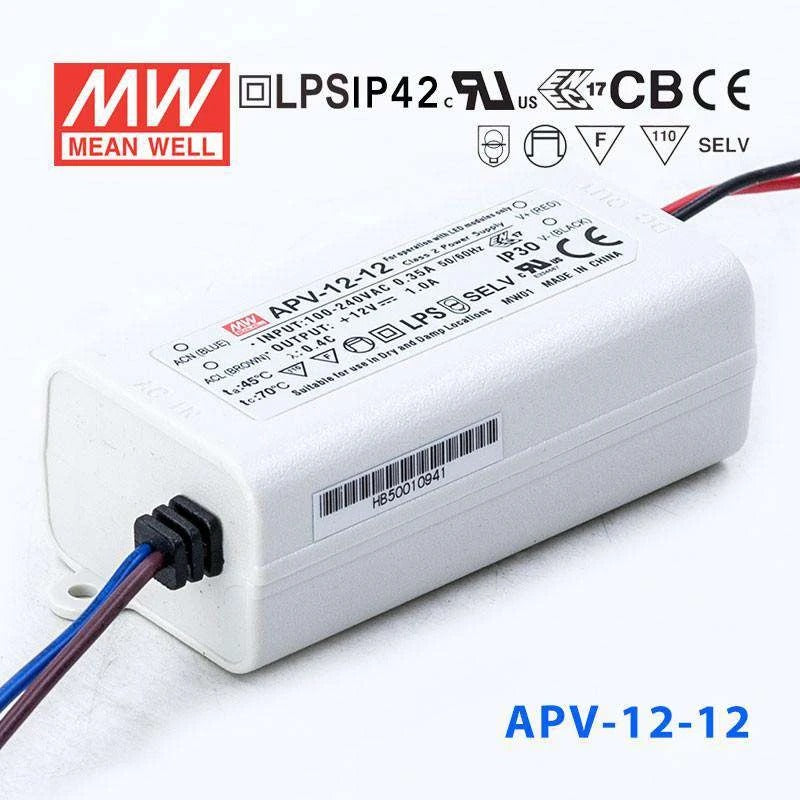

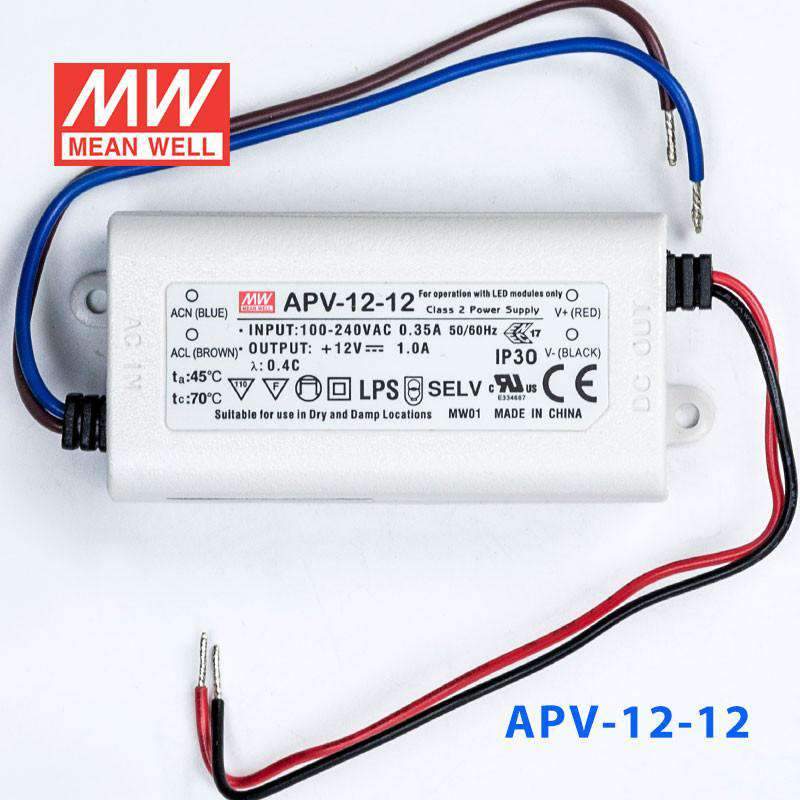

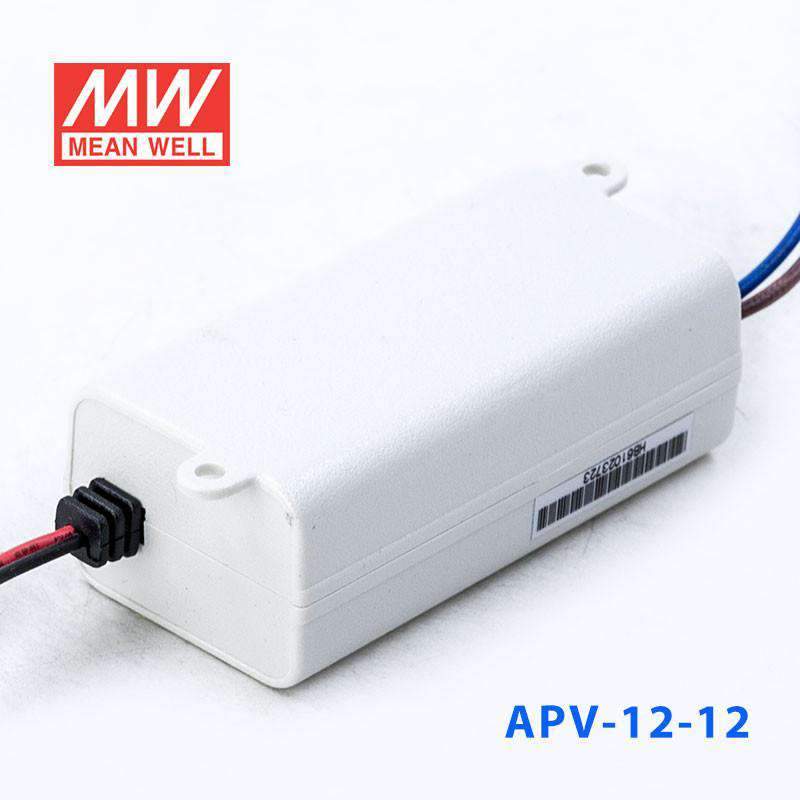

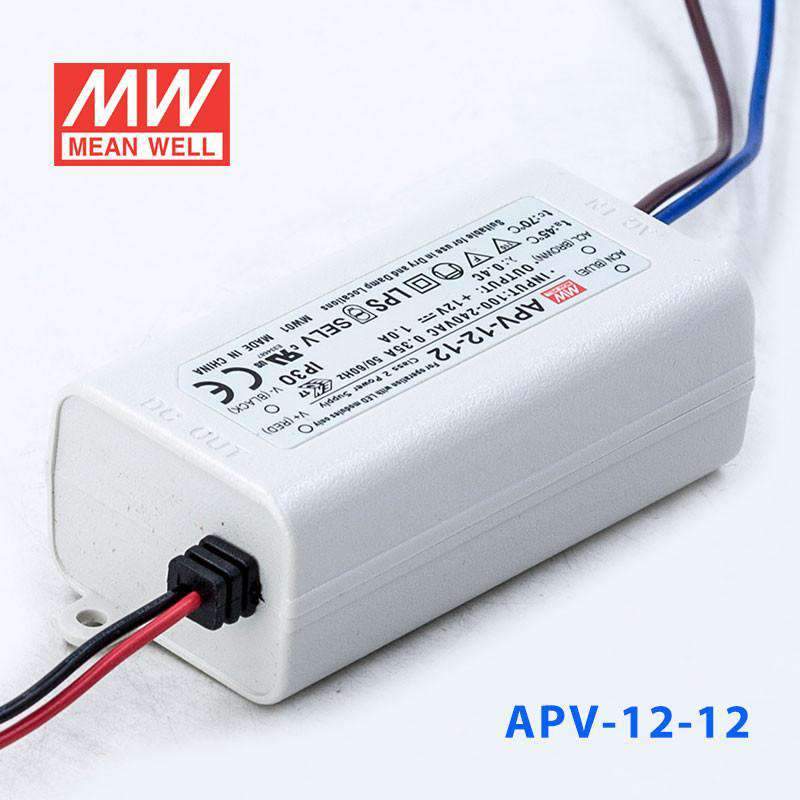

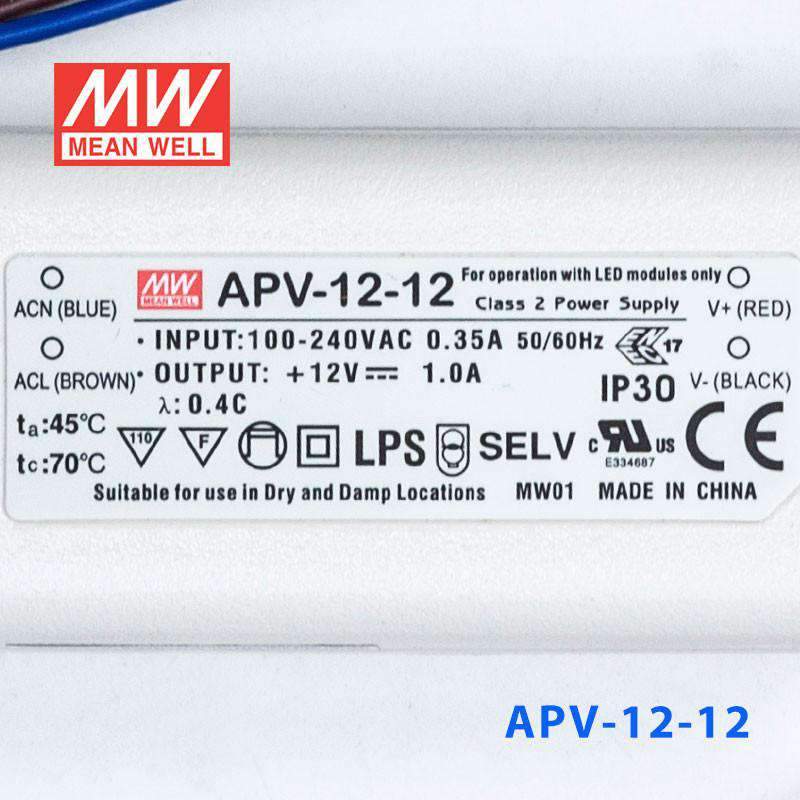

Mean Well APV-12-12 Power Supply 12W 12V 1A
4.6 (11 reviews)
Mean Well APV-12-12 Power Supply 12W 12V 1A
Log in to see priceOverview
APV-12-12 is the 12V output model of this series: rated current 1A, rated power 12W, typical efficiency 82%.
Features
- Constant voltage design
- Universal AC input / Full range
- Protections: Short circuit / Over load / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- Small and compact size
- Class β ‘ power unit, no FG
- Class 2 power unit
- Pass LPS
- IP42 design
- Display devices for decorative & advertising accessories (Note.7)
- General-purpose electronics operated in dusty or damp environments
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 1A
- CURRENT RANGE
- 0 ~ 1A
- RATED POWER
- 12W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE TOLERANCENote.3
- Β±5.0%
- LINE REGULATION
- Β±1.0%
- LOAD REGULATION
- Β±2.0%
- SETUP, RISE TIMENote.6
- 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 15ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 82%
- AC CURRENT
- 0.2A/230VAC 0.35A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 70A(twidth=185ΞΌs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER LOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.8 ~ 16V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70β(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80β, 10 ~ 95% RH
- TEMP. COEFFICIENT
- Β±0.03%/β (0 ~ 50β)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25β/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 7488.9K hrs min. Telcordia SR-332 (Bellcore) ; 1132.5K hrs min. MIL-HDBK-217F (25β)
- DIMENSION
- 77*40*29(L*W*H)
- PACKING
- 0.08Kg; 120pcs/11.8Kg/1.06CUFT
Certifications & ratings
- Marked features
- LPS
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25β of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. Please connect L line to the positive pole and N line to the negative pole under DC input.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 8. The ambient temperature derating of 3.5β/1000m with fanless models and of 5β/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Downloads
FAQ
Can the APV-12-12 power a 12V LED strip for under-cabinet lighting?
Yes. The APV-12-12 outputs 12V at up to 1A, giving a maximum of 12W. It suits short runs of 12V LED strip in enclosed spaces such as under-cabinet or display-case lighting. Keep the total strip load at or below 12W.
How many meters of 12V LED strip can the APV-12-12 drive?
The APV-12-12 delivers 12W at 12V. Dividing 12W by your strip's rated power per meter gives the maximum length β for example, 12W Γ· 4.8 W/m equals about 2.5 m. Always check your strip's rated power per meter before sizing the run.
Is the APV-12-12 suitable for outdoor or damp-location use?
The APV-12-12 carries an IP42 rating, which protects against solid objects larger than 1 mm and dripping water falling at an angle up to 15Β°. It is not rated for direct outdoor exposure, rain, or splash environments. For outdoor or wet-location LED signage, a driver rated IP65 or higher is required.
How does the APV-12-12 differ from the APV-12-15 and APV-12-24 in the same wattage family?
All three share the same 12W power class and identical 77.0 Γ 40.0 Γ 29.0 mm housing. The APV-12-12 outputs 12V at 1A; the APV-12-15 outputs 15V at 0.8A; the APV-12-24 outputs 24V at 0.5A. Select based on the voltage your LED strip or luminaire requires.
What input voltage range does the APV-12-12 accept?
The APV-12-12 accepts 90β264VAC, covering standard mains voltages worldwide including 100V (Japan), 120V (North America), and 230β240V (Europe and Australia). No manual voltage switching is needed.
