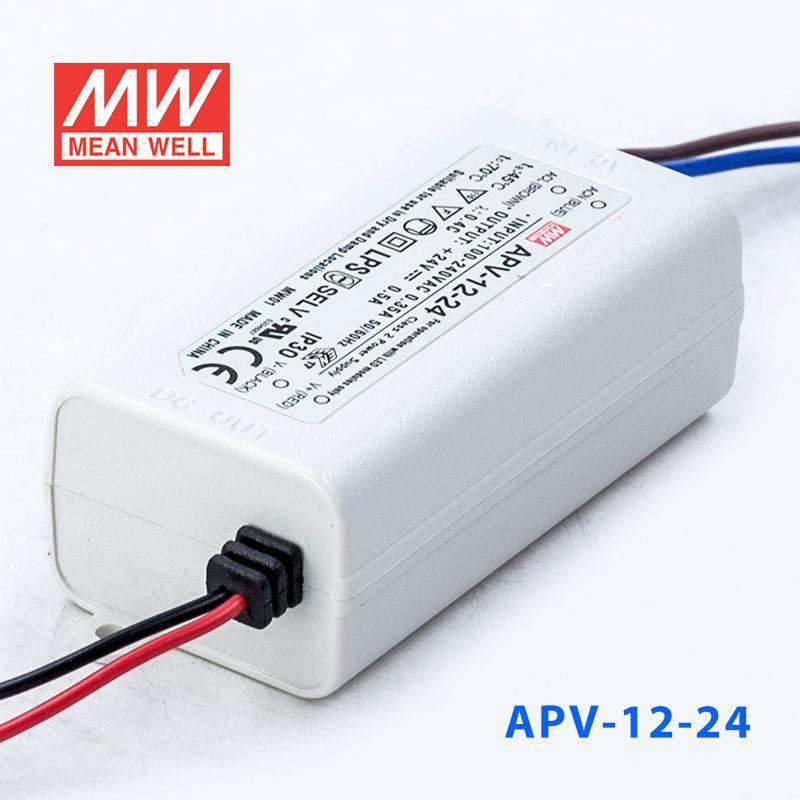

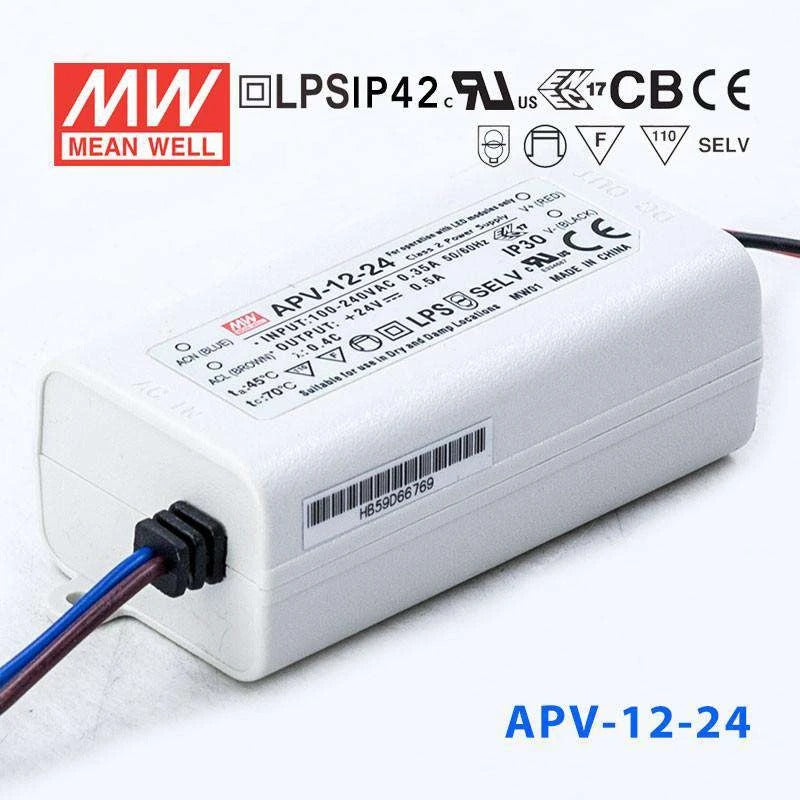

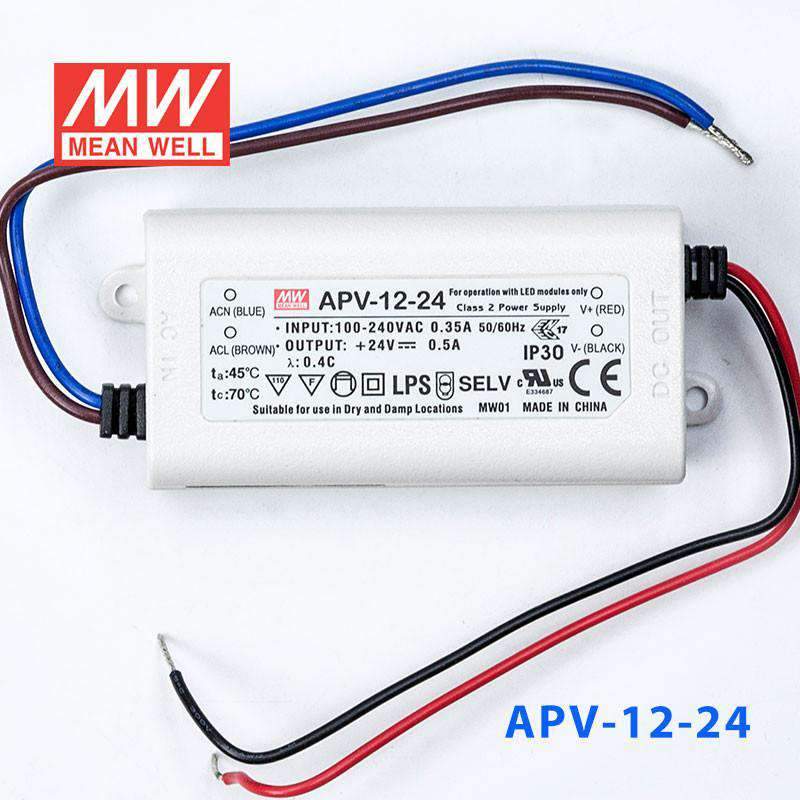

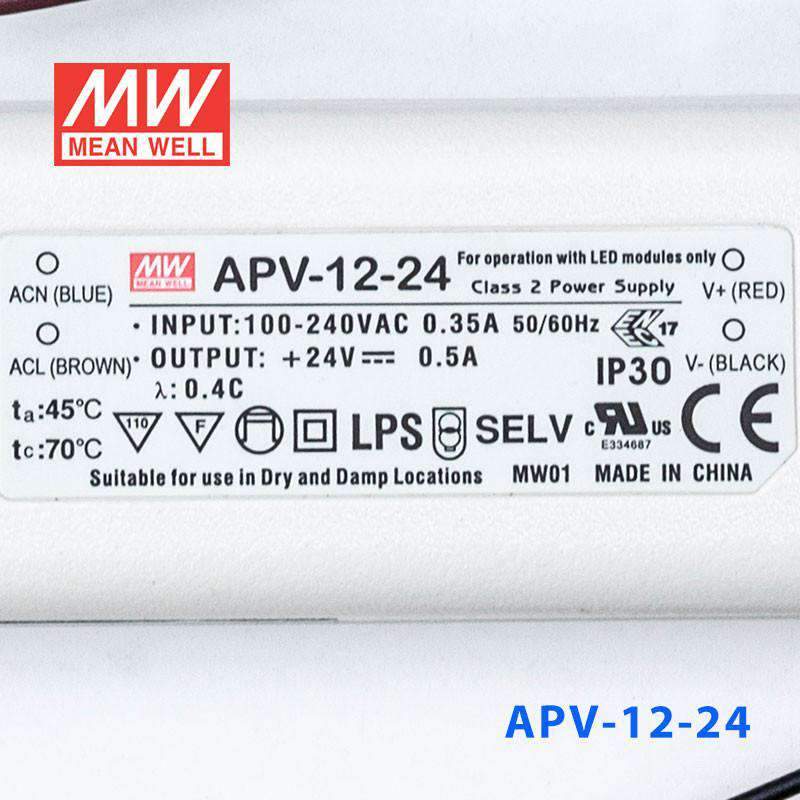

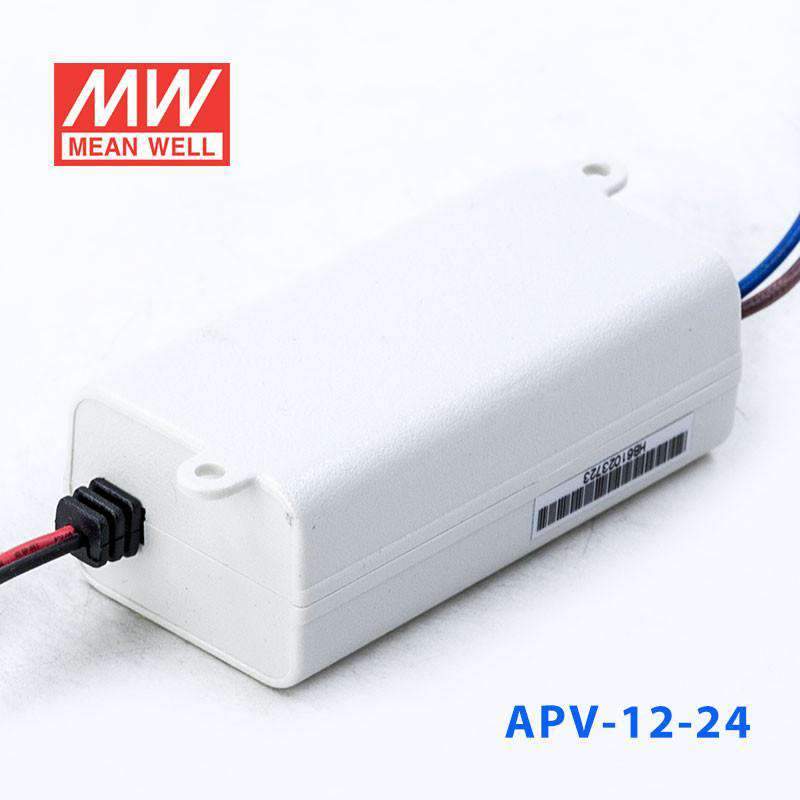

Mean Well APV-12-24 Power Supply 12W 24V

Class II design, low cost, small and compact, IP42

SKU:

APV-12-24

Model

8W 24V

SKU: APV-8-24

12W 24V

SKU: APV-12-24

16W 24V

SKU: APV-16-24

25W 24V

SKU: APV-25-24

35W 24V

SKU: APV-35-24

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-12 is a 12W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: Note.8 UL8750,CSA C22.2 No.250.0-08, ENEC EN61347-1,EN61347-2-13,EN62384 Independent,IP 42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

12 Watt
Output Voltage

24 Volt
Rated Current

0.5 Ampere
Input Voltage

90V~264V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the APV-12-24 drive a 24V LED strip for retail display or signage?

Yes. The APV-12-24 outputs 24V at up to 0.5A, for a maximum of 12W. It is appropriate for short 24V LED strip runs used in retail display cases, menu board backlighting, or small decorative signage where the total load is 12W or less.

How long a run of 24V LED strip can the APV-12-24 support?

The APV-12-24 delivers 12W at 24V. At a strip consumption of 6 W/m, that equates to approximately 2 m of strip. Divide 12W by your strip's rated power per meter to calculate your specific limit, and check your strip's rated power per meter before sizing.

What are the differences between the APV-12-24 and its 24V siblings in the APV family?

The APV-12-24 provides 12W at 24V and 0.5A in a 77.0 × 40.0 × 29.0 mm housing. The APV-16-24 steps up to 16.08W at 24V and 0.67A in the same-size enclosure, and the APV-25-24 provides 25.2W at 24V and 1.05A in a larger 84.0 × 57.0 × 29.5 mm housing. All accept 90–264VAC input.

Does the APV-12-24 carry UL certification for use in North American projects?

Yes. The APV-12-24 carries CB, CCC, CE, EAC, ENEC, and UL certifications, making it suitable for North American and international LED lighting projects. It accepts 90–264VAC input, covering the full range of mains voltages globally.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-12-12 Power Supply 12W 12V	12W	12V	1A	Indoor	View
Mean Well APV-12-5 Power Supply 10W 5V	10W	5V	2A	Indoor	View
Mean Well APV-12-15 Power Supply 12W 15V	12W	15V	0.8A	Indoor	View
