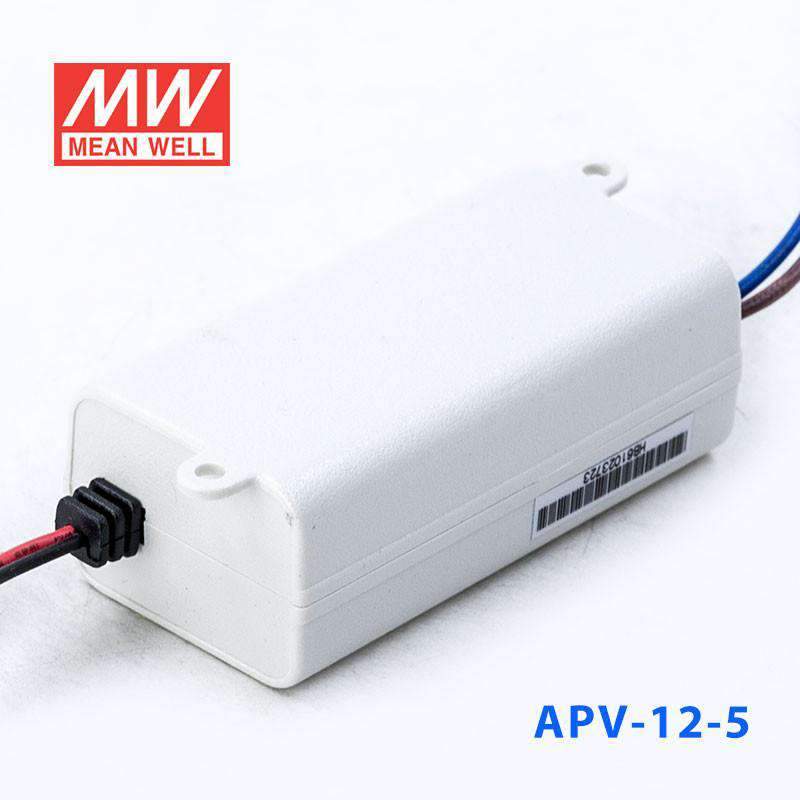

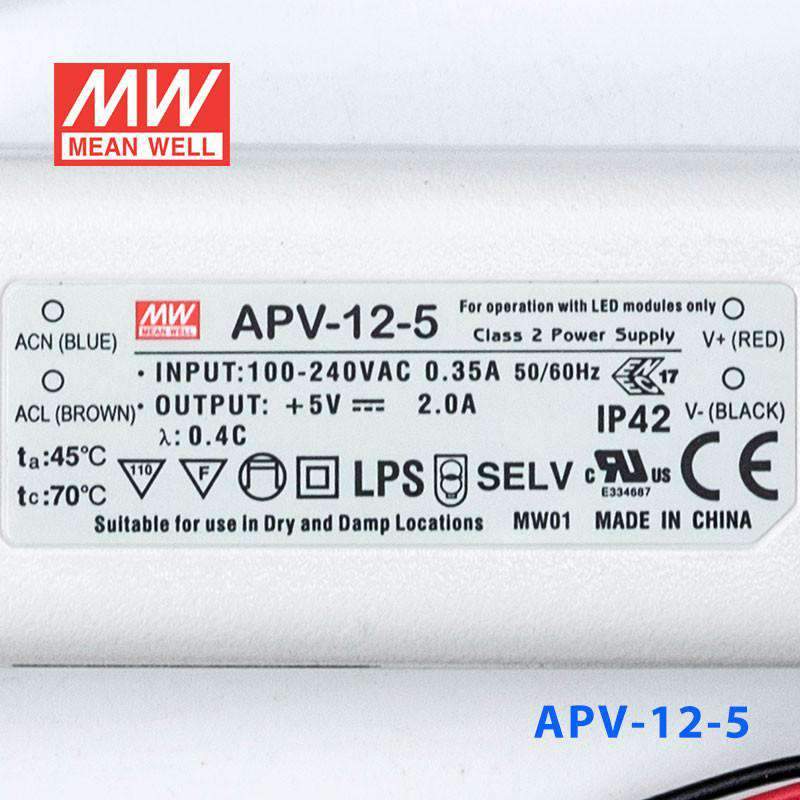

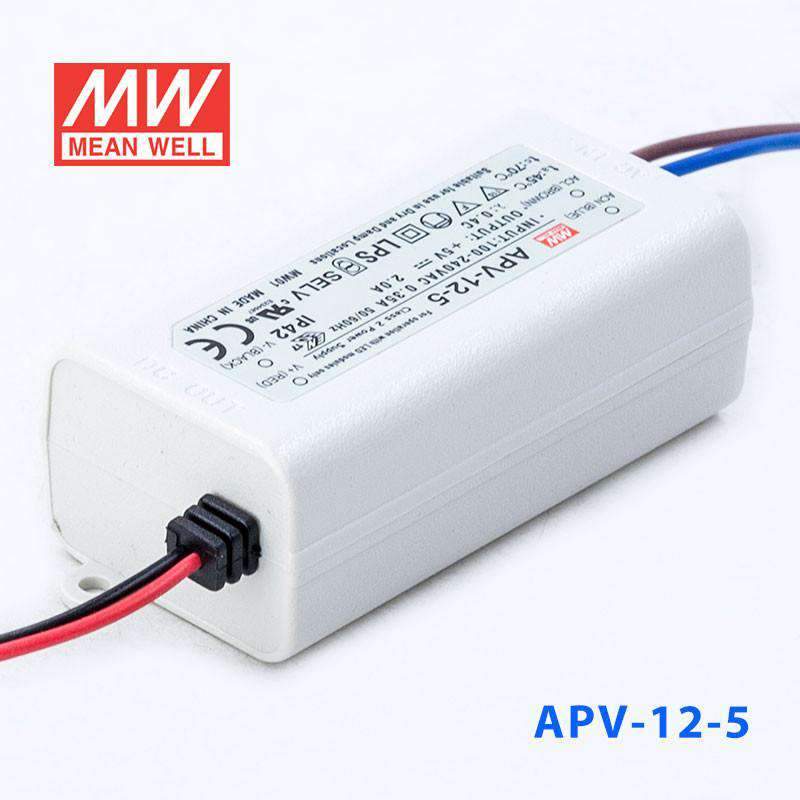

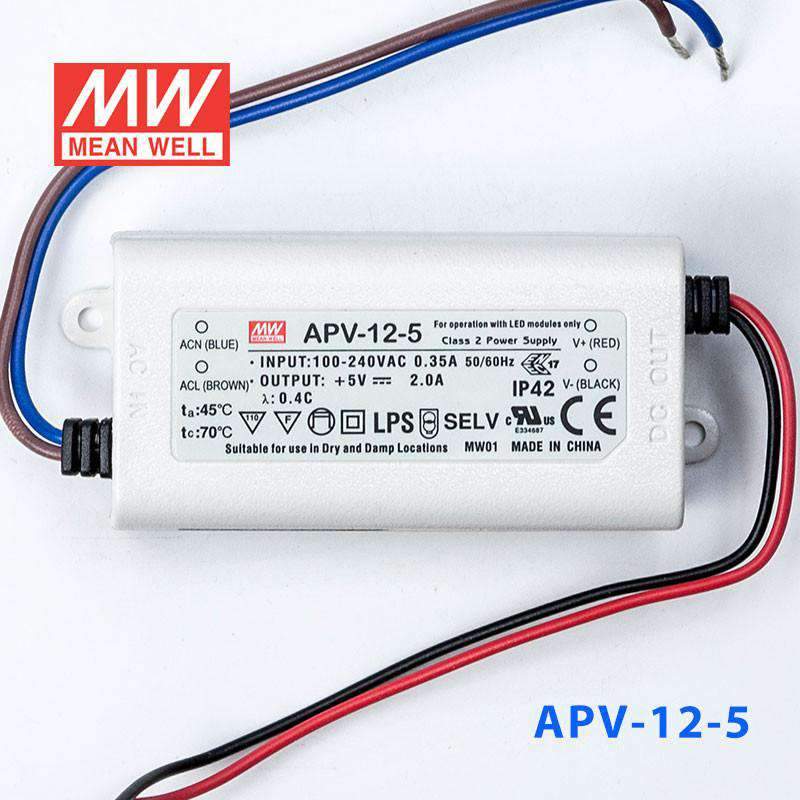

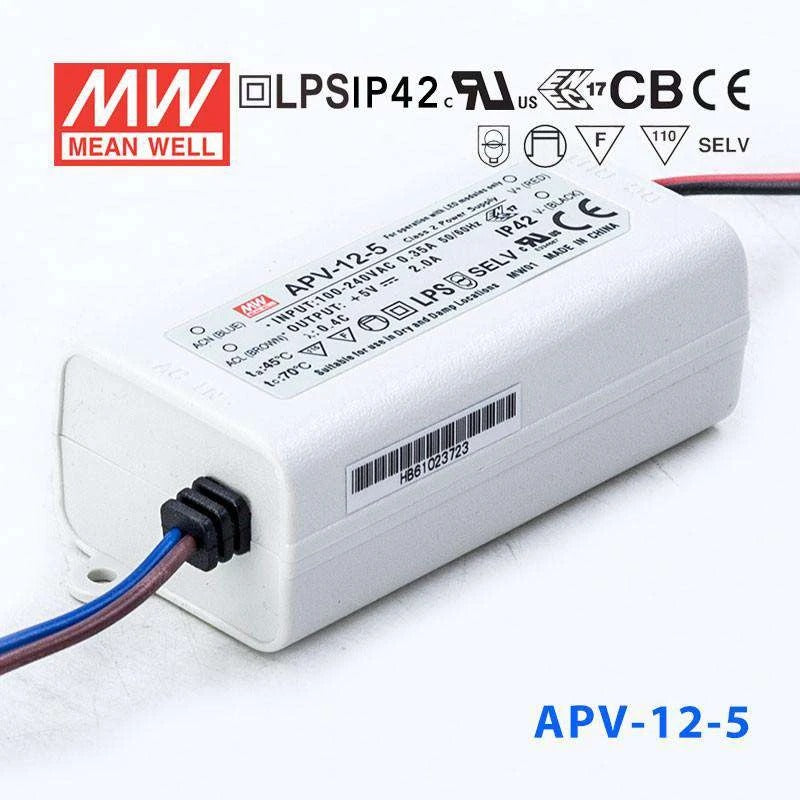

Mean Well APV-12-5 Power Supply 10W 5V

Class II design, low cost, small and compact, IP42

SKU:

APV-12-5

Model

8W 5V

SKU: APV-8-5

12W 5V

SKU: APV-12-5

16W 5V

SKU: APV-16-5

25W 5V

SKU: APV-25-5

35W 5V

SKU: APV-35-5

Product variants

Please for Pricing

Notify me when it's back in stock

Description

The APV-12 is a 12W Mean Well. power converter. and an input range of 90~264VAC.

Key Features

✓ Input voltage range: 90~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: Note.8 UL8750,CSA C22.2 No.250.0-08, ENEC EN61347-1,EN61347-2-13,EN62384 Independent,IP 42
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

10 Watt
Output Voltage

5 Volt
Rated Current

2 Ampere
Input Voltage

90V~264V
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What LED lighting use cases fit a 5V, 10W constant-voltage driver?

The APV-12-5 outputs 5V at 2A for a maximum of 10W. It is suited to 5V LED pixel strips, addressable LED modules such as WS2812-style strips, and small 5V LED signage panels. Confirm your LED product operates at 5V and that the total load does not exceed 10W.

How does the APV-12-5 compare to the APV-16-5 and APV-25-5 for 5V LED applications?

The APV-12-5 provides 10W at 5V and 2A. The APV-16-5 increases output to 13W at 5V and 2.6A in the same 77.0 × 40.0 × 29.0 mm housing. The APV-25-5 steps up further to 17.5W at 5V and 3.5A in a larger 84.0 × 57.0 × 29.5 mm enclosure. Choose based on the wattage your LED load requires.

Is the APV-12-5 approved for use in moisture-prone environments?

The APV-12-5 is rated IP42, which provides protection against solid particles larger than 1 mm and vertically dripping water only. It is not suitable for outdoor, wet, or high-humidity environments without additional enclosure protection. For damp or wet locations, specify a driver with at least an IP65 rating.

How many meters of 5V addressable LED strip can the APV-12-5 support?

The APV-12-5 delivers 10W at 5V. At a typical 5V addressable strip consumption of 5 W/m at full white, that supports roughly 2 m. Divide 10W by your strip's rated power per meter to find your specific limit, and verify your strip's rated power per meter before purchasing.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-12-24 Power Supply 12W 24V	12W	24V	0.5A	Indoor	View
Mean Well APV-12-12 Power Supply 12W 12V	12W	12V	1A	Indoor	View
Mean Well APV-12-15 Power Supply 12W 15V	12W	15V	0.8A	Indoor	View
