Mean Well APV-12-24 Power Supply 12W 24V 500mA
4.6 (11 reviews)

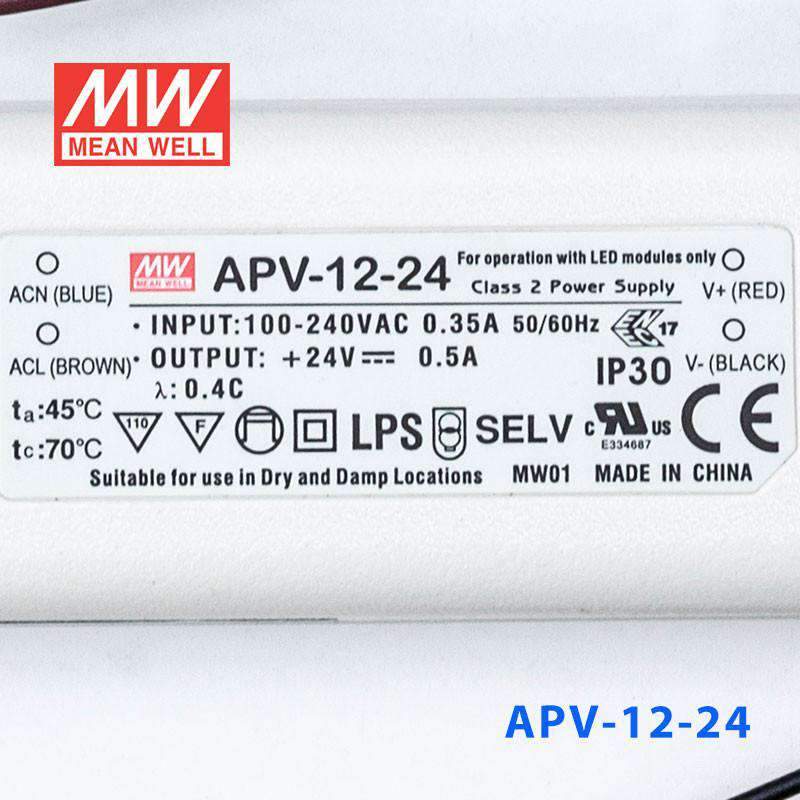

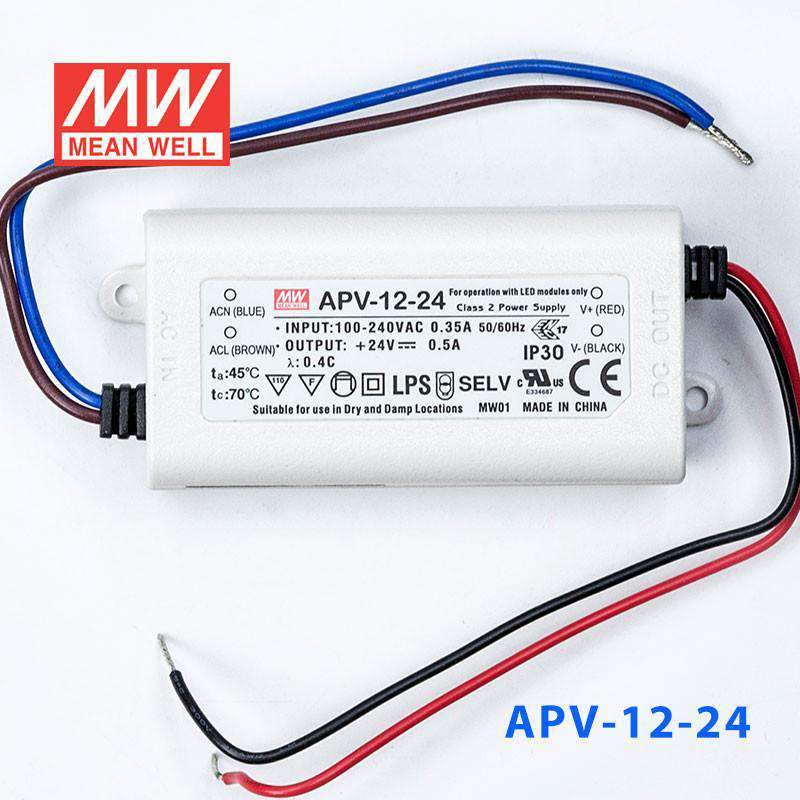

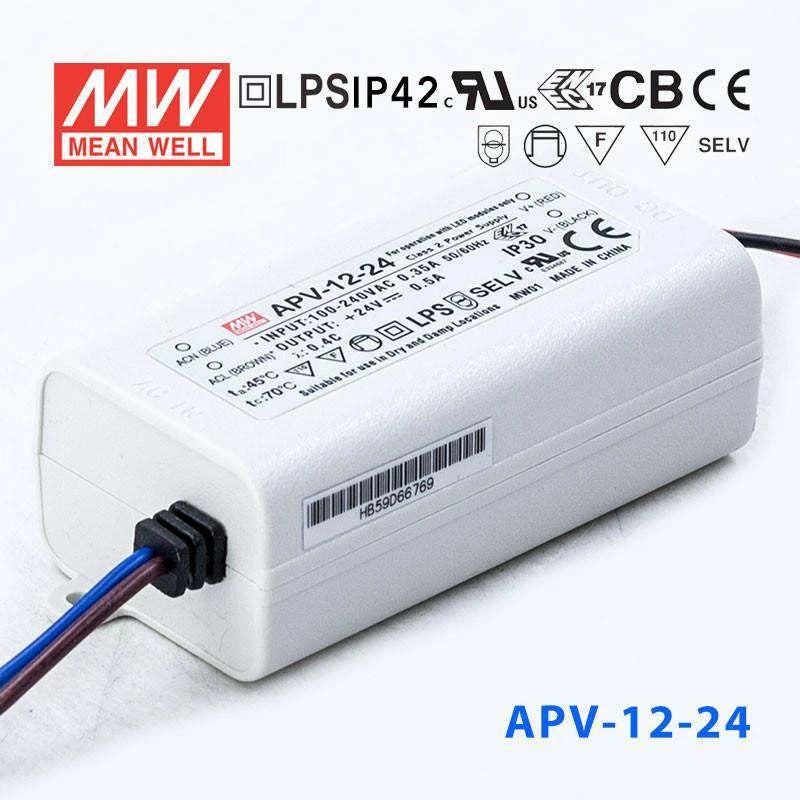

Mean Well APV-12-24 Power Supply 12W 24V 500mA
Log in to see priceOverview
APV-12-24 is the 24V output model of this series: rated current 0.5A, rated power 12W, typical efficiency 84%.
Features
- Constant voltage design
- Universal AC input / Full range
- Protections: Short circuit / Over load / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- Small and compact size
- Class β ‘ power unit, no FG
- Class 2 power unit
- Pass LPS
- IP42 design
- Display devices for decorative & advertising accessories (Note.7)
- General-purpose electronics operated in dusty or damp environments
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.5A
- CURRENT RANGE
- 0 ~ 0.5A
- RATED POWER
- 12W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- Β±5.0%
- LINE REGULATION
- Β±1.0%
- LOAD REGULATION
- Β±2.0%
- SETUP, RISE TIMENote.6
- 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 15ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT
- 0.2A/230VAC 0.35A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 70A(twidth=185ΞΌs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER LOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.

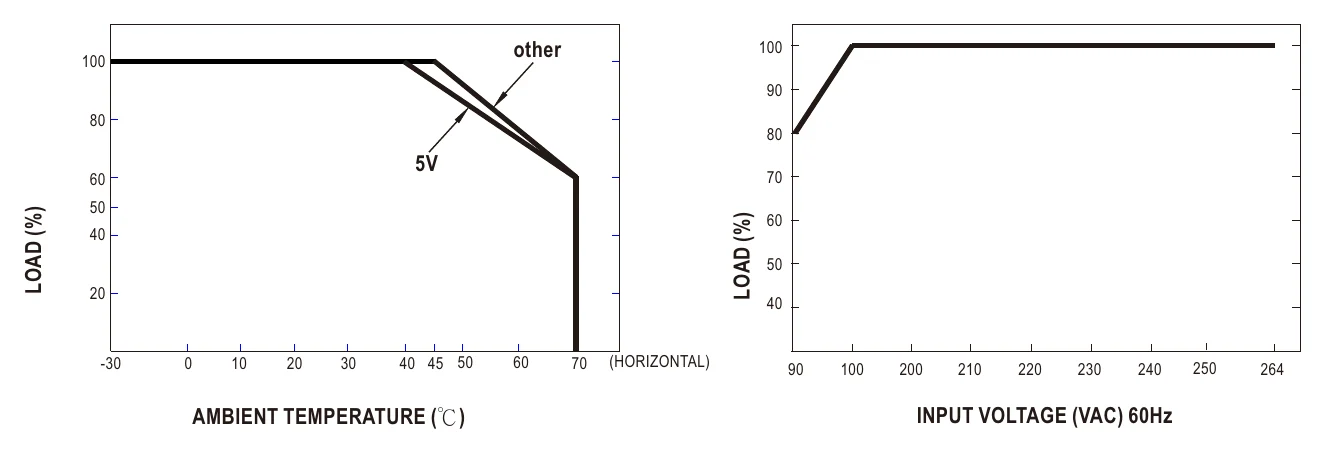

- -30 ~ +70β(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80β, 10 ~ 95% RH
- TEMP. COEFFICIENT
- Β±0.03%/β (0 ~ 50β)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25β/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 7488.9K hrs min. Telcordia SR-332 (Bellcore) ; 1132.5K hrs min. MIL-HDBK-217F (25β)
- DIMENSION
- 77*40*29(L*W*H)
- PACKING
- 0.08Kg; 120pcs/11.8Kg/1.06CUFT
Certifications & ratings
- Marked features
- LPS
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25β of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. Please connect L line to the positive pole and N line to the negative pole under DC input.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 8. The ambient temperature derating of 3.5β/1000m with fanless models and of 5β/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

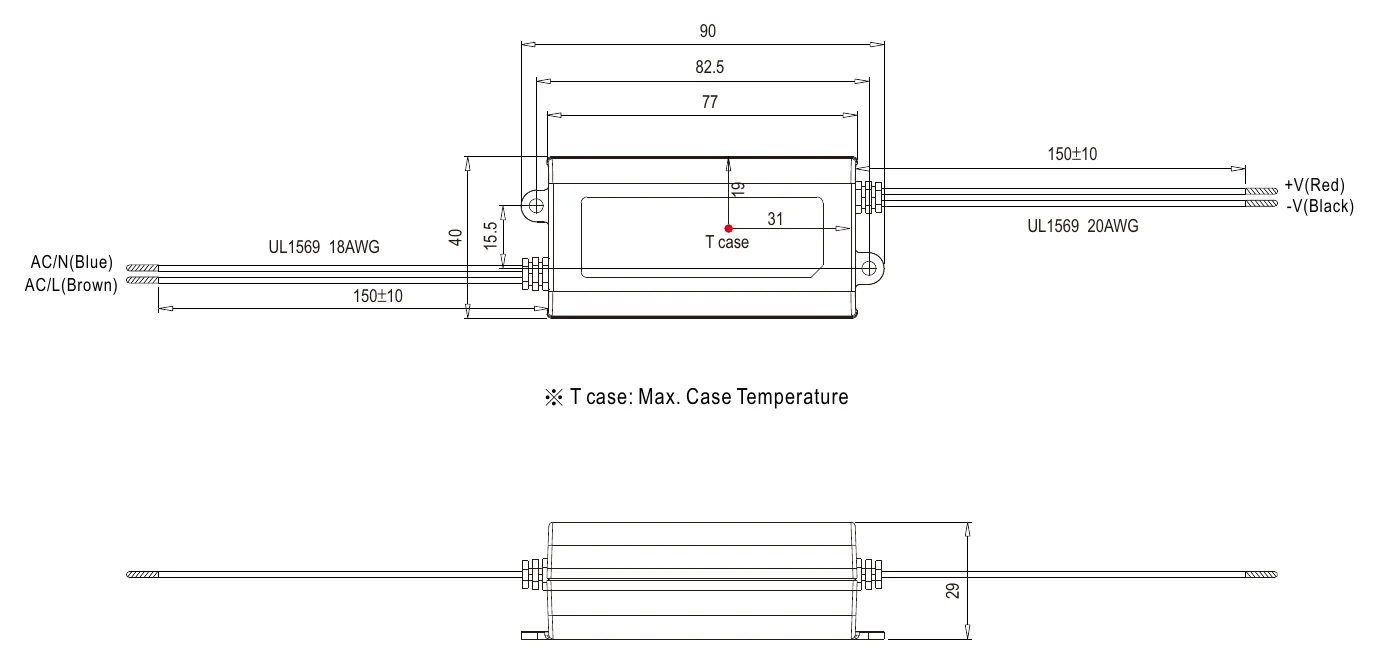

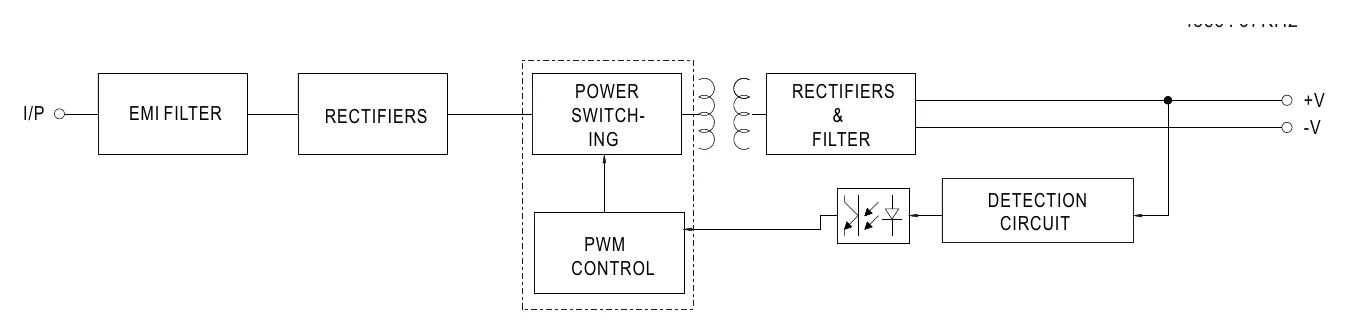

Technical drawings
Downloads
FAQ
Can the APV-12-24 drive a 24V LED strip for retail display or signage?
Yes. The APV-12-24 outputs 24V at up to 0.5A, for a maximum of 12W. It is appropriate for short 24V LED strip runs used in retail display cases, menu board backlighting, or small decorative signage where the total load is 12W or less.
How long a run of 24V LED strip can the APV-12-24 support?
The APV-12-24 delivers 12W at 24V. At a strip consumption of 6 W/m, that equates to approximately 2 m of strip. Divide 12W by your strip's rated power per meter to calculate your specific limit, and check your strip's rated power per meter before sizing.
What are the differences between the APV-12-24 and its 24V siblings in the APV family?
The APV-12-24 provides 12W at 24V and 0.5A in a 77 Γ 40 Γ 29 mm housing and is the only 24V model of the APV-12 series. Its series siblings, the APV-12-5 (5V, 2A, 10W), APV-12-12 (12V, 1A) and APV-12-15 (15V, 0.8A), share the same housing and 90β264VAC input. Higher-wattage APV models are not covered by this datasheet; check their own spec sheets.
Does the APV-12-24 carry UL certification for use in North American projects?
Yes. The APV-12-24 is approved to UL8750 and CSA C22.2 No.250.0-08, and also to BIS IS15885, EAC TP TC 004 and BS EN/EN 62368-1. It accepts 90β264VAC (127β370VDC) input. Note that the datasheet states it is not intended for LED lighting luminaire applications in the EU and China.
