Mean Well

Mean Well HLG-185H-48 Power Supply 185W 48V 3.9A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-185H-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 20 in this family

HLG-185H-48
In stock
|

Overview

HLG-185H-48 is the 48V output model of this series: rated current 3.9A, rated power 187.2W, typical efficiency 94%.

HLG-185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-185H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-185H-48Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
48V
CONSTANT CURRENT REGIONNote.4
24 ~ 48V
RATED CURRENT
3.9A
RATED POWER
187.2W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 43 ~ 53V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 1.95 ~ 3.9A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
94%
AC CURRENT (Typ.) 12V
1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
AC CURRENT (Typ.) 15V ~ 54V
2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=445μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
54 ~ 63V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”),CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13，AS/NZS 61347-1, AS/NZS 61347-2-13 independent;GB/T19510.1,GB/T19510.213 (except for D-type) ; IP65 or IP67; J61347-1, J61347-2-13(except for D-type) , EAC TP TC 004, KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type) ,EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2184.8K hrs min. Telcordia SR-332 (Bellcore) ; 197.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm (L*W*H)
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type
HL
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

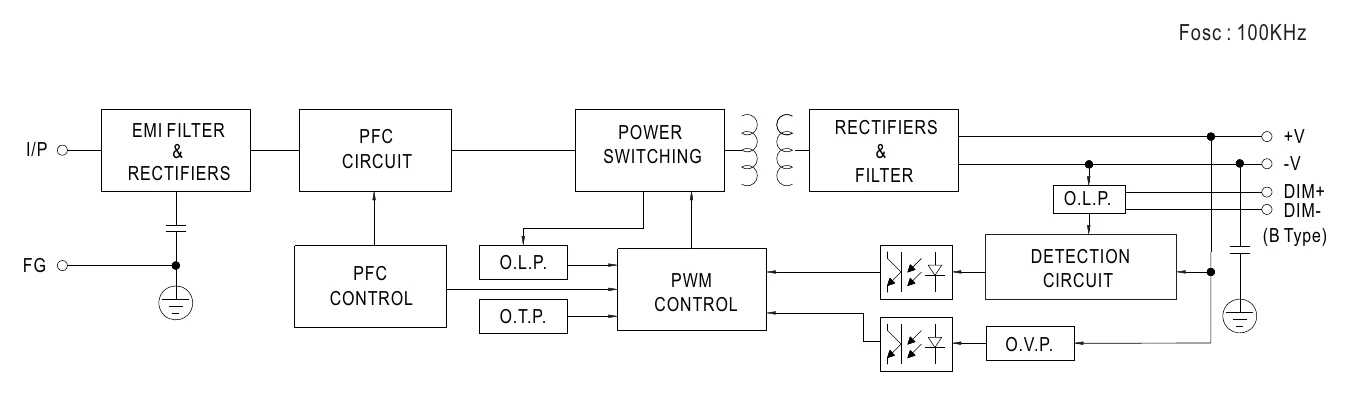

HLG-185H-48 BLOCK DIAGRAM
BLOCK DIAGRAM

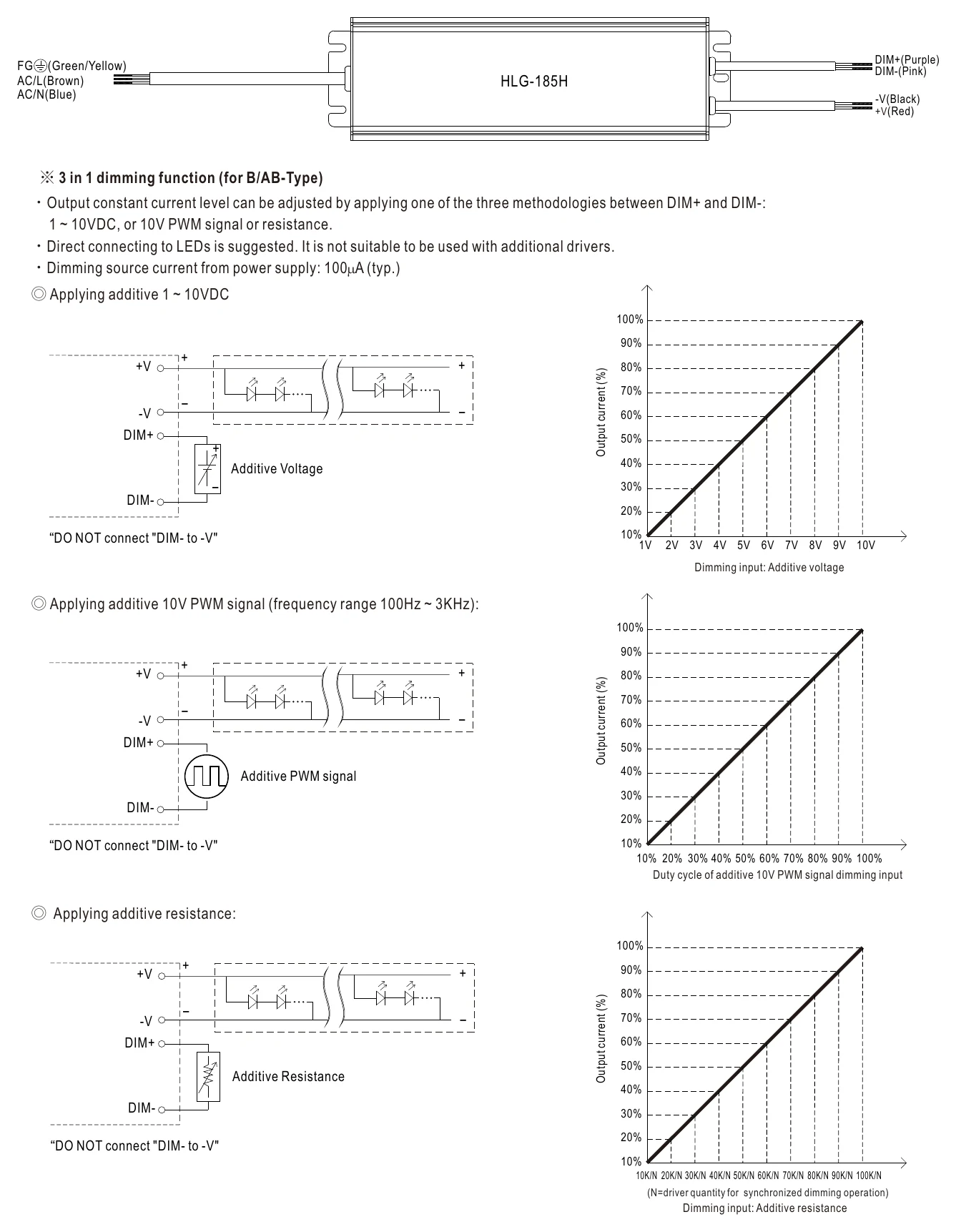

HLG-185H-48 DIMMING OPERATION
DIMMING OPERATION

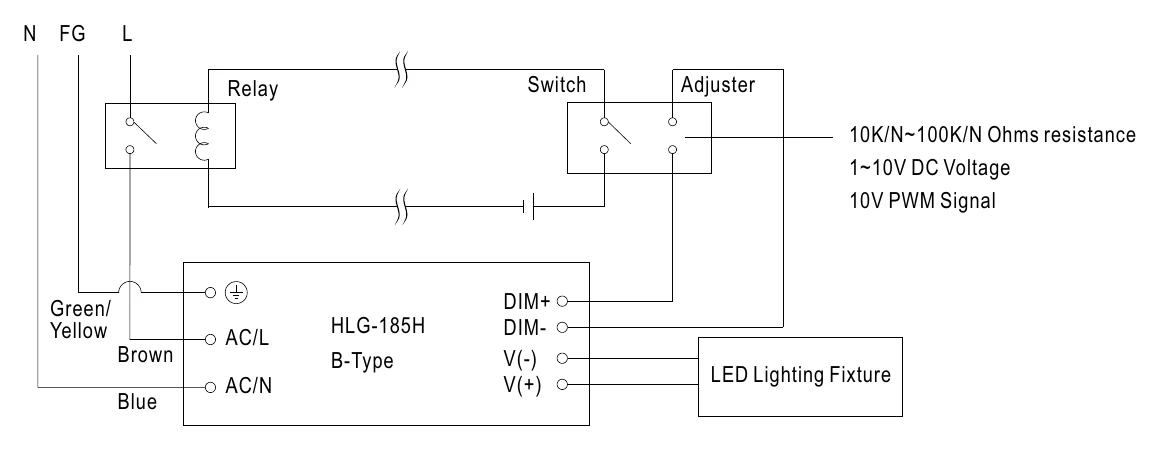

HLG-185H-48 Illustration (page 5)
Illustration (page 5)

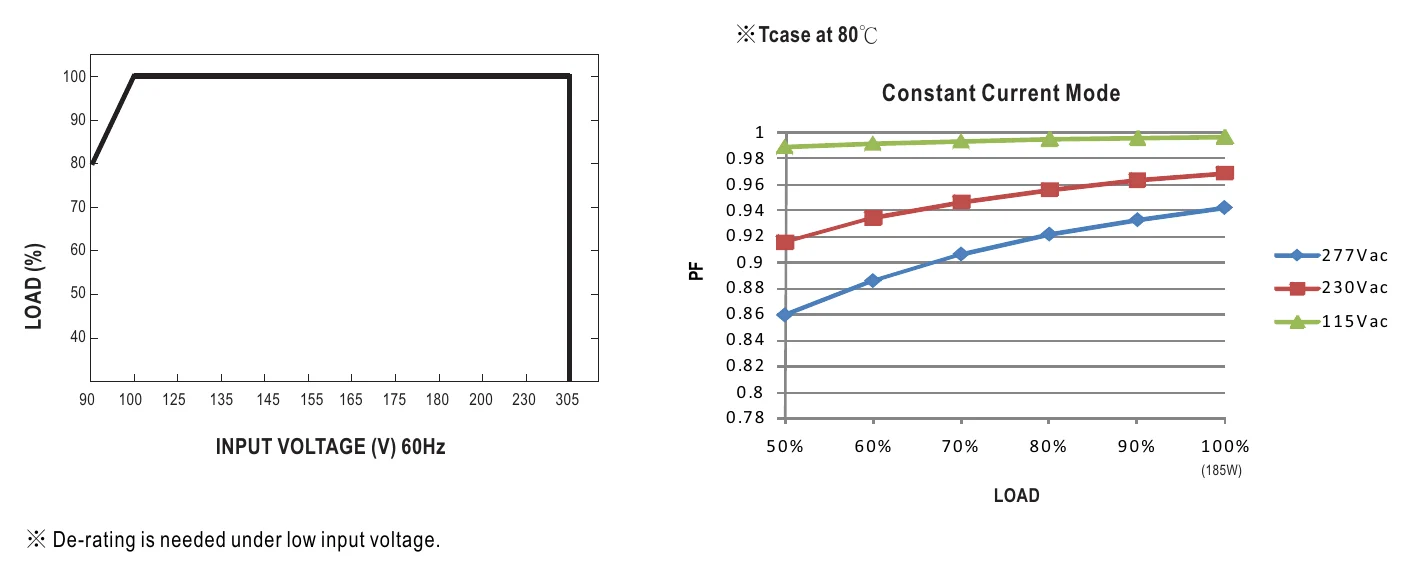

HLG-185H-48 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS

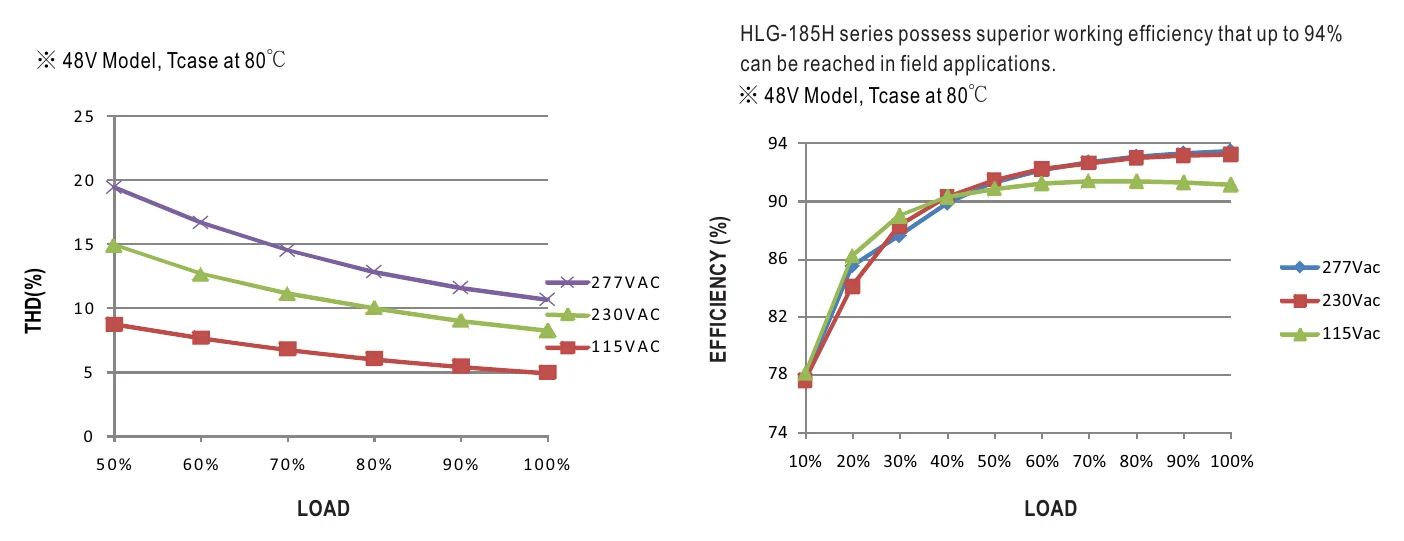

HLG-185H-48 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

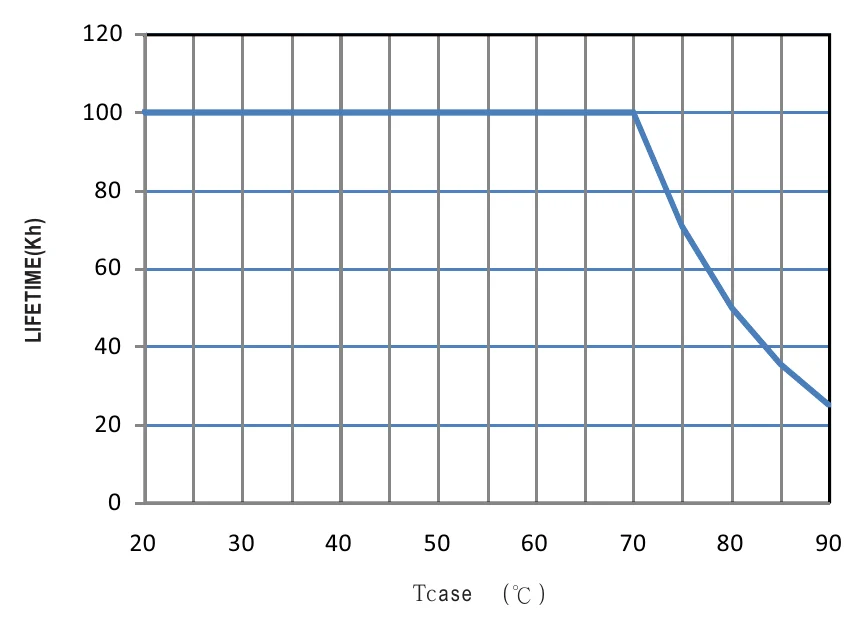

HLG-185H-48 LIFE TIME
LIFE TIME

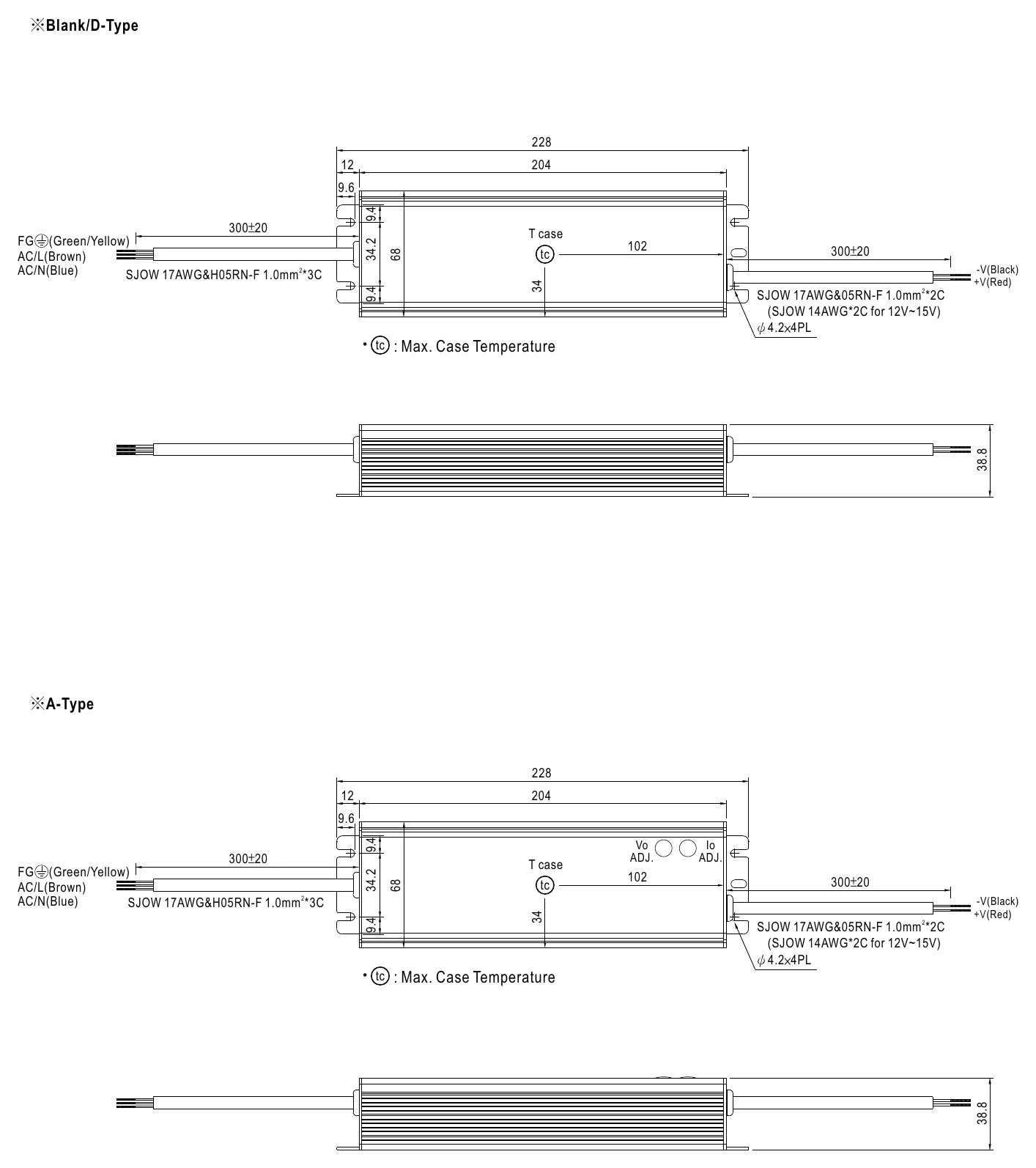

HLG-185H-48 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

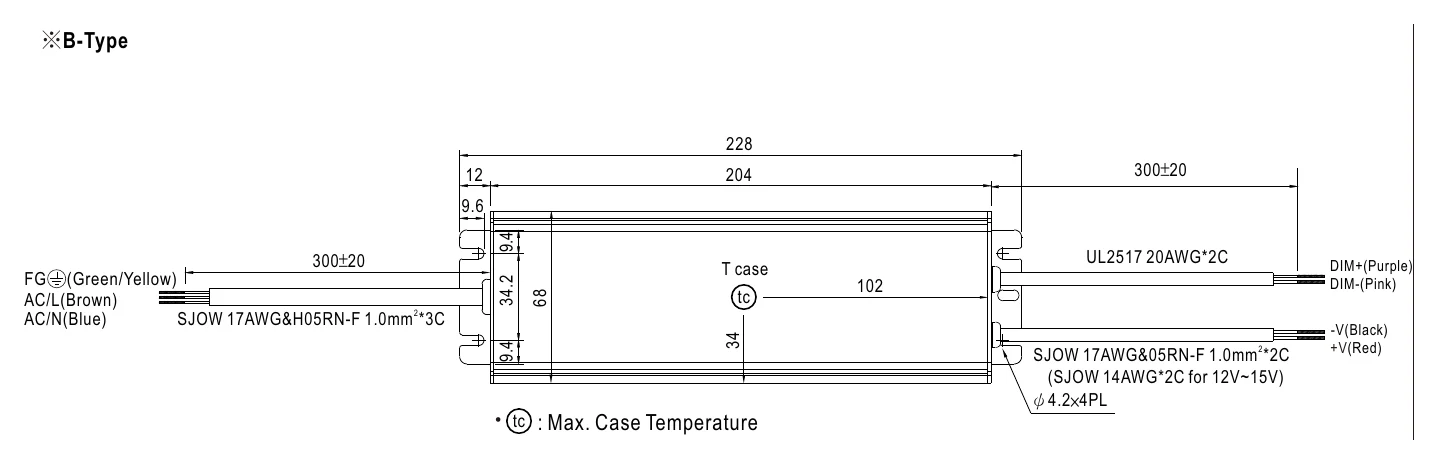

HLG-185H-48 ※B-Type
※B-Type

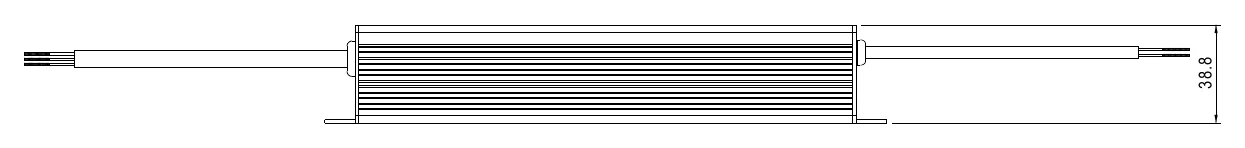

HLG-185H-48 Dimensions (mm)
Dimensions (mm)

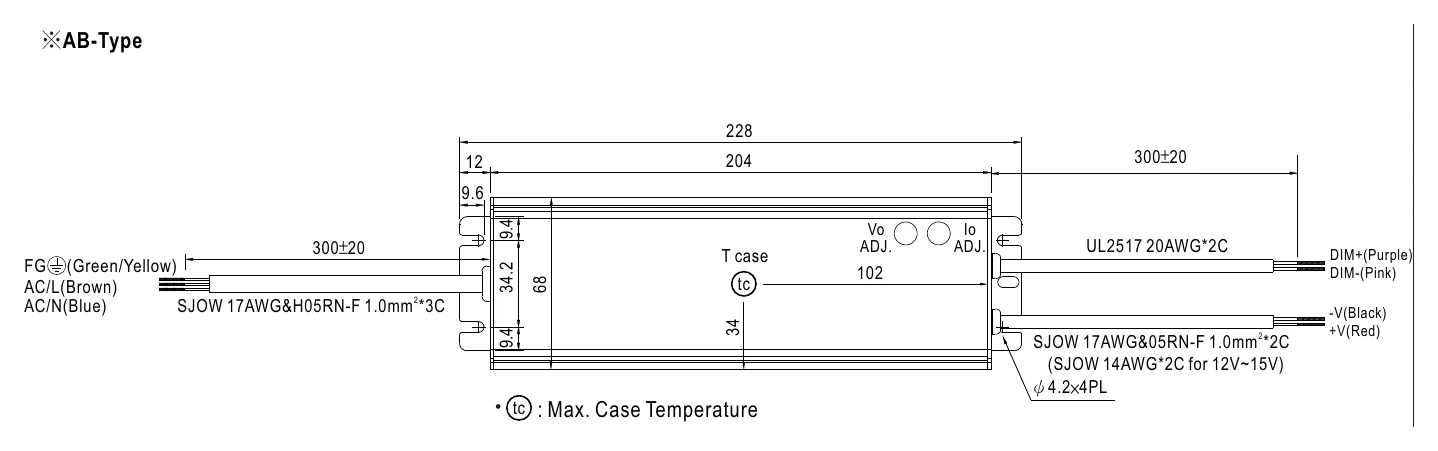

HLG-185H-48 ※AB-Type
※AB-Type

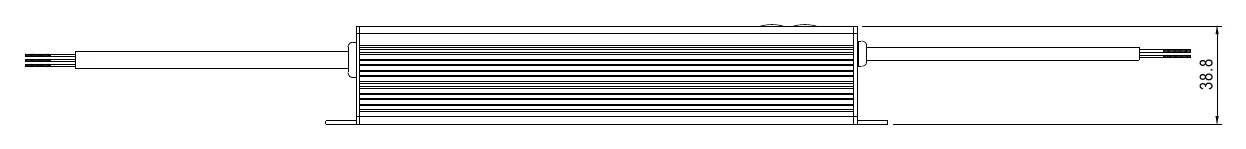

HLG-185H-48 Dimensions (mm)
Dimensions (mm)

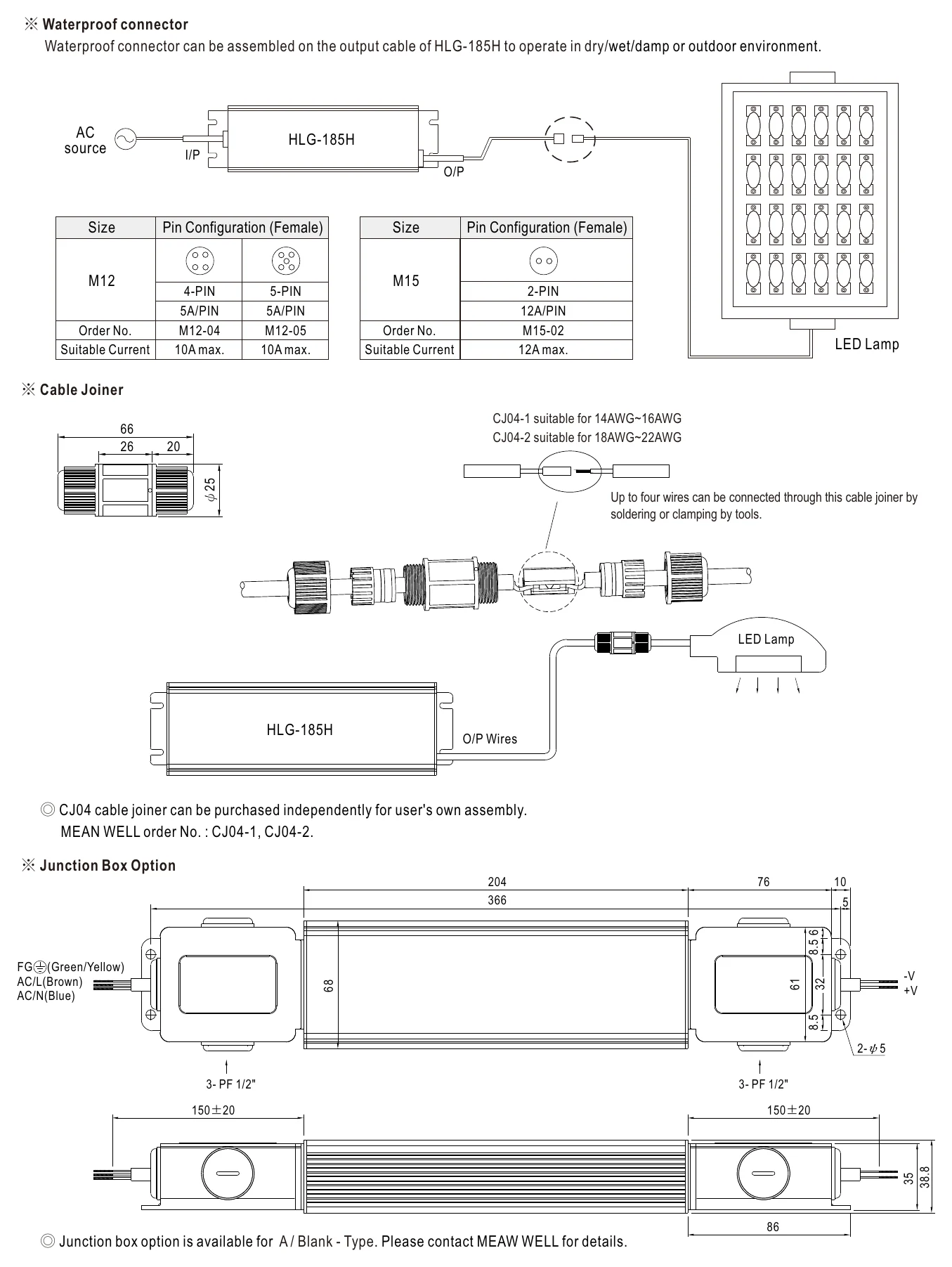

HLG-185H-48 WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-185H-48 to power 48V LED strip lighting outdoors?

Yes. The HLG-185H-48 outputs 48V at up to 3.9A (187.2W), and its metal housing with IP65/IP67 ingress protection is designed for outdoor applications, making it well suited for outdoor 48V LED strip runs. Its -40°C to +90°C case temperature range (with derating at higher temperatures) handles harsh weather.

Is the HLG-185H-48 a good fit for 48V LED signage applications?

Yes. With 187.2W at 48V, this driver can power 48V channel letters, light boxes, or cabinet sign modules. The wide 90-305VAC input accepts most mains voltages, and the IP65/IP67-rated metal housing is designed for outdoor mounting.

Can the HLG-185H-48 drive 48V commercial or industrial LED fixtures?

Yes. The 187.2W output at 48V is sufficient for medium-power commercial fixtures such as high-bay pendants, linear troffers, or architectural cove lighting that run on a 48V bus. Its constant-current mode with a CC range of 24-48V also accommodates fixtures with varying forward voltages.

How many meters of 48V LED strip can the HLG-185H-48 power?

Divide 187.2W by your strip's rated power per meter. For example, a 48V strip drawing 14W/m could run about 13.4 meters (187.2W / 14W per meter). Always check your strip's rated power per meter and keep the total load at or below 187.2W.

Can the HLG-185H-48 be installed in locations exposed to rain or temporary flooding?

The HLG-185H series has a metal housing with IP65/IP67 ingress protection that the datasheet says suits outdoor applications, so rain-exposed outdoor mounting is covered, and waterproof connectors are available for the output cable. The sheet does not specify a submersion depth or duration, so it does not cover flooding.

What are the differences between the HLG-185H-48, 48A, 48AB, and 48B models?

All four share the same 187.2W / 48V / 3.9A core specs and 228 x 68 x 38.8 mm dimensions. The base HLG-185H-48 has fixed output. The -48A adds output voltage/current adjustment via built-in potentiometer. The -48AB adds both adjustment and 1-10V/PWM/resistance dimming. The -48B offers dimming input only, without the potentiometers.
