Over 15 years experience of providing support of MEAN WELL Power Supplies

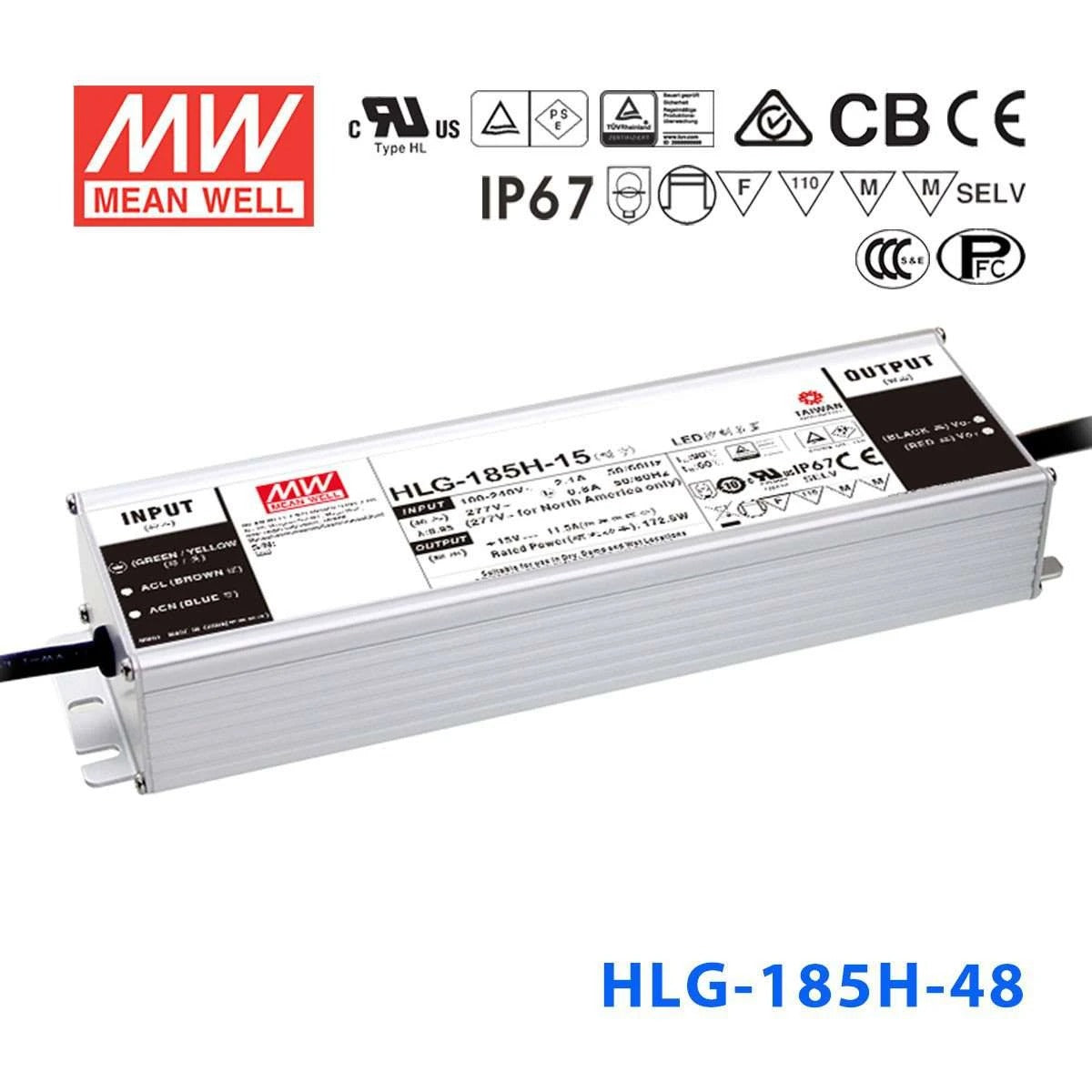

Mean Well HLG-185H-48 Power Supply 185W 48V
Please Login for Pricing
Description
Description
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating185 Watt
-
Output Voltage48 Volt
-
Rated Current3.9 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length22.8 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.15 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-185H-48 to power 48V LED strip lighting outdoors?
Yes. The HLG-185H-48 outputs 48V at up to 3.9A (185W) and carries an IP67 waterproof rating, making it well suited for outdoor 48V LED strip runs exposed to rain or standing water. Its aluminium casing and -40°C to +90°C operating range handle extreme weather conditions.
Is the HLG-185H-48 a good fit for 48V LED signage applications?
Yes. With 185W at 48V, this driver can power 48V channel letters, light boxes, or cabinet sign modules. The wide 90-305VAC input accepts most mains voltages worldwide, and the IP67 rating allows direct outdoor mounting without an additional weatherproof enclosure.
Can the HLG-185H-48 drive 48V commercial or industrial LED fixtures?
Yes. The 185W output at 48V is sufficient for medium-power commercial fixtures such as high-bay pendants, linear troffers, or architectural cove lighting that run on a 48V bus. Its constant-current mode with a CC range of 24-48V also accommodates fixtures with varying forward voltages.
How many meters of 48V LED strip can the HLG-185H-48 power?
Divide 185W by your strip's rated power per meter. For example, a 48V strip drawing 14W/m could run about 13.2 meters (185W / 14W per meter). Always check your strip's rated power per meter and keep the total load at or below 185W.
Can the HLG-185H-48 be installed in locations exposed to rain or temporary flooding?
Yes. Its IP67 waterproof rating means the enclosure is dust-tight and protected against temporary submersion up to 1 meter. It can be mounted outdoors without additional weatherproofing, in underground vaults, or in areas subject to washdown.
What are the differences between the HLG-185H-48, 48A, 48AB, and 48B models?
All four share the same 185W / 48V / 3.9A core specs and 228 x 68 x 38.8 mm dimensions. The base HLG-185H-48 has fixed output and IP67 waterproof rating. The -48A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -48AB adds both adjustment and 1-10V/PWM dimming (IP65). The -48B offers dimming input only while retaining IP67.
Other HLG-185H Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well S-HLG-185H-24 Power Supply 185W 24V with AU/NZ plug | 185W | 24V | 7.8A | IP67 | View |
| Mean Well HLG-185H-48B Power Supply 185W 48V- Dimmable | 185W | 48V | 3.9A | IP67 | View |
| Mean Well HLG-185H-36B Power Supply 185W 36V- Dimmable | 185W | 36V | 5.2A | IP67 | View |
