Mean Well LPV-20-24 LED Driver — 20.2W 24V 0.84A IP67 Waterproof
Log in to see priceOverview
LPV-20-24 is the 24V output model of this series: rated current 0.84A, rated power 20.2W, typical efficiency 83%.
Features
- Constant voltage design
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Over load / Over voltage
- Cooling by free air convection
- Small and compact size
- Fully encapsulated with IP67 level (Note.7)
- Fully isolated plastic case
- Class Ⅱ power unit, no FG
- Class 2 power unit
- Pass LPS
- Display devices for decorative & advertising accessories (Note.11)
- General-purpose electronics operated in dusty or damp environments
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.84A
- CURRENT RANGE
- 0 ~ 0.84A
- RATED POWER
- 20.2W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- ±5.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIMENote.6
- 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 83%
- AC CURRENT (Typ.)
- 0.55A/115VAC 0.35A/230VAC
- INRUSH CURRENT(Typ.)
- COLD START 70A(twidth=215μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER LOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28 ~ 32V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.

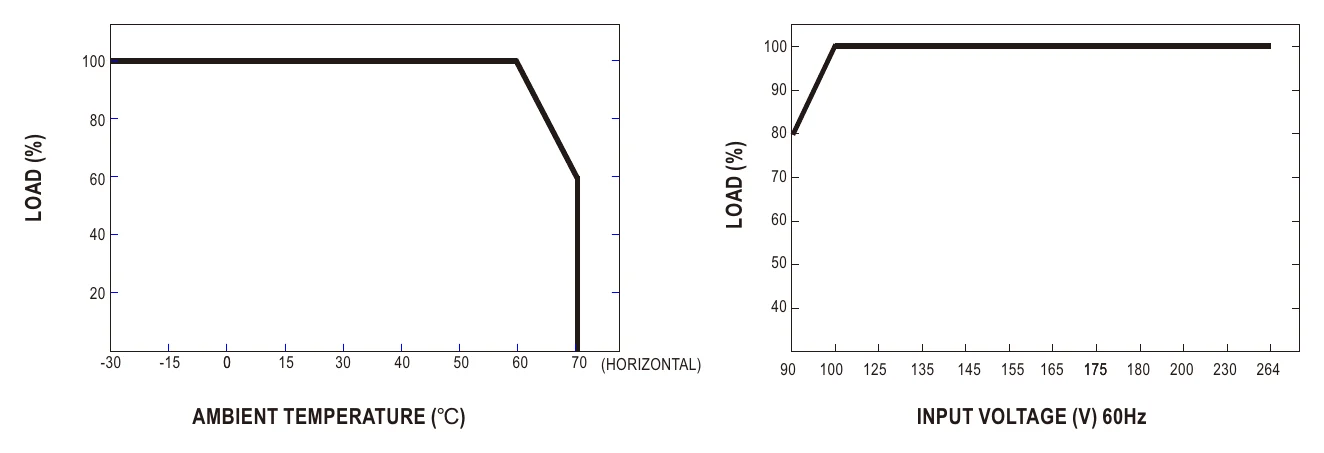

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL879, UL1310, CSA C22.2 No. 207-M89,CAN/CSA C22.2 No. 223-M91,IEC/BS EN/EN 62368-1, IS 15885(Part2/Sec13)(NOTE 12) , EAC TP TC 004, IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 6025.8K hrs min. Telcordia SR-332 (Bellcore) ; 786.5Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 118*35*26mm (L*W*H)
- PACKING
- 0.20Kg; 60pcs/13.3Kg/0.74CUFT
Certifications & ratings
- IP67
- IP67
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 12. Products sourced from the China regions may not have the BIS logo, please contact your MEAN WELL sales for more information.

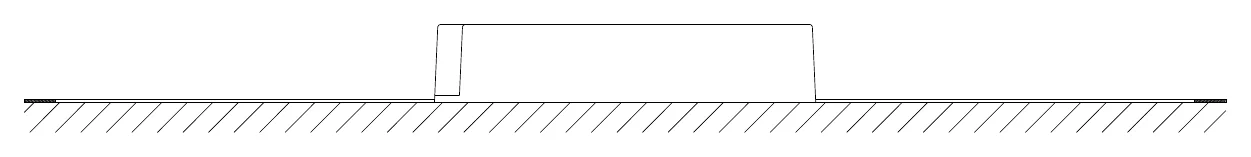

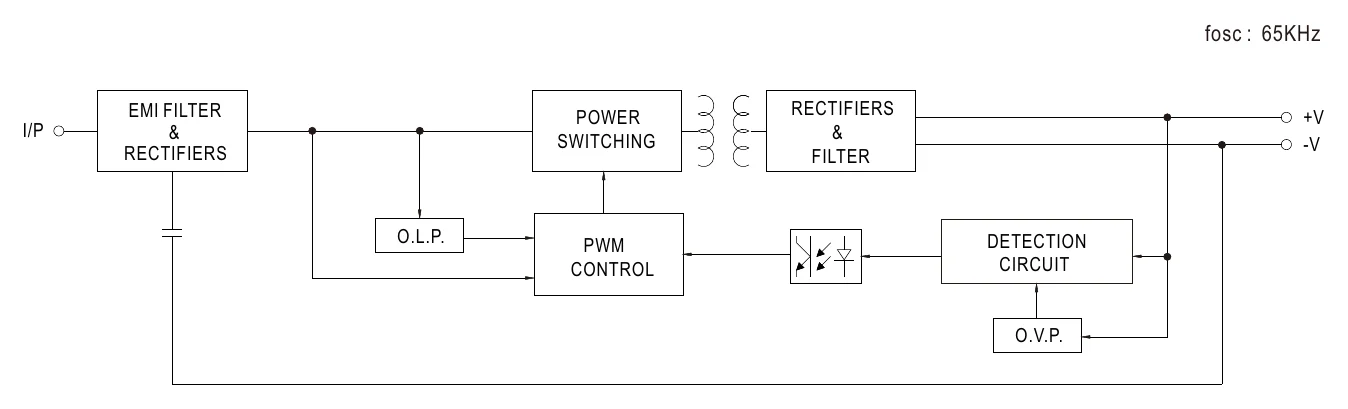

Technical drawings
Downloads
FAQ
What can I use the LPV-20-24 for at 24V?
The LPV-20-24 delivers 24V DC at up to 0.84A (20.2W total), making it appropriate for small 24V LED accent strips, compact illuminated channel letters, or single-zone LED modules where the total draw stays below 20.2W. It is not intended for large strip runs or multi-zone lighting that exceeds this power budget.
How much 24V LED strip can the LPV-20-24 drive?
The maximum output is 20.2W at 24V. For a strip rated at 9.6W/m, that equals roughly 2.1 m before reaching the driver's limit. Check your specific strip's rated watts per meter and stay within the 20.2W ceiling to avoid overloading the unit.
Is the LPV-20-24 rated for outdoor use?
Yes. The unit is fully encapsulated to IP67 and is suitable for indoor use or outdoor use without direct sunlight exposure; avoid immersing it in water for more than 30 minutes. The operating temperature range is -30°C to +70°C (refer to the derating curve), making the unit suitable for compact outdoor fixtures and exterior sign cabinets where a small 24V power supply is needed.
Does the LPV-20-24 accept both 120V and 230V input?
Yes. The input range is 90–264VAC, so it operates on 120V North American mains and 230V European mains without any voltage selector switch. Confirm your supply voltage falls within this window before use.
When would I choose the LPV-20-24 over the LPV-60-24 for a 24V project?
The LPV-20-24 delivers 20.2W at 24V. It is the right choice when the total 24V LED load is 20.2W or less and a compact form factor (118×35×26mm, 0.2 kg) is a priority. For loads above 20.2W at 24V, a higher-power model such as the LPV-60-24 is required; check that model's own datasheet for its ratings.
