What LED applications can the LPV-20-5 power at 5V?

The LPV-20-5 outputs 5V DC at up to 3A (15W total), making it suited for 5V LED pixel strips (such as WS2812-based addressable strips), small 5V LED panels, and compact low-voltage LED accent lighting. The total connected load must remain at or below 15W.

How many meters of 5V LED strip can the LPV-20-5 support?

The driver provides a maximum of 15W at 5V. Divide 15W by your strip's rated power per meter — for example, at 3W/m the result is 5 m. Always verify the strip's rated power consumption per meter and keep total load within the 15W ceiling.

Can the LPV-20-5 be used in damp or outdoor locations?

Yes. The IP67 rating certifies it as dust-tight and protected against temporary submersion up to 1 meter, so it can be housed in outdoor enclosures and damp-location fixtures. The operating temperature range of -30°C to +70°C also supports cold-climate outdoor deployments.

Does the LPV-20-5 work on international mains voltages?

Yes. The 90–264VAC input range covers 110V/120V North American supplies, 220V/230V European supplies, and other voltages in that window. No manual voltage switching is required.

How does the LPV-20-5 compare to the LPV-100-5 and LPV-60-5 for 5V LED projects?

All three output 5V but at different power levels: LPV-20-5 delivers 3A and 15W, LPV-60-5 delivers 8A and 40W, and LPV-100-5 delivers 12A and 60W. For small 5V LED loads up to 15W the LPV-20-5 is sufficient; larger installations requiring more than 15W at 5V need the LPV-60-5 or LPV-100-5.

1 4

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

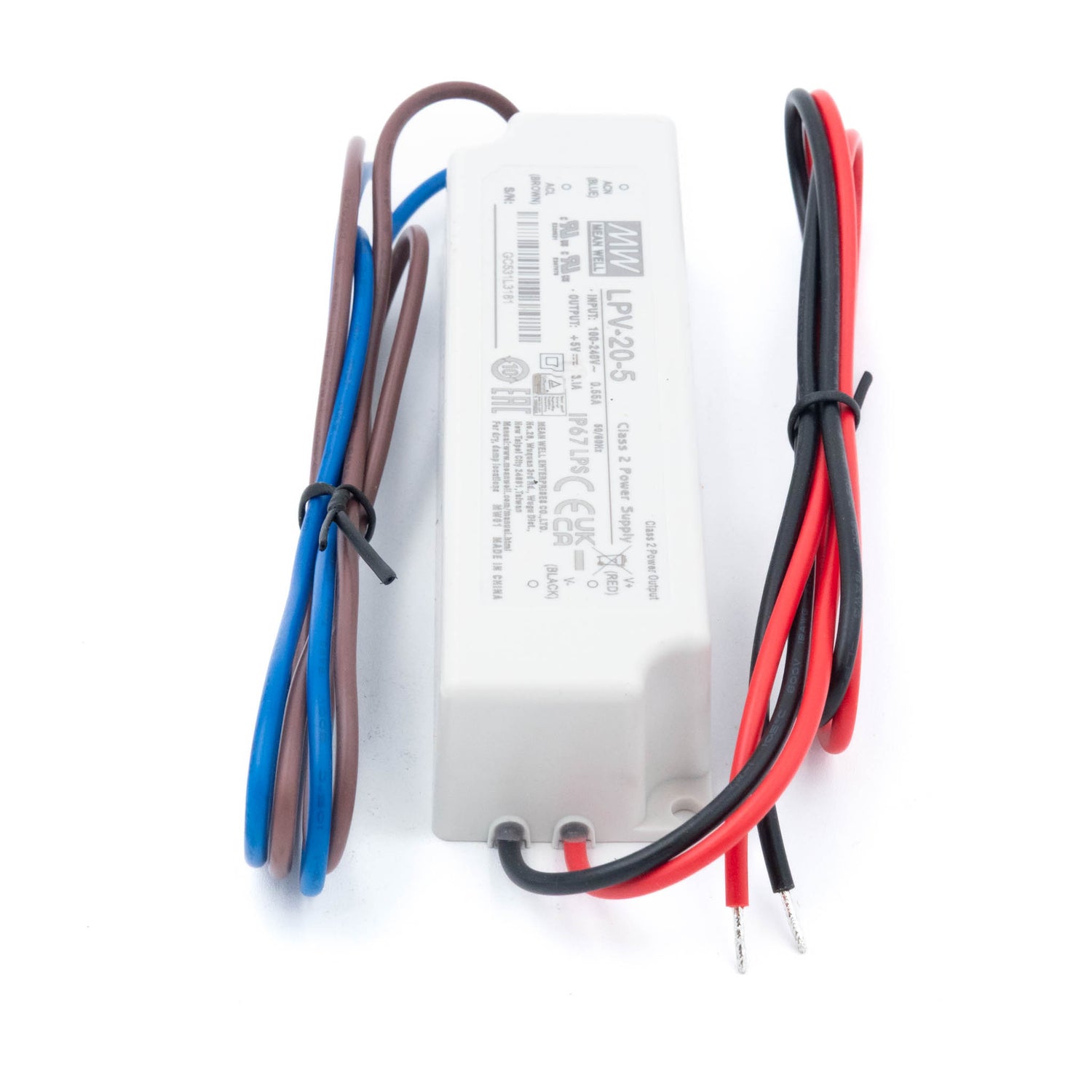

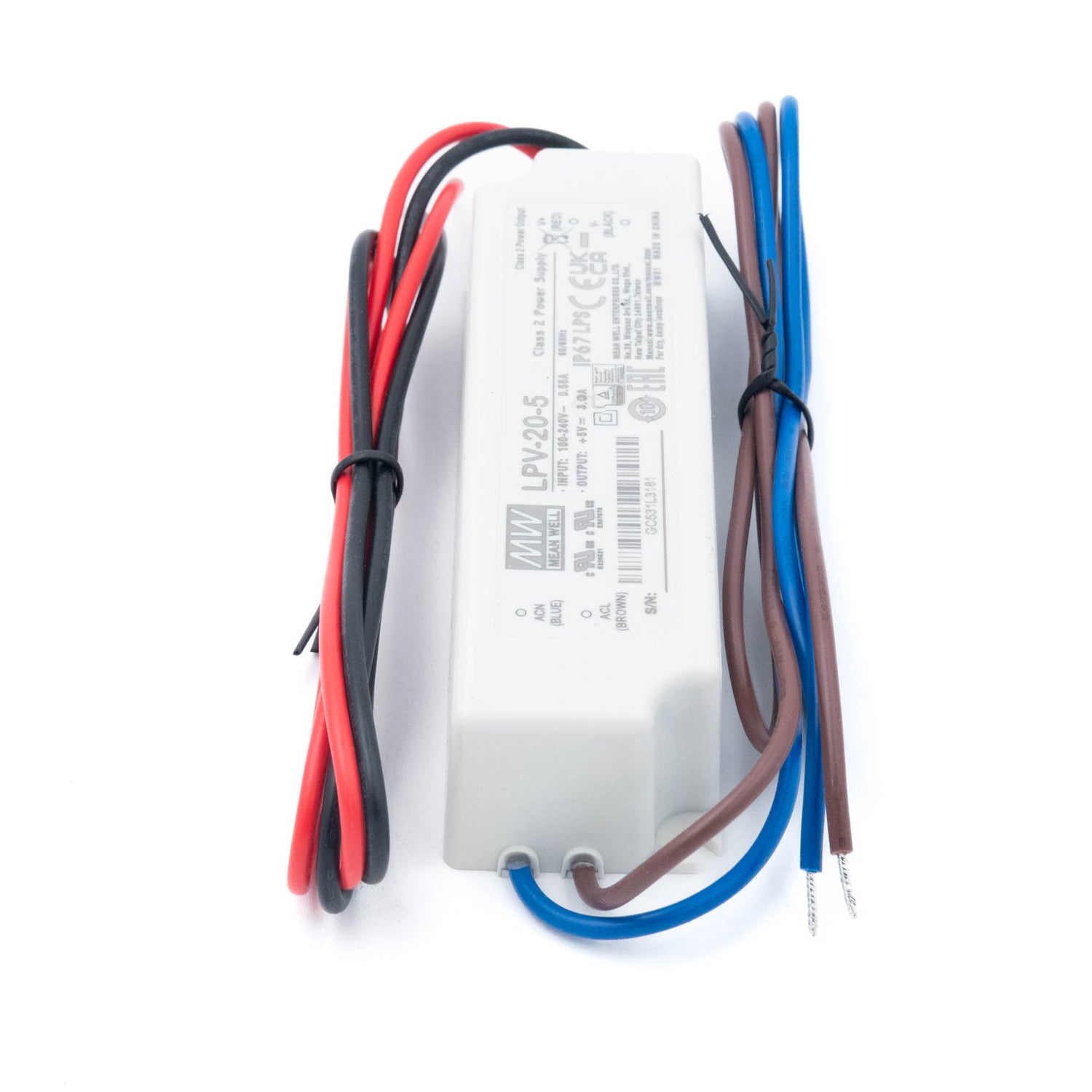

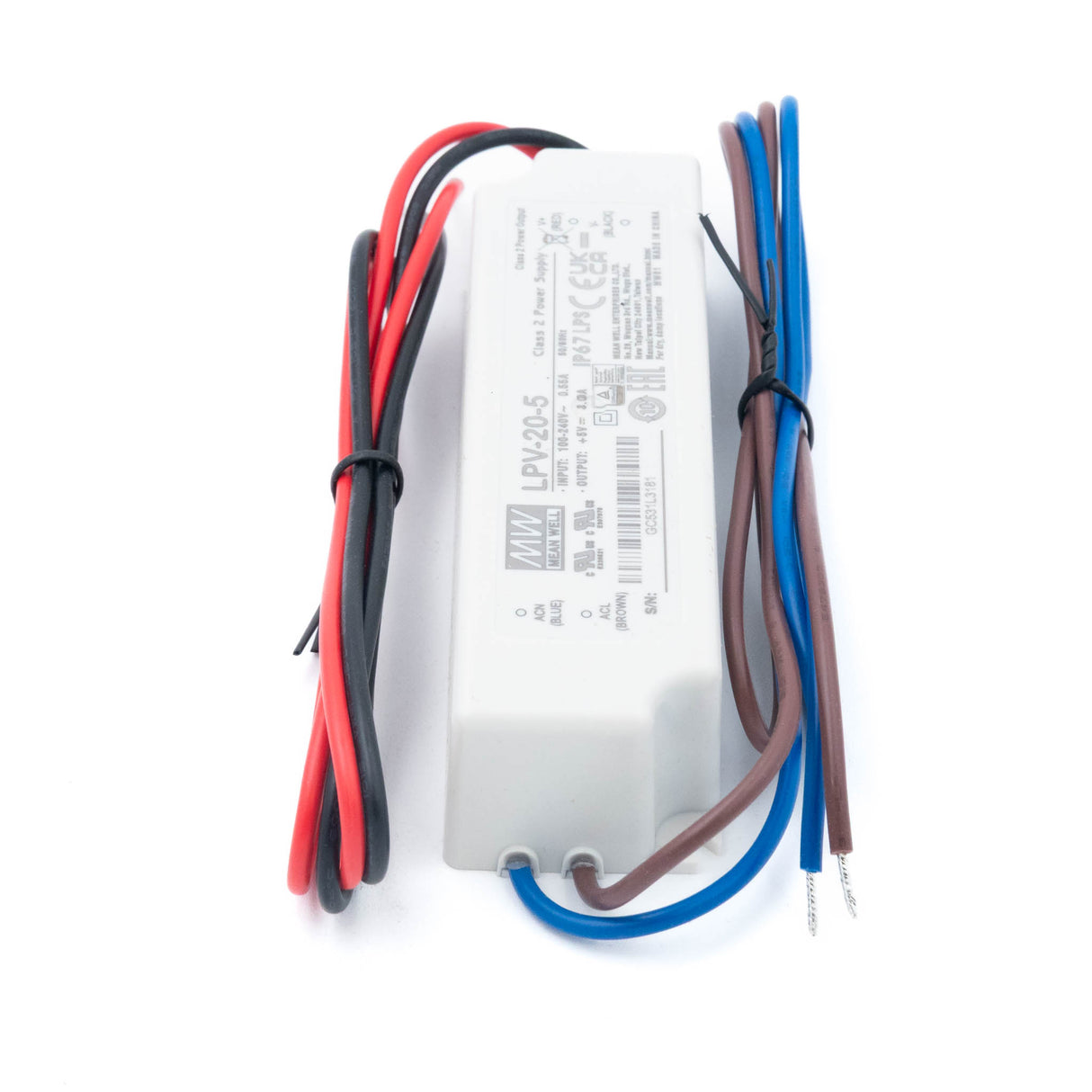

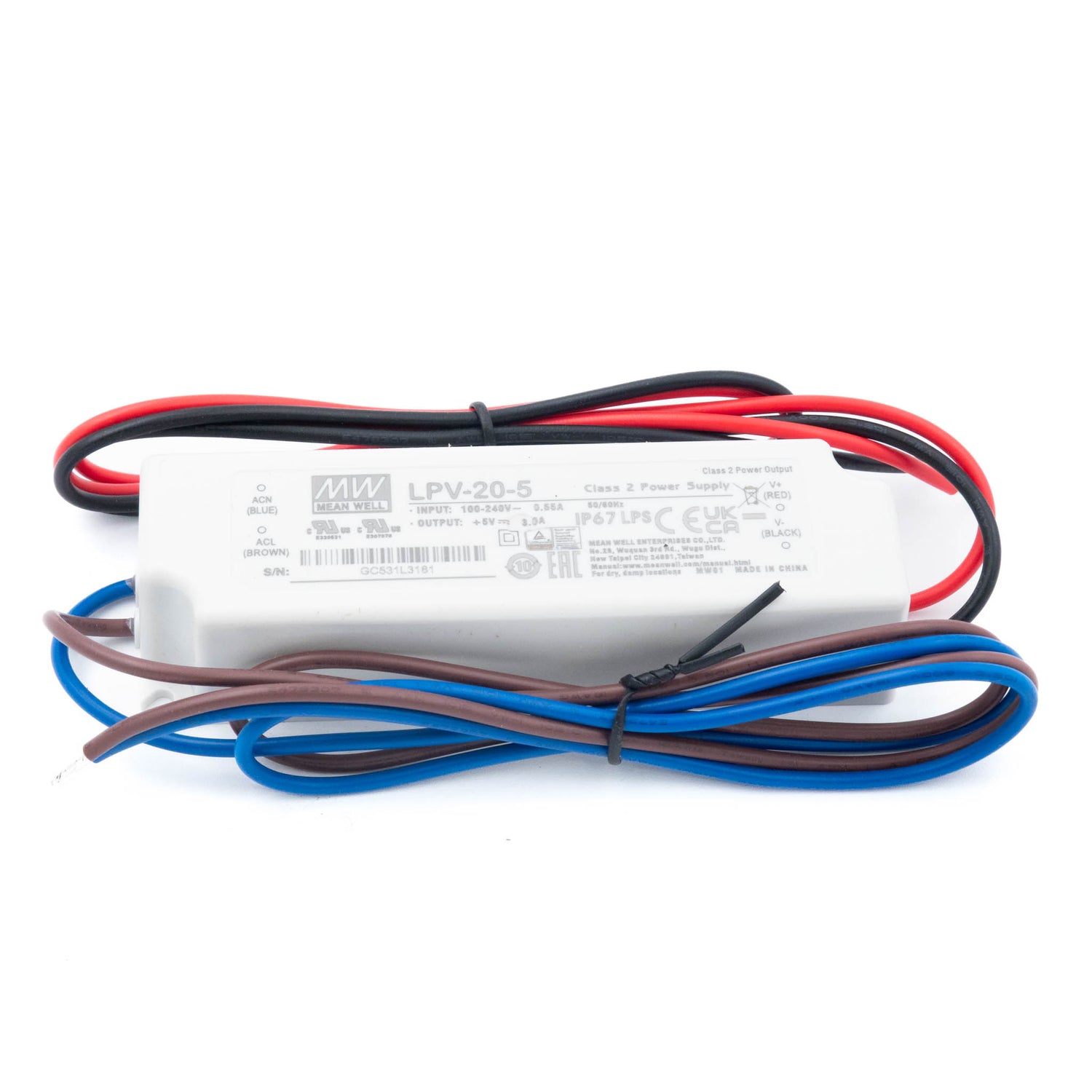

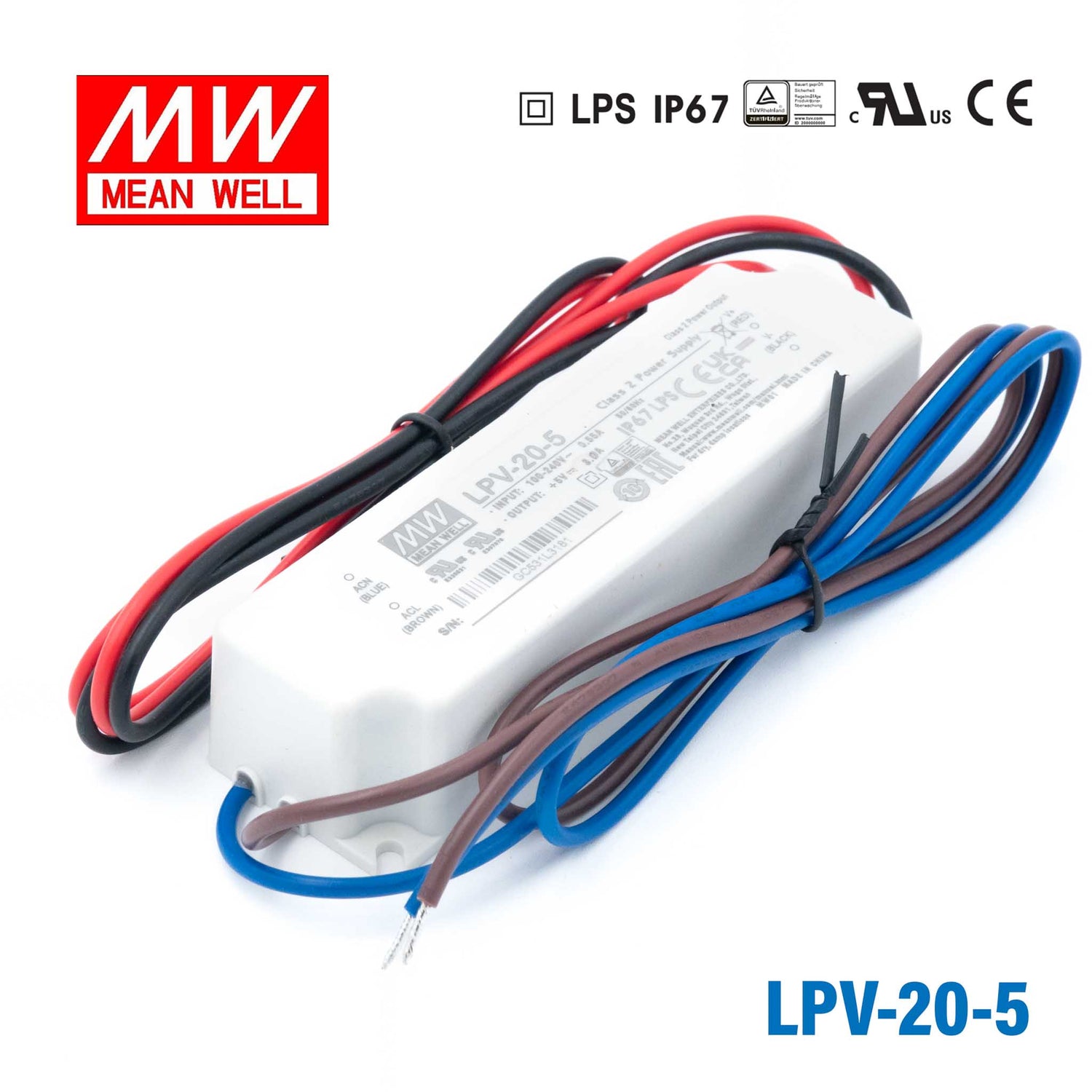

Mean Well LPV-20-5 LED Driver — 15W 5V 3A IP67 Waterproof

Constant VoltageCE/EAC/TÜV/UL Certified90-264VAC Universal Input2-Year Warranty

SKU LPV-20-5

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

LPV-20-5

LPV-20-5 20W 5V Low stock

LPV-100-5 100W 5V In stock

LPV-35-5 35W 5V Low stock

LPV-60-5 60W 5V Low stock

Product variants

Notify me when it's back in stock

The Mean Well LPV-20-5 is a 15W, 5V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 5V DC output at up to 3A and carries CE, EAC, TÜV, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-20-5 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.

Key Features

✓Constant voltage output: 5V DC at up to 3A (15W max)
✓IP67 waterproof and dustproof — suitable for outdoor installations
✓Universal AC input: 90-264VAC
✓Certifications: CE, EAC, TÜV, UL
✓Wide operating temperature: -30°C to +70°C
✓Built-in protections: short circuit, overload, over-voltage
✓Compact, lightweight enclosure: 118.0 × 35.0 × 26.0 mm, 0.2 kg
✓2-year Mean Well warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LPV-20-24 LED Driver — 20.2W 24V 0.84A IP67 Waterproof	20.2W	24V	0.84A	IP67	View
Mean Well LPV-20-12 LED Driver — 20W 12V 1.67A IP67 Waterproof	20W	12V	1.67A	IP67	View
Mean Well LPV-20-15 LED Driver — 20W 15V 1.33A IP67 Waterproof	20W	15V	1.33A	IP67	View
