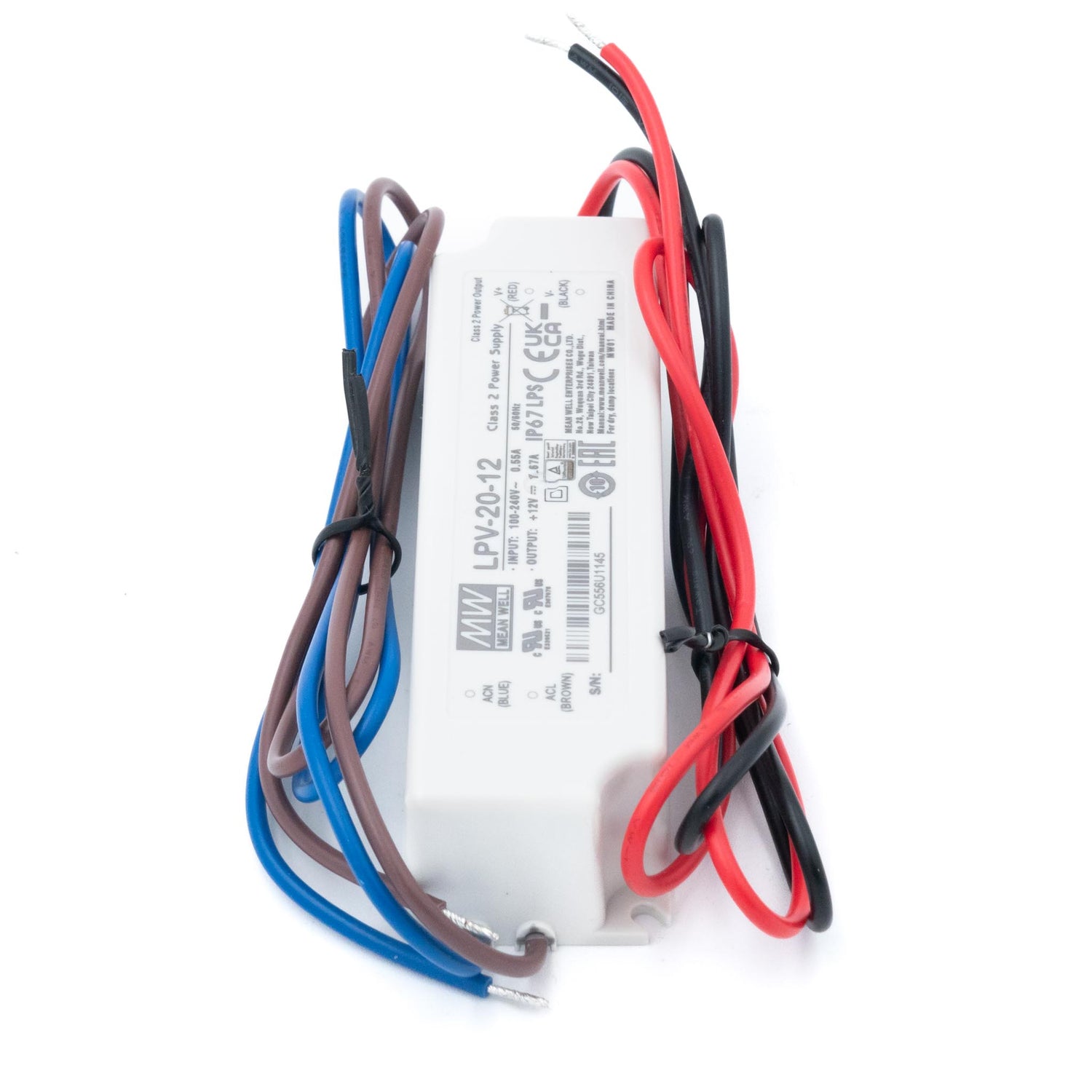

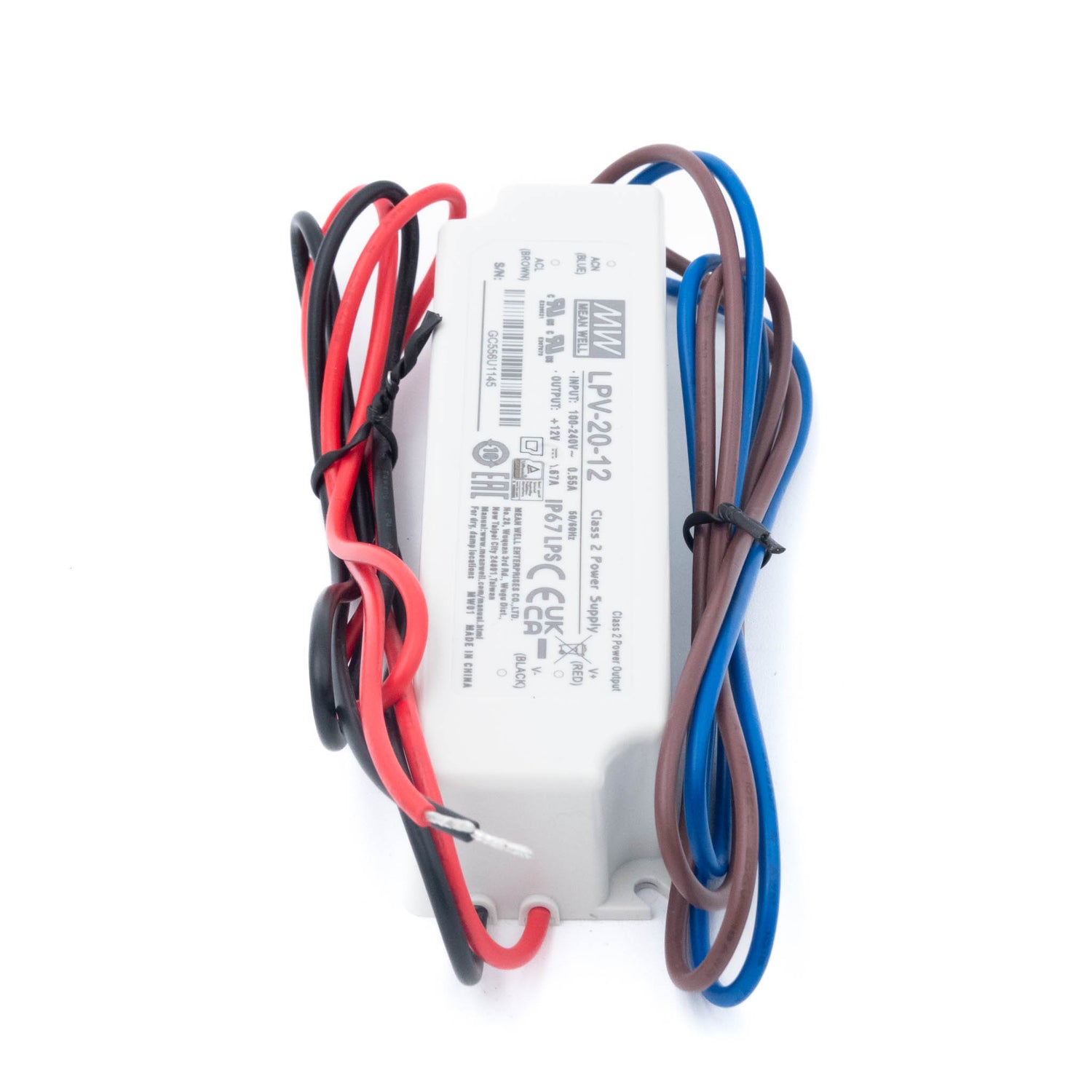

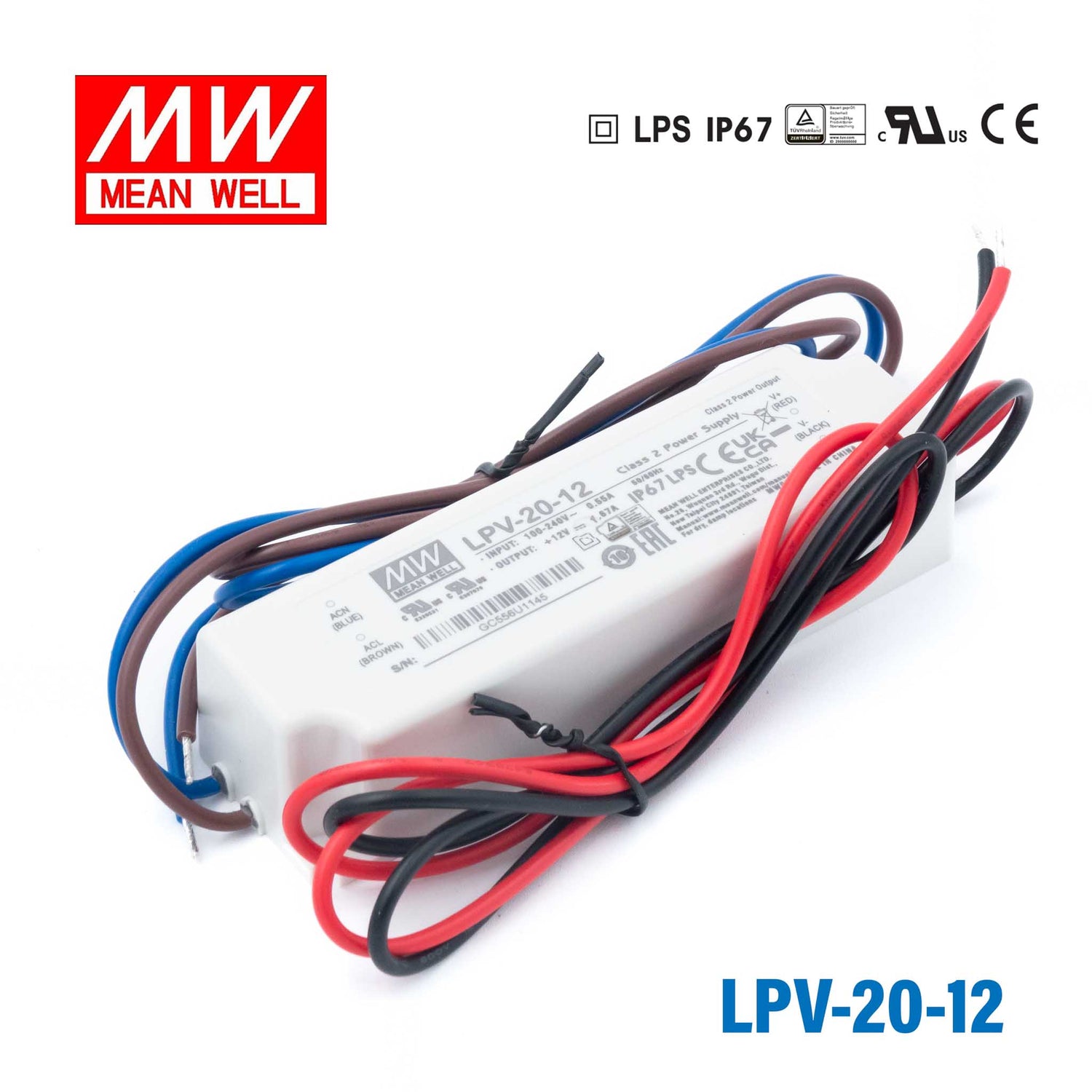

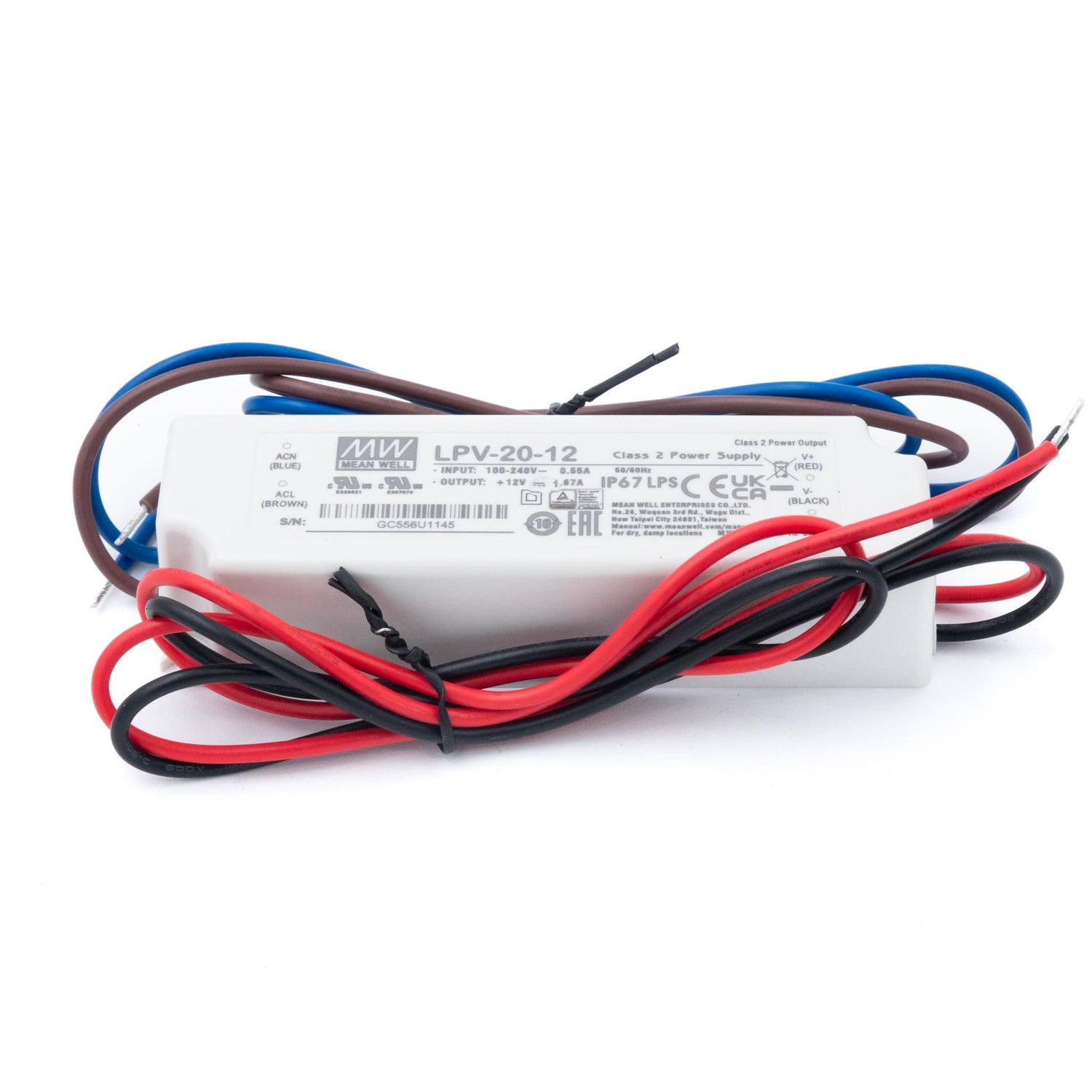

Mean Well LPV-20-12 Power Supply 20W 12V

slim plastic case, economical, IP67
SKU:
LPV-20-12

|

Description

Features

90~264VAC input
Fully encapsulated with IP67 level
Short circuit / Overload / Over voltage
Constant voltage design (C.V. mode)
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty


General Specification

AC input voltage range 90~264VAC
AC inrush current Cold start,70A at 230VAC
Overload Range 110%~150%
Protection Type Hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards LPV-20: TUV EN60950-1, UL879, UL1310 approved, LPV-35: IEC 61347-1, IEC 61347-2-13, UL1310 approved
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (60cm)
Connection Output UL rated, 18AWGx2C (60cm)
Dimension (LxWxH)(mm) 118x 35x 26

Specifications

  • Brand
    Mean Well
  • Series
    LP Series
  • Power Rating
    20 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    1.67 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    11.8 cm
  • Width
    3.5 cm
  • Height
    2.6 cm
  • Weight
    0.22 kg
