Mean Well

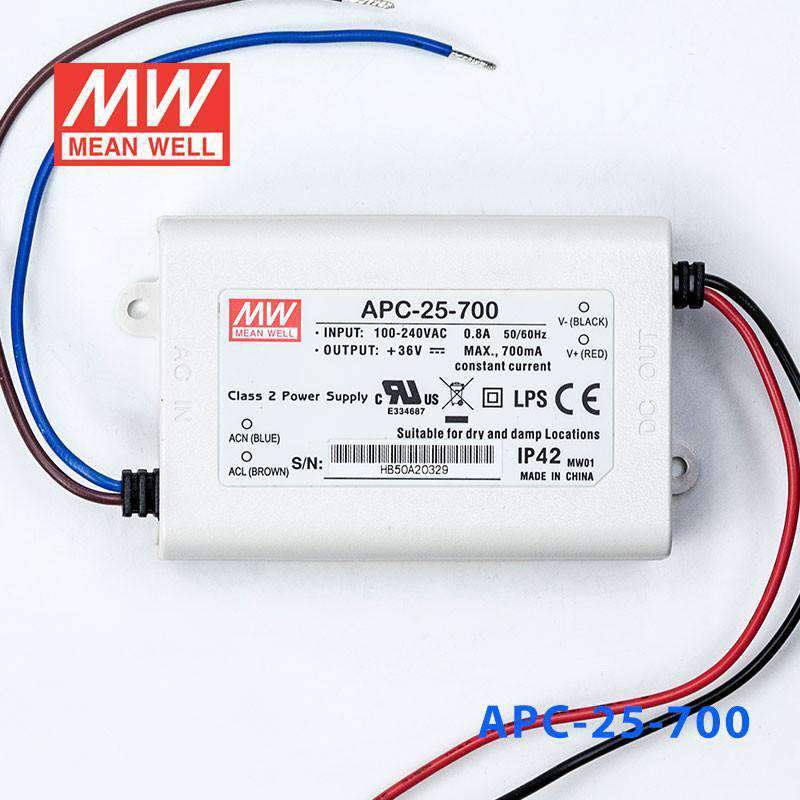

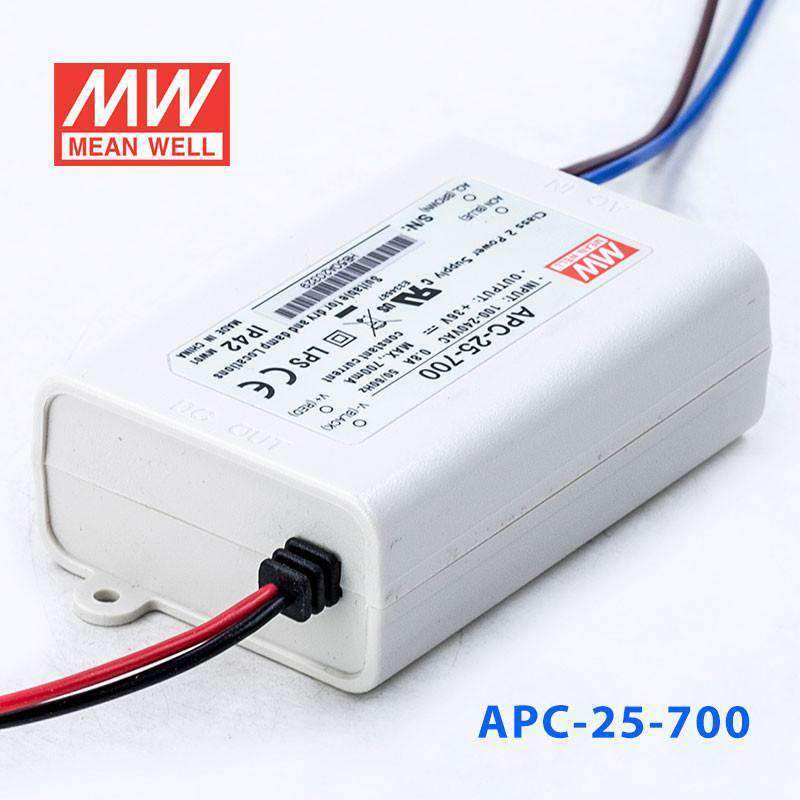

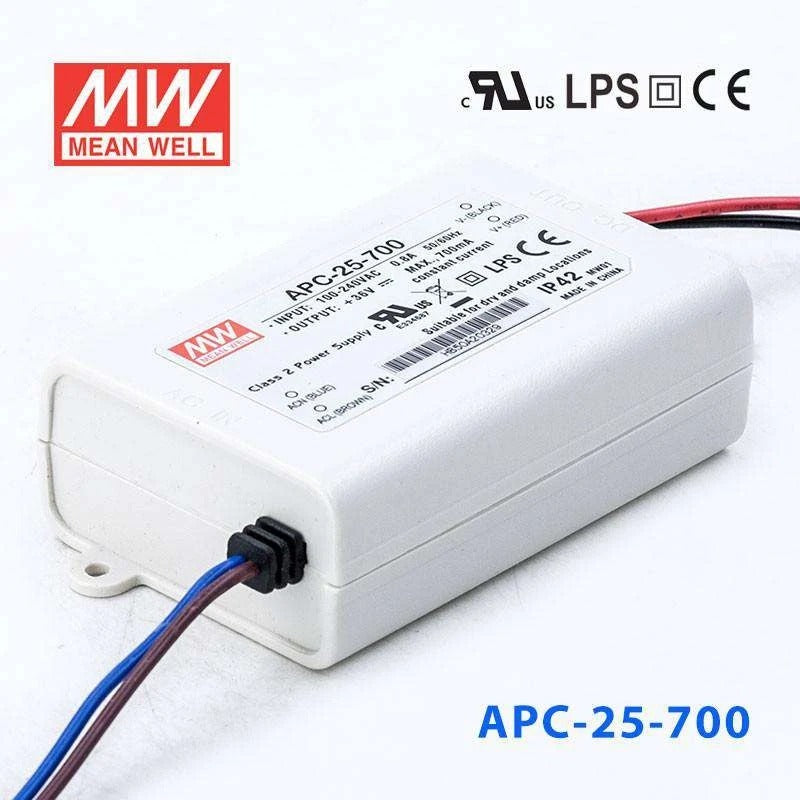

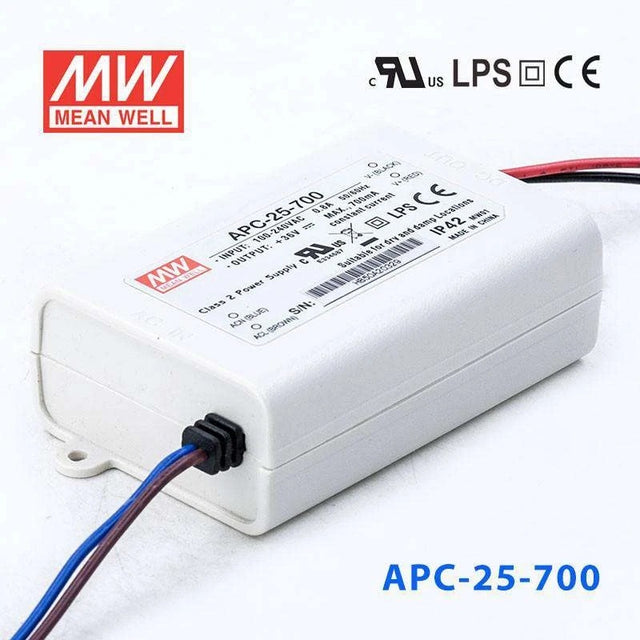

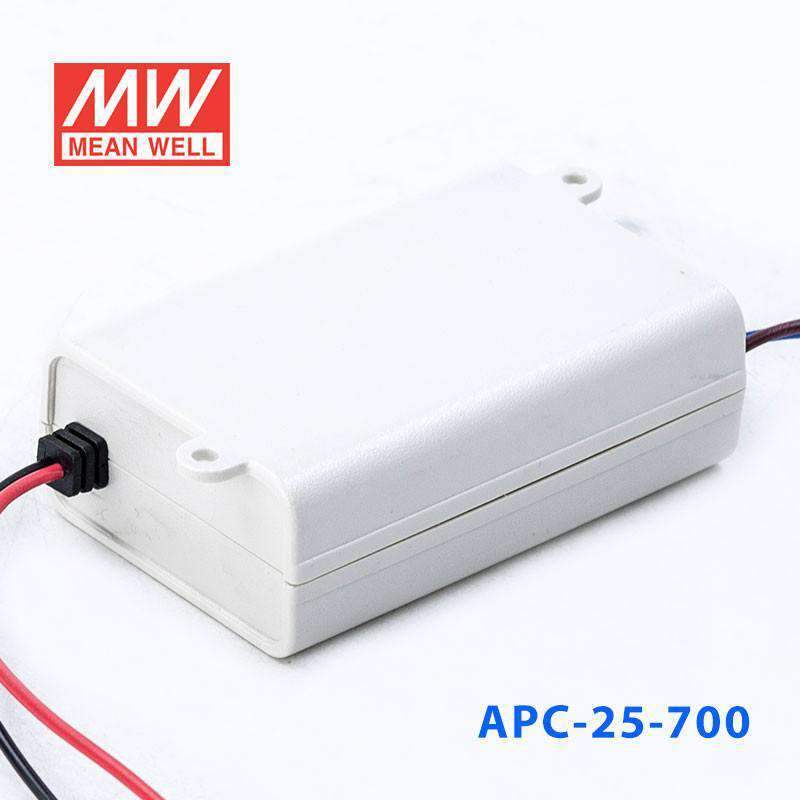

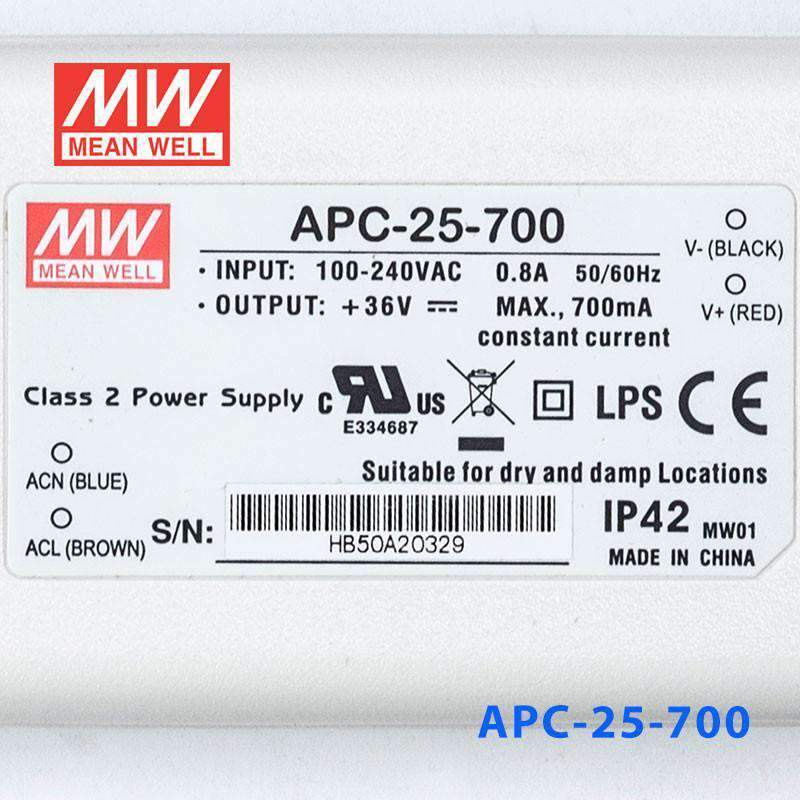

Mean Well APC-25-700 Power Supply 25W 700mA

Class II designlow costsmall and compactIP42
SKU APC-25-700
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 5 in this family

APC-25-700
In stock
|

Overview

APC-25-700 is the model of this series: rated current 700mA, rated power 25.2W, typical efficiency 83%.

Features

  • Constant current mode power supply
  • Universal AC input / Full range
  • Withstand 300VAC Surge input for 5 seconds
  • Protections:Short circuit / Over voltage
  • Fully isolated plastic case
  • Small and compact size
  • Cooling by free air convection
  • IP42 design
  • 100% full load burn-in test
  • Display devices for decorative & advertising accessories (Note.6)
  • Low cost / High reliability
  • 2 years warranty

Specifications

APC-25-700Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

RATED CURRENT
700mA
DC VOLTAGE RANGE
11~36V
RATED POWER
25.2W
CURRENT RIPPLE
5.0%
CURRENT ACCURACY
±8.0%
SETUP, RISE TIME
1500ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.2
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
83%
AC CURRENT
0.4A/230VAC;0.8A/115VAC
INRUSH CURRENT(Typ.)
COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVER VOLTAGE
41 ~ 49V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ 70℃(Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.2%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), BIS IS15885(except for APC-25-350), EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF
4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 504.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5(L*W*H)
PACKING
0.13Kg; 72pcs/10.4Kg/0.92CUFT

Certifications & ratings

Marked features
IP42 LPS
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Derating may be needed under low input voltage. Please check the static characteristic for more details.
  3. 3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  6. 6. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

APC-25-700 Block Diagram
Block Diagram

Downloads

FAQ

What is the APC-25-700 typically used for?

The Mean Well APC-25-700 is typically used for constant-current LED lighting and moving sign applications that need a 700mA drive current. With 25.2W rated power over an 11~36V output voltage range, it is a fit for 700mA LED loads that operate within that voltage window.

Can the APC-25-700 be used for indoor LED lighting or sign projects?

Yes. The APC-25-700 suits LED lighting and moving sign applications, so indoor lighting and sign assemblies are typical uses when the connected load is designed for 700mA constant-current operation and fits within the driver's electrical rating.

Will the APC-25-700 run on common AC mains supplies?

Yes. The specified input range is 90-264VAC, so the APC-25-700 can operate from common 120V and 240V mains systems within that range. That makes it practical for broad indoor lighting deployment.

Is the APC-25-700 suitable for exposed outdoor installation?

No. The APC-25-700 is rated IP42, so it should generally be used indoors or in a protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -30°C to +70°C (refer to the derating curve), but ingress protection remains limited.

How does the APC-25-700 compare with the APC-25-500?

The APC-25-700 provides 25.2W at 700mA over an 11~36V range, while the APC-25-500 provides the same 25.2W at 500mA over 15~50V. The main difference is current level: the APC-25-700 is for 700mA LED loads, while the APC-25-500 is for 500mA loads. The key selection rule is matching the driver current to the LED requirement.
