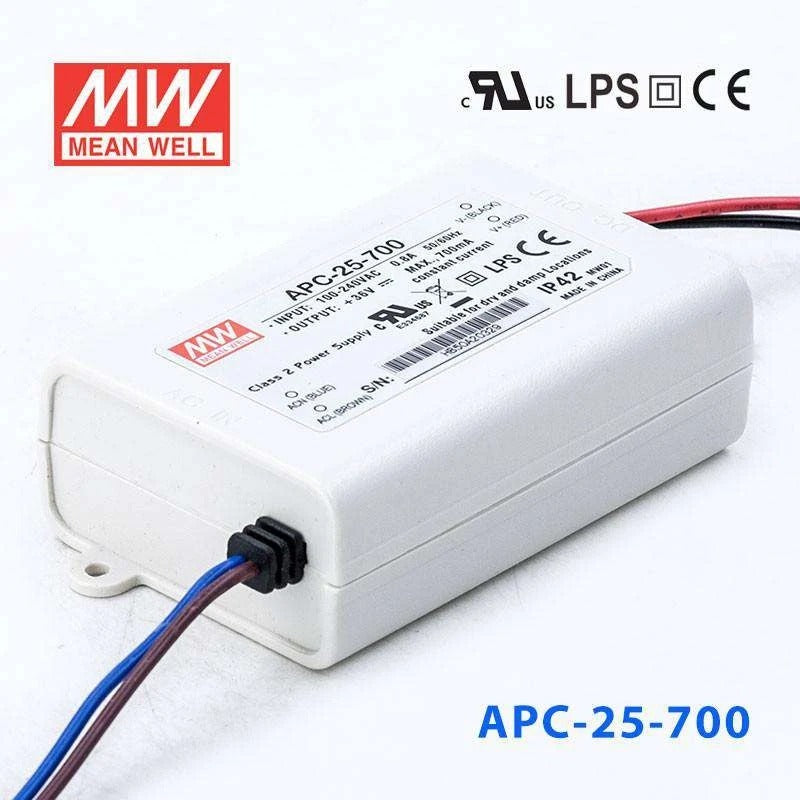

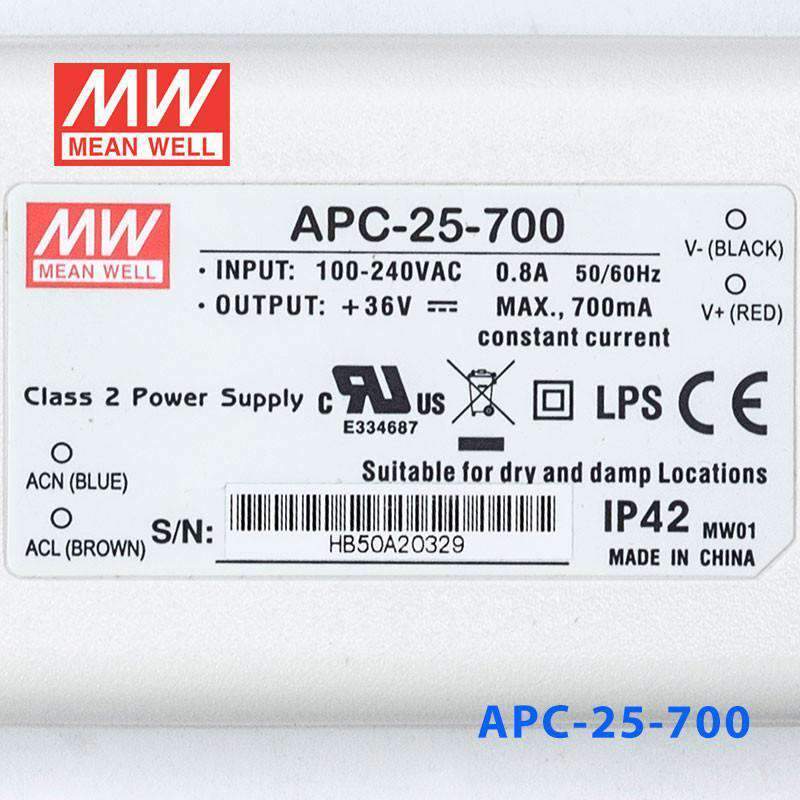

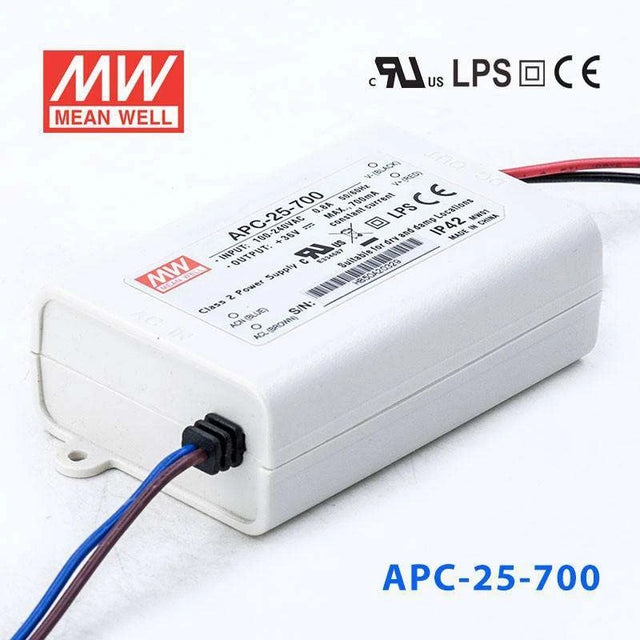

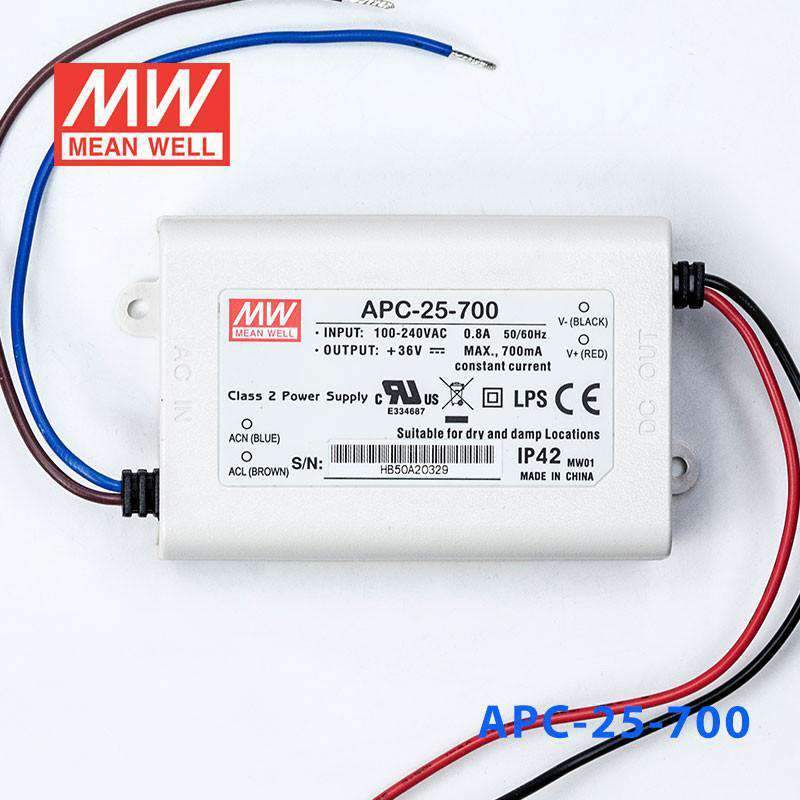

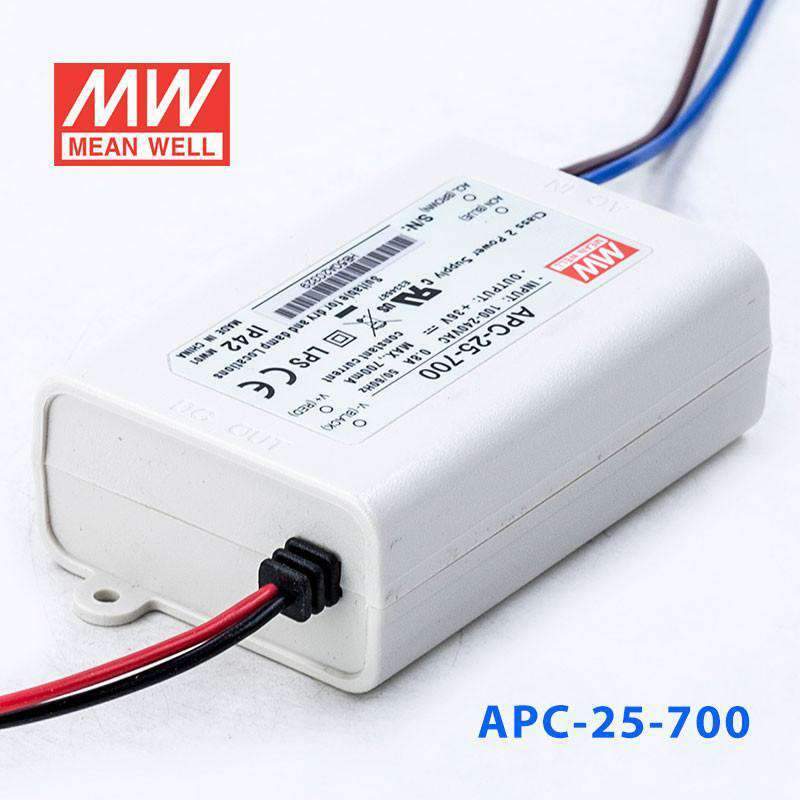

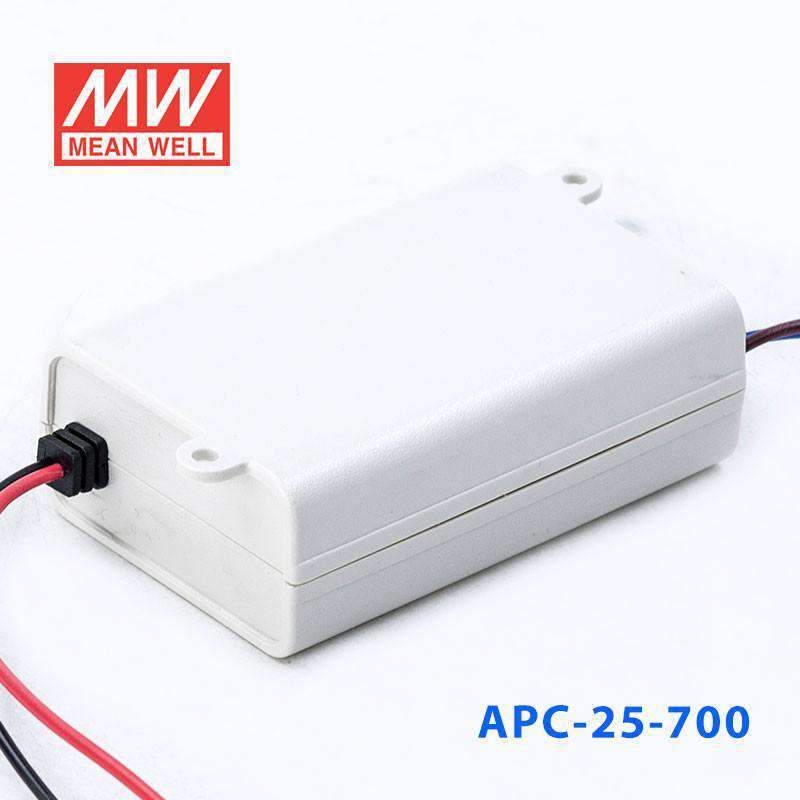

Mean Well APC-25-700 Power Supply 25W 700mA
Please Login for Pricing
Description
Description
The APC-25 is a 25W Mean Well. power converter. and an input range of 25~70V.
Key Features
- ✓ Input voltage range: 25~70V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 (except for APC-25-350), CSA-C22.2 No. 250.0-13 (only for APC-25-700&1050), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating25.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the APC-25-700 typically used for?
The Mean Well APC-25-700 is typically used for constant-current LED lighting and moving sign applications that need a 700mA drive current with more power headroom than smaller APC models. With 25.2W rated power, it is a fit for 700mA LED loads that need more output capacity than the 12W and 16W versions.
Is the APC-25-700 a good fit for 700mA LED loads that need more output than the APC-16-700?
Yes. Both models are 700mA constant-current drivers, but the APC-25-700 provides 25.2W compared with 16.8W on the APC-16-700. That makes it a better fit when the LED load still needs 700mA but requires more output capability.
Can the APC-25-700 be used for indoor LED lighting or sign projects?
Yes. The APC-25-700 is positioned for LED lighting and moving sign applications, so indoor lighting and sign assemblies are typical uses when the connected load is designed for 700mA constant-current operation and fits within the driver's electrical rating.
Will the APC-25-700 run on common AC mains supplies?
Yes. The specified input range is 90-264VAC, so the APC-25-700 can operate from common 120V and 240V mains systems within that range. That makes it practical for broad indoor lighting deployment.
Is the APC-25-700 suitable for exposed outdoor installation?
No. The APC-25-700 has an IP30 design, so it should generally be used indoors or in a protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -30°C to +70°C, but ingress protection remains limited.
How does the APC-25-700 compare with APC-16-700 and APC-25-500?
The APC-25-700 provides 25.2W at 700mA, giving it more output capacity than the APC-16-700 at 16.8W and 700mA. Compared with the APC-25-500, the main difference is current level: the APC-25-700 is for 700mA LED loads, while the APC-25-500 is for 500mA loads. The key selection rule is matching the driver current to the LED requirement.
Other APC-25 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well APC-25-350 Power Supply 25W 350mA | 24.5W | 70V | 0.35A | Indoor | View |
| Mean Well APC-25-500 Power Supply 25W 500mA | 25.2W | 50V | 0.5A | Indoor | View |
| Mean Well APC-25-1050 Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | View |
