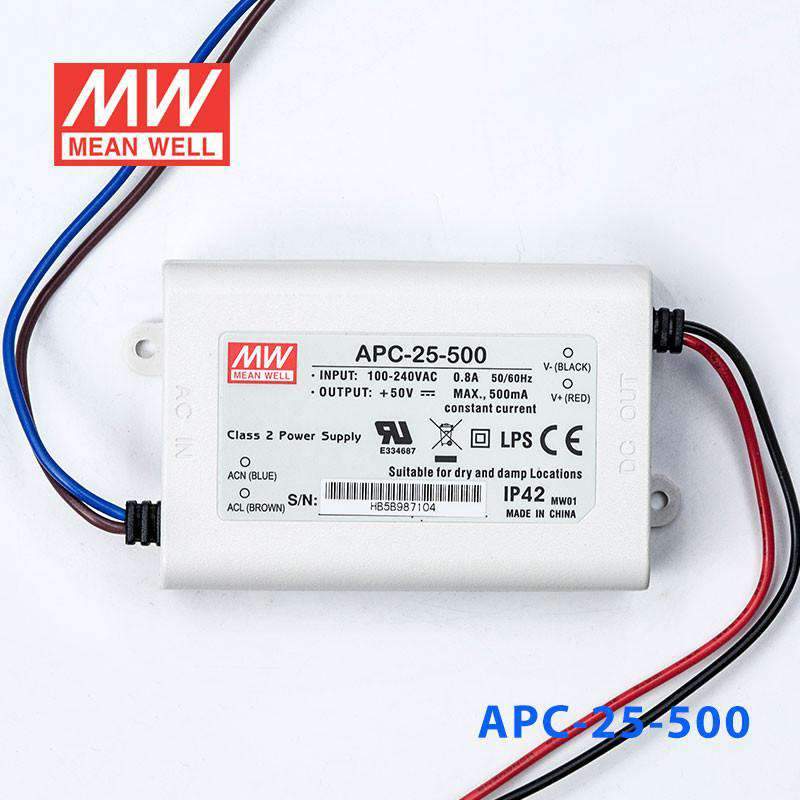

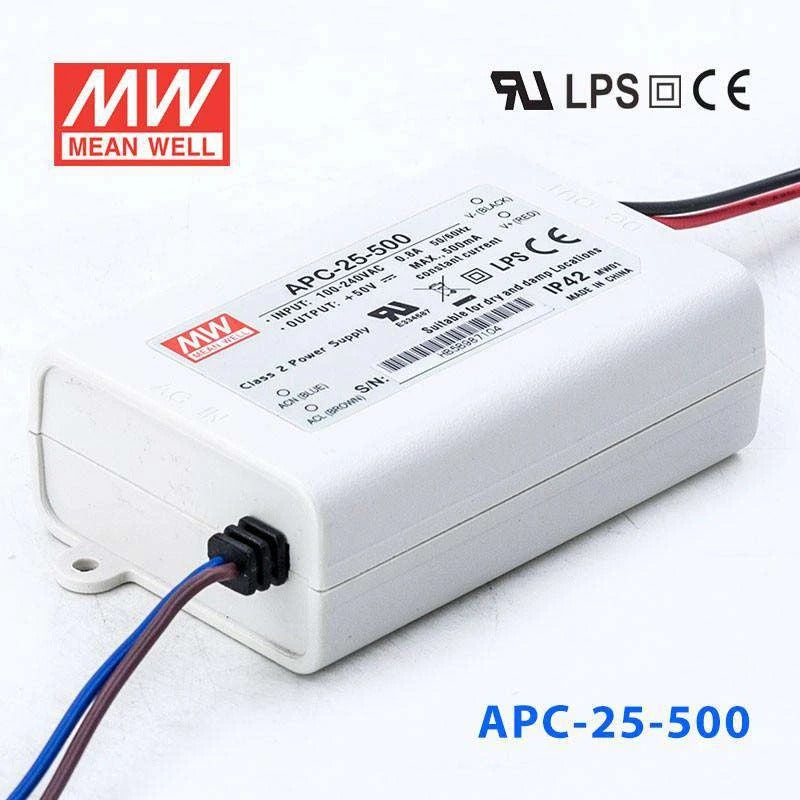

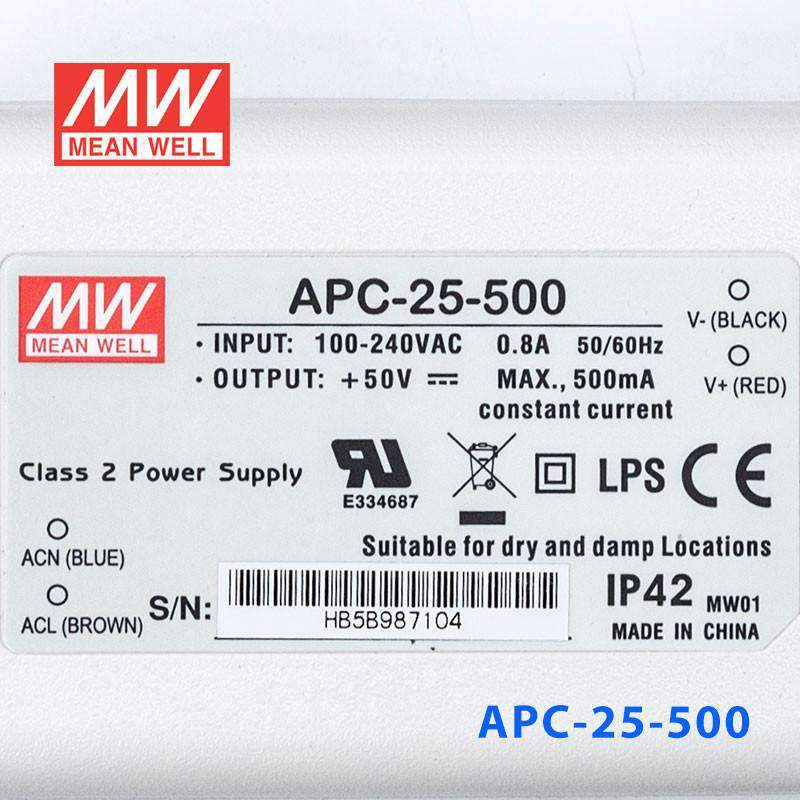

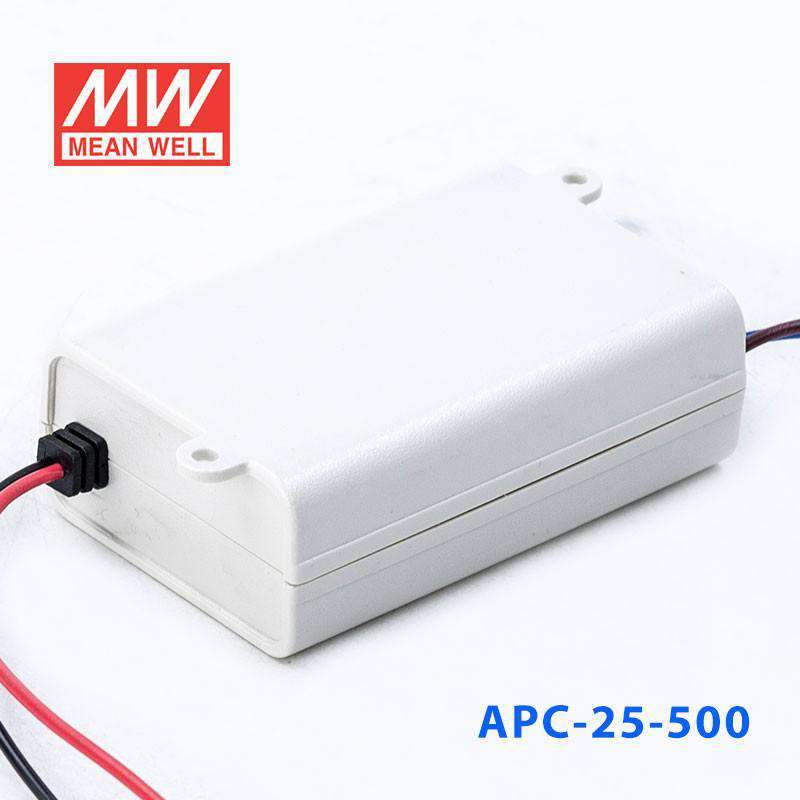

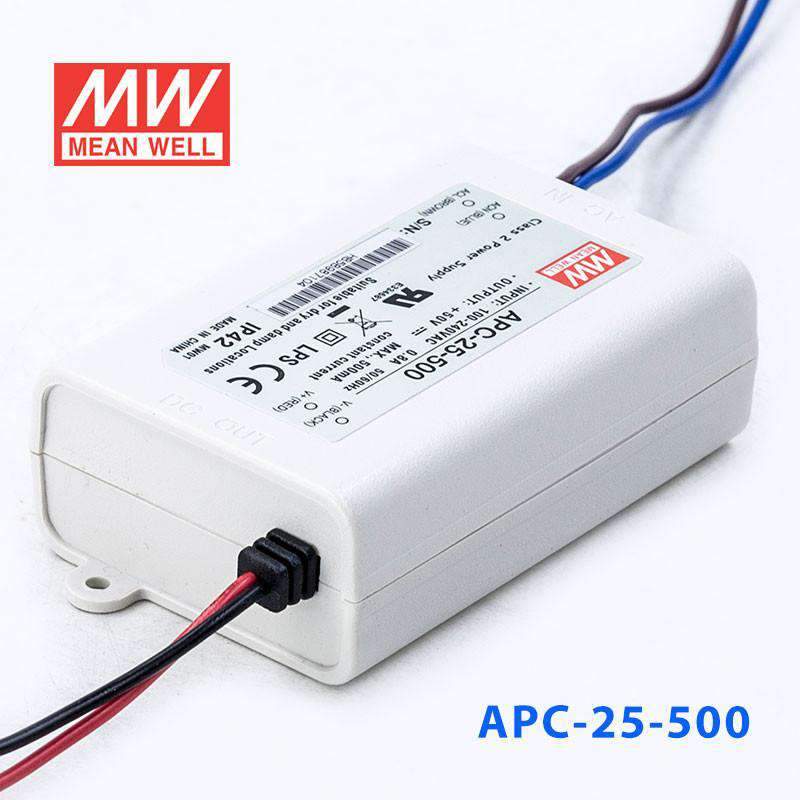

Mean Well APC-25-500 Power Supply 25W 500mA
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case |
| Protections: Short circuit / Over voltage |
| Constant current design (C.C. mode) |
| IP30 design |
| Withstand 300VAC surge input for 5 seconds |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current | Cold start, 45A at 230VAC |
| Overload Range | >105% rated output current |
| Protection Type | Hiccup up mode, auto-recovery |
| Over voltage protection | 110%~145% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | UL8750 approved (except for APC-25-350&APC-35-350/500);Design refer to TUV EN60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, 18AWGx2C (15cm) |
| Connection Output | UL rated, 18AWGx2C (15cm) |
| Dimension (LxWxH)(mm) | 84x 57x 29.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating25.2 Watt
-
Output Voltage50 Volt
-
Rated Current0.5 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.13 kg
