Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

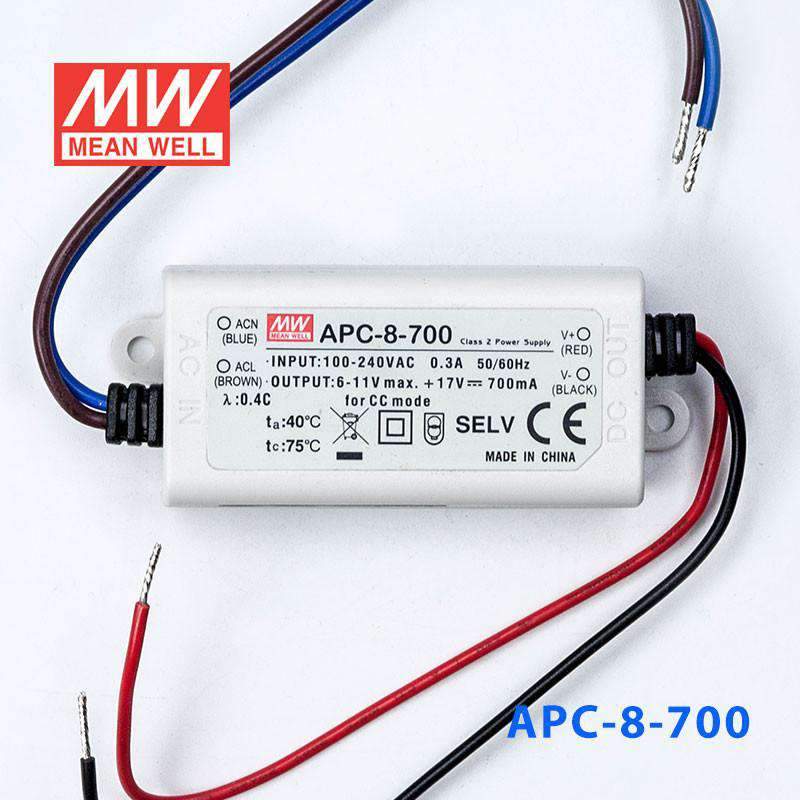

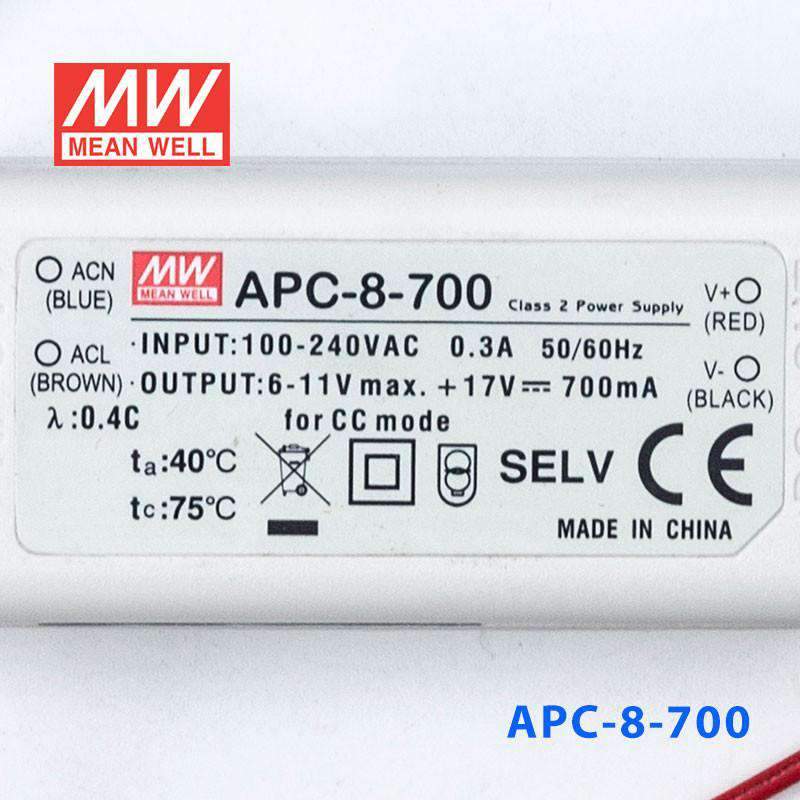

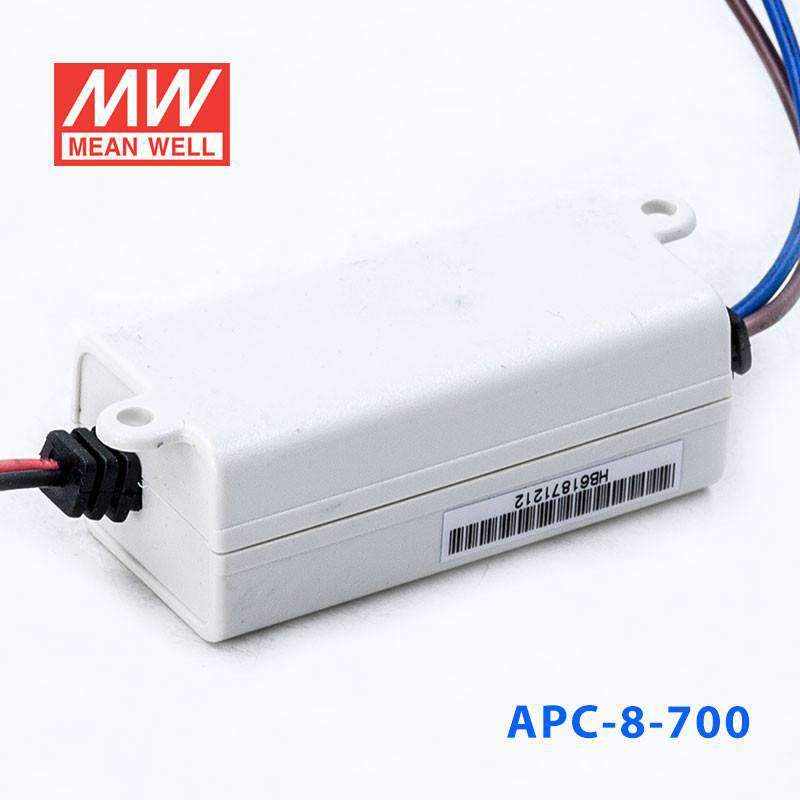

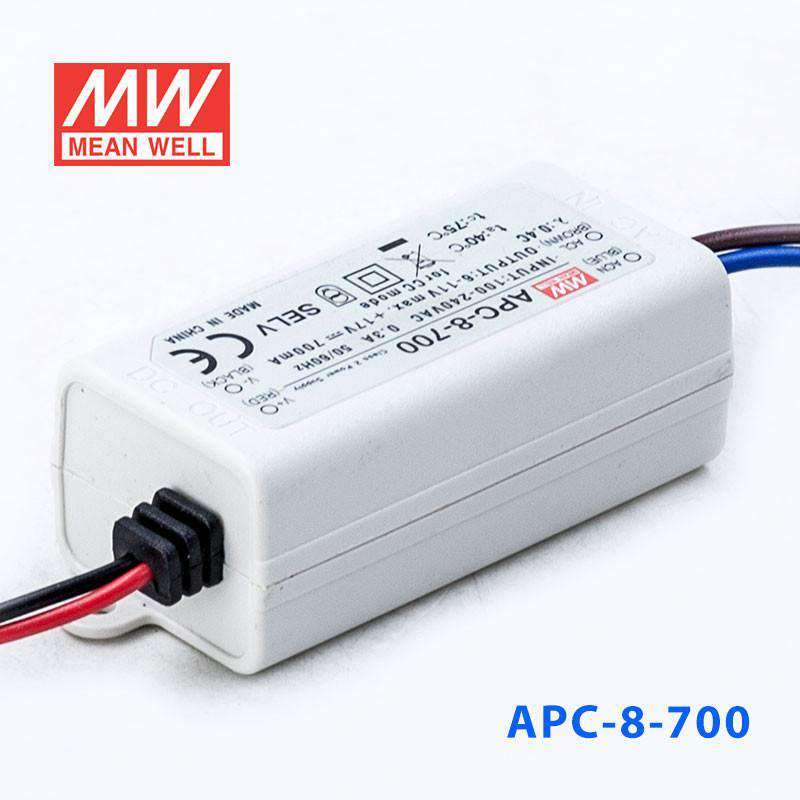

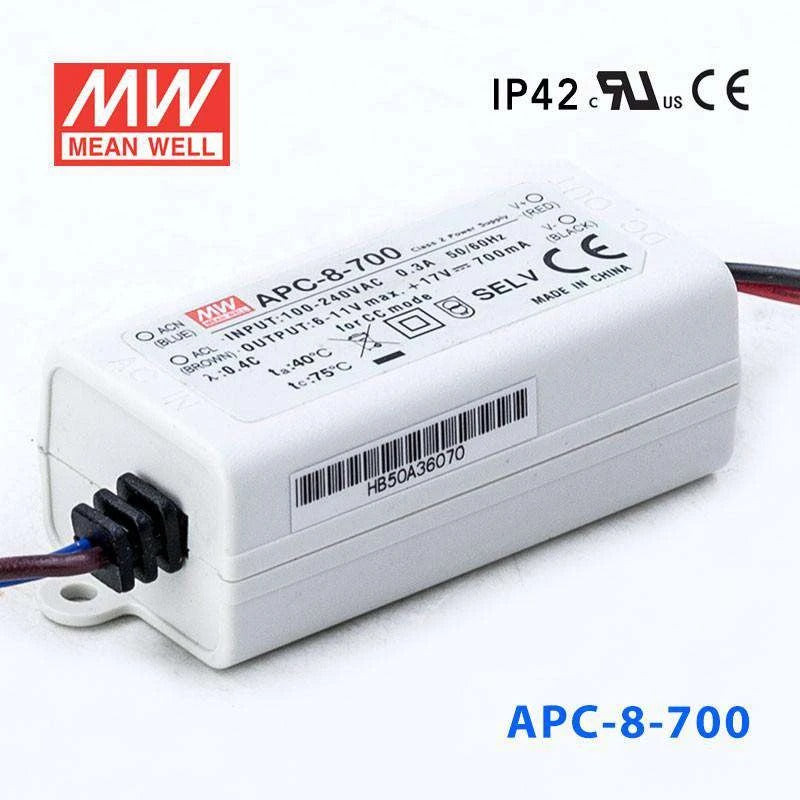

Mean Well APC-8-700 Power Supply 8W 700mA

Class II designlow costsmall and compactIP42

SKU:

APC-8-700

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

APC-8-700

APC-8-700 8W 700mA Backorder

APC-12-700 12W 700mA Low stock

APC-16-700 16W 700mA In stock

APC-25-700 25W 700mA Low stock

APC-35-700 35W 700mA In stock

Product variants

Notify me when it's back in stock

The APC-8 is a 8W Mean Well. DIN rail power converter with a 60mm profile. and an input range of 16~32V.

Key Features

✓ 60mm width — DIN rail TS-35 compatible
✓ Input voltage range: 16~32V
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~70℃
✓ Protections: Short circuit
✓ Safety approvals: Note.7 UL8750,CSA C22.2 No.250.0-08
✓ 3 years warranty

Frequently Asked Questions

What type of LED loads is the APC-8-700 suited for?

The APC-8-700 outputs a constant 700mA, which suits LED downlights, signage modules, or compact LED arrays whose forward current rating is 700mA. Its CC voltage range of 6–11V accommodates short series strings, and rated output power is 7.7W.

How many LEDs can the APC-8-700 drive in a series string?

The APC-8-700 will regulate 700mA through any series LED string with a combined forward voltage between 6V and 11V. The specific number of LEDs depends on each LED's forward voltage at 700mA — this varies by LED type and cannot be determined from the driver specification alone.

Why does the APC-8-700 have a lower output power (7.7W) than the other APC-8 models?

Output power equals current multiplied by voltage. The APC-8-700 delivers 700mA but operates over a relatively low voltage range of 6–11V, so its maximum power reaches 7.7W (700mA × 11V). The APC-8-250 and APC-8-500 operate over higher voltage ranges that push their maximum power to 8W. All models are close in total power, but the voltage range and current rating determine which LED strings each driver can support.

Is the APC-8-700 suitable for use in temperature-controlled enclosures or cold environments?

Yes. The APC-8-700 is rated for operation from -30°C to +70°C, which covers cold storage environments, unheated outdoor cabinets (when enclosed), and warm interior spaces alike.

How does the APC-8-700 compare to the other APC-8 series models?

All APC-8 variants share the same 60.0 × 30.0 × 23.5mm enclosure, 0.05kg weight, 90–264VAC universal input, IP42 rating, Class II design, and 2-year warranty. The APC-8-700 delivers 700mA over 6–11V (7.7W); the APC-8-500 delivers 500mA over 8–16V (8W); the APC-8-350 delivers 350mA over 11–23V (8.05W); and the APC-8-250 delivers 250mA over 16–32V (8W). Selection is determined by the LED string's rated forward current, not by voltage.

Does the APC-8-700 work on both 120V and 240V mains supplies?

Yes. The APC-8-700 accepts a universal input range of 90–264VAC, so it operates without modification on both 120V North American and 240V European or Asian mains supplies.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well APC-8-500 Power Supply 8W 500mA	8W	16V	0.5A	Indoor	View
Mean Well APC-8-350 Power Supply 8W 350mA	8.05W	23V	0.35A	Indoor	View
Mean Well APC-8-250 Power Supply 8W 250mA	8W	32V	0.25A	Indoor	View
