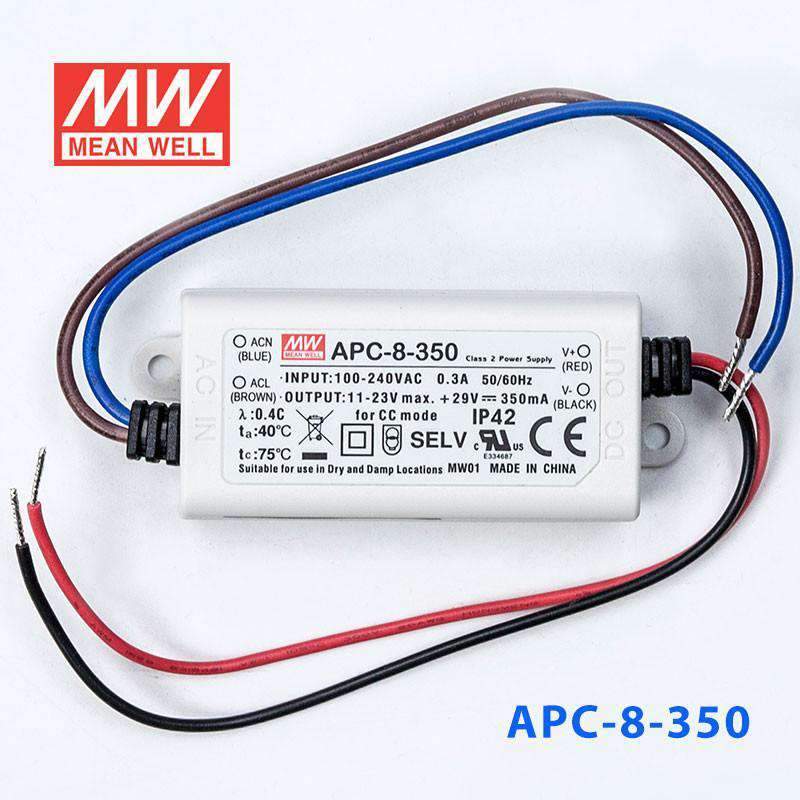

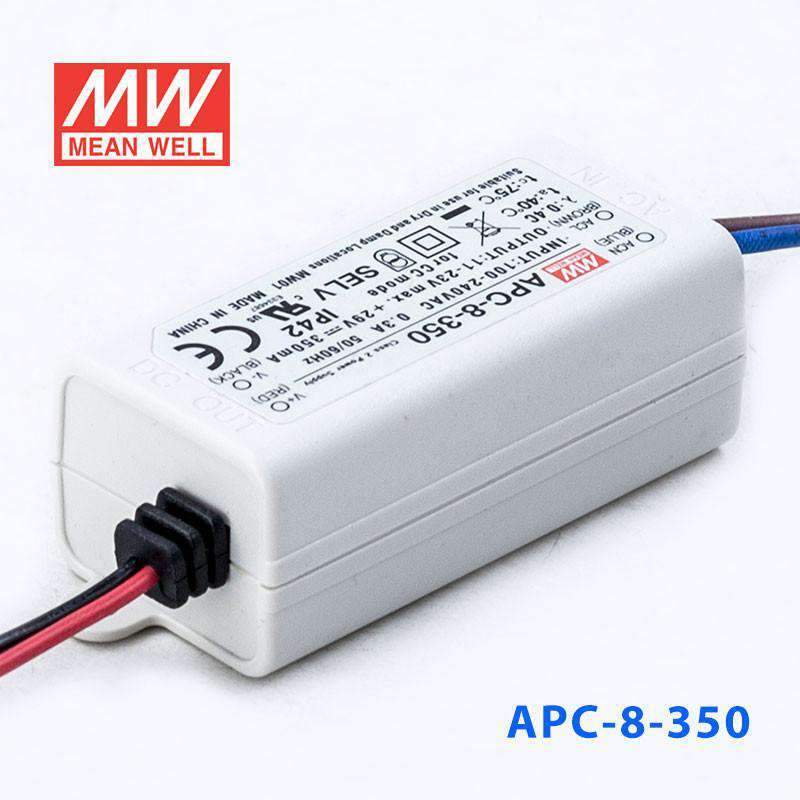

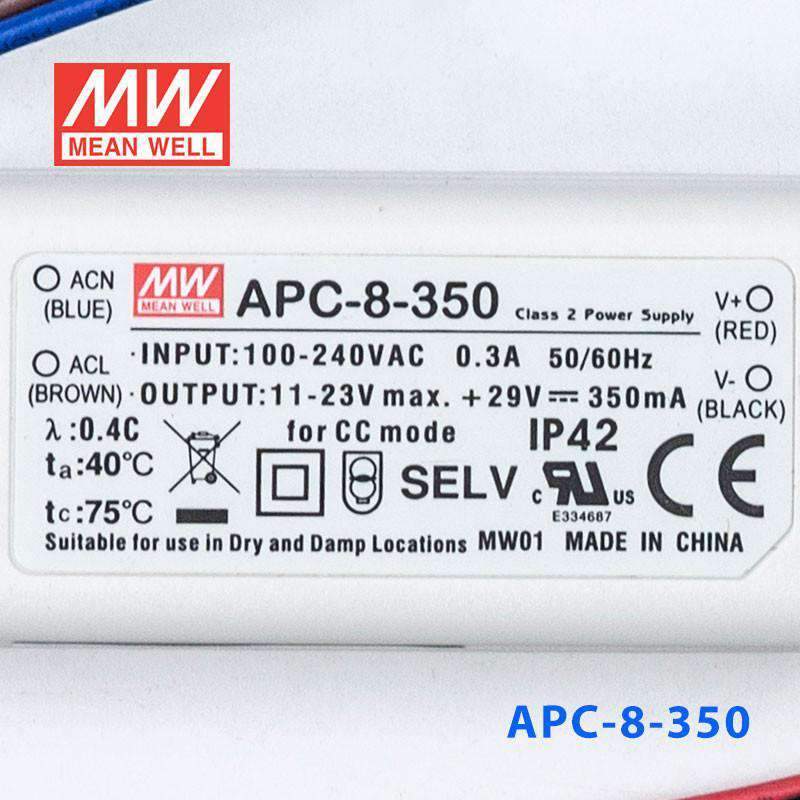

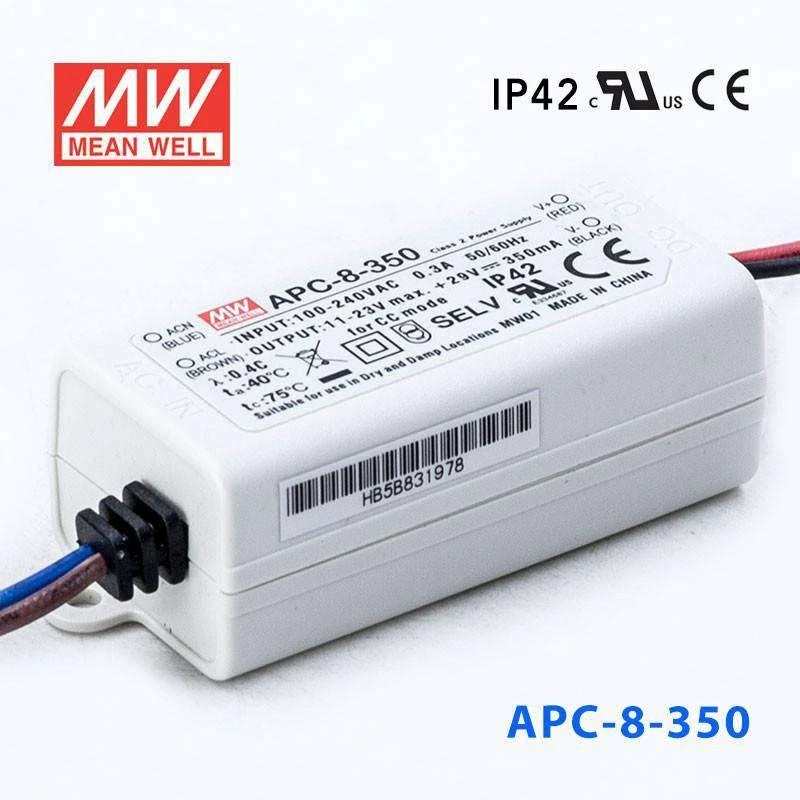

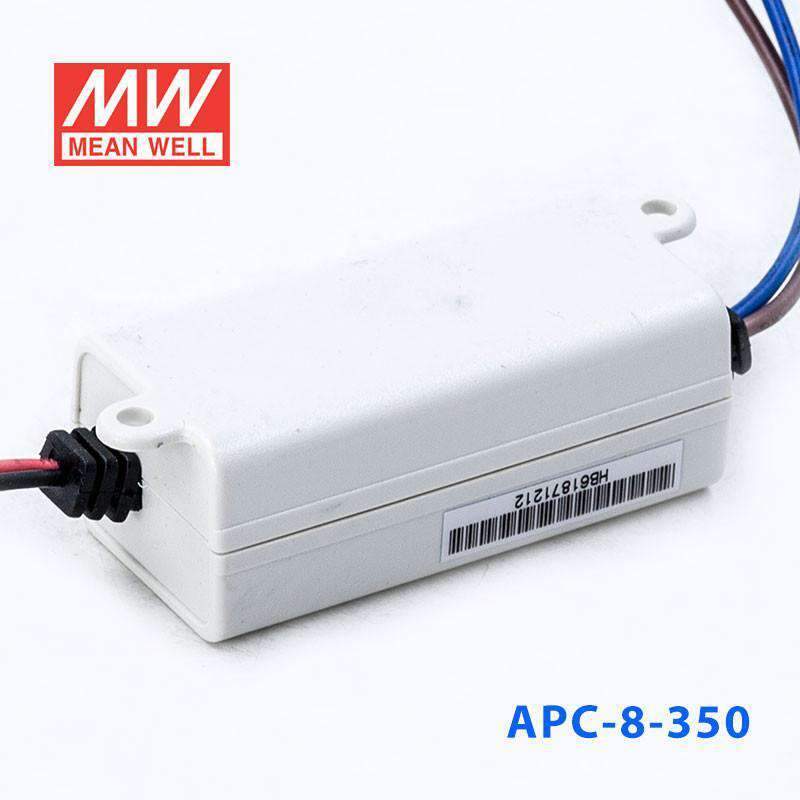

Mean Well APC-8-350 Power Supply 8W 350mA

Class II design, low cost, small and compact, IP42
SKU:
APC-8-350

Model
|

Description

Features

Universal AC input / Full range
Fully isolated plastic case
Protections: Short circuit / Overload / Over voltage
Constant current design
IP42 design
Class 2 power unit , no F.G.
Small and plastic case
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
2 years warranty

General Specification

AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current Cold start, 70A at 230VAC
Protection Type Hiccup up mode, auto-recovery
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards UL8750 approved; Design refer to EN60950-1,EN61347-1, EN61347-2-13
EMC standards EN55022, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024
Connection Input UL rated, 18AWGx2C (15cm)
Connection Output UL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm) 60x 30x 23.5

Specifications

  • Brand
    Mean Well
  • Series
    APC Series
  • Power Rating
    8.05 Watt
  • Output Voltage
    23 Volt
  • Rated Current
    0.35 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CE,cUL,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    6 cm
  • Width
    3 cm
  • Height
    2.35 cm
  • Weight
    0.05 kg
