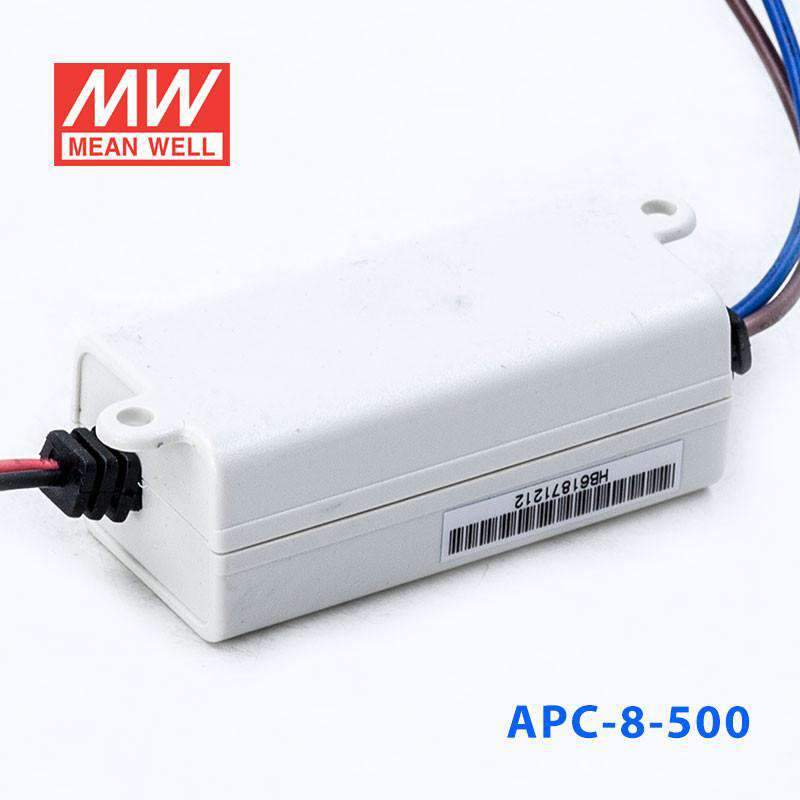

Mean Well APC-8-500 Power Supply 8W 500mA
Please Login for Pricing
Description
Description
The APC-8 is a 8W Mean Well. DIN rail power converter with a 60mm profile. and an input range of 16~32V.
Key Features
- ✓ 60mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 16~32V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: Note.7 UL8750,CSA C22.2 No.250.0-08
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating8 Watt
-
Output Voltage16 Volt
-
Rated Current0.5 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6 cm
-
Width3 cm
-
Height2.35 cm
-
Weight0.05 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the APC-8-500 designed for?
The APC-8-500 delivers a constant 500mA output, making it appropriate for LED downlights, compact signage modules, or small LED arrays that are rated for 500mA forward current. Its CC voltage range of 8–16V means it works with relatively short LED strings, and total output power is 8W.
How many LEDs can the APC-8-500 support in a series string?
The APC-8-500 regulates 500mA through any LED string whose total forward voltage falls between 8V and 16V. The actual number of LEDs depends on each LED's individual forward voltage at 500mA — no fixed LED count can be stated without knowing that specification.
Is the APC-8-500 a constant current or constant voltage driver?
The APC-8-500 is a constant current driver. It maintains a fixed 500mA output and allows the output voltage to float anywhere within its 8–16V operating range as required by the connected LED load. This is distinct from constant voltage drivers, which fix the output voltage and allow current to vary.
How does the APC-8-500 differ from the APC-8-700 for driving lower-voltage LED strings?
The APC-8-500 outputs 500mA over a CC range of 8–16V (8W), while the APC-8-700 outputs 700mA over a CC range of 6–11V (7.7W). Both overlap slightly near the lower end of the APC-8-500's range, but the key selection criterion is the LED string's rated forward current: 500mA LEDs require the APC-8-500, and 700mA LEDs require the APC-8-700.
What certifications and protections does the APC-8-500 include?
The APC-8-500 carries BSMI, CE, cUL, and EAC certifications. It is rated IP42 for protection against solid particles larger than 1mm and limited dripping water. The Class II double-insulated design eliminates the need for a protective earth connection.
How does the APC-8-500 compare to all APC-8 siblings?
All four APC-8 models use the same 60.0 × 30.0 × 23.5mm housing, 0.05kg weight, 90–264VAC universal input, IP42 rating, Class II design, and 2-year warranty. Output specifications are: APC-8-250 at 250mA / 16–32V / 8W; APC-8-350 at 350mA / 11–23V / 8.05W; APC-8-500 at 500mA / 8–16V / 8W; APC-8-700 at 700mA / 6–11V / 7.7W. The correct model is whichever matches the LED string's rated forward current.
Other APC-8 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well APC-8-700 Power Supply 8W 700mA | 7.7W | 11V | 0.7A | Indoor | View |
| Mean Well APC-8-350 Power Supply 8W 350mA | 8.05W | 23V | 0.35A | Indoor | View |
| Mean Well APC-8-250 Power Supply 8W 250mA | 8W | 32V | 0.25A | Indoor | View |
