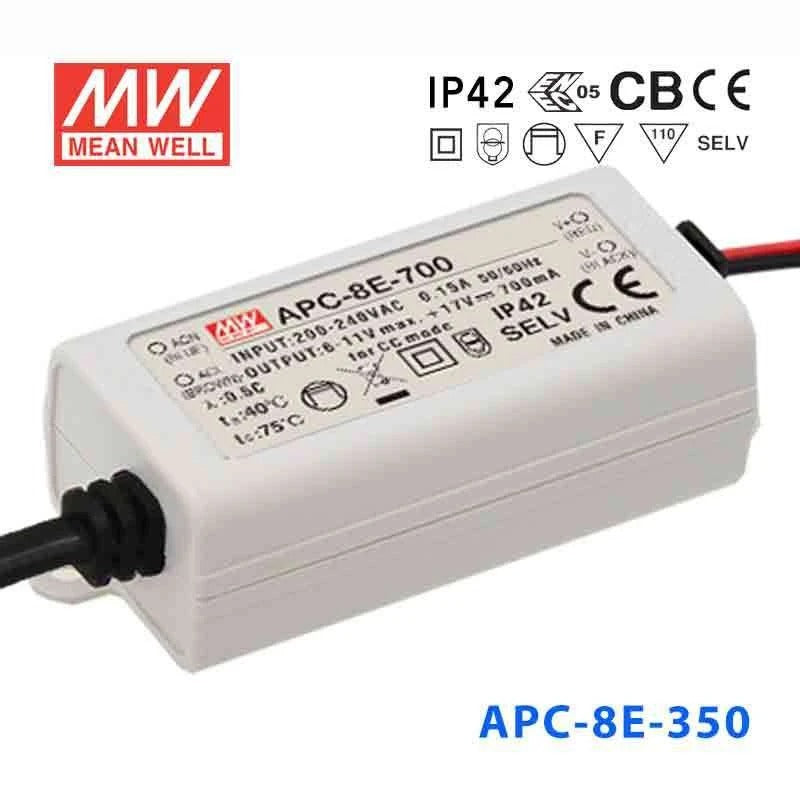

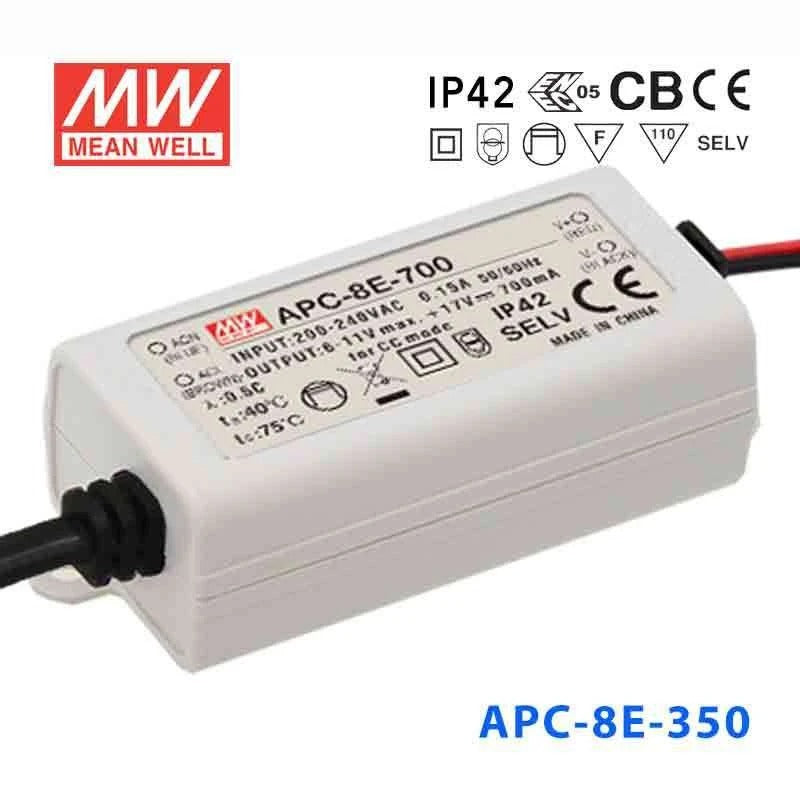

Mean Well APC-8E-350 Power Supply 8W 350mA

Class II designlow costsmall and compactIP42

SKU APC-8E-350

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

APC-8E-350 is the model of this series: rated current 350mA, rated power 8.05W, typical efficiency 80.5%.

APC-8E series is one 8W AC/DC constant current mode single output LED power supply. It accepts input 180~264VAC and provides four models with different output current, 250mA,350mA, 500mA and 700mA, respectively, that the small wattage LED applications employ the most frequently. Exploting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APC-8E ideally fits the entry-level LED applications.

Features

Specifications

APC-8E-350Specifications from the official datasheet (2024-10-16 edition)

OUTPUT

RATED CURRENT: 350mA
OPERATING VOLTAGE RANGE^Note.4: 11~23V
RATED POWER: 8.05W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
NO LOAD OUTPUT VOLTAGE(max.): 29V
CURRENT ACCURACY: ±8.0%
SETUP, RISE TIME: 500ms, 180ms / 230VAC
HOLD UP TIME (Typ.): 20ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 264VAC 254 ~ 370VDC (Note.5)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.5/230VAC at full load
EFFICIENCY(Typ.): 80.5%
AC CURRENT: 0.15A/230VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: -30 ~ 70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.2%/℃ (0 ~45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004,BS EN/EN 62368-1 approved; design refer to UL8750,CSA C22.2 No.250.0-08
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF: 13484.2K hrs min. Telcordia SR-332 (Bellcore) ; 2207.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 60*30*23.5(L*W*H)
PACKING: 0.05Kg; 144pcs/7.6Kg/0.79CUFT

Certifications & ratings

IP level: IP42

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Derating may be needed under low input voltage, please check the static characteristic for more details.
4. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
5. When applying DC voltage for input, please connect the brown input wire to the positive side whereas blue input wire to the negative side.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.)
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

APC-8E-350 Mechanical Specification — Mechanical Specification

Typical applications

Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)(Note.7)

Downloads

Test reports1

Test Report (APC-8E-350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What is the Mean Well APC-8E-350 designed for?

The APC-8E-350 is a constant current LED power supply designed for LED lighting and moving sign applications. This model delivers 350mA output and is intended for low-power applications with an 8.05W rated power.

Is the APC-8E-350 a dimmable LED driver?

No. The datasheet lists no dimming control function for this model, so it is suited to applications where fixed-output constant current operation is required. If dimming is needed, a different driver series would be more appropriate.

What are the key electrical specifications of this model?

The APC-8E-350 is rated at 8.05W with a 350mA output current and an 11 to 23V operating voltage range. It accepts an input range of 180 to 264VAC or 254 to 370VDC, which makes it suitable for standard AC supply environments within that range.

What protection features does the APC-8E-350 include?

This model includes short circuit protection. It uses hiccup mode and recovers automatically, helping the unit protect itself and resume normal operation after the fault condition is removed.

Can this power supply be used in harsh or outdoor environments?

The APC-8E-350 has an IP42 design, so it offers limited protection against solid objects and dripping water but is not a fully waterproof unit. It is generally better suited to indoor or protected environments rather than exposed outdoor locations.

What operating temperature range can this unit handle?

The specified working temperature range is -30°C to +70°C, subject to the output derating curve. That gives it a broad operating window for many commercial and industrial LED applications, provided the installation environment stays within specification.

How do I know if this driver is compatible with my LED application?

This model is intended for constant current applications that require 350mA output. It is best matched to LED loads whose electrical requirements fit within this driver's 8.05W power rating and 11 to 23V operating voltage range.

Is the APC-8E-350 a compact power supply?

Yes. The housing measures 60 x 30 x 23.5mm, making it a compact option for space-conscious LED applications. It also weighs approximately 0.05kg, which helps where low overall assembly weight matters.
