What type of LED application is the Mean Well APC-8E-500 designed for?

The APC-8E-500 is a constant current LED power supply intended for LED lighting and moving sign applications. It is rated for 500mA output and 8W power, making it suitable for systems that require that specific constant current drive level.

Is the APC-8E-500 a dimmable LED driver?

No. This model does not include a dimming control function, so it is intended for non-dimming applications. Buyers needing adjustable light output should compare it with dimmable constant current drivers instead.

What are the main electrical specifications of the APC-8E-500?

This model is rated at 8W with a 500mA constant current output and 16V output voltage. Its AC input range is 180 to 264VAC, and it also supports 254 to 370VDC input.

Can this power supply be used in harsher temperature conditions?

The APC-8E-500 has a working temperature range of -30°C to +70°C, subject to the output derating curve. That makes it suitable for a wide range of operating environments where temperature tolerance is important.

What protection and safety features does the APC-8E-500 include?

This model includes protection for short circuit, overload, and over voltage. It uses hiccup mode with auto-recovery for protection behavior and is built in a fully isolated plastic case with Class 2 power unit design.

Is the APC-8E-500 suitable for applications that need a compact driver?

Yes. The APC-8E-500 has a compact plastic housing measuring 60 x 30 x 23.5 mm and weighs 0.05 kg. Its small size makes it a practical option where space is limited.

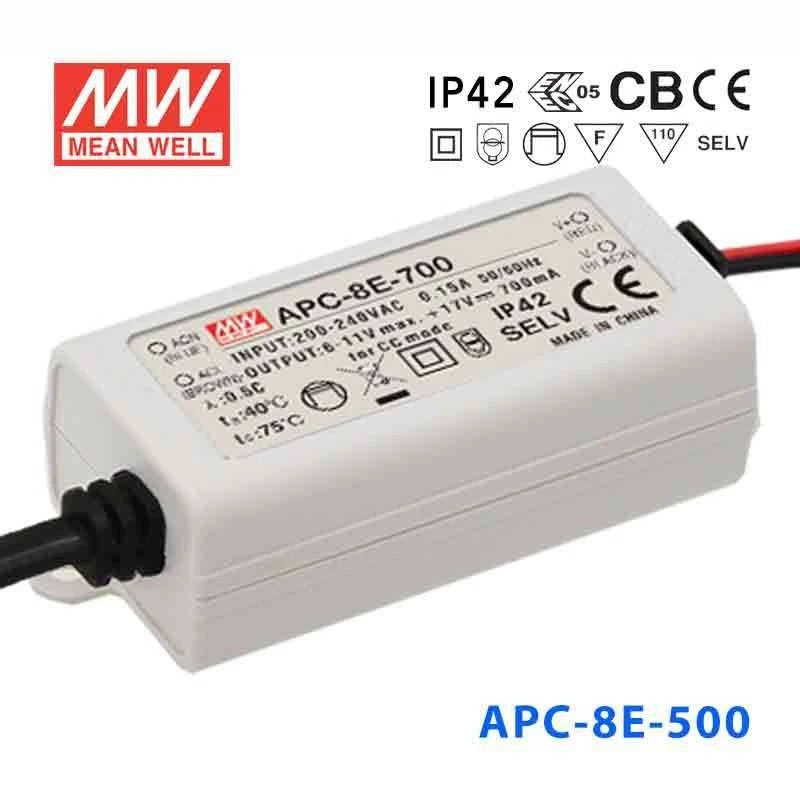

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well APC-8E-500 Power Supply 8W 500mA

Class II designlow costsmall and compactIP42

SKU:

APC-8E-500

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The APC-8E is a 8W Mean Well. power converter. and an input range of 16~32V.

Key Features

✓ Input voltage range: 16~32V
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~70℃
✓ Protections: Short circuit
✓ Safety approvals: ENEC EN61347-1,EN61347-2-13,EN62384,EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well APC-8E-700 Power Supply 8W 700mA	8W	11V	0.7A	Indoor	View
Mean Well APC-8E-350 Power Supply 8W 350mA	8W	23V	0.35A	Indoor	View
Mean Well APC-8E-250 Power Supply 8W 250mA	8W	32V	0.25A	Indoor	View
