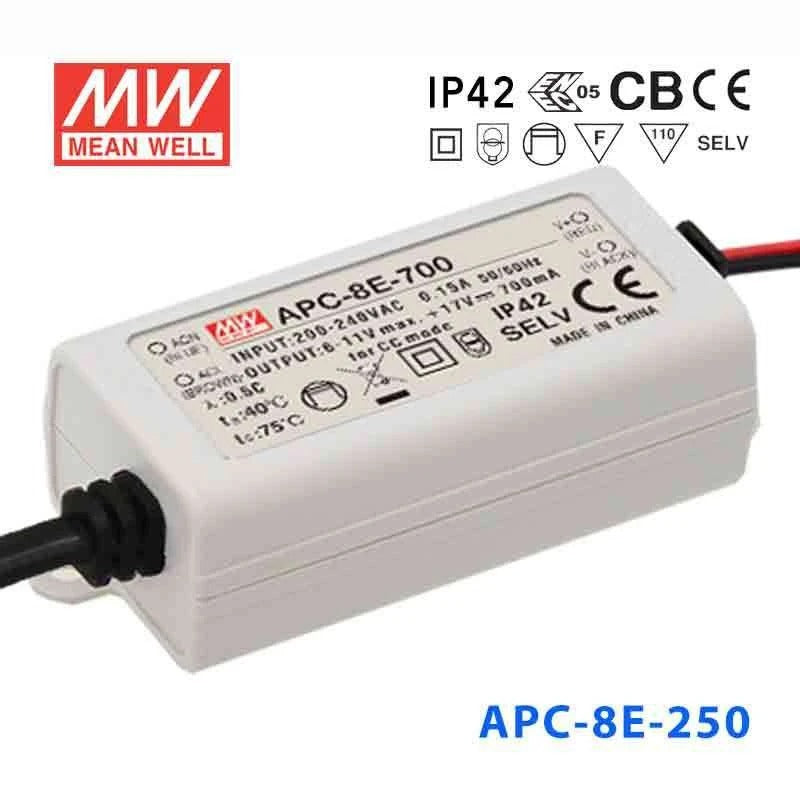

Mean Well APC-8E-250 Power Supply 8W 250mA

Class II designlow costsmall and compactIP42

SKU:

APC-8E-250

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The APC-8E is a 8W Mean Well. power converter. and an input range of 16~32V.

Key Features

✓ Input voltage range: 16~32V
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~70℃
✓ Protections: Short circuit
✓ Safety approvals: ENEC EN61347-1,EN61347-2-13,EN62384,EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well APC-8E-250 designed for?

The APC-8E-250 is an 8W constant current LED power supply rated at 250mA. It is intended for LED lighting and moving sign applications where a constant current driver is required rather than a constant voltage power supply.

What are the main electrical ratings of the APC-8E-250?

This model is rated for 8W output power and 250mA rated current. The listed output voltage is 32V, and the input range is 180 to 264VAC or 254 to 370VDC.

Does the APC-8E-250 support dimming?

No, this model does not include a dimming control function. It is a non-dimming constant current power supply intended for applications that do not require integrated dimming.

Is the APC-8E-250 suitable for demanding environments?

It is designed to operate in ambient temperatures from -30°C to +70°C, subject to the output derating curve. The unit also has an IP42 design, which offers basic protection for indoor or lightly exposed environments but is not intended for harsh wet-location use.

What protections and approvals does this model include?

The APC-8E-250 includes short circuit, overload, and over voltage protection, with hiccup mode and auto-recovery listed as the protection type. It also references safety and EMC compliance including EN61347-1, EN61347-2-13, EN62384, UL8750, and EN55015-related standards.

How does the APC-8E-250 compare with a constant voltage power supply?

The APC-8E-250 is a constant current model, so its defining output characteristic is the 250mA rated current rather than a fixed constant voltage output. Buyers comparing drivers should confirm their LED load requires a constant current supply, since this model is not intended to serve the same role as a standard constant voltage unit.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well APC-8E-700 Power Supply 8W 700mA	8W	11V	0.7A	Indoor	View
Mean Well APC-8E-500 Power Supply 8W 500mA	8W	16V	0.5A	Indoor	View
Mean Well APC-8E-350 Power Supply 8W 350mA	8W	23V	0.35A	Indoor	View
