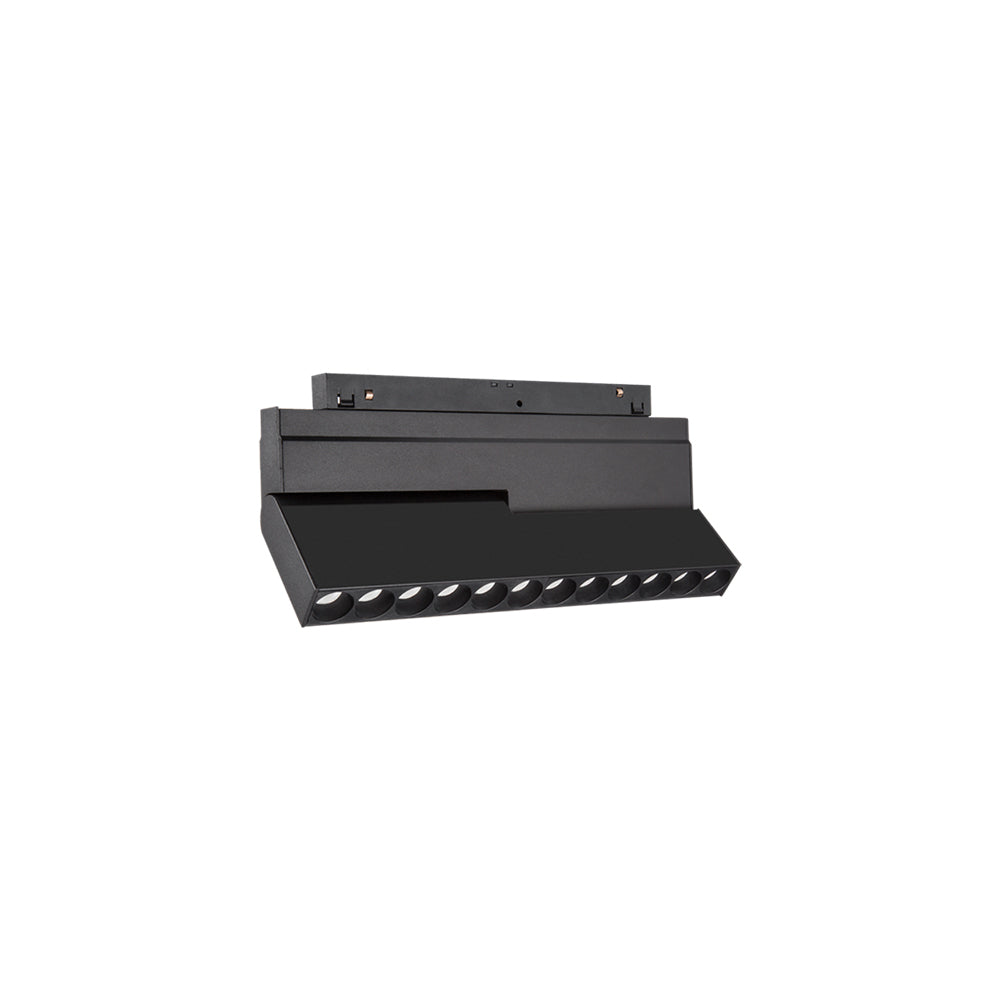

Archilight Bend 231C Black Tracklight Light 20W

Q: What type of applications is the Archilight Bend 231C Black Tracklight Light 20W suited for?

This light is designed for interior applications including residential, hospitality, office, and retail spaces. Its tiltable rectangular spotlight format makes it suitable for focused accent and display lighting in commercial or architectural settings.

Q: What variant options are available in this Bend 231C family?

Across this parent family, the main differences are beam angle and colour temperature. The available beam angles are 23°, 36°, and 60°, and the available colour temperatures are 2700K, 3000K, 4000K, and 5000K. The power rating, CRI, brightness, finish colour, driver status, dimming status, lifetime, and warranty remain consistent across the listed variants.

Q: How bright is the Archilight Bend 231C 20W range?

The listed child variants in this family are rated at 1700 lumens. That output is paired with a 20W power rating across the range, so the light level is consistent regardless of beam angle or colour temperature selection.

Q: What beam angle should I choose for this track light family?

This family is available in 23°, 36°, and 60° beam options, giving buyers a choice between narrower and wider light distribution. A narrower beam is generally better for more concentrated highlighting, while a wider beam is better when broader coverage is preferred. The exact choice depends on the lighting effect required for the space.

Q: Is the Archilight Bend 231C compatible with Motion series track systems?

Yes. The product description states that the Bend series magnetic track light can be paired with any Motion series track. This makes it part of the broader Motion magnetic track lighting system rather than a standalone light fitting.

Q: Does this track light include a driver or dimming function?

No. The parent product data and all listed variants show that the driver is not included and the dimming control is none. Buyers should treat this family as non-dimmable based on the supplied product data.

Q: What are the key performance and durability specifications for this product family?

This Bend 231C family is specified with CRI 90, a rated lifetime of 50,000 hours, and a 5-year warranty. The product data also lists a 48V power input, which aligns with its magnetic track light category. These specifications are consistent across the listed variants.

SKU:

KC-017007A12-23D-2700K-B

Log in to see price Trade pricing & online ordering for account holders

Configure — 12 variants

KC-017007A12-23D-2700K-B

LED Colour

Finish Colour

Beam Angle

12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

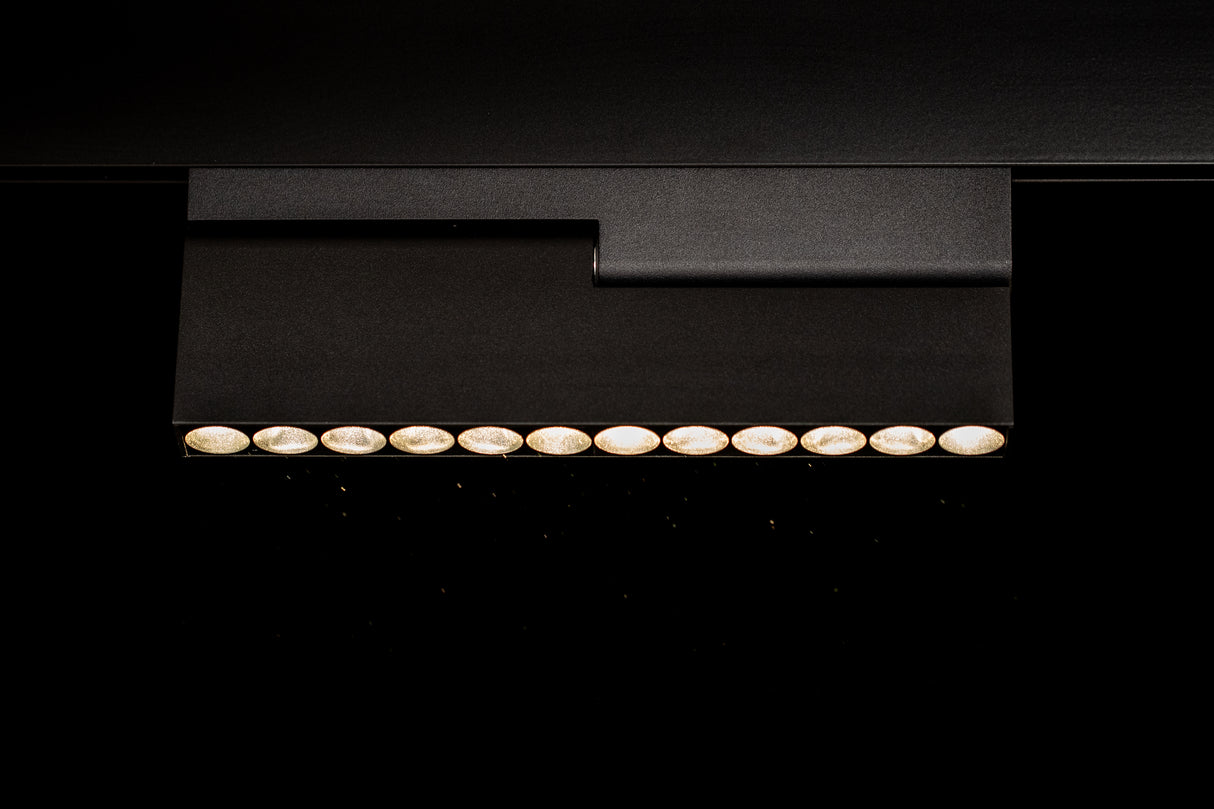

The Bend series magnetic track light has a range of wattage, beam and colour temperature options. This tiltable rectangular spotlight has a modern look, with the highest quality LED chip with high colour rending index (CRI>90) and low glare rating (UGR<19). It can be used in any application, including residential, hospitality, office and retail. Pair with any Motion series track.

Frequently Asked Questions

What type of applications is the Archilight Bend 231C Black Tracklight Light 20W suited for?

This light is designed for interior applications including residential, hospitality, office, and retail spaces. Its tiltable rectangular spotlight format makes it suitable for focused accent and display lighting in commercial or architectural settings.

What variant options are available in this Bend 231C family?

Across this parent family, the main differences are beam angle and colour temperature. The available beam angles are 23°, 36°, and 60°, and the available colour temperatures are 2700K, 3000K, 4000K, and 5000K. The power rating, CRI, brightness, finish colour, driver status, dimming status, lifetime, and warranty remain consistent across the listed variants.

How bright is the Archilight Bend 231C 20W range?

The listed child variants in this family are rated at 1700 lumens. That output is paired with a 20W power rating across the range, so the light level is consistent regardless of beam angle or colour temperature selection.

What beam angle should I choose for this track light family?

This family is available in 23°, 36°, and 60° beam options, giving buyers a choice between narrower and wider light distribution. A narrower beam is generally better for more concentrated highlighting, while a wider beam is better when broader coverage is preferred. The exact choice depends on the lighting effect required for the space.

Is the Archilight Bend 231C compatible with Motion series track systems?

Yes. The product description states that the Bend series magnetic track light can be paired with any Motion series track. This makes it part of the broader Motion magnetic track lighting system rather than a standalone light fitting.

Does this track light include a driver or dimming function?

No. The parent product data and all listed variants show that the driver is not included and the dimming control is none. Buyers should treat this family as non-dimmable based on the supplied product data.

What are the key performance and durability specifications for this product family?

This Bend 231C family is specified with CRI 90, a rated lifetime of 50,000 hours, and a 5-year warranty. The product data also lists a 48V power input, which aligns with its magnetic track light category. These specifications are consistent across the listed variants.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Bend 231C Black Track Light BLE 20W	20W	90	Optional	19	View
Archilight Bend 231C White Tracklight Light 20W	20W	90	None	19	View
