Archilight

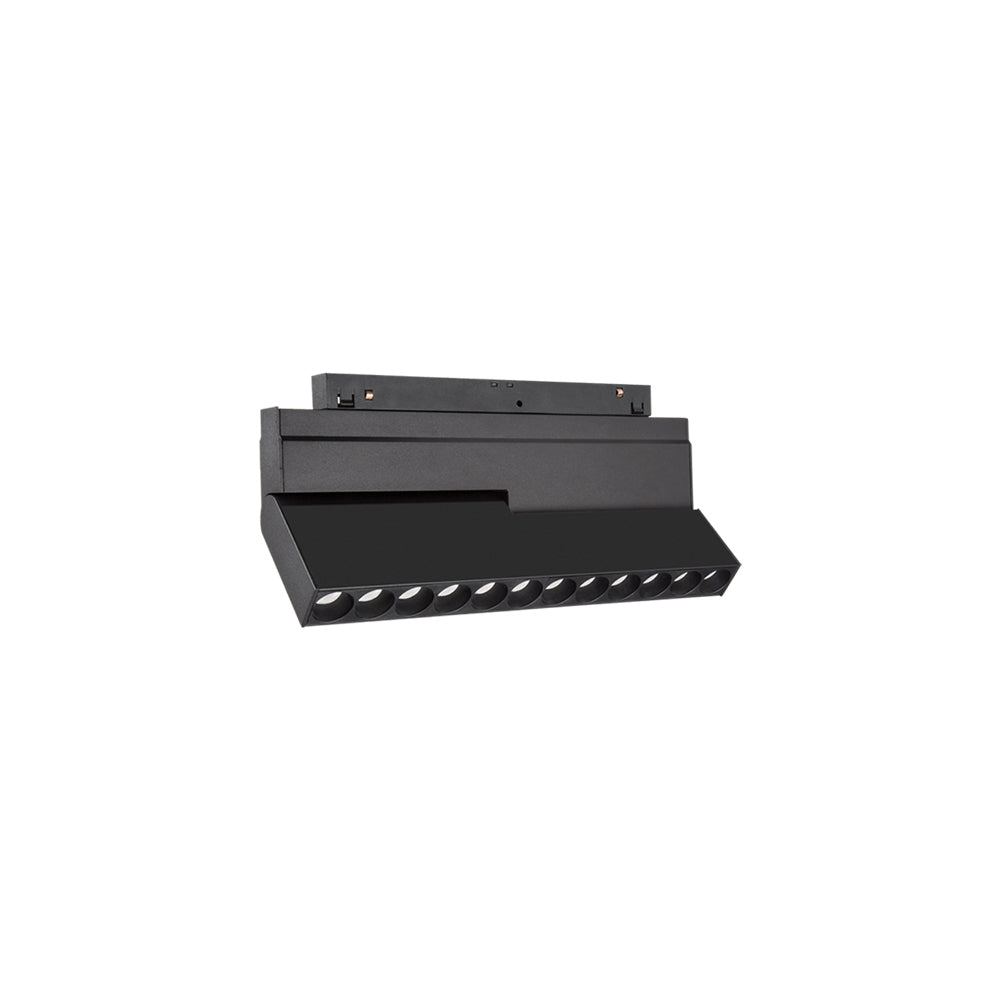

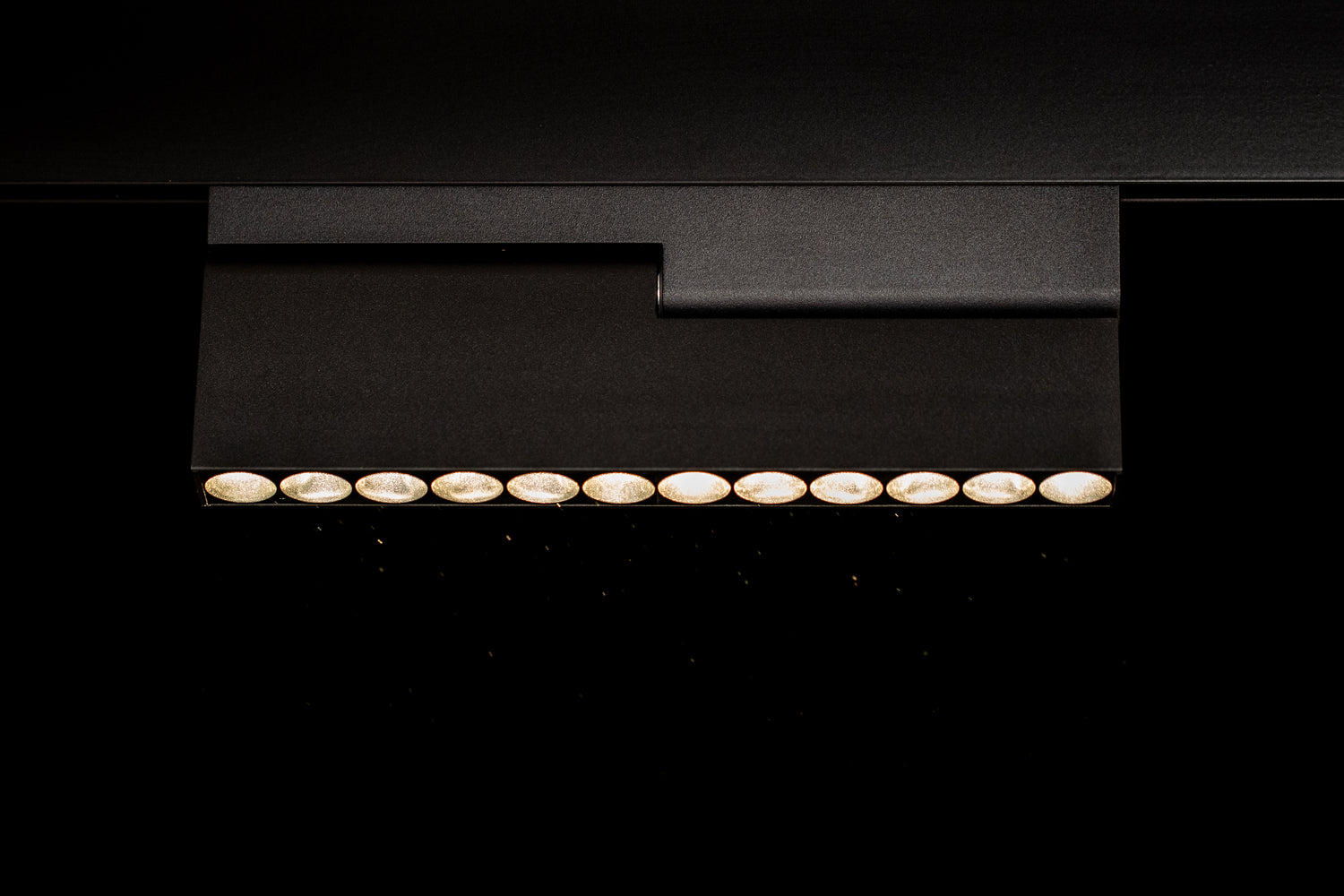

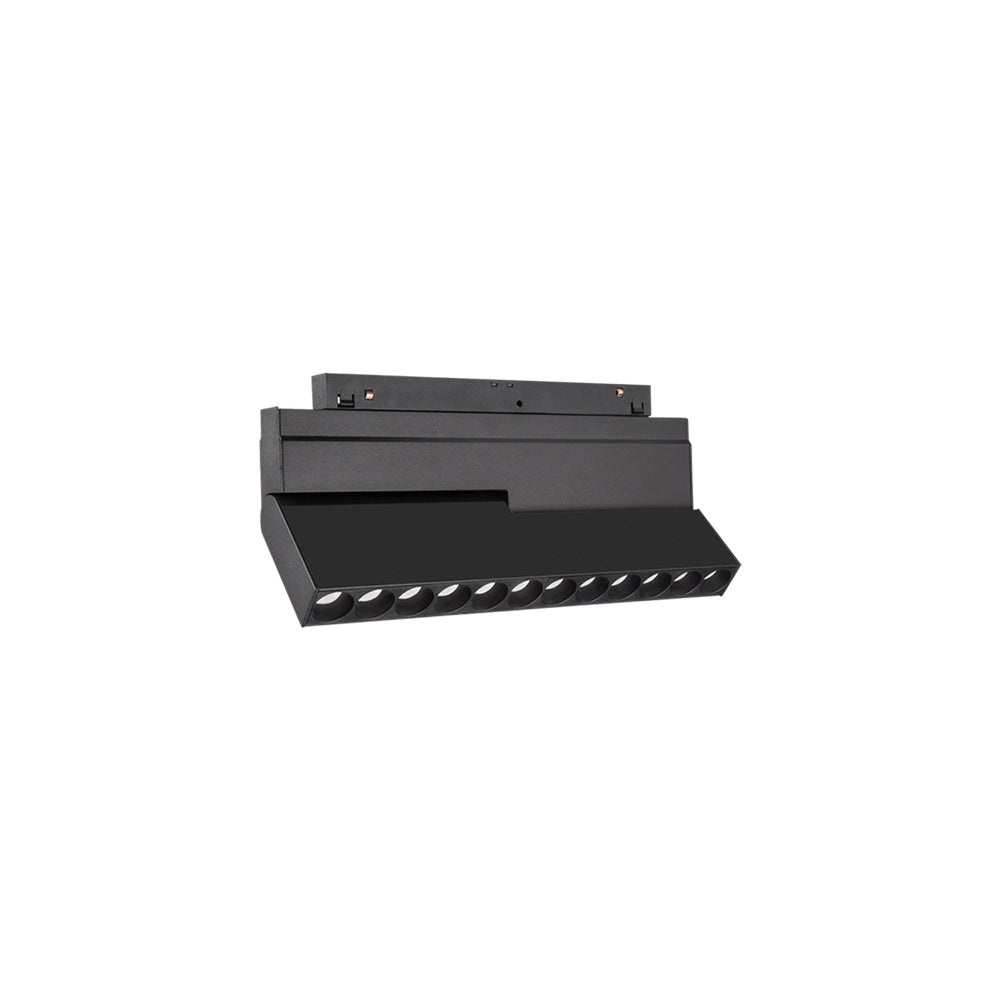

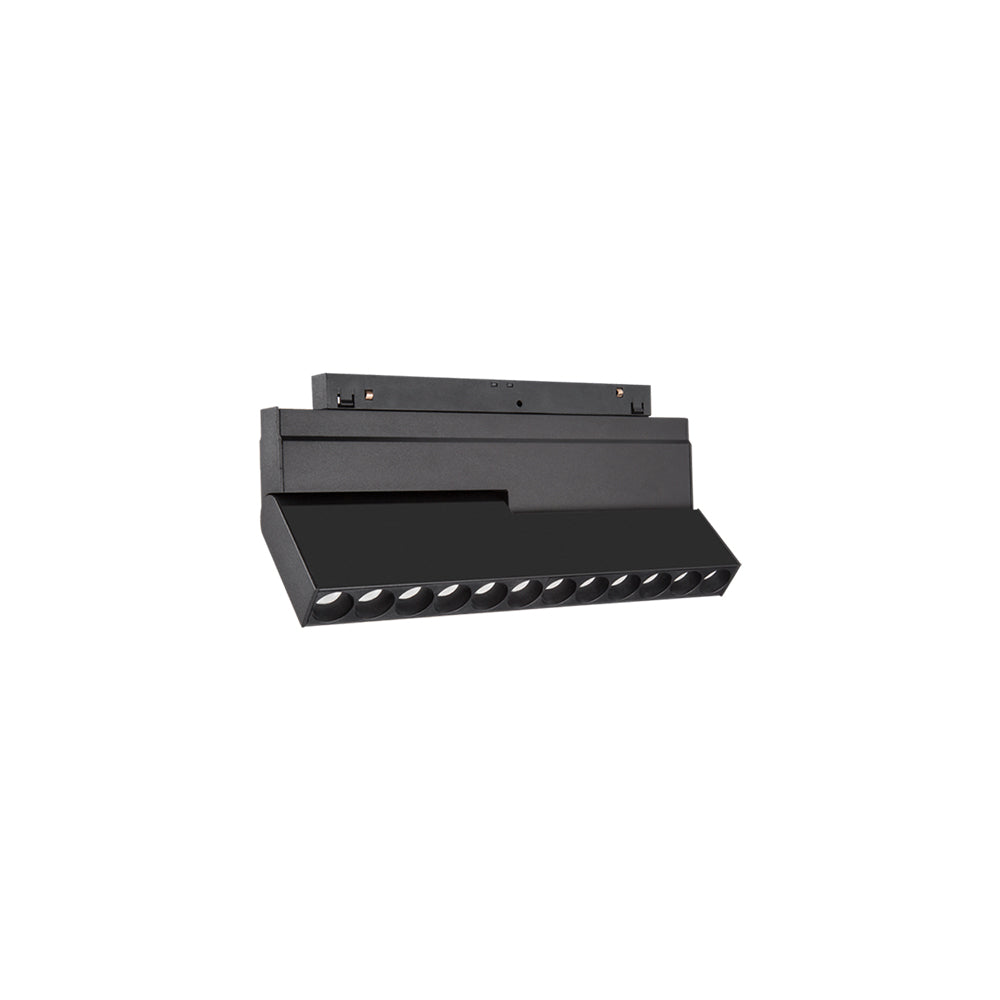

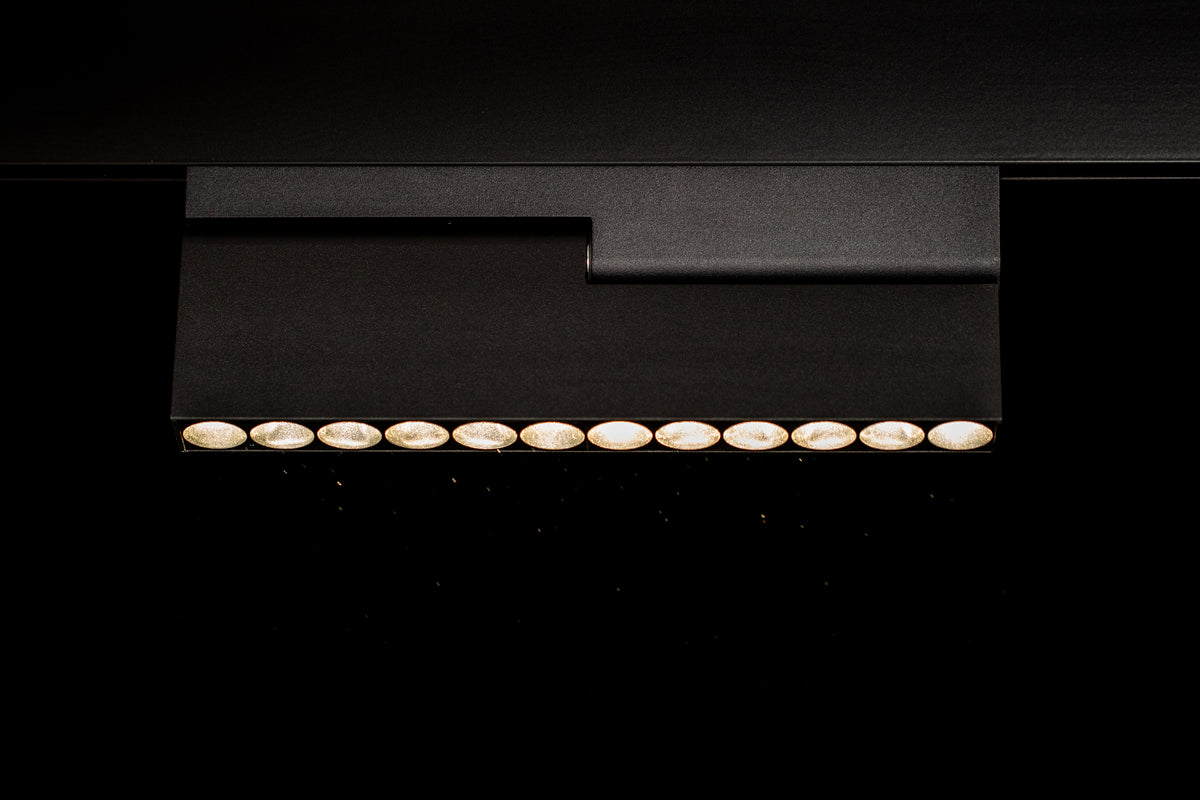

Archilight Bend 231C Black Tracklight Light 20W

SKU KC-017007A12-23D-2700K-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 9 variants

KC-017007A12-23D-2700K-B
LED Colour
Beam Angle
9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Track Lights

Specifications

Archilight Bend 231C Black Tracklight Light 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017007A12-23D-2700K-B23°Warm White 2700K
KC-017007A12-23D-3000K-B23°Warm White 3000K
KC-017007A12-23D-4000K-B23°Natural White 4000K
KC-017007A12-36D-2700K-B36°Warm White 2700K
KC-017007A12-36D-3000K-B36°Warm White 3000K
KC-017007A12-36D-4000K-B36°Natural White 4000K
KC-017007A12-60D-2700K-B60°Warm White 2700K
KC-017007A12-60D-3000K-B60°Warm White 3000K
KC-017007A12-60D-4000K-B60°Natural White 4000K

Specifications

Input
48V
Power rating
20W
Brightness
1980 lm
Efficacy
≥99 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, Class II

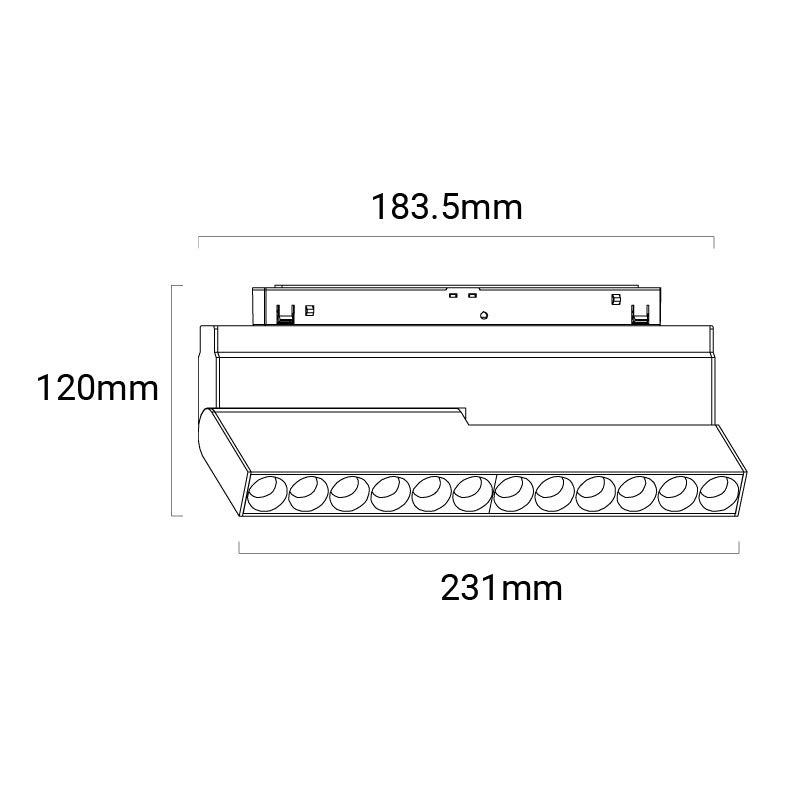

Technical drawings

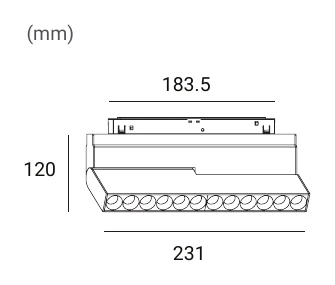

Archilight Bend 231C Black Tracklight Light 20W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of applications is the Archilight Bend 231C Black Tracklight Light 20W suited for?

This light is designed for interior applications including residential, hospitality, office, and retail spaces. Its tiltable rectangular spotlight format makes it suitable for focused accent and display lighting in commercial or architectural settings.

What variant options are available in this Bend 231C family?

Across this parent family, the main differences are beam angle and colour temperature. The available beam angles are 23°, 36°, and 60°, and the available colour temperatures are 2700K, 3000K, 4000K, and 5000K. The power rating, CRI, brightness, finish colour, driver status, dimming status, lifetime, and warranty remain consistent across the listed variants.

How bright is the Archilight Bend 231C 20W range?

The listed child variants in this family are rated at 1700 lumens. That output is paired with a 20W power rating across the range, so the light level is consistent regardless of beam angle or colour temperature selection.

What beam angle should I choose for this track light family?

This family is available in 23°, 36°, and 60° beam options, giving buyers a choice between narrower and wider light distribution. A narrower beam is generally better for more concentrated highlighting, while a wider beam is better when broader coverage is preferred. The exact choice depends on the lighting effect required for the space.

Is the Archilight Bend 231C compatible with Motion series track systems?

Yes. The product description states that the Bend series magnetic track light can be paired with any Motion series track. This makes it part of the broader Motion magnetic track lighting system rather than a standalone light fitting.

Does this track light include a driver or dimming function?

No. The parent product data and all listed variants show that the driver is not included and the dimming control is none. Buyers should treat this family as non-dimmable based on the supplied product data.

What are the key performance and durability specifications for this product family?

This Bend 231C family is specified with CRI 90, a rated lifetime of 50,000 hours, and a 5-year warranty. The product data also lists a 48V power input, which aligns with its magnetic track light category. These specifications are consistent across the listed variants.
