Archilight

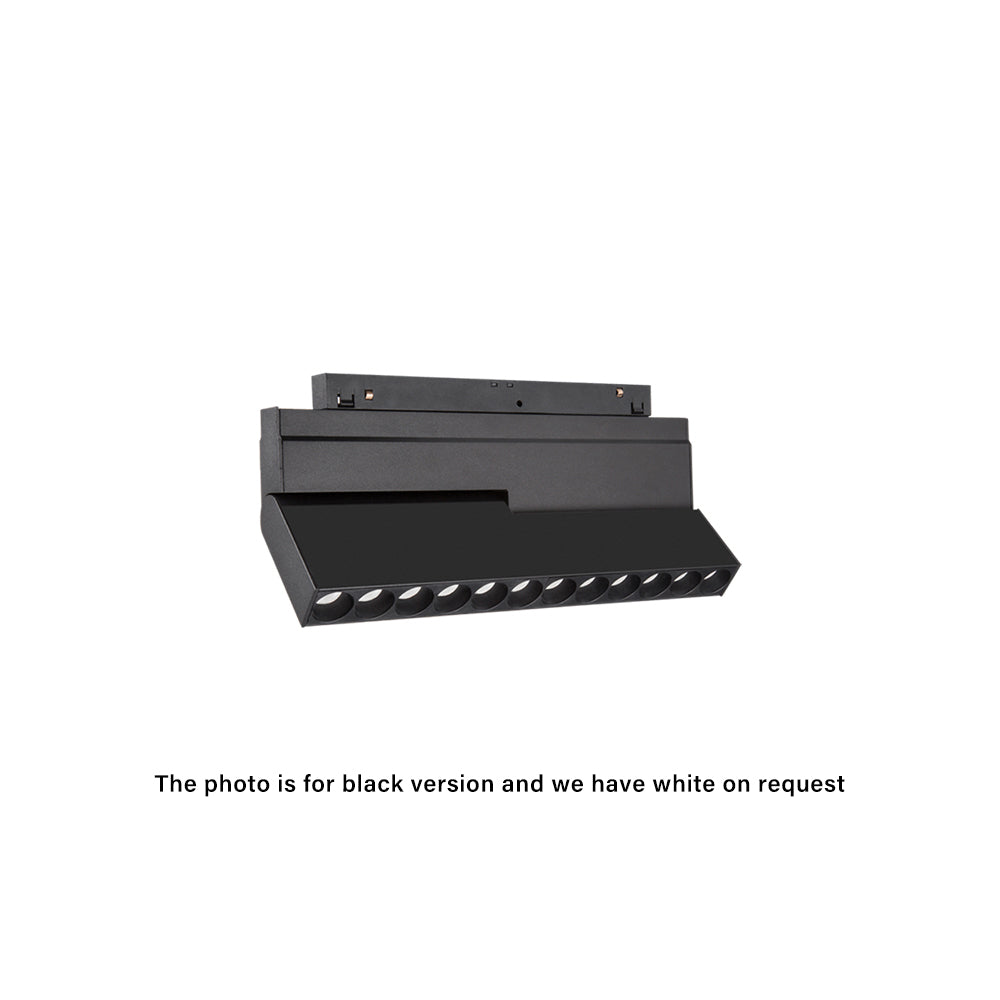

Archilight Bend 231C White Tracklight Light 20W

SKU KC-017007A12-23D-2700K-W
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 9 variants

KC-017007A12-23D-2700K-W
LED Colour
Beam Angle
9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Track Lights

Specifications

Archilight Bend 231C White Tracklight Light 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017007A12-23D-2700K-W23°Warm White 2700K
KC-017007A12-23D-3000K-W23°Warm White 3000K
KC-017007A12-23D-4000K-W23°Natural White 4000K
KC-017007A12-36D-2700K-W36°Warm White 2700K
KC-017007A12-36D-3000K-W36°Warm White 3000K
KC-017007A12-36D-4000K-W36°Natural White 4000K
KC-017007A12-60D-2700K-W60°Warm White 2700K
KC-017007A12-60D-3000K-W60°Warm White 3000K
KC-017007A12-60D-4000K-W60°Natural White 4000K

Specifications

Input
48V
Power rating
20W
Brightness
1980 lm
Efficacy
≥99 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, Class II

Technical drawings

Archilight Bend 231C White Tracklight Light 20W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of light is the Archilight Bend 231C White Tracklight Light 20W?

The Archilight Bend 231C is a 20W magnetic track light module with a modern rectangular spotlight design. It is a tiltable fitting intended for interior applications such as residential, hospitality, office, and retail spaces. This parent model covers the full Bend 231C white family shown here.

What options are available across this Bend 231C family?

This family is available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. It also comes in three beam angles: 23 degrees, 36 degrees, and 60 degrees. Those are the main variant differences supported by the child products in this parent range.

How bright is the Archilight Bend 231C 20W range?

The child variants listed for this parent family are rated at 1700 lumens. Each variant keeps the same 20W power rating while offering different beam angles and colour temperatures. That makes the family suitable when you want consistent output with different light distribution choices.

What light quality can buyers expect from this track light?

The Bend 231C range uses LED chips with a CRI above 90, which supports strong colour rendering in commercial and architectural spaces. The description also states a low glare rating of UGR below 19. These specifications make it well suited to environments where visual comfort and accurate colour appearance matter.

Is a driver included, and does this model support dimming?

No driver is included with this product family. The listed dimming control for the parent product and all child variants is none. Buyers who need dimming should treat this range as non-dimmable unless a separate approved system is specified elsewhere.

What track system is this Bend 231C family compatible with?

The product description states that the Bend series should be paired with Motion series track. That compatibility applies at the family level for this parent product page. It is designed as part of a magnetic track lighting system rather than as a standalone fitting.

What are the key physical and durability specifications of this product family?

The parent model dimensions are 231 mm wide, 183.5 mm long, and 120 mm high, with a weight of 0.5 kg. The rated lifetime is 50,000 hours and the warranty period is 5 years. These figures make it suitable for long-service interior commercial lighting projects.
