Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

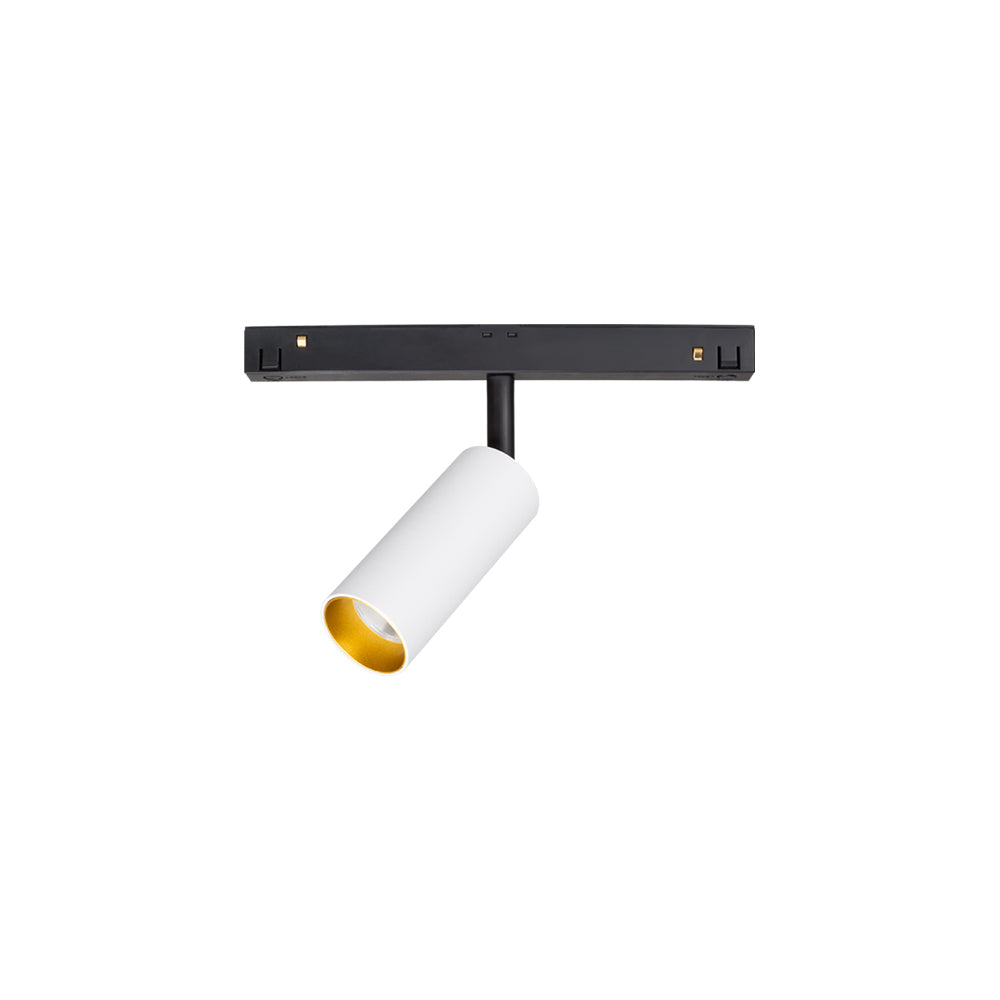

Archilight Dot 35 White and Gold Tracklight Light 8W

SKU KC-017001A01-23D-2700K-WG

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-017001A01-23D-2700K-WG

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Dot 35 White and Gold Tracklight Light 8WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017001A01-36D-3000K-WG	36°	Warm White 3000K
KC-017001A01-36D-4000K-WG	36°	Natural White 4000K
KC-017001A01-60D-2700K-WG	60°	Warm White 2700K
KC-017001A01-60D-3000K-WG	60°	Warm White 3000K
KC-017001A01-60D-4000K-WG	60°	Natural White 4000K

SPECIFICATIONS

Input: 48 V
Power rating: 8 W
Brightness: 640 lm
Efficacy: ≥57 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, RCM, Class II

Technical drawings

Archilight Dot 35 White and Gold Tracklight Light 8W Dimensions (mm) — Dimensions (mm)

Archilight Dot 35 White and Gold Tracklight Light 8W Finish colour — Finish colour

Downloads

Datasheet1

Archilight Dot 35 White and Gold Tracklight Light 8W datasheetDot_35.pdf PDF Download

FAQ

What options are available in the Archilight Dot 35 White and Gold 8W family?

This parent model is offered with three beam angles: 23 degrees, 36 degrees, and 60 degrees. It is also available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. Across the family, the power rating is 8W and the listed brightness is 493 lumens.

How do I choose between the 23 degree, 36 degree, and 60 degree beam angles?

The 23 degree option gives a narrower, more focused beam for accent lighting and highlighting displays or feature areas. The 36 degree version is a more balanced general-purpose spotlight option, while the 60 degree version gives a broader spread for wider illumination. The best choice depends on how concentrated or wide you want the light distribution to be.

Which colour temperature should I select for this track light?

This family is available in 2700K, 3000K, 4000K, and 5000K, so you can match the fitting to different interior lighting schemes. Lower colour temperatures such as 2700K and 3000K create a warmer look, while 4000K and 5000K provide a cooler appearance. The correct choice depends on the atmosphere and visual tone required for the space.

Is this track light suitable for retail, hospitality, office, or residential projects?

Yes. The product description states that the Dot series can be used in residential, hospitality, office, and retail applications. Its high CRI over 90 and low glare rating under UGR 19 make it appropriate for spaces where visual comfort and colour quality matter.

What track system is this light compatible with?

This model is designed to pair with Motion series track systems. It also lists a 48V power input, which aligns it with that magnetic track platform. For parent-page FAQ purposes, the supported track family is Motion series track.

Does this track light include a driver or dimming control?

No. The parent product data lists the driver as not included and the dimming control as none. That means the family should be treated as non-dimmable from the supplied product data, and no bundled driver is specified here.

What are the key performance and durability specs for this product family?

Across the family, this is an 8W LED track light with CRI 90, a rated lifetime of 50,000 hours, and a 5-year warranty. The parent dimensions are 183.5 mm long, 85 mm wide, and 138.5 mm high, with a listed weight of 0.5 kg. These specs are consistent with a compact interior magnetic track spotlight for commercial and architectural use.
