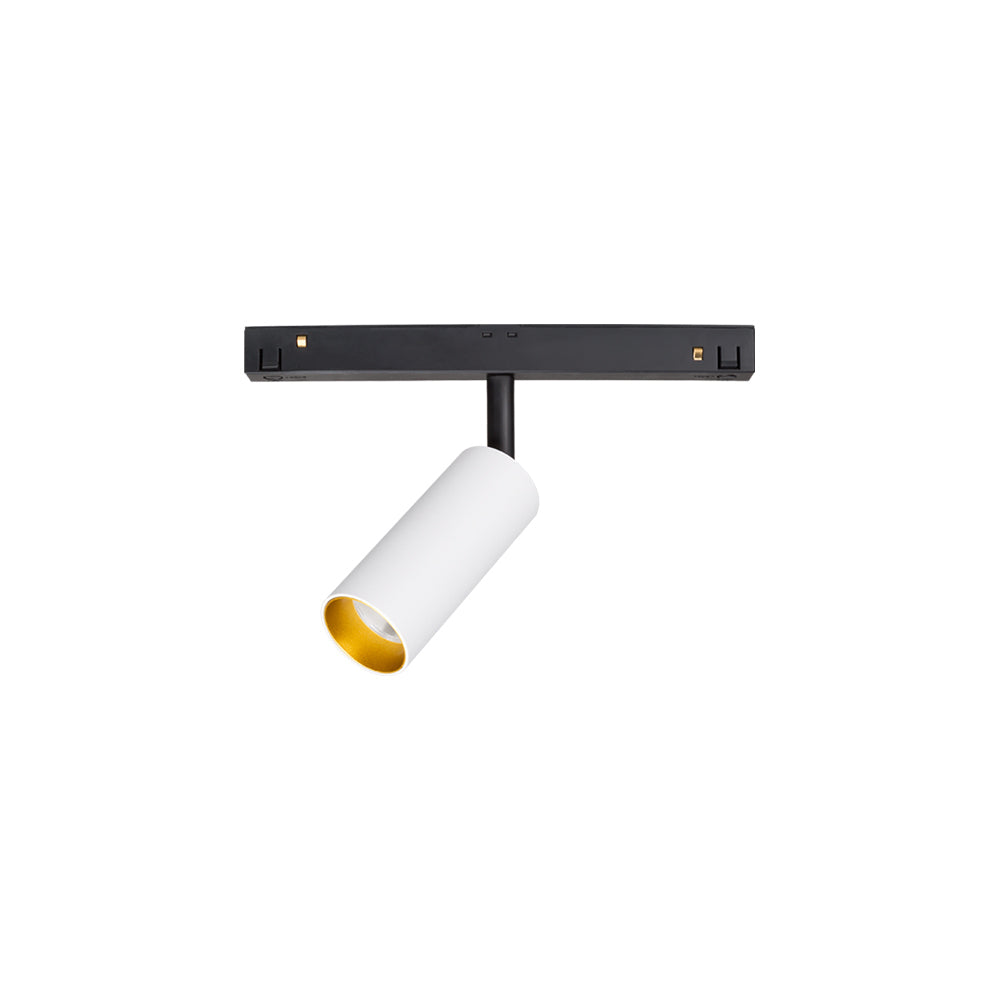

Archilight Dot 35 White and Gold Tracklight Light 8W

Q: What options are available in the Archilight Dot 35 White and Gold 8W family?

This parent model is offered with three beam angles: 23 degrees, 36 degrees, and 60 degrees. It is also available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. Across the family, the power rating is 8W and the listed brightness is 493 lumens.

Q: How do I choose between the 23 degree, 36 degree, and 60 degree beam angles?

The 23 degree option gives a narrower, more focused beam for accent lighting and highlighting displays or feature areas. The 36 degree version is a more balanced general-purpose spotlight option, while the 60 degree version gives a broader spread for wider illumination. The best choice depends on how concentrated or wide you want the light distribution to be.

Q: Which colour temperature should I select for this track light?

This family is available in 2700K, 3000K, 4000K, and 5000K, so you can match the fitting to different interior lighting schemes. Lower colour temperatures such as 2700K and 3000K create a warmer look, while 4000K and 5000K provide a cooler appearance. The correct choice depends on the atmosphere and visual tone required for the space.

Q: Is this track light suitable for retail, hospitality, office, or residential projects?

Yes. The product description states that the Dot series can be used in residential, hospitality, office, and retail applications. Its high CRI over 90 and low glare rating under UGR 19 make it appropriate for spaces where visual comfort and colour quality matter.

Q: What track system is this light compatible with?

This model is designed to pair with Motion series track systems. It also lists a 48V power input, which aligns it with that magnetic track platform. For parent-page FAQ purposes, the supported track family is Motion series track.

Q: Does this track light include a driver or dimming control?

No. The parent product data lists the driver as not included and the dimming control as none. That means the family should be treated as non-dimmable from the supplied product data, and no bundled driver is specified here.

Q: What are the key performance and durability specs for this product family?

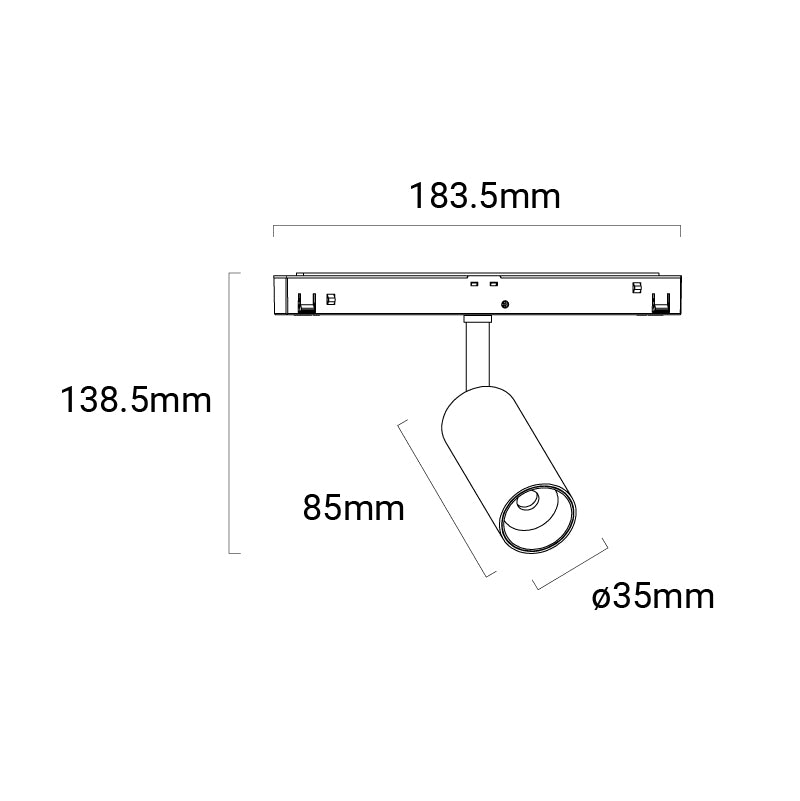

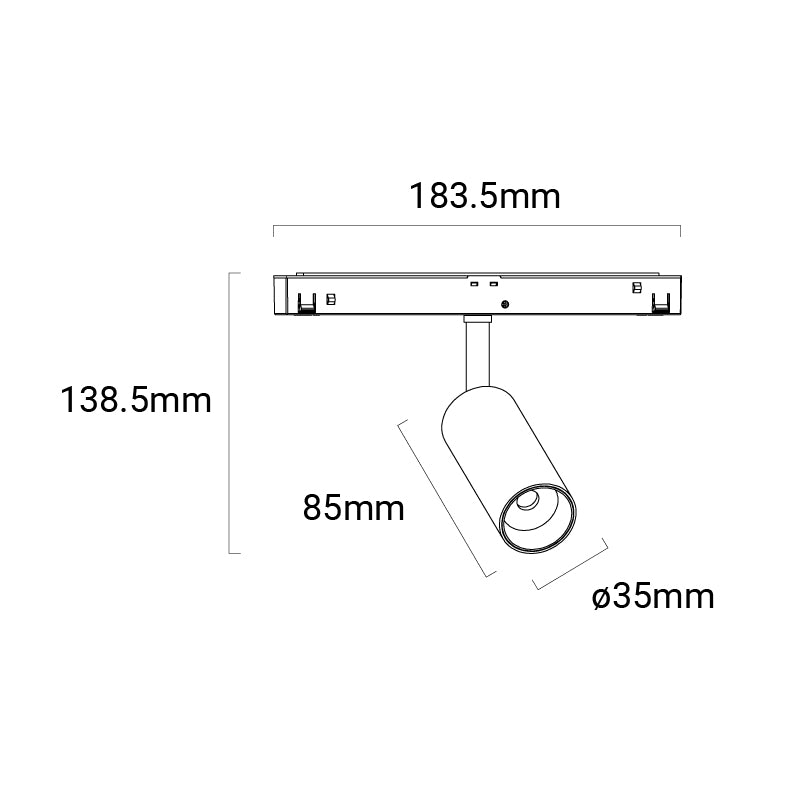

Across the family, this is an 8W LED track light with CRI 90, a rated lifetime of 50,000 hours, and a 5-year warranty. The parent dimensions are 183.5 mm long, 85 mm wide, and 138.5 mm high, with a listed weight of 0.5 kg. These specs are consistent with a compact interior magnetic track spotlight for commercial and architectural use.

SKU:

KC-017001A01-23D-2700K-WG

Log in to see price Trade pricing & online ordering for account holders

Configure — 12 variants

KC-017001A01-23D-2700K-WG

LED Colour

Finish Colour

Beam Angle

12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

The Dot series magnetic track light has a range of wattage, beam and colour temperature options. This flexible round spotlight has the highest quality LED chip with high colour rending index (CRI>90) and low glare rating (UGR<19). It can be used in any application, including residential, hospitality, office and retail. Pair with any Motion series track.

Frequently Asked Questions

What options are available in the Archilight Dot 35 White and Gold 8W family?

This parent model is offered with three beam angles: 23 degrees, 36 degrees, and 60 degrees. It is also available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. Across the family, the power rating is 8W and the listed brightness is 493 lumens.

How do I choose between the 23 degree, 36 degree, and 60 degree beam angles?

The 23 degree option gives a narrower, more focused beam for accent lighting and highlighting displays or feature areas. The 36 degree version is a more balanced general-purpose spotlight option, while the 60 degree version gives a broader spread for wider illumination. The best choice depends on how concentrated or wide you want the light distribution to be.

Which colour temperature should I select for this track light?

This family is available in 2700K, 3000K, 4000K, and 5000K, so you can match the fitting to different interior lighting schemes. Lower colour temperatures such as 2700K and 3000K create a warmer look, while 4000K and 5000K provide a cooler appearance. The correct choice depends on the atmosphere and visual tone required for the space.

Is this track light suitable for retail, hospitality, office, or residential projects?

Yes. The product description states that the Dot series can be used in residential, hospitality, office, and retail applications. Its high CRI over 90 and low glare rating under UGR 19 make it appropriate for spaces where visual comfort and colour quality matter.

What track system is this light compatible with?

This model is designed to pair with Motion series track systems. It also lists a 48V power input, which aligns it with that magnetic track platform. For parent-page FAQ purposes, the supported track family is Motion series track.

Does this track light include a driver or dimming control?

No. The parent product data lists the driver as not included and the dimming control as none. That means the family should be treated as non-dimmable from the supplied product data, and no bundled driver is specified here.

What are the key performance and durability specs for this product family?

Across the family, this is an 8W LED track light with CRI 90, a rated lifetime of 50,000 hours, and a 5-year warranty. The parent dimensions are 183.5 mm long, 85 mm wide, and 138.5 mm high, with a listed weight of 0.5 kg. These specs are consistent with a compact interior magnetic track spotlight for commercial and architectural use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Dot 35 Black Track Light BLE 8W	8W	90	Optional	19	View
Archilight Dot 35 Black and Gold Tracklight Light 8W	8W	90	None	19	View
Archilight Dot 35 Black Tracklight Light 8W	8W	90	None	19	View
Archilight Dot 35 White Tracklight Light 8W	5.3W	90	None	19	View
