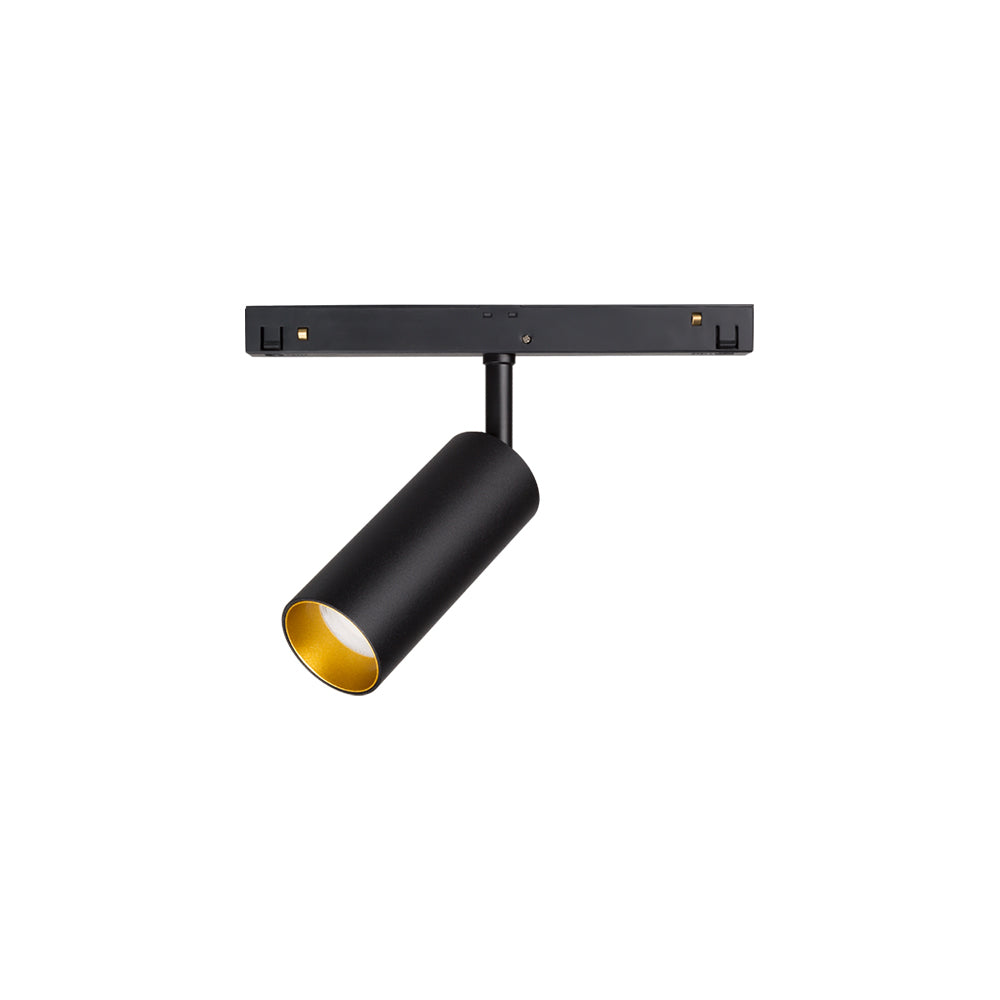

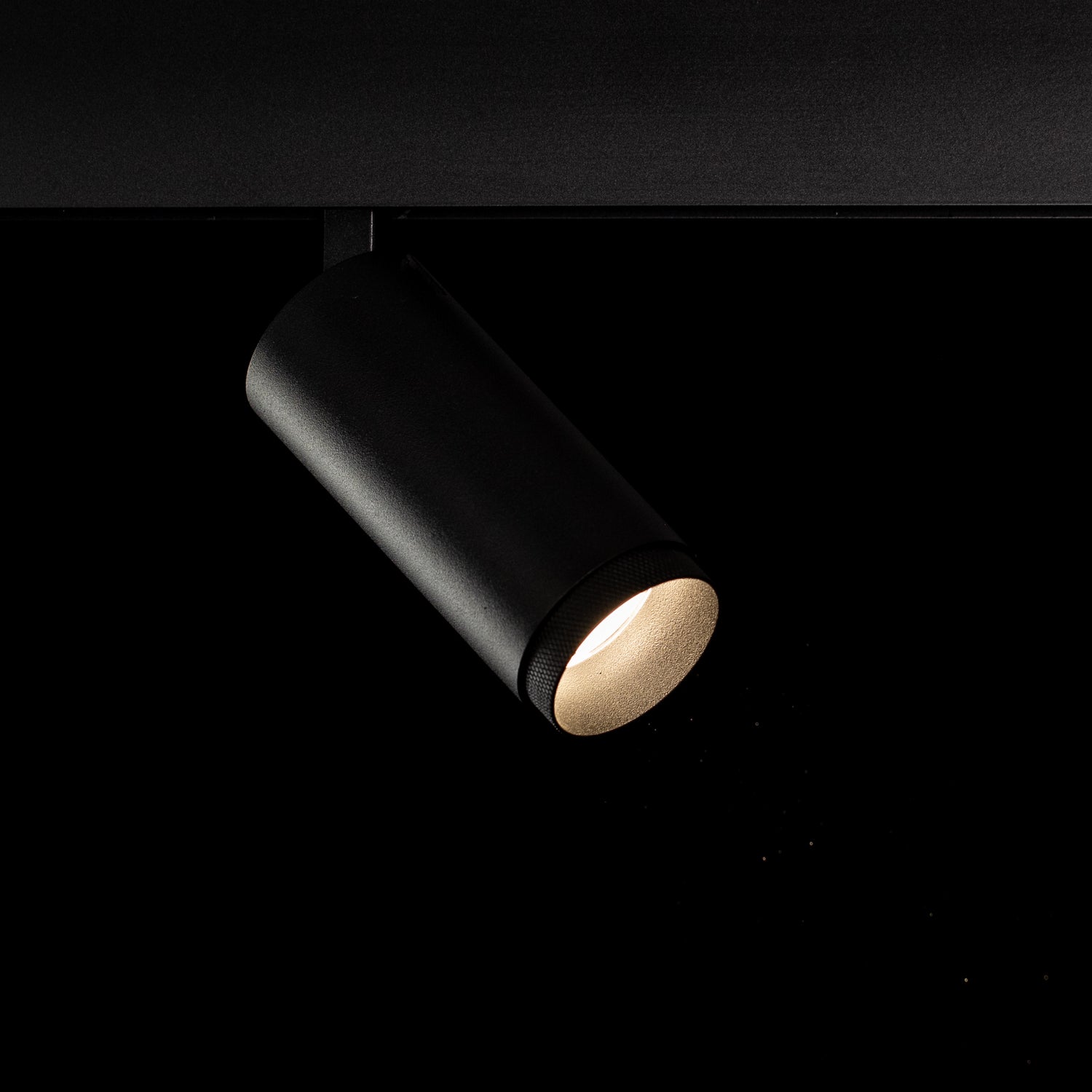

Archilight Dot 35 Black and Gold Tracklight Light 8W

SKU KC-017001A01-23D-2700K-BG

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-017001A01-23D-2700K-BG

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Dot 35 Black and Gold Tracklight Light 8WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017001A01-36D-3000K-BG	36°	Warm White 3000K
KC-017001A01-36D-4000K-BG	36°	Natural White 4000K
KC-017001A01-60D-2700K-BG	60°	Warm White 2700K
KC-017001A01-60D-4000K-BG	60°	Natural White 4000K

SPECIFICATIONS

Input: 48 V
Power rating: 8 W
Brightness: 640 lm
Efficacy: ≥57 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, RCM, Class II

Technical drawings

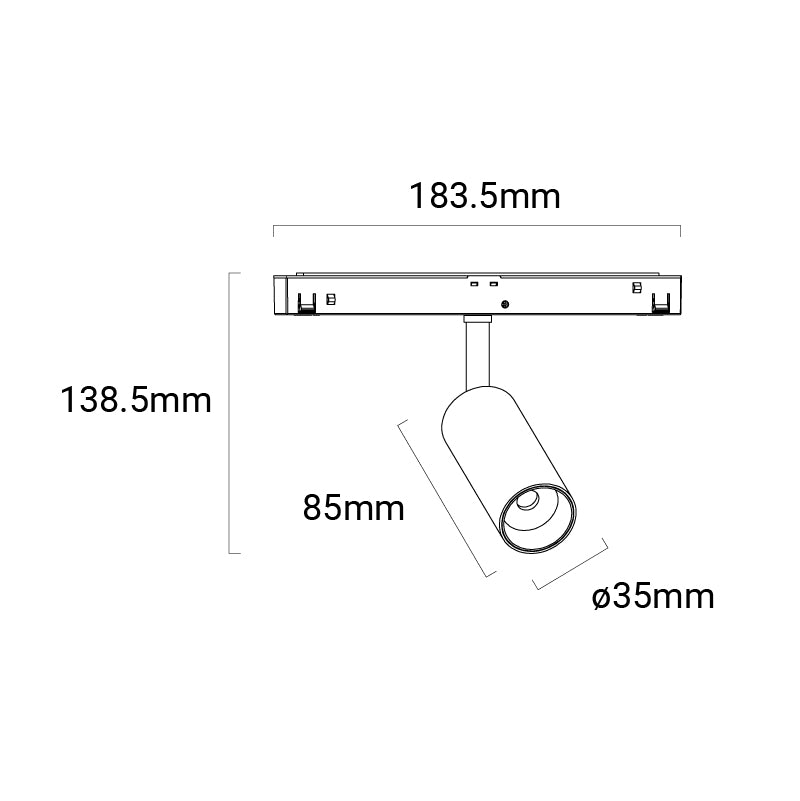

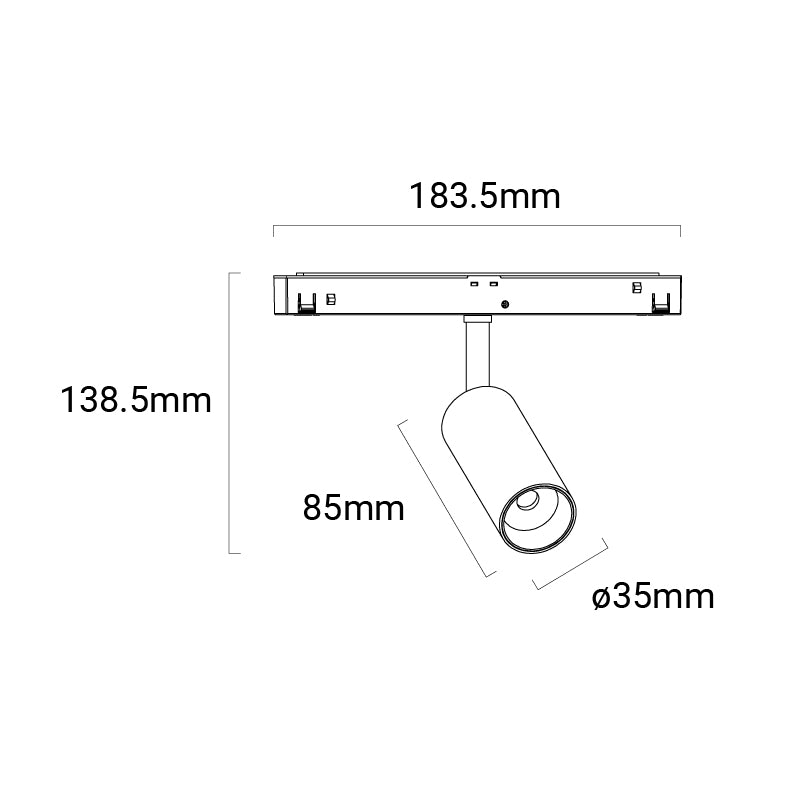

Archilight Dot 35 Black and Gold Tracklight Light 8W Dimensions (mm) — Dimensions (mm)

Archilight Dot 35 Black and Gold Tracklight Light 8W Finish colour — Finish colour

Downloads

Datasheet1

Archilight Dot 35 Black and Gold Tracklight Light 8W datasheetDot_35.pdf PDF Download

FAQ

What is the Archilight Dot 35 Black and Gold Tracklight Light 8W designed for?

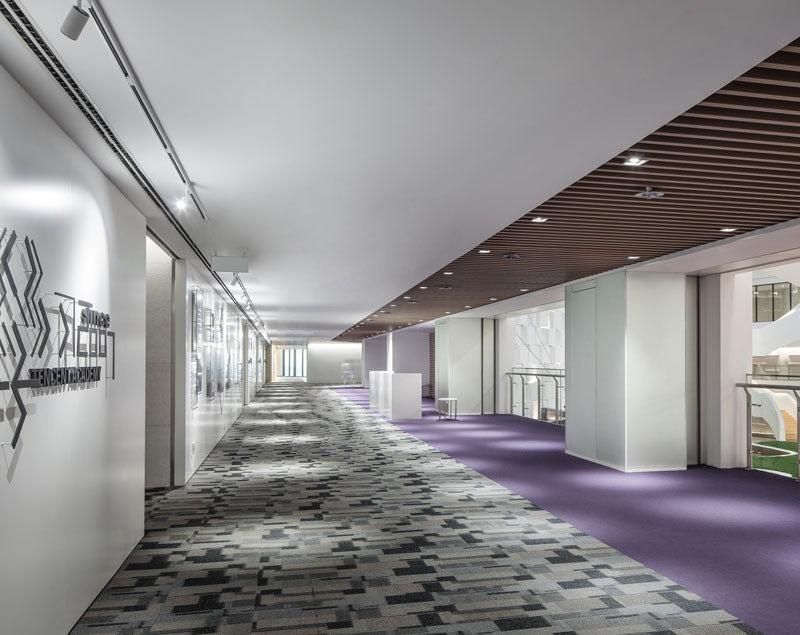

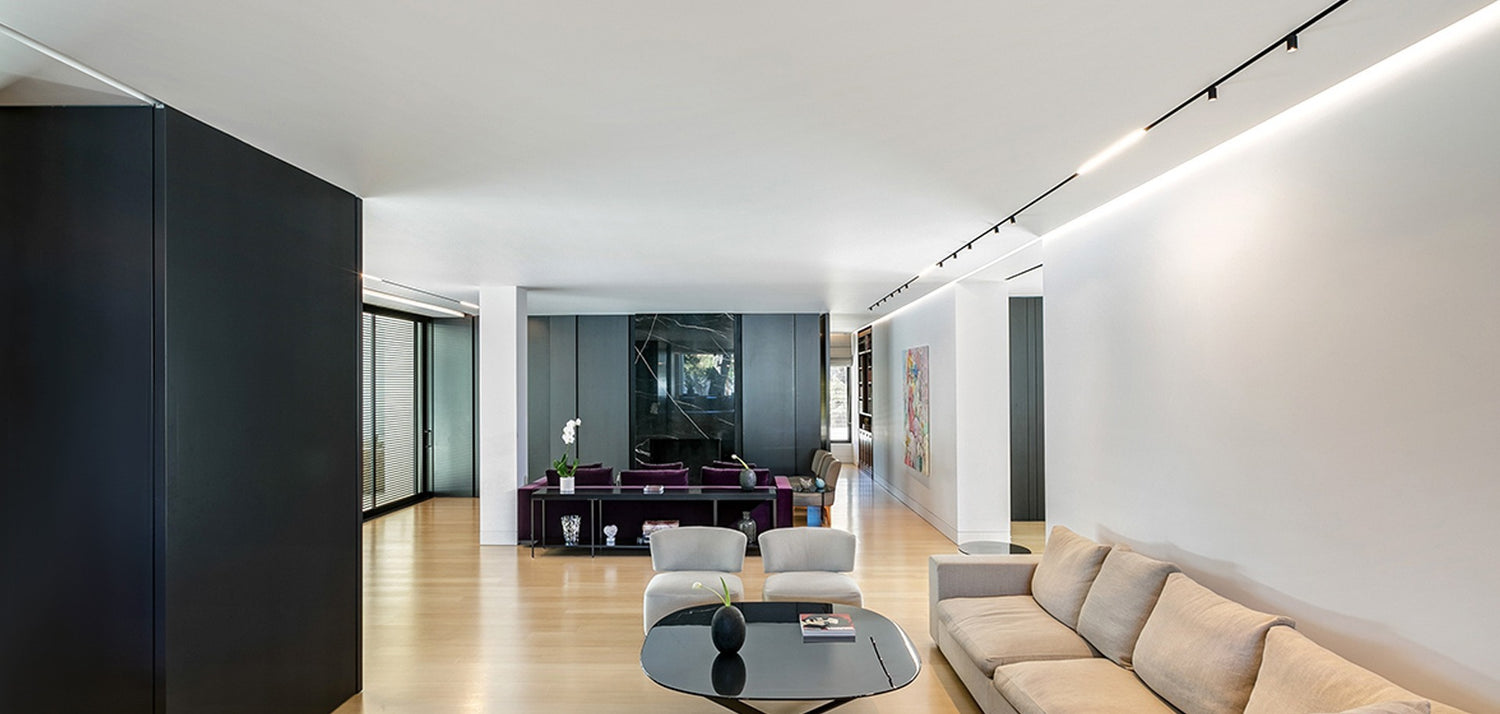

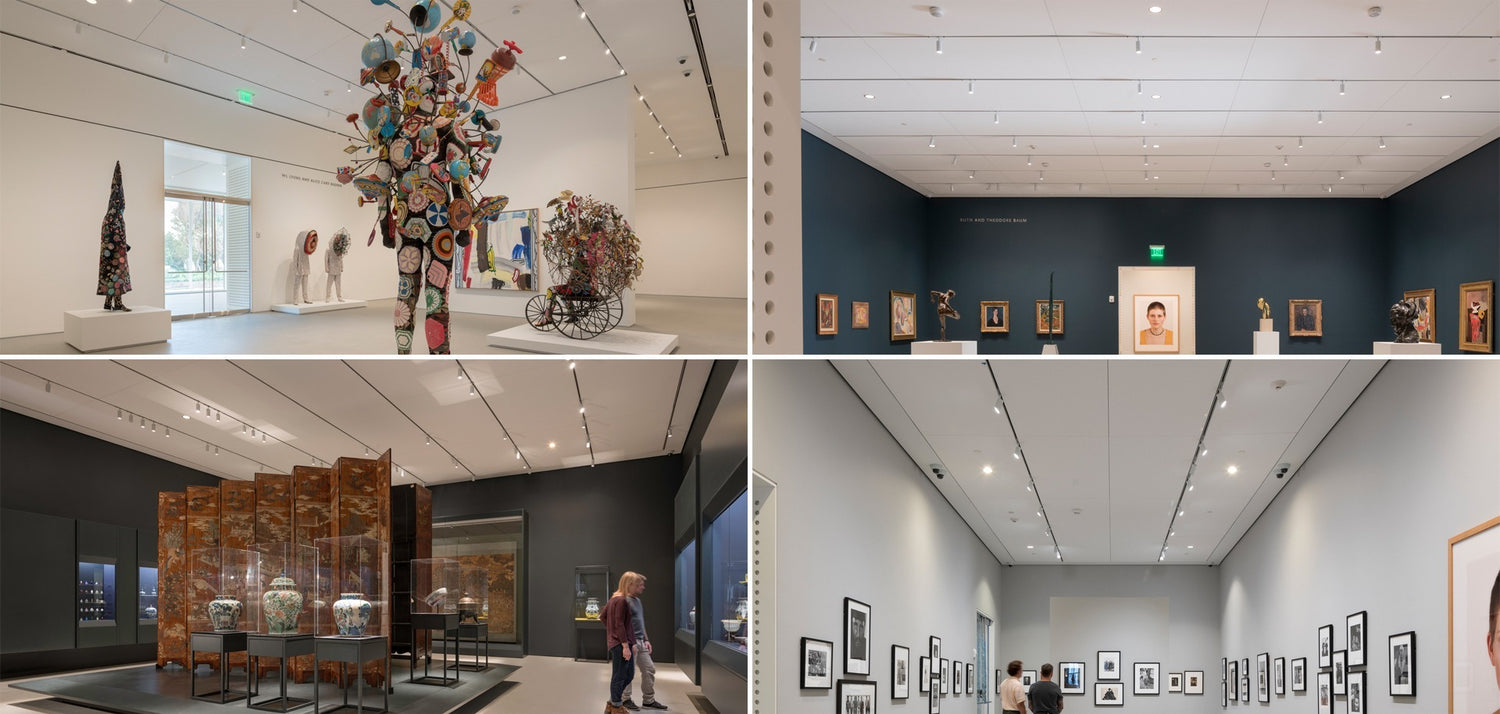

This is a magnetic track light module designed for use in residential, hospitality, office, and retail interiors. It is part of the Dot series and is intended for applications where a flexible round spotlight is needed on a compatible magnetic track system.

Which track system is this light compatible with?

This product is designed to pair with Motion series track systems. It belongs to the magnetic track light family, so it should be selected for compatible Motion magnetic track applications rather than as a standalone fitting.

What variant options are available in this product family?

Across this parent family, the main differences are beam angle and colour temperature. The available beam angles are 23, 36, and 60 degrees, and the available colour temperatures are 2700K, 3000K, 4000K, and 5000K.

How do I choose between the 23, 36, and 60 degree beam angles?

The beam angle affects how concentrated or wide the light distribution is. A 23 degree beam is more focused, 36 degrees gives a more balanced spread, and 60 degrees provides the widest coverage within this family.

What are the core performance specifications of this track light?

This model range uses 8W of power and operates on 48V power input. It has a CRI of 90, a rated lifetime of 50,000 hours, and a 5 year warranty period.

Is the driver included, and does this light support dimming?

The listed parent model is marked as driver not included. It is also specified as having no dimming control, so this family should be treated as non-dimmable based on the provided data.

Is this track light suitable for projects that need good colour quality and visual comfort?

Yes, this family is positioned for applications that benefit from strong colour rendering and controlled glare. The description states a high colour rendering index above 90 and a low glare rating below 19, making it suitable for commercial and residential interior spaces.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Dot 35 Black Track Light BLE 8W	8W	90	Optional	19	View
Archilight Dot 35 White and Gold Tracklight Light 8W	8W	90	Non Dimmable	19	View
Archilight Dot 35 Black Tracklight Light 8W	8W	90	Non Dimmable	19	View
Archilight Dot 35 White Tracklight Light 8W	5.3W	90	Non Dimmable	19	View
