Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Archilight Dot 35 Black Tracklight Light 8W
Log in to see priceSpecifications
Archilight Dot 35 Black Tracklight Light 8WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour |
|---|---|---|
| KC-017001A01-23D-2700K-B | 23° | Warm White 2700K |
| KC-017001A01-23D-3000K-B | 23° | Warm White 3000K |
| KC-017001A01-23D-4000K-B | 23° | Natural White 4000K |
| KC-017001A01-23D-5000K-B | 23° | Cool White 5000K |
| KC-017001A01-36D-2700K-B | 36° | Warm White 2700K |
| KC-017001A01-36D-3000K-B | 36° | Warm White 3000K |
| KC-017001A01-36D-4000K-B | 36° | Natural White 4000K |
| KC-017001A01-36D-5000K-B | 36° | Cool White 5000K |
| KC-017001A01-60D-2700K-B | 60° | Warm White 2700K |
| KC-017001A01-60D-3000KK-B | 60° | Warm White 3000K |
| KC-017001A01-60D-4000K-B | 60° | Natural White 4000K |
| KC-017001A01-60D-5000K-B | 60° | Cool White 5000K |
SPECIFICATIONS
- Input
- 48 V
- Power rating
- 8 W
- Brightness
- 640 lm
- Efficacy
- ≥57 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Adjustable
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years warranty
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, RCM, Class II

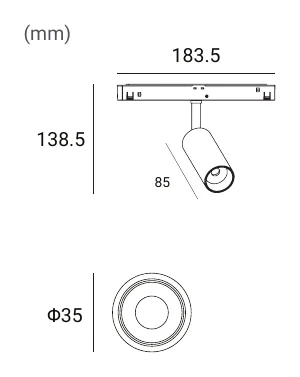

Technical drawings
Downloads
Datasheet1
FAQ
What types of spaces is the Archilight Dot 35 Black Tracklight Light 8W suited for?
This magnetic track spotlight is designed for interior applications including residential, hospitality, office, and retail spaces. Its compact form, CRI greater than 90, and low glare rating under 19 make it suitable for areas where both visual comfort and accurate colour rendering matter.
What variant options are available in the Dot 35 Black 8W family?
This parent product family is available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. It also comes with three beam angles: 23 degree, 36 degree, and 60 degree, letting buyers choose between narrower accent lighting and broader light distribution.
How bright is this track light across the available variants?
The listed child variants in this family are rated at 493 lumens. Based on the provided data, that output is consistent across the available beam angle and colour temperature options.
Is the driver included with the Archilight Dot 35 Black Tracklight Light 8W?
No, the driver is not included with this product family. The parent data also shows a 48V power input specification, so buyers should confirm system compatibility before selection.
Is this light dimmable?
No, the listed dimming control for this product family is none. That means these variants should be treated as non-dimmable based on the provided product data.
What track system is this light compatible with?
The product description states that this Dot series magnetic track light pairs with Motion series track. This makes it a suitable option for projects already using that track system family.
What are the key physical specifications of this track light?
The parent model is listed at 183.5 mm long, 85 mm wide, and 138.5 mm high, with a weight of 0.5 kg. It has an 8W power rating and a black finish across the variants shown.
What performance and durability specs does this product family offer?
This family is specified with CRI 90, a rated lifetime of 5000 hours, and a 5-year warranty period. Those figures make it relevant for buyers comparing light quality and coverage terms across commercial interior lighting options.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Dot 35 Series Models
4 other models| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Dot 35 Black Track Light BLE 8W | 8W | 90 | Optional | 19 | View |
| Archilight Dot 35 White and Gold Tracklight Light 8W | 8W | 90 | Non Dimmable | 19 | View |
| Archilight Dot 35 Black and Gold Tracklight Light 8W | 8W | 90 | Non Dimmable | 19 | View |
| Archilight Dot 35 White Tracklight Light 8W | 5.3W | 90 | Non Dimmable | 19 | View |
