Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

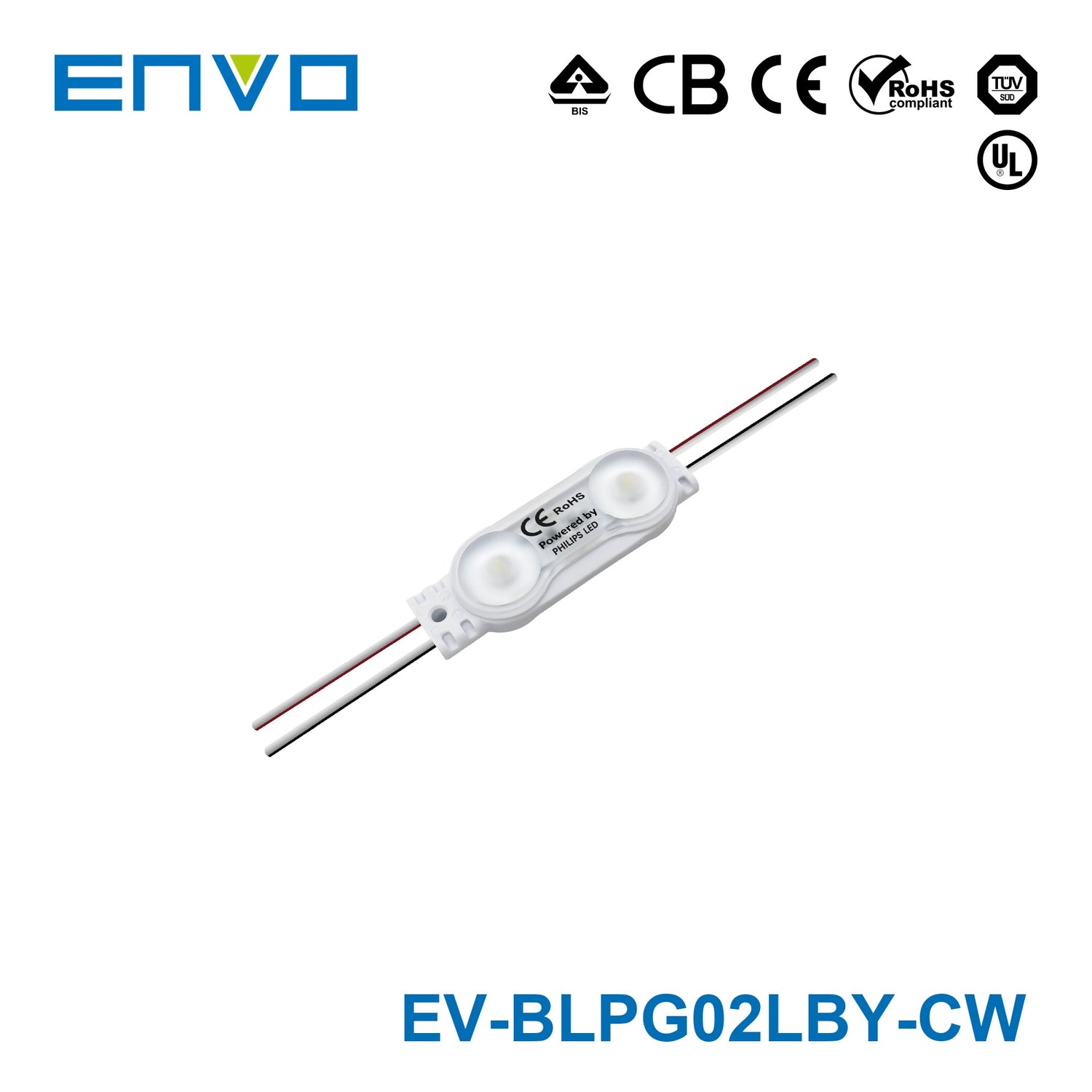

ENVO ProGlo LED Module Backlit - Duo LED

12V 0.72W IP66 - Philips LED

SKU EV-BLPG02LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLPG02LBY-CW

EV-BLPG01LBY-CW Single LED Backorder

EV-BLPG02LBY-CW Double LED Backorder

EV-BLPG03LBY-CW Triple LED Backorder

EV-BLPG04LBY-CW Quad LED Backorder

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The EV-BLPG02LBY is an ENVO LED module (12VDC, 0.72W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 12VDC
✓ Power: 0.72W
✓ Rated current: 0.06A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 80
✓ Beam angle: 170°
✓ Dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -25~+60°C
✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO ProGlo LED Module Backlit - Duo LED used for?

This LED module is designed for backlit signage applications in commercial and public environments. It is intended for high-traffic locations such as airports, metros, banks, buildings, and shopping malls where bright, consistent illumination is important.

What sign depth is this LED module suitable for?

The ProGlo Duo LED is specified for signs with depths ranging from 6 cm to 15 cm. That makes it suitable for a range of backlit sign cabinets where even light coverage is needed.

What are the main performance specifications of this LED module?

Each module is rated at 0.72 W with a 170 degree beam angle and a CRI of 80. It is also dimmable and has a rated lifetime of 50,000 hours, making it a practical choice for long-running signage applications.

What variant options are available in this product family?

This parent product family is offered in three color temperature options: 3000K, 4000K, and 6500K. Across those variants, the listed core specifications remain the same, including 110 lm brightness, 170 degree beam angle, 0.72 W power rating, CRI 80, 50,000 hour lifetime, and a 5 year warranty.

Is this LED module compatible with dimming and 12V systems?

Yes, the product is listed as dimmable and uses a constant current design with constant voltage 12V input. For buyers comparing signage modules, that makes it relevant for 12V backlit signage systems that require dimming capability.

What certifications does the ENVO ProGlo Duo LED have?

According to the product description, this module is CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate alignment with recognized quality, safety, and environmental standards for professional lighting products.

What materials are used in the construction of this LED module?

The product description states that it uses 99.99% pure gold thread and a pure copper bracket coated in silver. These materials are highlighted as part of the module's performance and durability-focused design.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO ProGlo LED Module Backlit - Quad LED	1.2W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Triple LED	1.08W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Single LED	0.36W	—	—	Dimmable	View
