Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

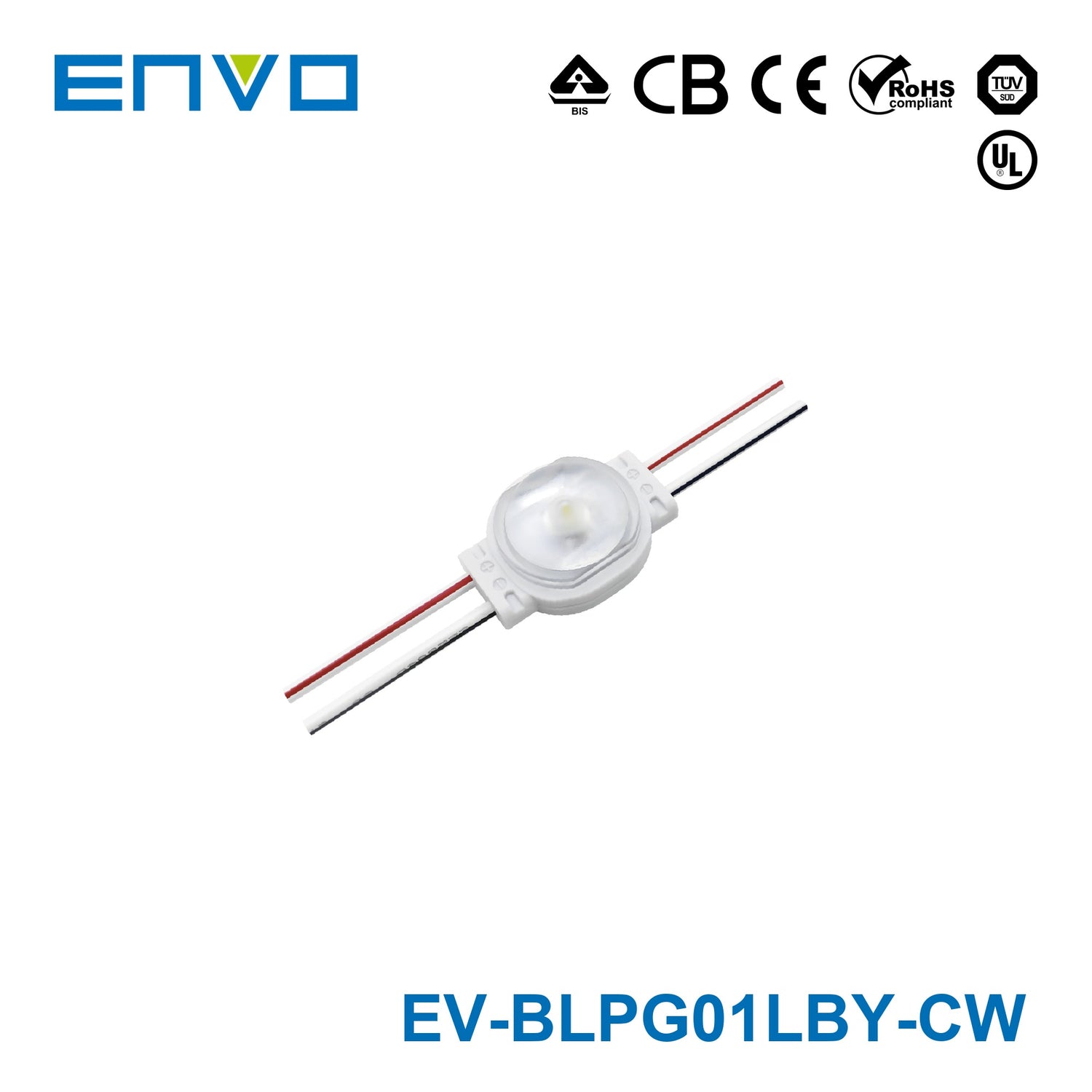

ENVO ProGlo LED Module Backlit - Single LED

12V 0.36W IP66 - Philips LED

SKU:

EV-BLPG01LBY-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Illuminate with Professional Brilliance

The ProGlo LED Modules by ENVO are engineered to provide high-performance lighting solutions for signage applications, making them ideal for high-traffic locations such as airports, metros, banks, buildings, and shopping malls. Featuring cutting-edge technology and superior design, these modules ensure that your displays are both vibrant and reliable.

Key Features:

Powered by High Output PHILIPS LED: Utilize top-quality PHILIPS LEDs for robust and efficient illumination, ensuring your signage is prominently visible.
Constant Current Design: Provides stable and consistent lighting performance, enhancing the reliability and longevity of the LED modules.(Constant Voltage Input)
Integrated Transparent 170° Optic Lens: Offers a wide-angle light distribution for uniform coverage, maximizing visibility and minimizing shadows.
Flexible Installation: Available in configurations of 30 or 20 pieces per string, allowing for adaptable installation to meet various project requirements.
Certified Quality and Safety: The ProGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, reflecting ENVO's commitment to maintaining high standards of quality, safety, and environmental responsibility.

Application:

These modules are perfect for signs with depths ranging from 6-15 cm, providing optimal illumination for a variety of commercial and public settings.

Enhance your signage with the ProGlo LED Modules by ENVO, where innovative design meets professional-grade performance to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

ProGlo
Power Rating

0.36 Watt
Rated Current

0.03 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

1.74 cm
Width

1.74 cm
Height

0.96 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the ENVO ProGlo LED Module Backlit - Single LED designed for?

This LED module is designed for backlit signage in commercial and public environments. It is positioned for high-traffic applications such as airports, metros, banks, buildings, and shopping malls, and is suited to sign depths from 6-15 cm.

What are the main performance specs of this LED module family?

The ENVO ProGlo Single LED module uses 0.36 W of power and delivers a 170 degree beam angle for wide light spread. It has a CRI of 80, a rated lifetime of 50,000 hours, and a 5-year warranty. The product is also listed as dimmable.

How do the variants in this product family differ?

The main difference across the family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 6500K cool white, while the shared output is 60 lumens per module with the same 0.36 W power rating, 170 degree beam angle, CRI 80, lifetime, and warranty.

Is this LED module suitable for shallow or deep sign cabinets?

This product family is intended for signs with depths ranging from 6 cm to 15 cm. That makes it appropriate for many standard backlit signage applications where even light coverage is needed across the face of the sign.

What helps this module provide uniform illumination across signage?

The module uses an integrated transparent 170 degree optic lens to spread light broadly across the sign area. Combined with its constant current design, this supports consistent illumination and helps reduce uneven lighting and shadowing in backlit signage applications.

What quality and compliance standards are referenced for this product family?

The product description states that the ProGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. It also notes 100% production testing, which supports consistency and reliability expectations for professional signage use.

Model	Power	Brightness	CCT	Dimming
ENVO ProGlo LED Module Backlit - Quad LED	1.2W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Triple LED	1.08W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Duo LED	0.72W	—	—	Dimmable	View
