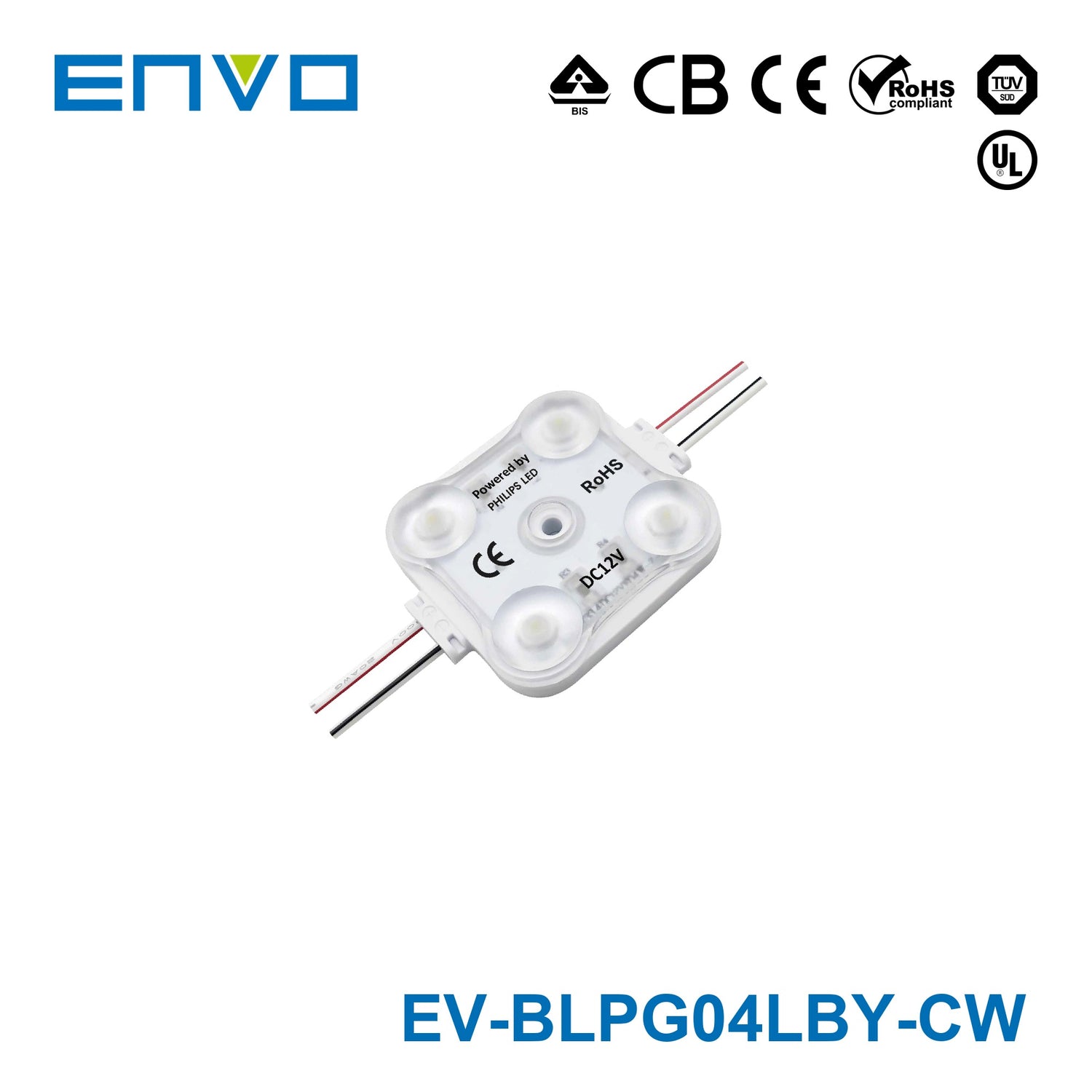

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO ProGlo LED Module Backlit - Quad LED

12V 1.2W IP66 - Philips LED

SKU:

EV-BLPG04LBY-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Illuminate with Professional Brilliance

The ProGlo LED Modules by ENVO are engineered to provide high-performance lighting solutions for signage applications, making them ideal for high-traffic locations such as airports, metros, banks, buildings, and shopping malls. Featuring cutting-edge technology and superior design, these modules ensure that your displays are both vibrant and reliable.

Key Features:

Powered by High Output PHILIPS LED: Utilize top-quality PHILIPS LEDs for robust and efficient illumination, ensuring your signage is prominently visible.
Constant Current Design: Provides stable and consistent lighting performance, enhancing the reliability and longevity of the LED modules.(Constant Voltage Input)
Integrated Transparent 170° Optic Lens: Offers a wide-angle light distribution for uniform coverage, maximizing visibility and minimizing shadows.
Flexible Installation: Available in configurations of 30 or 20 pieces per string, allowing for adaptable installation to meet various project requirements.
Certified Quality and Safety: The ProGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, reflecting ENVO's commitment to maintaining high standards of quality, safety, and environmental responsibility.

Application:

These modules are perfect for signs with depths ranging from 6-15 cm, providing optimal illumination for a variety of commercial and public settings.

Enhance your signage with the ProGlo LED Modules by ENVO, where innovative design meets professional-grade performance to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

ProGlo
Power Rating

1.2 Watt
Rated Current

0.1 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

4.21 cm
Width

4.21 cm
Height

0.96 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What types of signage is the ENVO ProGlo LED Module Backlit - Quad LED designed for?

This LED module family is designed for backlit signage in commercial and public environments. It is suited to high-traffic applications such as airports, metros, banks, buildings, and shopping malls. The product description also specifies it is ideal for sign depths from 6 to 15 cm.

What are the main performance specs of this LED module family?

Across the family, each module is rated at 1.2 W with a 170 degree beam angle and CRI 80. The modules are dimmable and have a rated lifetime of 50,000 hours. The warranty period for the family is 5 years.

What is the difference between the available variants in this parent product?

The meaningful difference across the listed variants is color temperature. The family is available in 3000K warm white, 4000K neutral white, and 6500K cool white options. The listed variants otherwise share the same 1.2 W power rating, 180 lm brightness, 170 degree beam angle, CRI 80, 50,000 hour lifetime, and 5 year warranty.

Is the light spread suitable for even illumination in backlit signs?

Yes, this family uses an integrated transparent 170 degree optic lens to provide wide light distribution. That wide beam angle helps improve coverage across the sign face and can reduce visible shadowing. It is intended for uniform illumination in backlit signage applications.

Is the ENVO ProGlo Quad LED module dimmable?

Yes, the parent model is identified as dimmable, and the listed child variants also show dimmable control. This makes the family suitable for projects where light output needs to be adjusted. No additional dimming details are provided in the supplied data.

What kind of operating input does this LED module use?

The parent model lists a 12V power input. It is also described as having a constant current design with constant voltage input in the product content. This indicates the family is intended for low-voltage signage lighting applications.

What certifications and quality standards are listed for this product family?

The product description states that the ProGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. It also notes 100% production testing for reliability and precision. These details indicate a family positioned for professional signage projects with documented quality and safety standards.

Model	Power	Brightness	CCT	Dimming
ENVO ProGlo LED Module Backlit - Triple LED	1.08W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Duo LED	0.72W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Single LED	0.36W	—	—	Dimmable	View
