Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

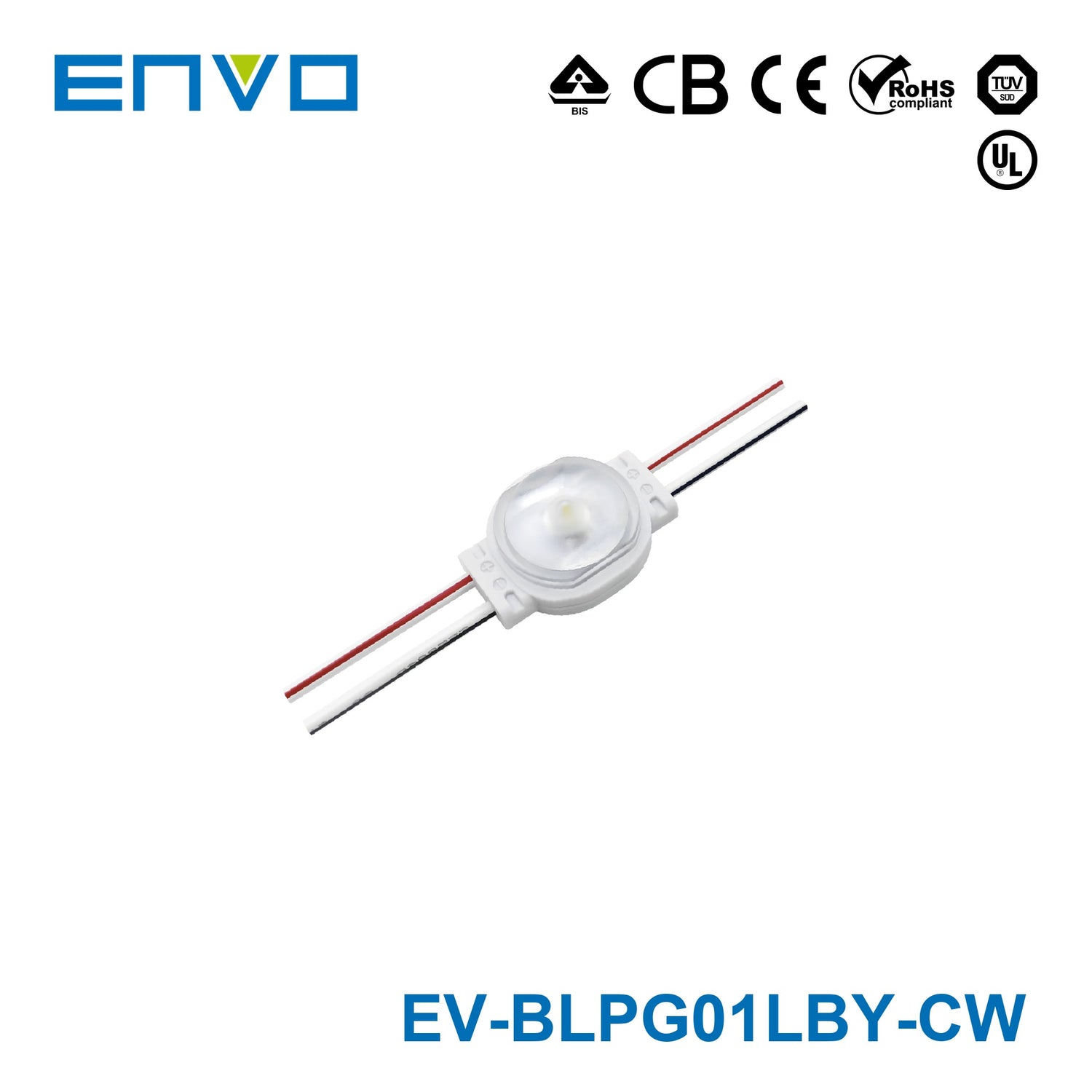

ENVO ProGlo LED Module Backlit - Single LED

12V 0.36W IP66 - Philips LED

SKU EV-BLPG01LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLPG01LBY-CW

EV-BLPG01LBY-CW Single LED Backorder

EV-BLPG02LBY-CW Double LED Backorder

EV-BLPG03LBY-CW Triple LED Backorder

EV-BLPG04LBY-CW Quad LED Backorder

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The EV-BLPG01LBY is an ENVO LED module (12VDC, 0.36W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 12VDC
✓ Power: 0.36W
✓ Rated current: 0.03A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 80
✓ Beam angle: 170°
✓ Dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -25~+60°C
✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO ProGlo LED Module Backlit - Single LED designed for?

This LED module is designed for backlit signage in commercial and public environments. It is positioned for high-traffic applications such as airports, metros, banks, buildings, and shopping malls, and is suited to sign depths from 6-15 cm.

What are the main performance specs of this LED module family?

The ENVO ProGlo Single LED module uses 0.36 W of power and delivers a 170 degree beam angle for wide light spread. It has a CRI of 80, a rated lifetime of 50,000 hours, and a 5-year warranty. The product is also listed as dimmable.

How do the variants in this product family differ?

The main difference across the family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 6500K cool white, while the shared output is 60 lumens per module with the same 0.36 W power rating, 170 degree beam angle, CRI 80, lifetime, and warranty.

Is this LED module suitable for shallow or deep sign cabinets?

This product family is intended for signs with depths ranging from 6 cm to 15 cm. That makes it appropriate for many standard backlit signage applications where even light coverage is needed across the face of the sign.

What helps this module provide uniform illumination across signage?

The module uses an integrated transparent 170 degree optic lens to spread light broadly across the sign area. Combined with its constant current design, this supports consistent illumination and helps reduce uneven lighting and shadowing in backlit signage applications.

What quality and compliance standards are referenced for this product family?

The product description states that the ProGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. It also notes 100% production testing, which supports consistency and reliability expectations for professional signage use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO ProGlo LED Module Backlit - Quad LED	1.2W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Triple LED	1.08W	—	—	Dimmable	View
ENVO ProGlo LED Module Backlit - Duo LED	0.72W	—	—	Dimmable	View
