Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO UltraFlare LED Module Backlit - Double LED

12V 1W IP67 - Osram LED

SKU EV-BLUF02LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLUF02LBY-CW

EV-BLUF01LBY-CW Single LED In stock

EV-BLUF02LBY-CW Double LED In stock

EV-BLUF03LBY-CW Triple LED In stock

EV-BLUF04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

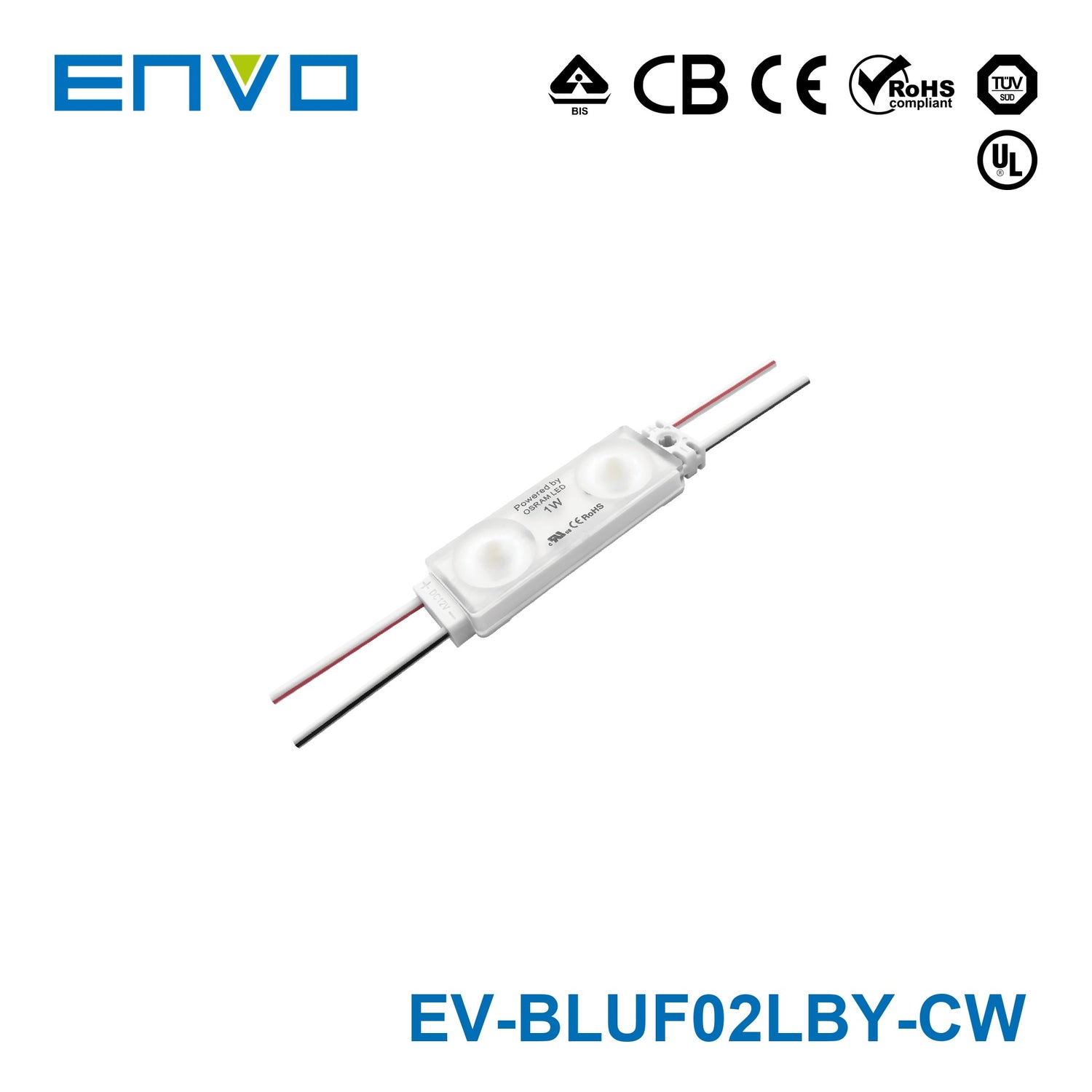

The EV-BLUF02LBY is an ENVO LED module (12VDC, 1W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 12VDC
✓ Power: 1W
✓ Rated current: 0.08A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 80
✓ Beam angle: 170°
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: -25~+60°C
✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

What is the ENVO UltraFlare LED Module Backlit - Double LED designed for?

This LED module is designed for illuminated letters and light boxes in commercial and public environments. It is positioned for high-visibility signage applications such as airports, metros, banks, buildings, and shopping malls, and is suited to sign depths from 6-15 cm.

What light output and optical performance does this LED module family provide?

Across the family, each module is rated at 1 W and delivers 110 lumens. It also uses an integrated 170° optic lens to provide wide, even light distribution for backlit signage and light boxes.

What are the available color temperature options in this product family?

This parent family is available in three color temperature options: 3000K, 4000K, and 6500K. Those options let buyers choose a warmer, more neutral, or cooler appearance while keeping the same core module performance and form factor.

Is the ENVO UltraFlare Double LED module dimmable?

Yes, this product family is listed as dimmable. It also uses a constant current system with constant voltage input to support stable lighting performance across the range.

What durability and lifespan can buyers expect from this LED module?

The module is rated for a 50,000-hour lifetime and comes with a 7-year warranty. The product description also highlights 100% production testing and materials selected for durability and consistent performance.

What certifications does this LED module family have?

The UltraFlare LED Module family is described as CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate attention to product quality, safety, and environmental standards.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO UltraFlare LED Module Backlit - Triple LED	1.5W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Quad LED	2W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Single LED	0.5W	—	—	Dimmable	View
