Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

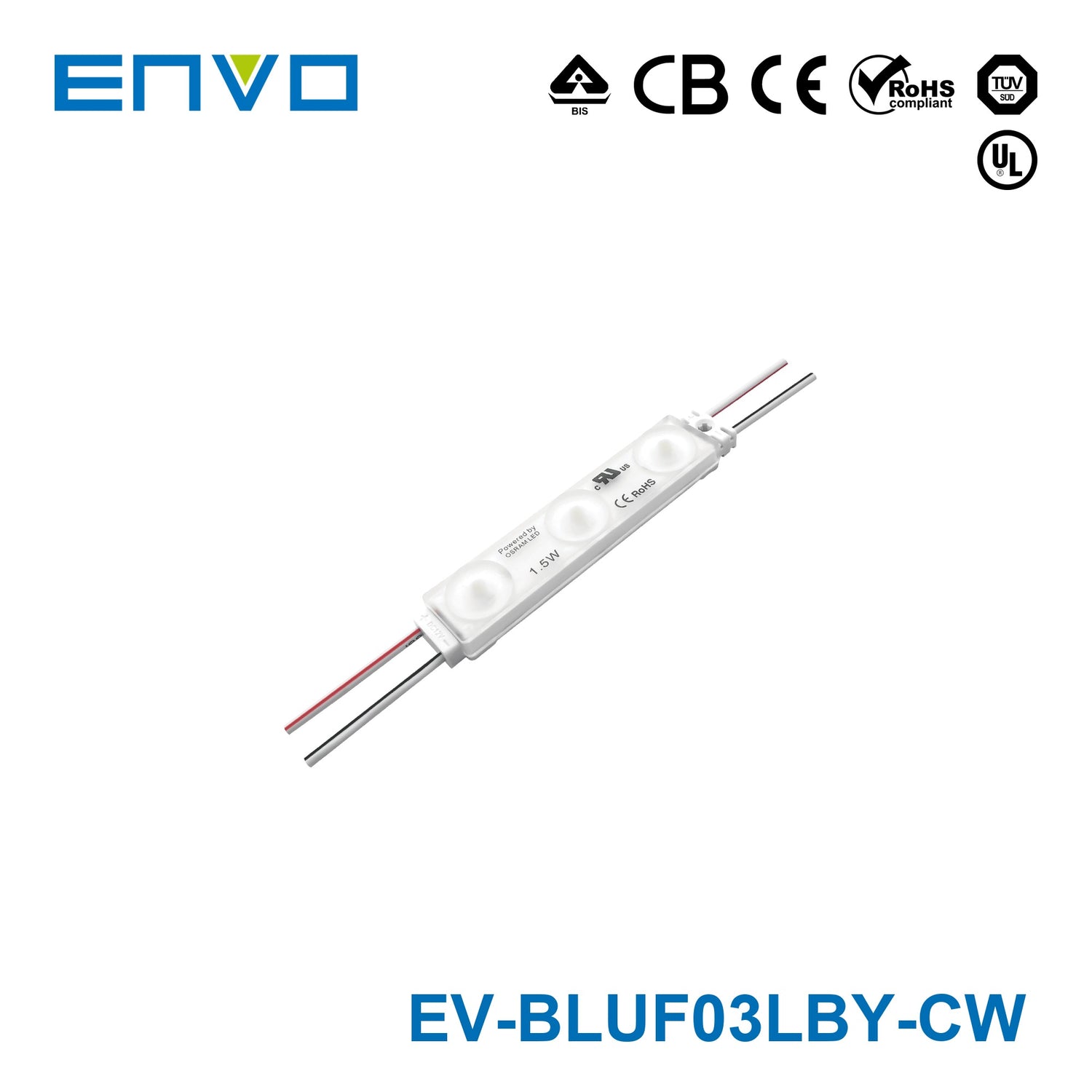

ENVO UltraFlare LED Module Backlit - Triple LED

12V 1.5W IP67 - Osram LED

SKU EV-BLUF03LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLUF03LBY-CW

EV-BLUF01LBY-CW Single LED In stock

EV-BLUF02LBY-CW Double LED Backorder

EV-BLUF03LBY-CW Triple LED In stock

EV-BLUF04LBY-CW Quad LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

In stock

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

Powered by high output 2835 LED.
Constant current.
Integrated transparent 170° optic lens.
50 pcs per string.
CE, RoHS,UL,TUV, BIS, CB and LM-80 certified.

Specifications

ENVO UltraFlare LED Module Backlit - Triple LEDSpecifications from the official datasheet

Variants

SKU	LED Colour	Certification marks
EV-BLUF03LBY-NW	Natural White 4000K	cULus, CE, RoHS, TÜV, CB, LM-80, BIS
EV-BLUF03LBY-WW	Warm White 3000K	CE, RoHS, UL, TÜV, BIS, CB, LM-80

Parameters

Beaming Angle (°): 170°
CRI (Ra): ≥80
Voltage (V): DC12
Power (W): 1.5
Driving Method: Constant Current
Dimension (mm): 77.8*15.4*10.4
Working Tem. (°C): −25 ~ +60
Storage Tem. (°C): −25 ~ +70
Protection Grade: IP67

Others

Warranty: 8 years

Technical drawings

ENVO UltraFlare LED Module Backlit - Triple LED Beaming Angle — Beaming Angle

ENVO UltraFlare LED Module Backlit - Triple LED Remark — Remark

ENVO UltraFlare LED Module Backlit - Triple LED Wire Connection — Wire Connection

ENVO UltraFlare LED Module Backlit - Triple LED Packing — Packing

ENVO UltraFlare LED Module Backlit - Triple LED Self-provided tools & material — Self-provided tools & material

ENVO UltraFlare LED Module Backlit - Triple LED Installation Guidance — Installation Guidance

ENVO UltraFlare LED Module Backlit - Triple LED Installation Guidance (2) — Installation Guidance (2)

ENVO UltraFlare LED Module Backlit - Triple LED Installation Guidance (3) — Installation Guidance (3)

ENVO UltraFlare LED Module Backlit - Triple LED Installation Guidance (4) — Installation Guidance (4)

Typical applications

Apply to 6-15 cm depth illuminated letter or light box at airports,metros, banks, buildings and shopping malls, etc.

Downloads

::specification::

FAQ

What types of signage is the ENVO UltraFlare LED Module Backlit - Triple LED designed for?

This LED module family is intended for illuminated letters and light boxes in commercial and public-facing environments. The product description specifically positions it for high-traffic sites such as airports, metros, banks, buildings, and shopping malls. It is suited to sign depths from 6-15 cm.

How do the variants in this family differ?

The main difference across the family is color temperature: 3000K warm white, 4000K neutral white, and 6500K cool white. All listed variants keep the same 1.5W power rating, 165 lm output, 170° beam angle, CRI 80, dimmable performance, 50,000-hour lifetime, and 7-year warranty. That means the selection is primarily about the lighting tone you want in the finished sign.

Is this LED module a good fit for shallow backlit letters or light boxes?

Yes. This family is specified for illuminated letters and light boxes with depths between 6 cm and 15 cm, which makes it suitable for many shallow to mid-depth sign builds. The integrated 170° optic lens is designed to help spread light broadly for more even face illumination.

What performance specifications are consistent across the UltraFlare Triple LED family?

Each variant in this family is rated at 1.5W and delivers 165 lumens with a 170° beam angle and CRI 80. The modules are dimmable, use 12V power input, and are built around high-output OSRAM 2835 LEDs. Physical size is 77.8 mm long, 15.4 mm wide, and 10.4 mm high, with a weight of 16 g per module.

Is this product family suitable for demanding commercial environments?

Yes. ENVO positions this family for demanding commercial signage applications, and the modules are described as fully tested during production for reliability. The product also carries CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications, which supports its use where quality and compliance matter. A 50,000-hour lifetime and 7-year warranty further reinforce its long-service commercial focus.
