Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

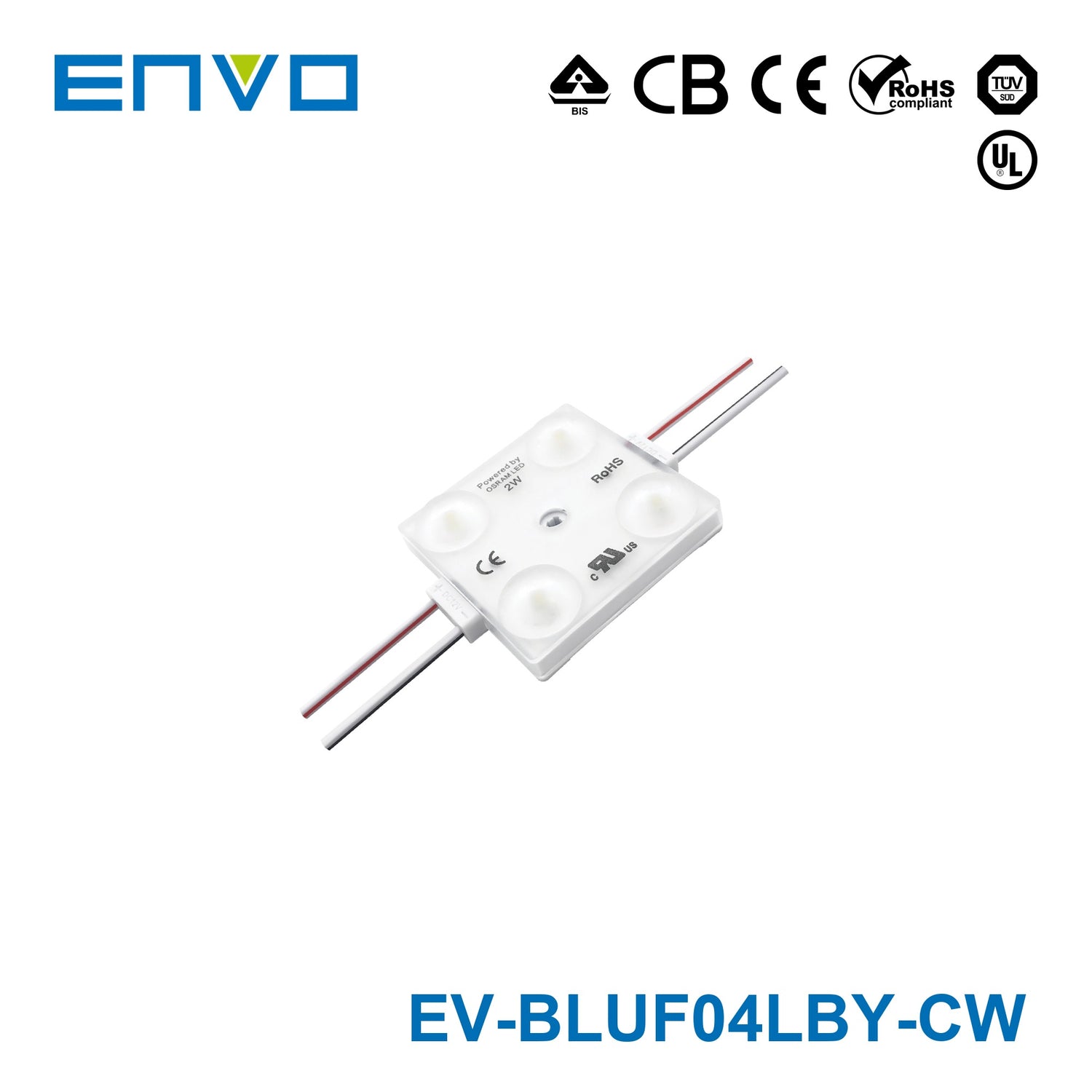

ENVO UltraFlare LED Module Backlit - Quad LED

12V 2W IP67 - Osram LED

SKU:

EV-BLUF04LBY-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Effortless Brilliance with OSRAM Technology

The UltraFlare LED Modules by ENVO are designed to deliver superior lighting solutions for illuminated letters and light boxes, making them perfect for high-traffic environments such as airports, metros, banks, buildings, and shopping malls. With high-performance OSRAM 2835 LEDs, these modules ensure your displays shine with unparalleled clarity and brightness.

Key Features:

Powered by High Output OSRAM 2835 LED: Experience exceptional brightness and efficiency with high-quality OSRAM LEDs, ensuring your signage is always eye-catching.
Constant Current System: Offers stable and reliable lighting performance, enhancing the durability and longevity of the LED modules.(Constant Voltage Input)
Integrated Transparent 170° Optic Lens: Provides a wide-angle light distribution for uniform and comprehensive coverage, maximizing visibility and minimizing shadows.
Efficient String Configuration: Each string contains 50 modules, allowing for flexible installation tailored to various project needs.
Certified Quality and Safety: The UltraFlare LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, underscoring ENVO's commitment to maintaining high standards of quality, safety, and environmental responsibility.

Application:

These modules are ideal for illuminated letters and light boxes with depths ranging from 6-15 cm, providing effective illumination in various commercial and public settings.

Illuminate your signage with the UltraFlare LED Modules by ENVO, where advanced technology meets reliability to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

UltraFlare
Power Rating

2 Watt
Rated Current

0.17 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

7 Year
Length

4.73 cm
Width

4.03 cm
Height

1.04 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the ENVO UltraFlare LED Module Backlit - Quad LED designed for?

This LED module is designed for illuminated letters and light boxes in commercial and public-facing signage. The product description specifically highlights high-traffic environments such as airports, metros, banks, buildings, and shopping malls. It is intended for backlit signage applications where strong, even illumination is important.

What depths is this LED module suitable for?

The UltraFlare Quad LED module is recommended for illuminated letters and light boxes with depths from 6 cm to 15 cm. That range makes it suitable for many standard backlit signage builds where broad light spread is needed. Its 170 degree optic lens helps support wide coverage within that application range.

How do the variants in this product family differ?

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 6500K cool white options. Shared specifications across the family include 2W power rating, 180 lumens output, 170 degree beam angle, CRI 80, 50,000 hour lifetime, and a 7 year warranty.

What performance specifications are consistent across the full product family?

Across the family, each module is rated at 2W and delivers 180 lumens. All variants use a 170 degree beam angle, have a CRI of 80, support dimming, and are rated for a 50,000 hour lifetime. The family also carries a 7 year warranty.

Is the ENVO UltraFlare Quad LED module dimmable?

Yes, the parent model is listed as dimmable, and the child variants also show dimmable control. That means dimming capability applies across the product family rather than to only one specific version. Buyers should still confirm system-level compatibility with the rest of their signage components.

What certifications does this product family carry?

According to the product description, the UltraFlare LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate the product has been positioned for quality, safety, and environmental compliance considerations. For many B2B buyers, this is relevant when evaluating products for commercial signage projects.

Model	Power	Brightness	CCT	Dimming
ENVO UltraFlare LED Module Backlit - Double LED	1W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Triple LED	1.5W	—	—	Dimmable	View
ENVO UltraFlare LED Module Backlit - Single LED	0.5W	—	—	Dimmable	View
