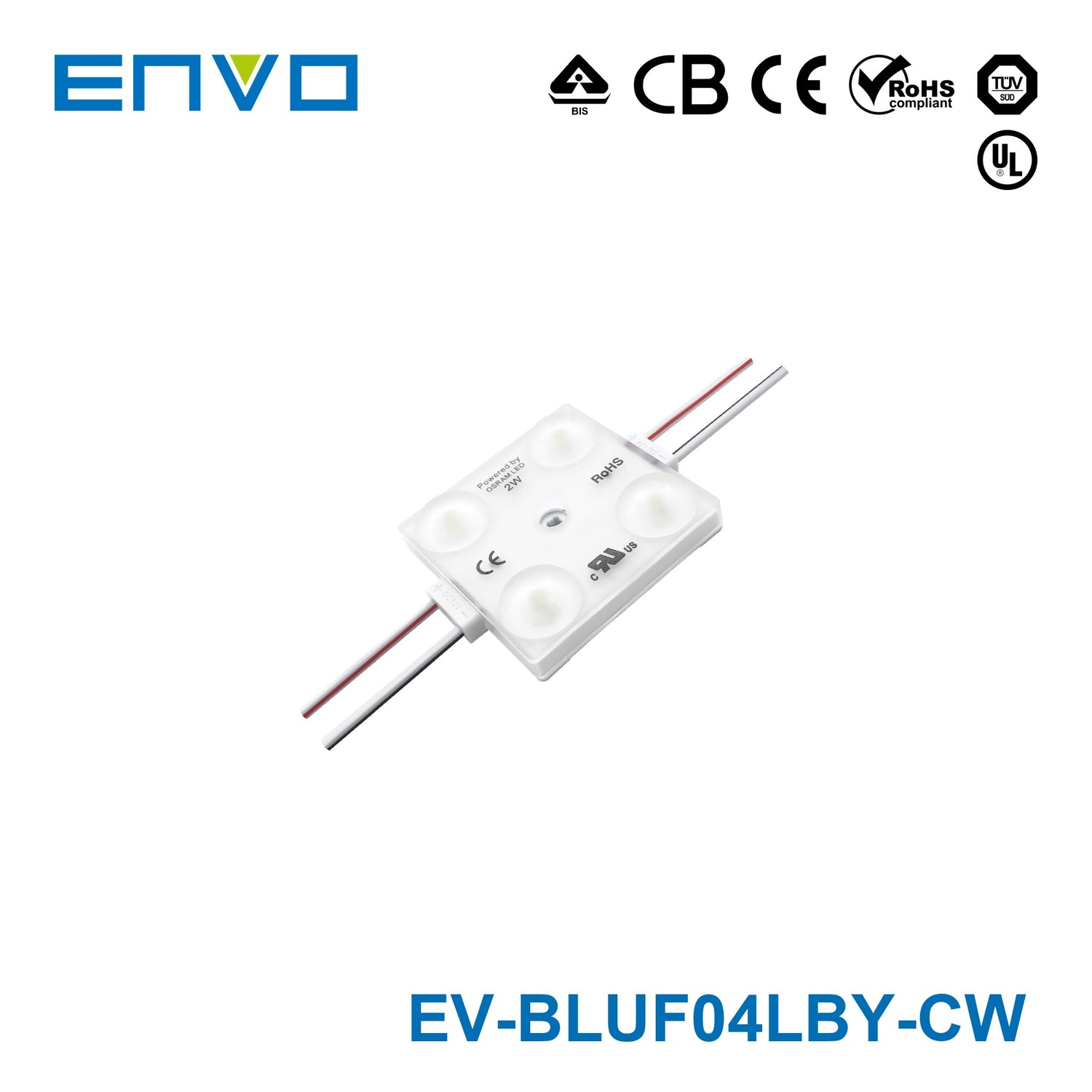

ENVO UltraFlare LED Module Backlit - Quad LED
Log in to see priceThe EV-BLUF04LBY is an ENVO LED module (12VDC, 2W, operating temperature: -25~+60°C).
Key Features
- ✓ Input voltage: 12VDC
- ✓ Power: 2W
- ✓ Rated current: 0.17A
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ CRI: 80
- ✓ Beam angle: 170°
- ✓ Dimmable
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -25~+60°C
- ✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
- ✓ 7 year warranty
-
BrandEnvo
-
SeriesUltraFlare
-
Power Rating2 Watt
-
Rated Current0.17 Ampere
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty7 Year
-
Length4.73 cm
-
Width4.03 cm
-
Height1.04 cm
-
Weight0.02 kg
::specification::
Frequently Asked Questions
What is the ENVO UltraFlare LED Module Backlit - Quad LED designed for?
This LED module is designed for illuminated letters and light boxes in commercial and public-facing signage. The product description specifically highlights high-traffic environments such as airports, metros, banks, buildings, and shopping malls. It is intended for backlit signage applications where strong, even illumination is important.
What depths is this LED module suitable for?
The UltraFlare Quad LED module is recommended for illuminated letters and light boxes with depths from 6 cm to 15 cm. That range makes it suitable for many standard backlit signage builds where broad light spread is needed. Its 170 degree optic lens helps support wide coverage within that application range.
How do the variants in this product family differ?
The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 6500K cool white options. Shared specifications across the family include 2W power rating, 180 lumens output, 170 degree beam angle, CRI 80, 50,000 hour lifetime, and a 7 year warranty.
What performance specifications are consistent across the full product family?
Across the family, each module is rated at 2W and delivers 180 lumens. All variants use a 170 degree beam angle, have a CRI of 80, support dimming, and are rated for a 50,000 hour lifetime. The family also carries a 7 year warranty.
Is the ENVO UltraFlare Quad LED module dimmable?
Yes, the parent model is listed as dimmable, and the child variants also show dimmable control. That means dimming capability applies across the product family rather than to only one specific version. Buyers should still confirm system-level compatibility with the rest of their signage components.
What certifications does this product family carry?
According to the product description, the UltraFlare LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate the product has been positioned for quality, safety, and environmental compliance considerations. For many B2B buyers, this is relevant when evaluating products for commercial signage projects.
