Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

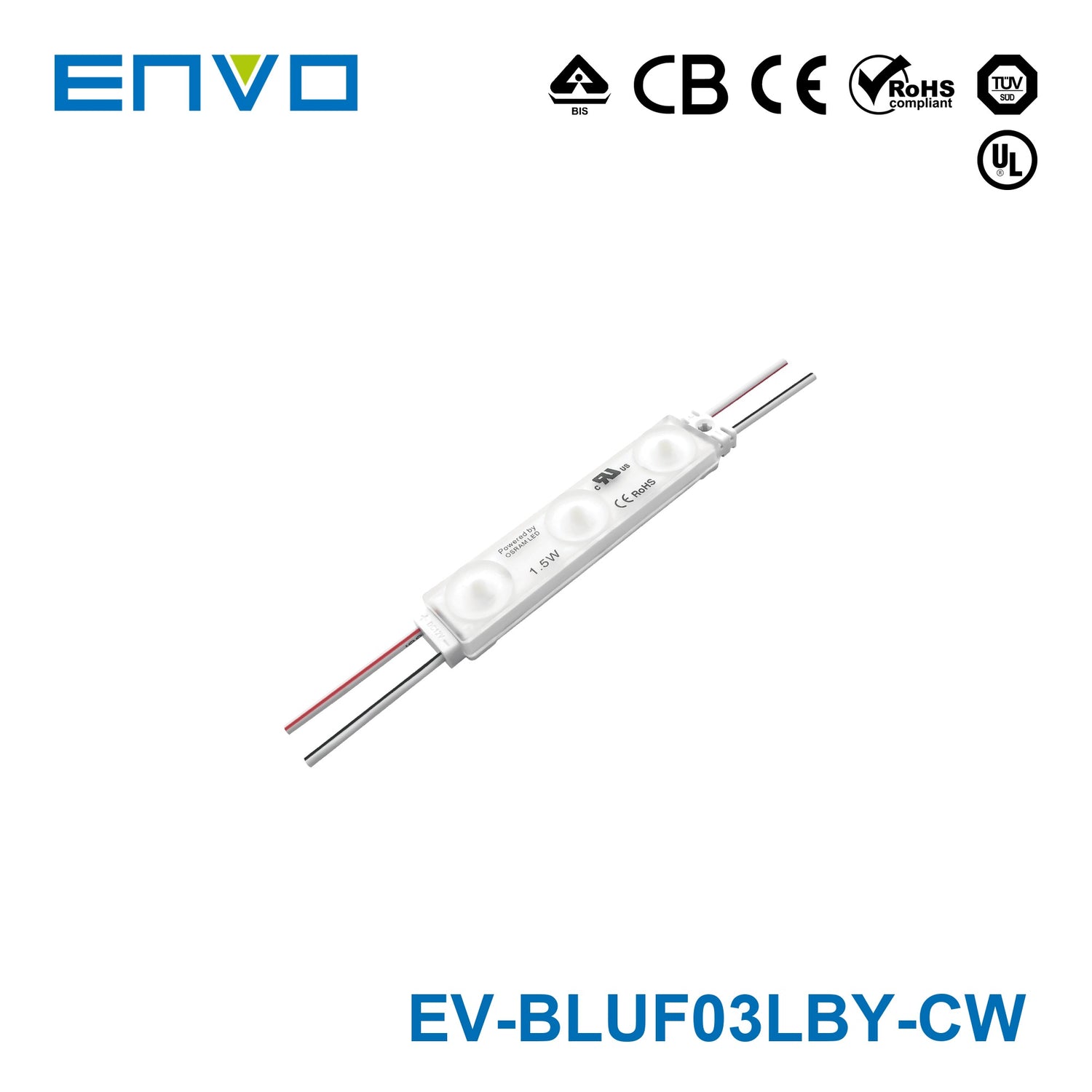

ENVO UltraFlare LED Module Backlit - Triple LED
Log in to see priceThe EV-BLUF03LBY is an ENVO LED module (12VDC, 1.5W, operating temperature: -25~+60°C).
Key Features
- ✓ Input voltage: 12VDC
- ✓ Power: 1.5W
- ✓ Rated current: 0.13A
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ CRI: 80
- ✓ Beam angle: 170°
- ✓ Dimmable
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -25~+60°C
- ✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
- ✓ 7 year warranty
-
BrandEnvo
-
SeriesUltraFlare
-
Power Rating1.5 Watt
-
Rated Current0.13 Ampere
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty7 Year
-
Length7.78 cm
-
Width1.54 cm
-
Height1.04 cm
-
Weight0.02 kg
::specification::
Frequently Asked Questions
What types of signage is the ENVO UltraFlare LED Module Backlit - Triple LED designed for?
This LED module family is intended for illuminated letters and light boxes in commercial and public-facing environments. The product description specifically positions it for high-traffic sites such as airports, metros, banks, buildings, and shopping malls. It is suited to sign depths from 6-15 cm.
How do the variants in this family differ?
The main difference across the family is color temperature: 3000K warm white, 4000K neutral white, and 6500K cool white. All listed variants keep the same 1.5W power rating, 165 lm output, 170° beam angle, CRI 80, dimmable performance, 50,000-hour lifetime, and 7-year warranty. That means the selection is primarily about the lighting tone you want in the finished sign.
Is this LED module a good fit for shallow backlit letters or light boxes?
Yes. This family is specified for illuminated letters and light boxes with depths between 6 cm and 15 cm, which makes it suitable for many shallow to mid-depth sign builds. The integrated 170° optic lens is designed to help spread light broadly for more even face illumination.
What performance specifications are consistent across the UltraFlare Triple LED family?
Each variant in this family is rated at 1.5W and delivers 165 lumens with a 170° beam angle and CRI 80. The modules are dimmable, use 12V power input, and are built around high-output OSRAM 2835 LEDs. Physical size is 77.8 mm long, 15.4 mm wide, and 10.4 mm high, with a weight of 16 g per module.
Is this product family suitable for demanding commercial environments?
Yes. ENVO positions this family for demanding commercial signage applications, and the modules are described as fully tested during production for reliability. The product also carries CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications, which supports its use where quality and compliance matter. A 50,000-hour lifetime and 7-year warranty further reinforce its long-service commercial focus.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other UltraFlare Series Models
3 other models| Model | Power | Brightness | CCT | Dimming | |
|---|---|---|---|---|---|
| ENVO UltraFlare LED Module Backlit - Double LED | 1W | — | — | Dimmable | View |
| ENVO UltraFlare LED Module Backlit - Quad LED | 2W | — | — | Dimmable | View |
| ENVO UltraFlare LED Module Backlit - Single LED | 0.5W | — | — | Dimmable | View |
