Mean Well SPRN01L-05 DC-DC Converter - 1W - 4.75~5.5V in 5V out

SKU SPRN01L-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SPRN01L-05 is the 5V output model of this series: rated power 1W, typical efficiency 68%.

SP RN01 and DP RN01 series are 1 W isolated and regulated module type DC-DC converter with SIP 6 package. It features international standard pins, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/24V / 48 V -5~+10% , and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP6 package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
Protection: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty

Specifications

SPRN01L-05Specifications from the official datasheet (2024-08-02 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 5V (4.75 ~ 5.5V)
INPUT CURRENT NO LOAD: 35mA
INPUT CURRENT FULL LOAD: 294mA
VOLTAGE RANGE: 4.75 ~ 5.5Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc ; 48Vin models : 60Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 500mA, 12Vin models: 250mA, 24Vin models: 100mA, 48Vin models: 60mA
INTERNAL POWER DISSIPATION: 600mW

OUTPUT

OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 0 ~ 200mA
EFFICIENCY (TYP.): 68%
CAPACITOR LOAD (MAX.): 100μF
VOLTAGE ACCURACY: ±3.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: ±1.0%
LOAD REGULATION^Note.4: ±1.0%
SWITCHING FREQUENCY (Typ.): 110KHz

PROTECTION

SHORT CIRCUIT: SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max.

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1,1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1,1A/m

OTHERS

MTBF: 1000Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.6*7.1*10.14mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)

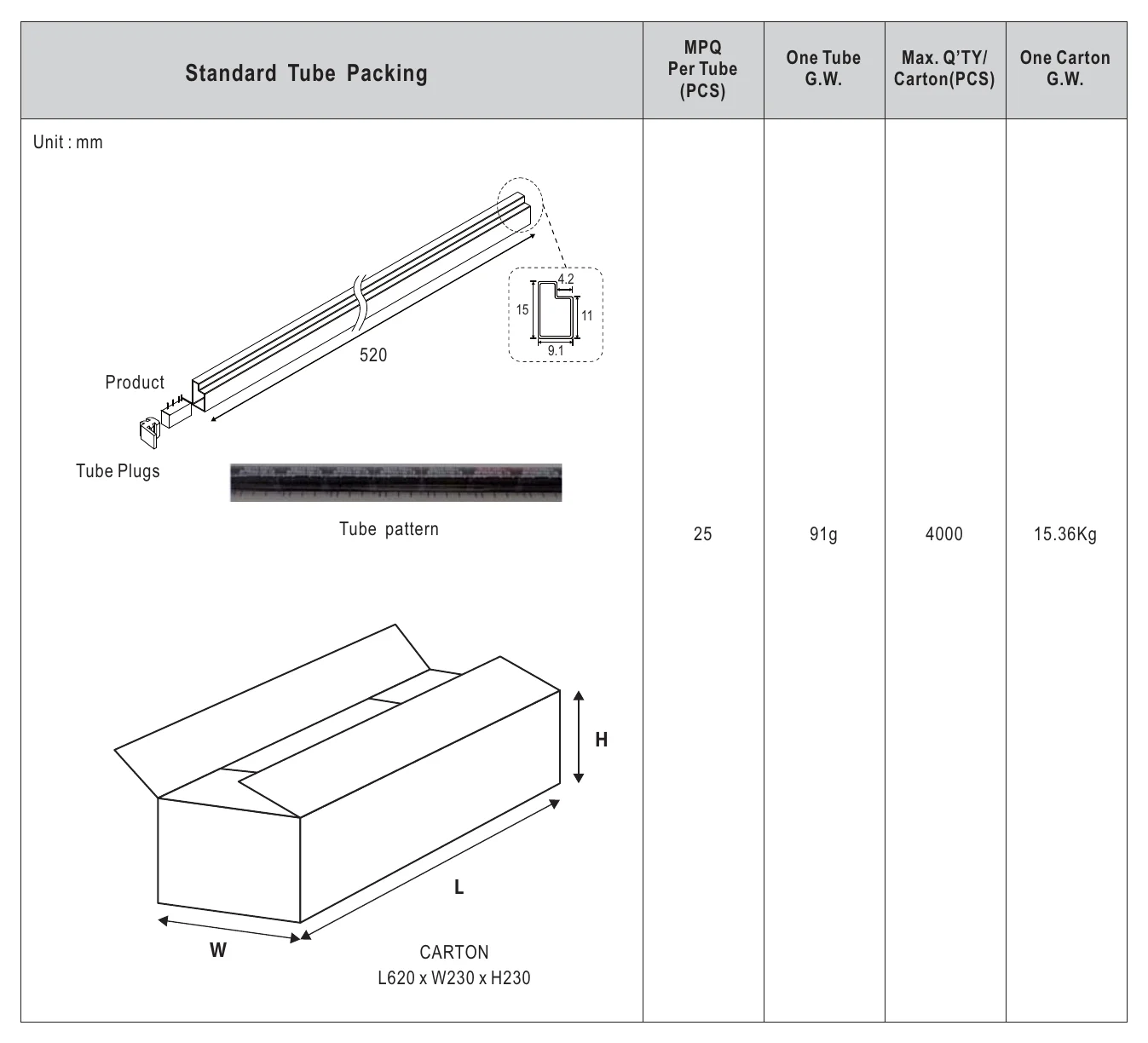

PACKING: 2.5g ; 25pcs/per tube, 4000pcs/160 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc, O:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

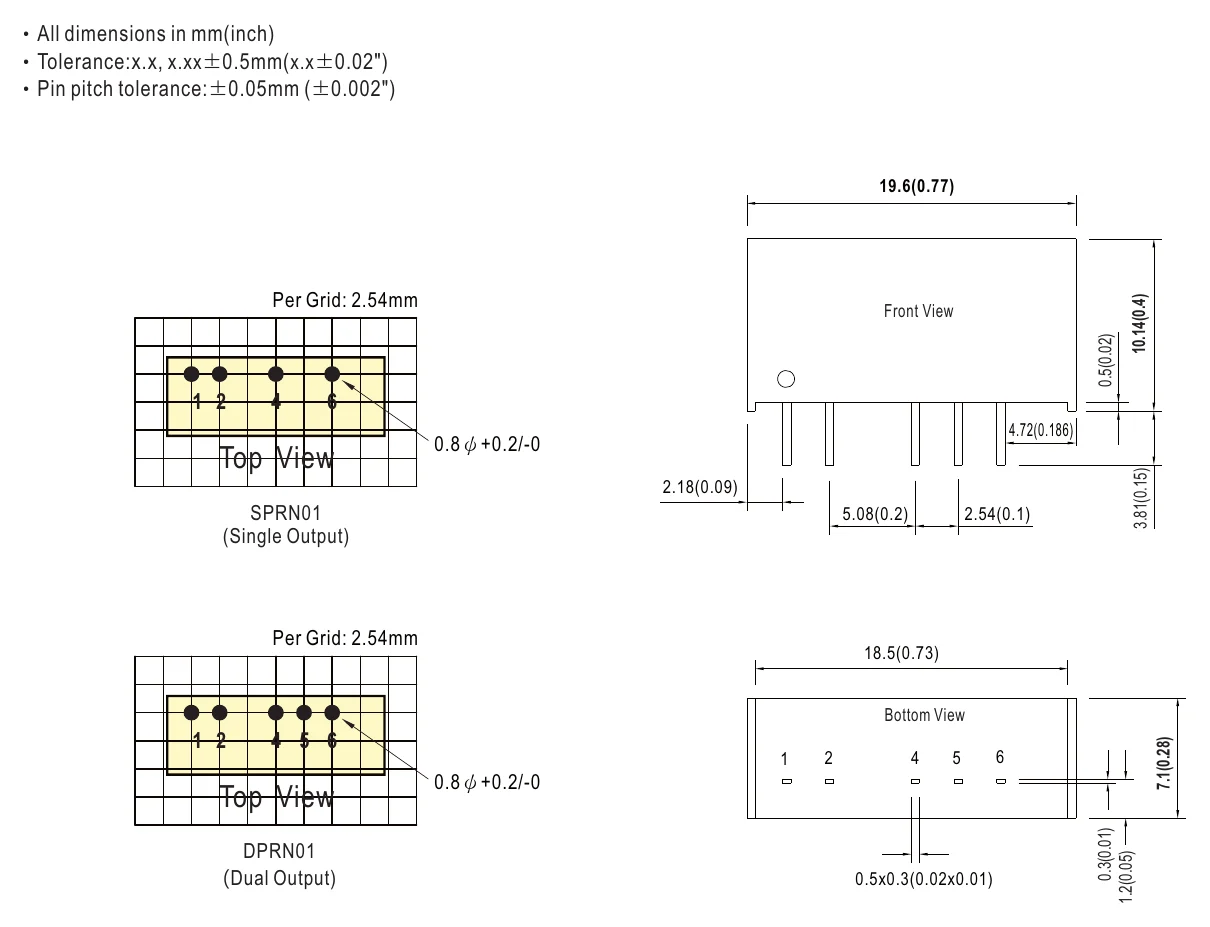

SPRN01L-05 Mechanical Specification — Mechanical Specification

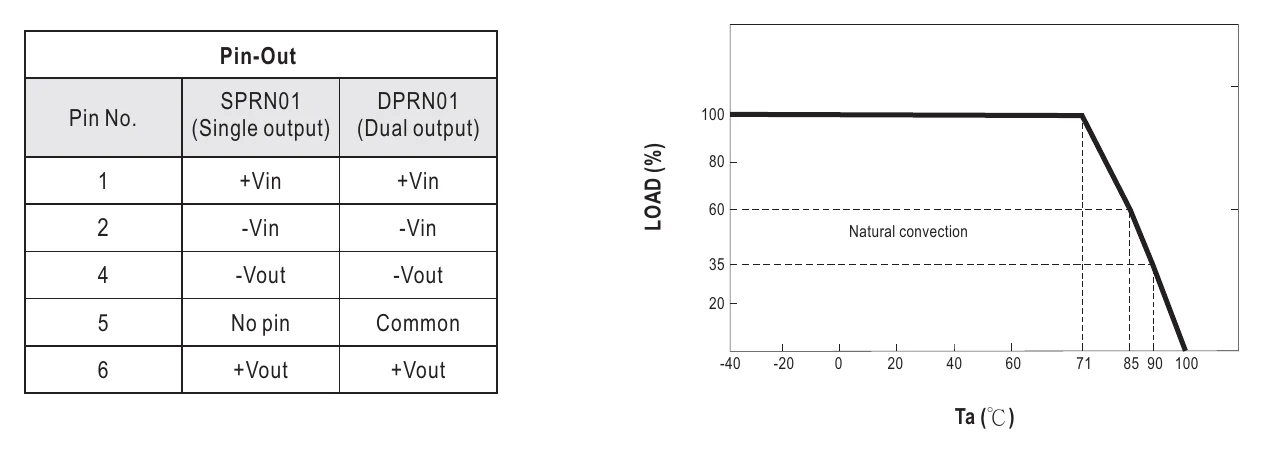

SPRN01L-05 Pin Configuration — Pin Configuration

Typical applications

Downloads

Certificates3

Certificate (SPRN01-DPRN01-EMC)(EN) PDF Download

Certificate (SPRN01-DPRN01-CE-dec)(EN) PDF Download

Certificate (SPRN-DPRN01-UK-dec)(EN) PDF Download

Test reports1

Test Report (SPRN01L-05)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPRN01L-05 in a 5V industrial control board that only has a 4.75~5.5V source available?

Yes, this converter is designed for a 4.75~5.5V input and provides a regulated 5V constant-voltage output. With 1W total power, it fits low-power control, monitoring, and embedded electronics that stay within that output limit.

Is the SPRN01L-05 suitable for low-power embedded 5V logic or sensor circuits?

It can be used for low-power 5V embedded electronics because it delivers a 5V constant-voltage output from a 4.75~5.5V input range. The unit is rated at 1W, so it is intended for small loads rather than higher-power 5V devices.

Can I use this DC-DC converter for compact automation electronics where board space is limited?

Yes, its 19.6 × 7.1 × 10.14 mm size and 2.5 g weight make it suitable for compact industrial and embedded assemblies. It is a practical fit where a small 5V constant-voltage converter is needed within a 1W power budget.

Would the SPRN01L-05 work in equipment exposed to wide temperature swings?

It is rated for operation from -40°C to +90°C, which supports demanding temperature conditions inside industrial or embedded equipment. No IP rating is listed in the provided specs, so it is better suited to protected indoor enclosures than exposed outdoor locations.

How does the SPRN01L-05 compare with the other SPRN01L models?

The SPRN01L-05, SPRN01L-12, and SPRN01L-15 are all 1W converters with the same 19.6 × 7.1 × 10.14 mm dimensions, 2.5 g weight, and -40°C to +90°C operating range. The difference is output: the SPRN01L-05 is 5V, the SPRN01L-12 is 12V at 84mA, and the SPRN01L-15 is 15V at 67mA.
