Mean Well

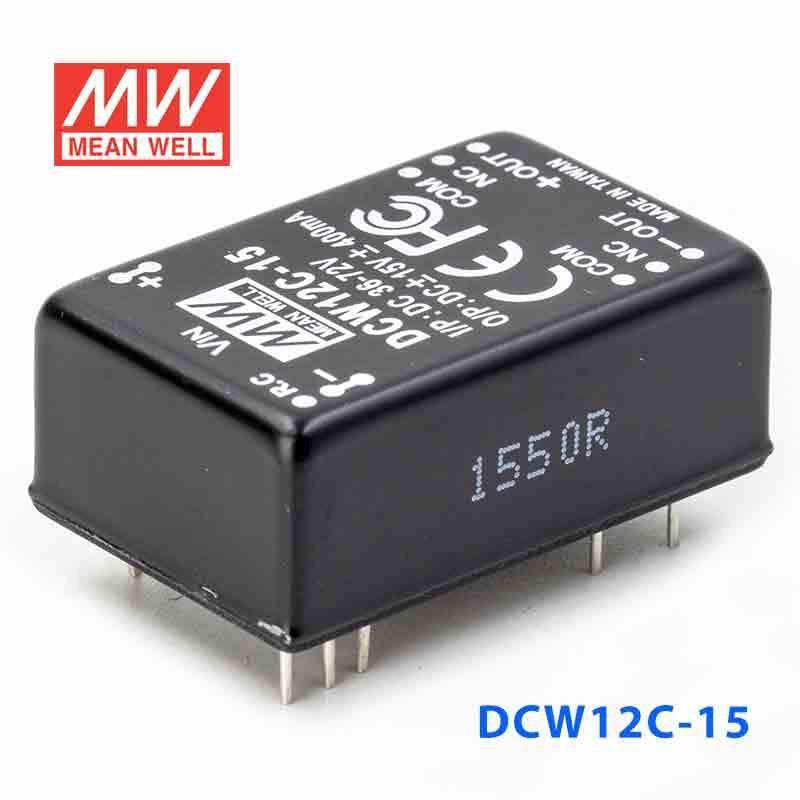

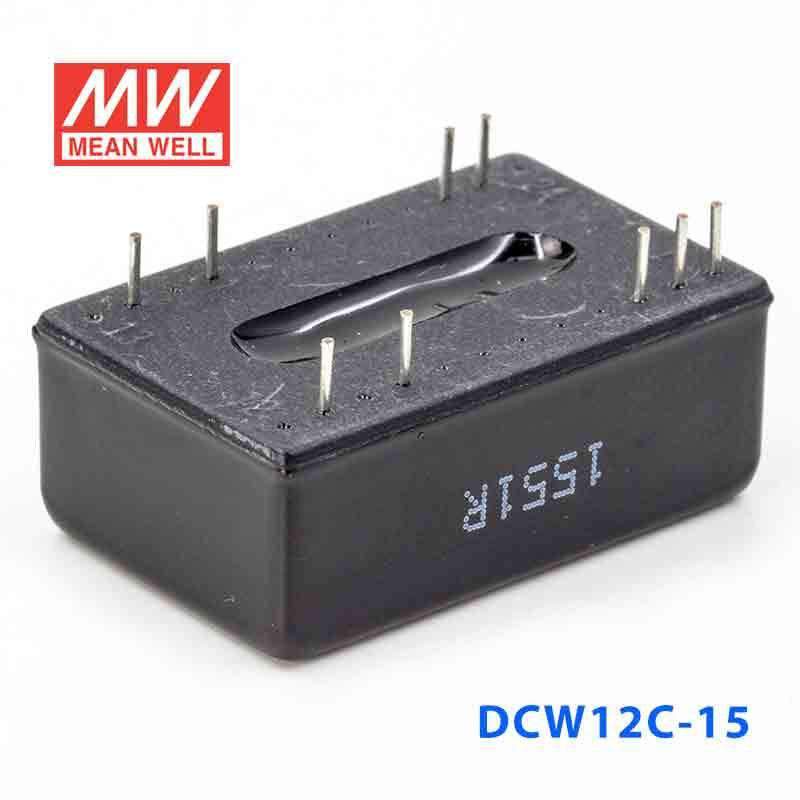

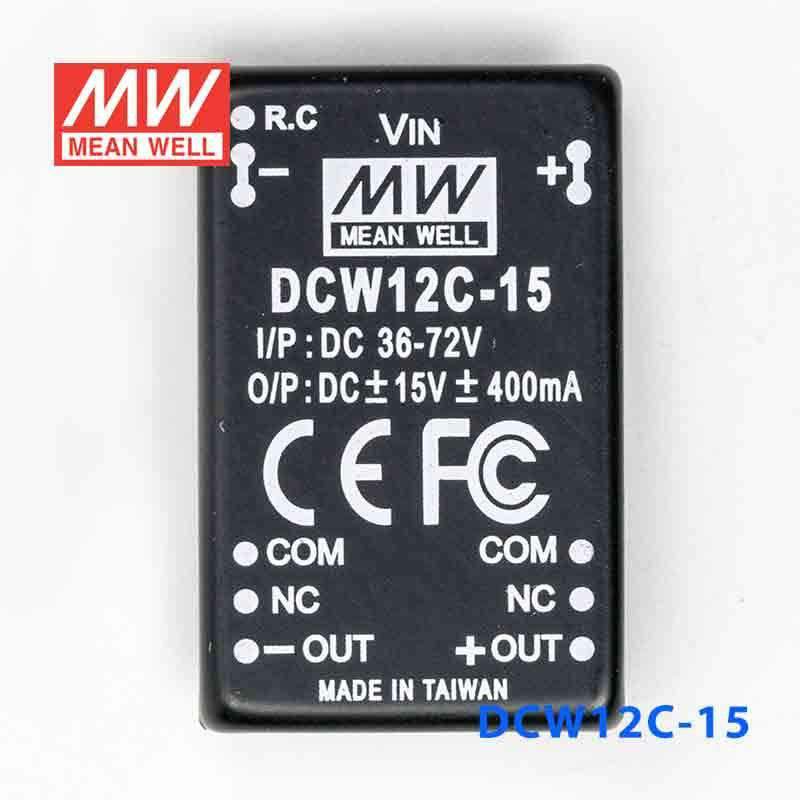

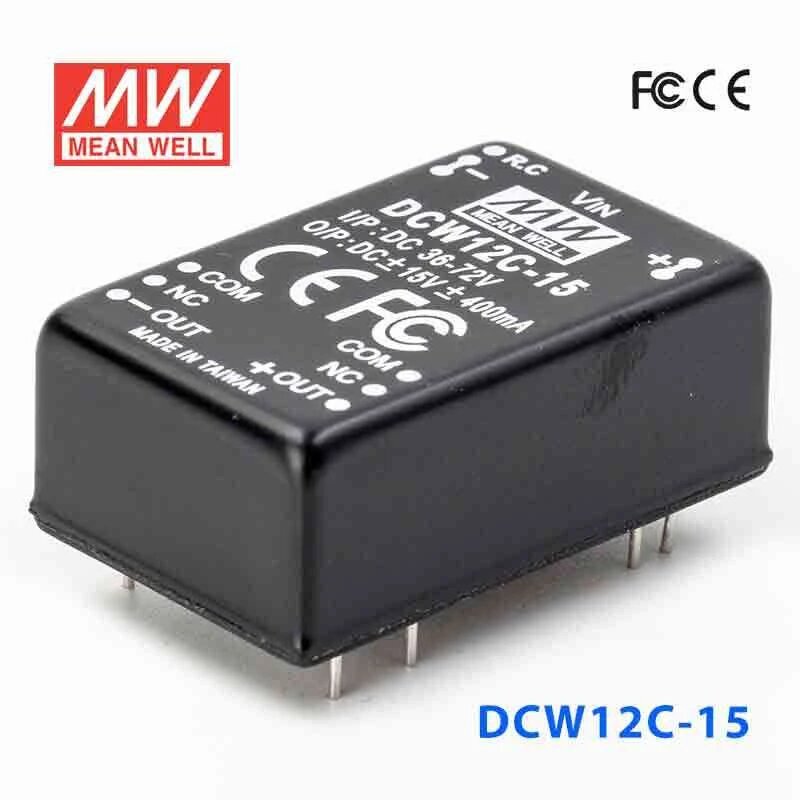

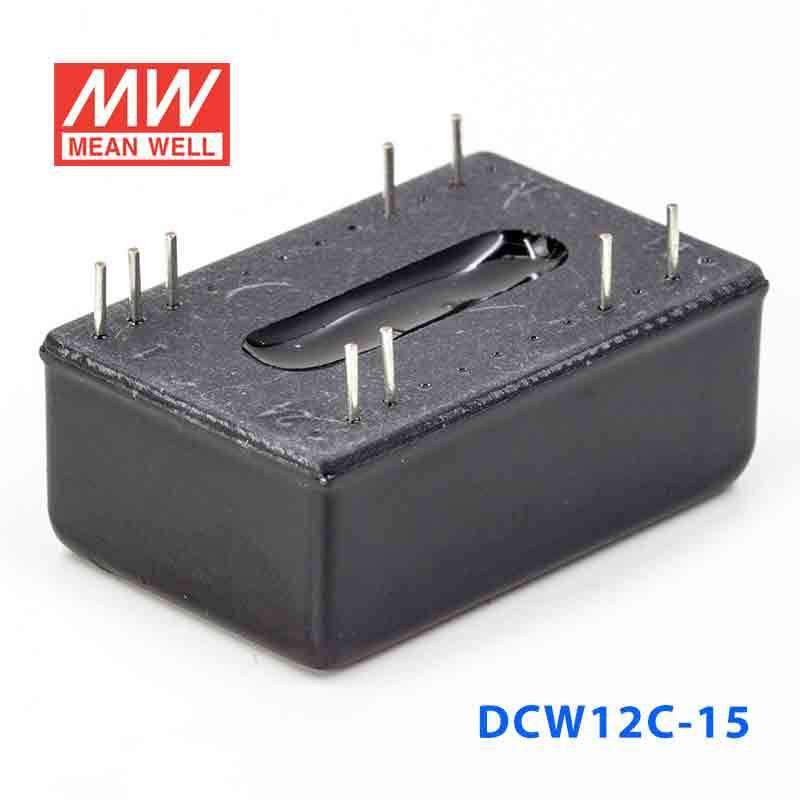

Mean Well DCW12C-15 DC-DC Converter - 12W - 36~72V in ±15V out 400mA

SKU DCW12C-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

DCW12C-15 is the ±15V output model of this series: rated power 12W, typical efficiency 83%.

Features

  • 2:1 wide input range
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Five-sided shield metal case
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

DCW12C-15Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
±15V
CURRENT RANGE
±80 ~ ±400mA
RATED POWER
12W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
400KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
47uF

INPUT

VOLTAGE RANGE
36 ~ 72VDC
EFFICIENCY (Typ.)
83%
DC CURRENT Full load
320mA
DC CURRENT No load
25mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION

OVERLOADNote.5
110 ~ 180% rated output load Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with over current protection Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
2200pF max.
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

REMOTE CONTROL
Power ON: R.C. ~ -Vin > 4VDC or open ; Power OFF: R.C. ~ -Vin < 1VDC or short
MTBF
600Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
31.8*20.3*12.2mm (L*W*H) or 1.25"*0.80"*0.48" inch (L*W*H)
PACKING
17.5g ; 15 pcs/per tube, 750 pcs/ 50 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

DCW12C-15 Mechanical Specification
Mechanical Specification
DCW12C-15 Packing
Packing

Downloads

FAQ

What are the key input and output specs of the Mean Well DCW12C-15?

The Mean Well DCW12C-15 is a 12W DC-DC converter with a 36 to 72V DC input range and a ±15V DC output. It is rated for 400mA output current and is designed for applications that need regulated dual-output DC power from a wide input range.

What kind of isolation does the DCW12C-15 provide?

This model provides 1500VDC input-to-output isolation. It also specifies input-to-output isolation resistance of 100M Ohms at 500VDC and a maximum isolation capacitance of 2200pF.

Is the DCW12C-15 suitable for harsh temperature environments?

The DCW12C-15 has a working temperature range of -40 to +71 degrees C, subject to the output derating curve. Its storage temperature range is -40 to +105 degrees C, which makes it suitable for demanding industrial environments.

What protection features are included in the Mean Well DCW12C-15?

The DCW12C-15 includes overload protection rated at 110% to 180% with automatic recovery. It also has short circuit protection on all outputs using hiccup-mode overcurrent protection, which recovers automatically after the fault is removed.

What types of applications is the DCW12C-15 commonly used for?

This converter is suited to industrial and OEM applications that need compact isolated DC-DC power conversion from a 36 to 72V DC source to a regulated ±15V output. Its wide 2:1 input range, shielded metal case, built-in EMI filter, and remote ON/OFF capability make it a practical option for embedded power designs.

How compact is the Mean Well DCW12C-15?

The DCW12C-15 measures 31.8 x 20.3 x 12.2 mm and weighs about 17.5 g. Its compact size and five-sided shield metal case help it fit space-constrained industrial and embedded applications.
