Mean Well

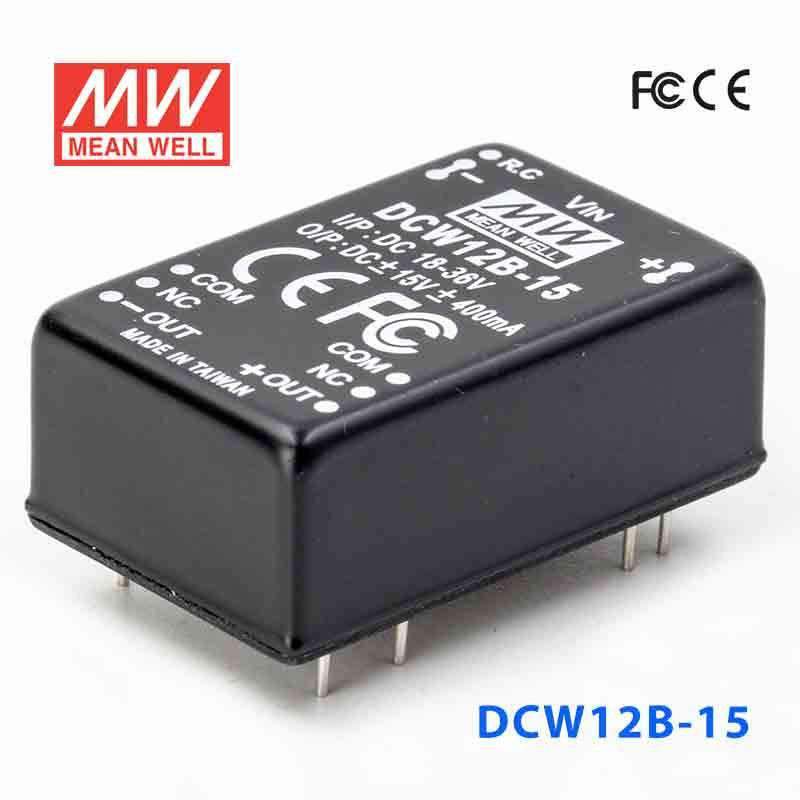

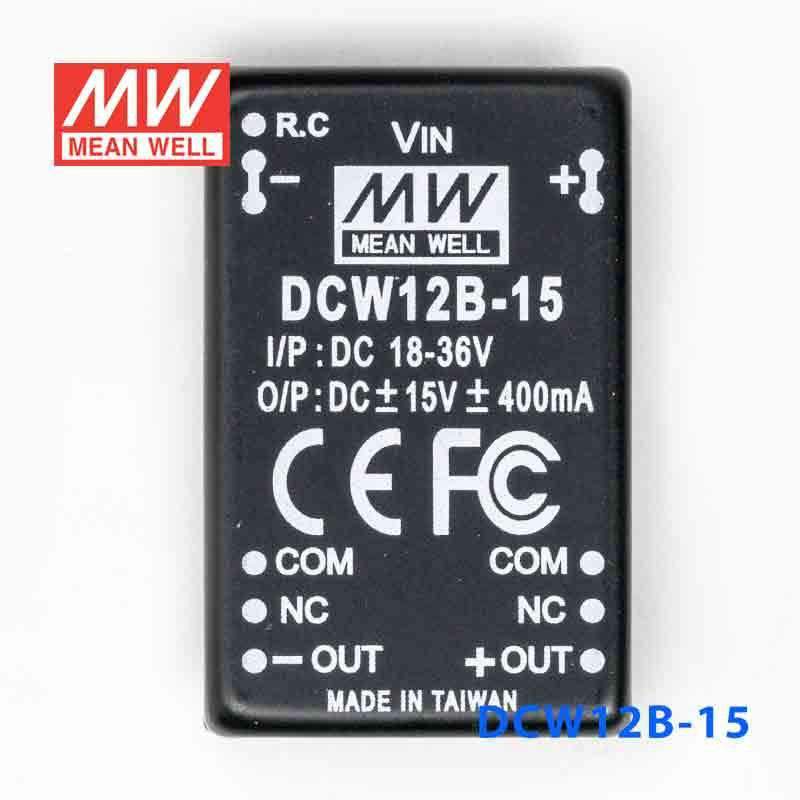

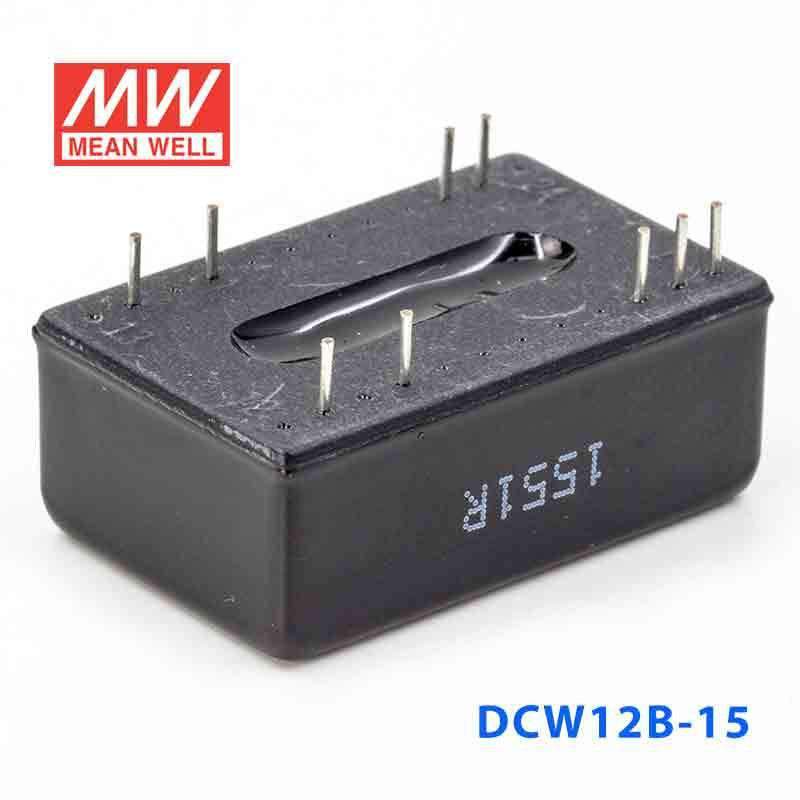

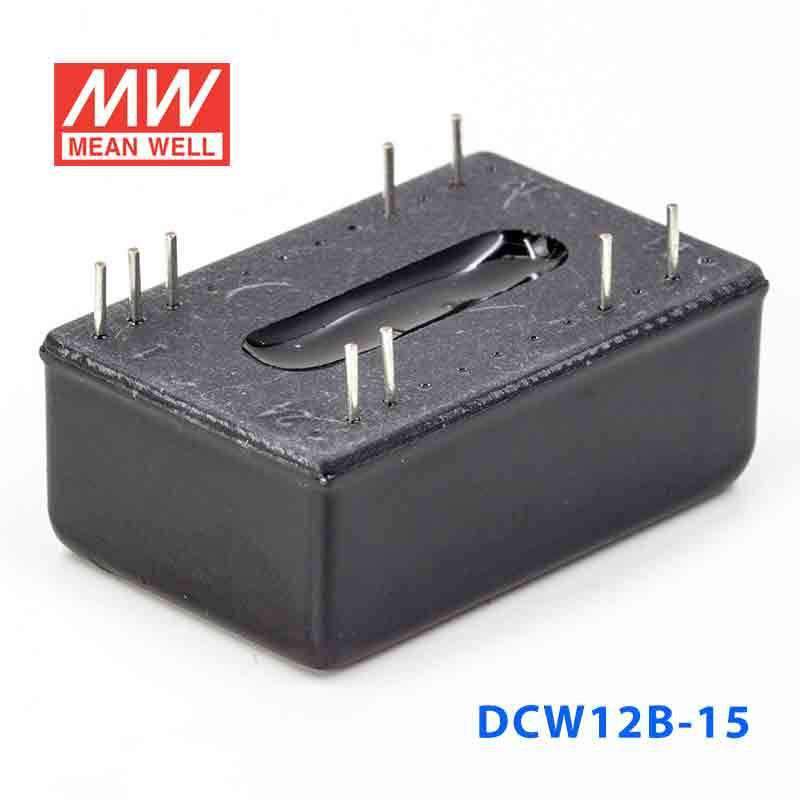

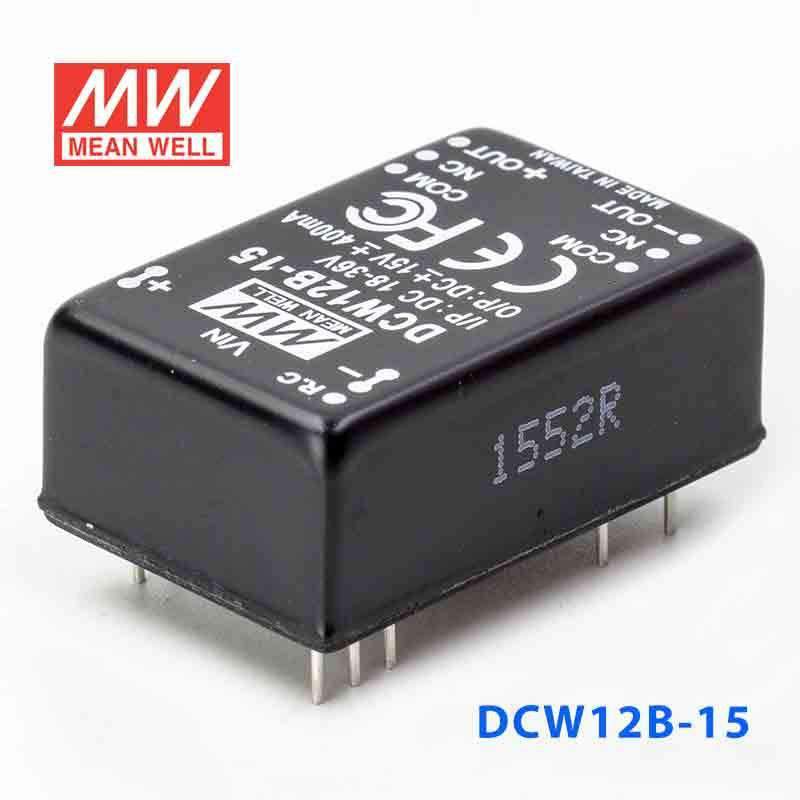

Mean Well DCW12B-15 DC-DC Converter - 12W - 18~36V in ±15V out 400mA

SKU DCW12B-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

DCW12B-15 is the ±15V output model of this series: rated power 12W, typical efficiency 84%.

Features

  • 2:1 wide input range
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Five-sided shield metal case
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

DCW12B-15Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
±15V
CURRENT RANGE
±80 ~ ±400mA
RATED POWER
12W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
400KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
47uF

INPUT

VOLTAGE RANGE
18 ~ 36VDC
EFFICIENCY (Typ.)
84%
DC CURRENT Full load
625mA
DC CURRENT No load
35mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION

OVERLOADNote.5
110 ~ 180% rated output load Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with over current protection Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
2200pF max.
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

REMOTE CONTROL
Power ON: R.C. ~ -Vin > 4VDC or open ; Power OFF: R.C. ~ -Vin < 1VDC or short
MTBF
600Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
31.8*20.3*12.2mm (L*W*H) or 1.25"*0.80"*0.48" inch (L*W*H)
PACKING
17.5g ; 15 pcs/per tube, 750 pcs/ 50 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

DCW12B-15 Mechanical Specification
Mechanical Specification
DCW12B-15 Packing
Packing

Downloads

FAQ

What is the input and output range of the Mean Well DCW12B-15?

The DCW12B-15 is a 12W DC-DC converter with a 2:1 input range of 18 to 36V DC. It provides dual ±15V DC output, making it suitable for designs that need positive and negative supply rails from a nominal 24V DC source.

Is the DCW12B-15 an isolated DC-DC converter?

Yes. This model provides 1500V DC input-to-output isolation, with isolation resistance rated at 100M Ohms at 500V DC. That isolation can be useful in control, instrumentation, and other applications where signal separation is important.

What protection features are included in the DCW12B-15?

The DCW12B-15 includes short circuit and overload protection. Overload protection is specified at 110% to 180% with auto-recovery, and short circuit protection uses hiccup mode that recovers automatically after the fault is removed.

Can the DCW12B-15 be used in industrial or electrically noisy environments?

It is designed with a built-in EMI filter and a five-sided shield metal case. The unit also lists EMC compliance to EN55032 Class A, EN61000-4-2/3/4/5/6/8 (light industry level), and FCC Part 15 Class A, which supports use in space-constrained industrial equipment.

What operating temperature range does the DCW12B-15 support?

This converter is rated for operation from -40°C to +71°C, subject to the output derating curve. Its storage temperature range is -40°C to +105°C, which makes it suitable for demanding operating and transport conditions.

How compact is the Mean Well DCW12B-15 for embedded equipment?

The DCW12B-15 measures 31.8 x 20.3 x 12.2 mm and weighs about 17.5 g. That compact metal-cased format makes it a practical choice where board space and enclosure space are limited.
