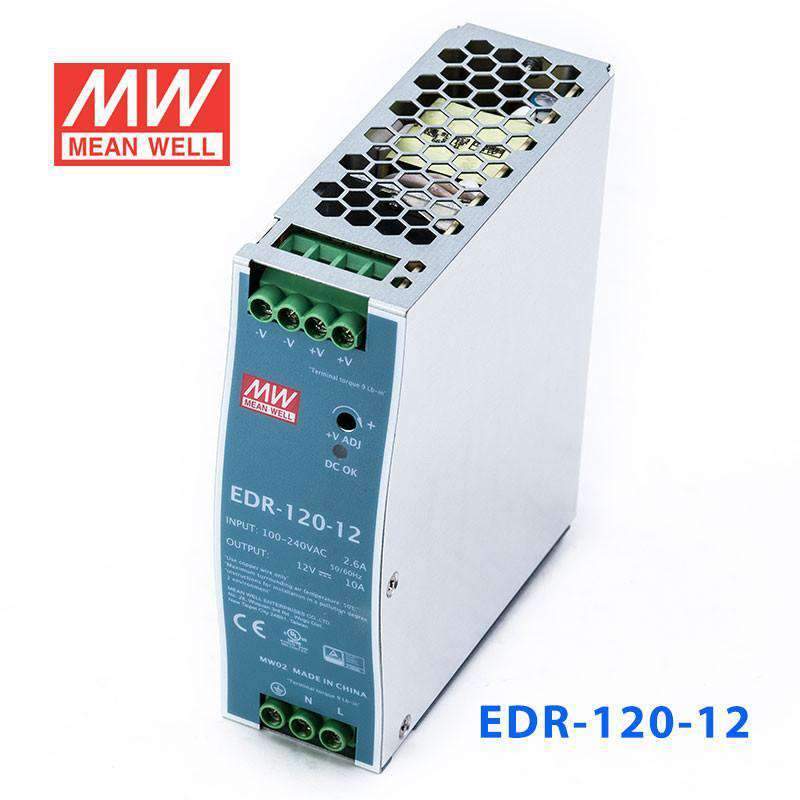

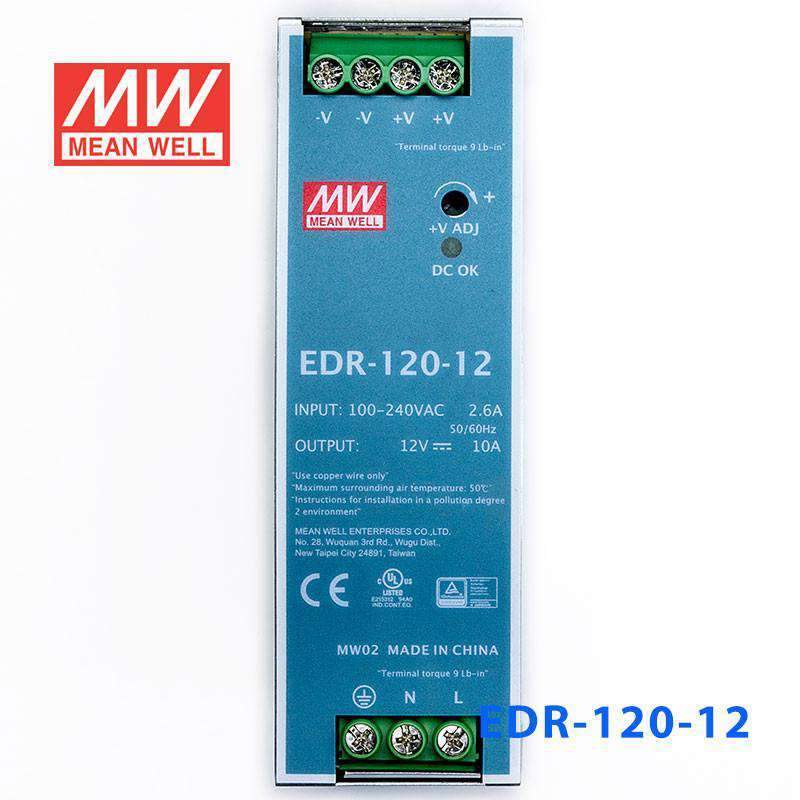

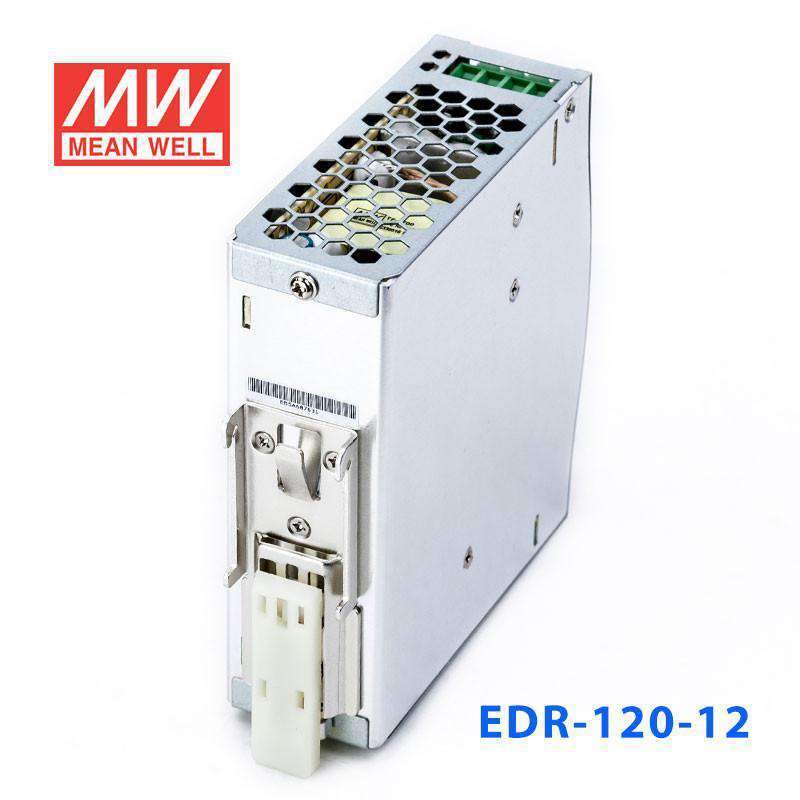

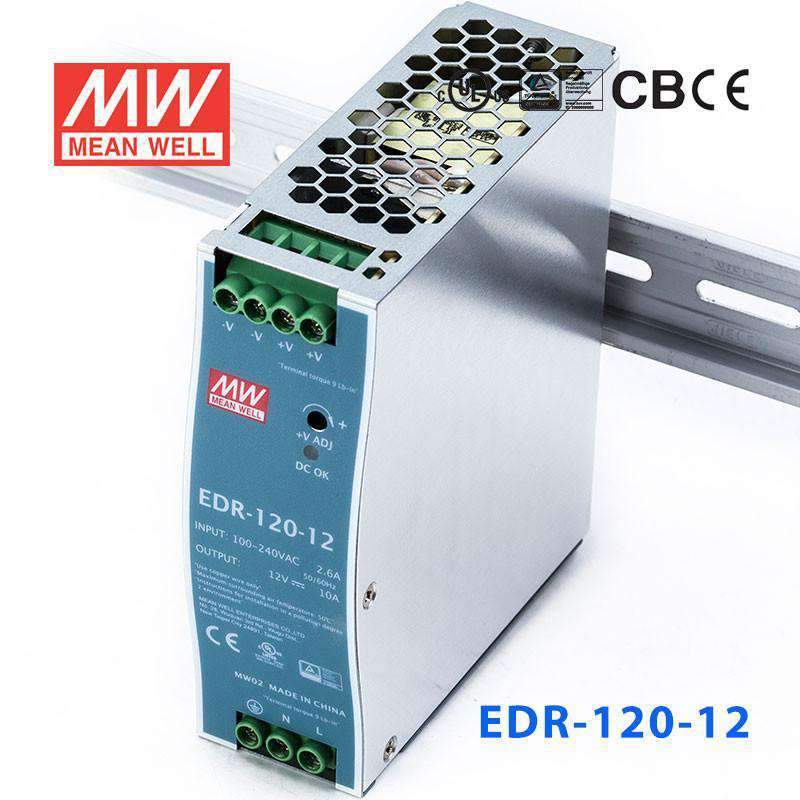

Mean Well EDR-120-12 Single Output Industrial Power Supply 120W 12V 10A - DIN Rail

metal caselow costslim sizewidth:32~40mmEMC EN55022 class A

SKU EDR-120-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EDR-120-12

EDR-75-12 75W 12V Low stock

EDR-120-12 120W 12V Low stock

Product variants

In stock

Overview

EDR-120-12 is the 12V output model of this series: rated current 10A, rated power 120W, typical efficiency 85%.

EDR-120 is one economical slim 120W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. EDR-120 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make EDR-120 a very competitive power supply solution for industrial applications.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

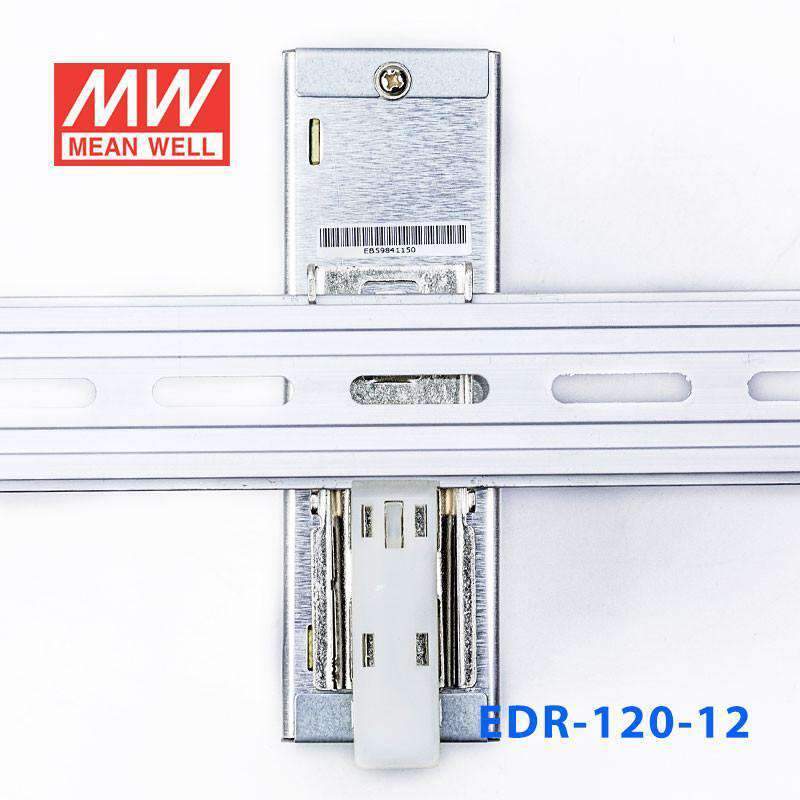

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
2 years warranty

Specifications

EDR-120-12Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 120W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 12 ~ 14V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/230VAC 2500ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 2.25A/115VAC 1.3A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 35A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 17V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃ )
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL508,TUV BS EN/EN62368-1,EAC TP TC 004,BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(NOTE 8) approved; (meet BS EN/EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class A
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF: 2718.3K hrs min. Telcordia SR-332 (Bellcore) ; 474.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 40*125.2*113.5mm (W*H*D)
PACKING: 0.6Kg; 20pcs/13Kg/1.02CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. Please check the derating curve for more details.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

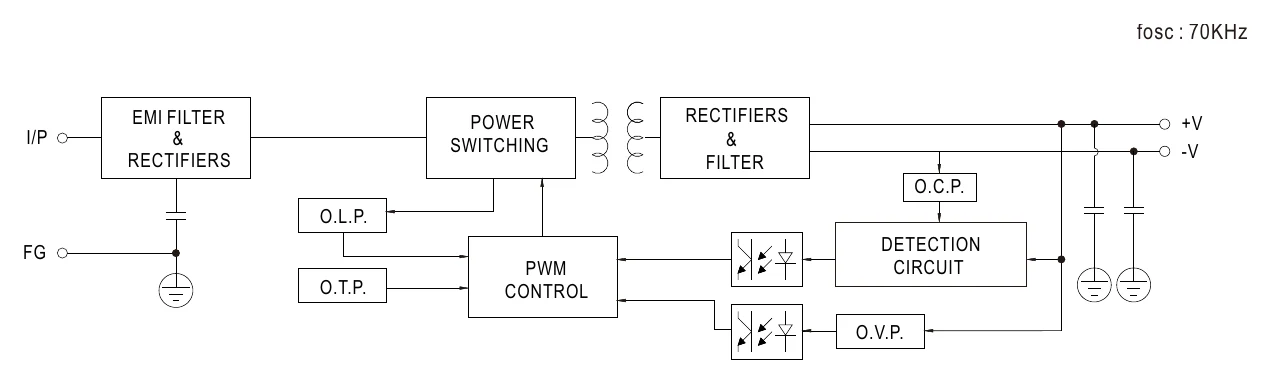

EDR-120-12 Block Diagram — Block Diagram

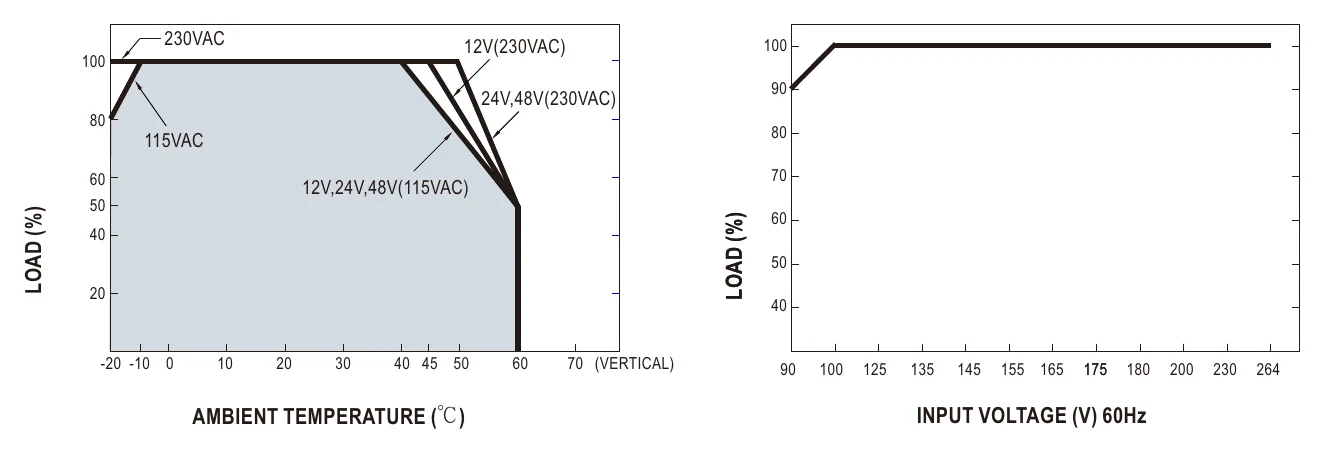

EDR-120-12 Derating Curve — Derating Curve

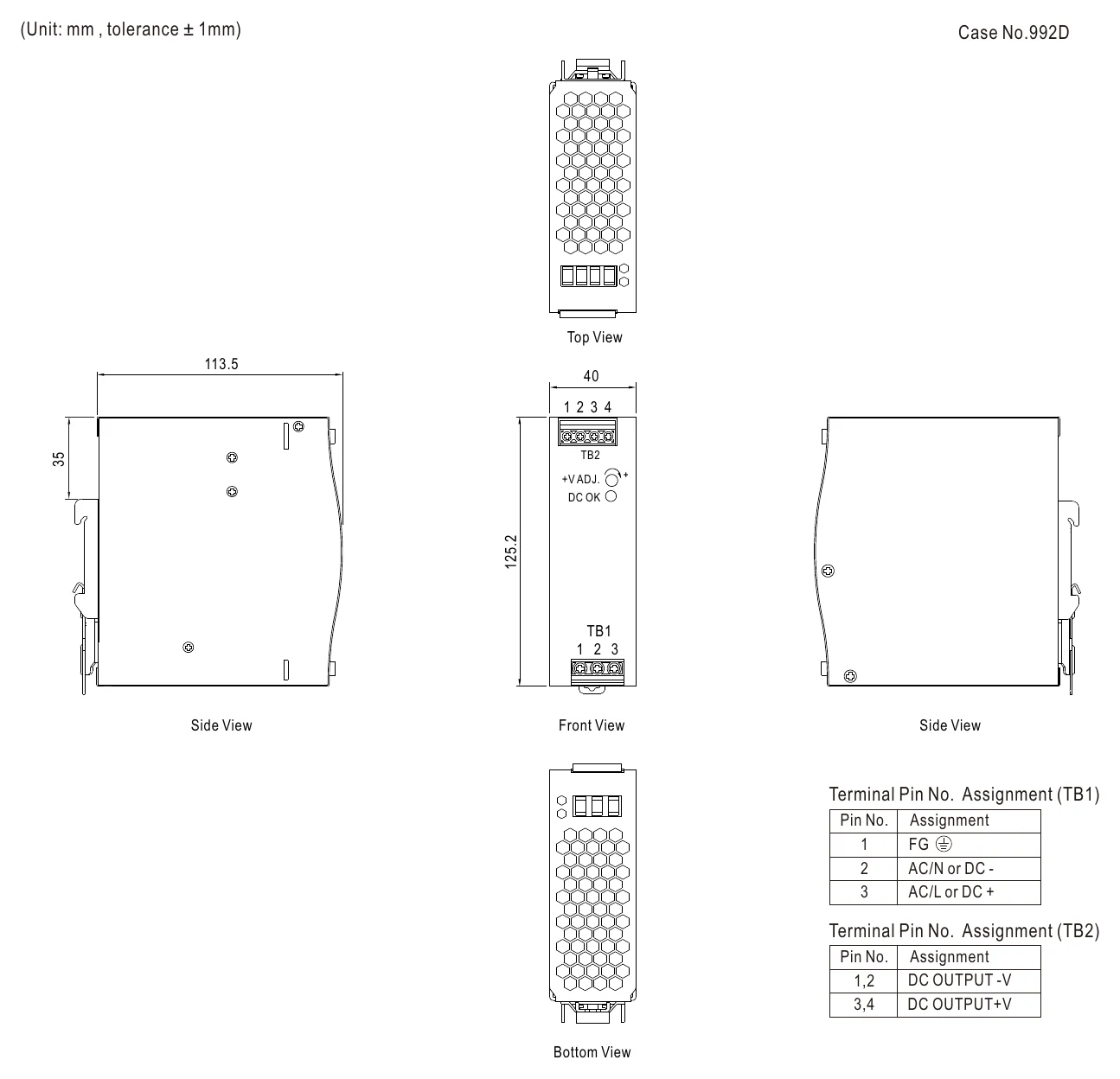

EDR-120-12 Mechanical Specification — Mechanical Specification

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Certificates4

CB Certificate (EDR-120)(EN) PDF Download

UL Certificate (EDR-120)(EN) PDF Download

EMC Certificate (EDR-120)(EN) PDF Download

TUV Certificate (EDR-120)(EN) PDF Download

Test reports1

Test Report (ERD-120-12)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

What is the difference between the EDR-120-12, EDR-120-24, and EDR-120-48?

All three are 120W slim DIN rail power supplies in the same 125.2 × 113.5 × 40mm enclosure with 90–264VAC universal input. The EDR-120-12 outputs 12V at 10A, the EDR-120-24 outputs 24V at 5A, and the EDR-120-48 outputs 48V at 2.5A. Choose the voltage that matches your load equipment's rated input.

Is the EDR-120-12 suitable for relay and sensor circuits in control panels?

Yes. The EDR-120-12 delivers 12V DC at 10A (120W), which is the standard voltage for many industrial relays, proximity sensors, and low-voltage control circuits. It mounts on standard DIN rail with a slim 40mm profile and complies with EMC EN55032 Class A for low electromagnetic interference.

Can the EDR-120-12 power a 12V CCTV or security camera system?

Yes. The EDR-120-12 provides 12V DC at up to 10A (120W), suitable for multi-camera CCTV installations in control rooms or equipment cabinets. It accepts 90–264VAC universal input and is approved to UL508, TÜV BS EN/EN62368-1, EAC and BSMI standards.

Can the EDR-120-12 be used inside an enclosed control cabinet?

Yes, it is designed for DIN rail mounting (TS35/7.5 or TS35/15) inside control panels and electrical cabinets. It operates in ambient temperatures from −20°C to +60°C, with load derating at higher temperatures per the derating curve. Ensure adequate ventilation: 40mm above, 20mm below and 5mm on each side is recommended at permanent full load.
