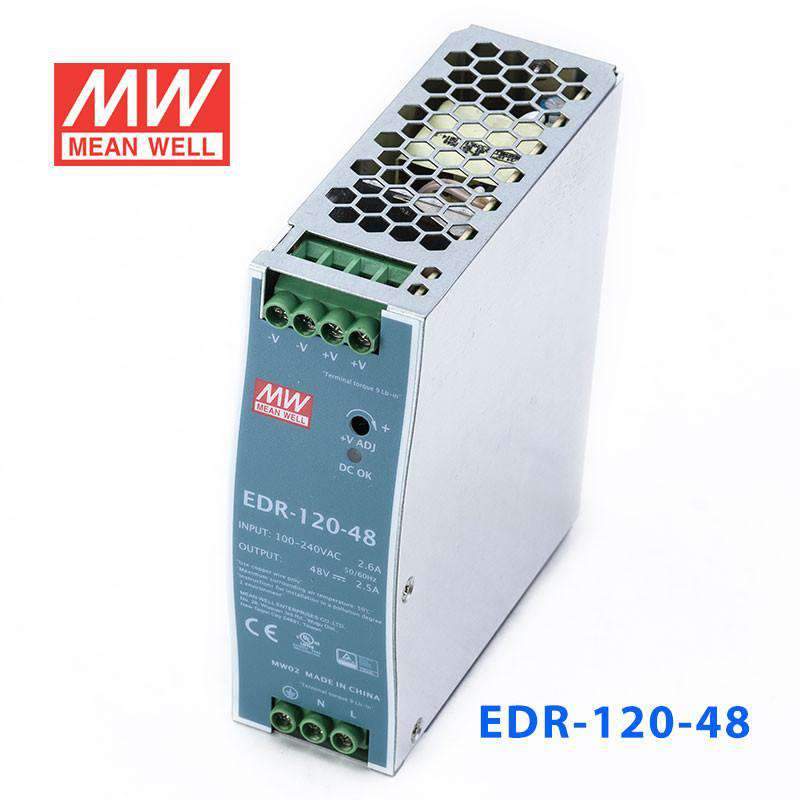

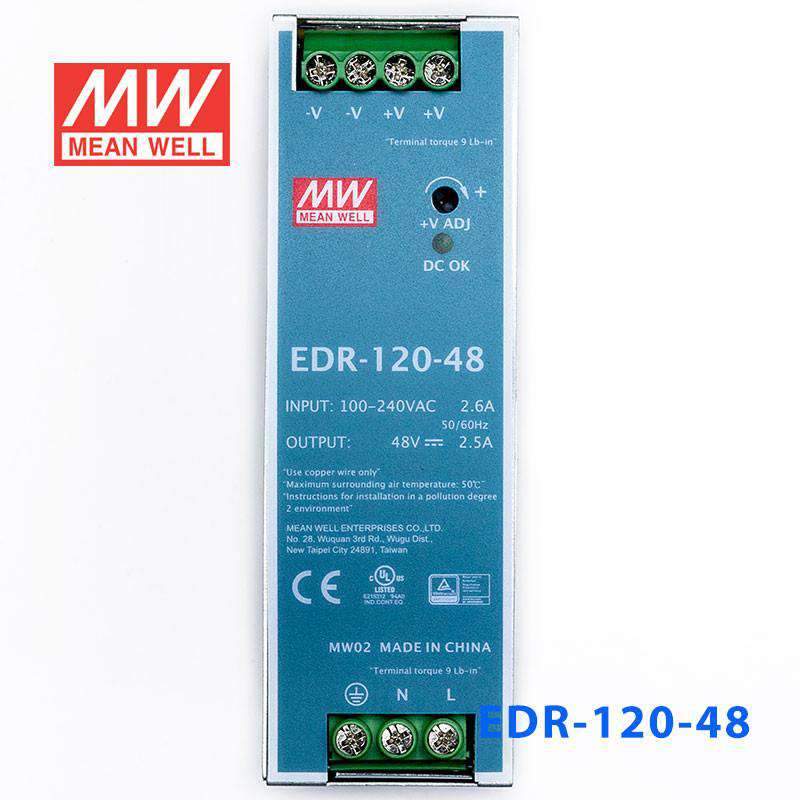

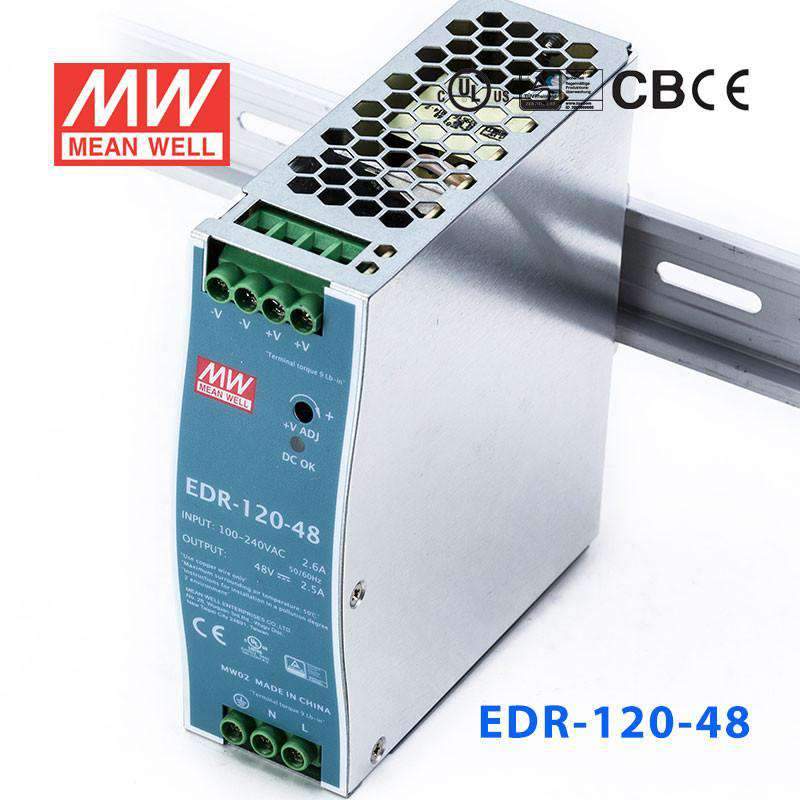

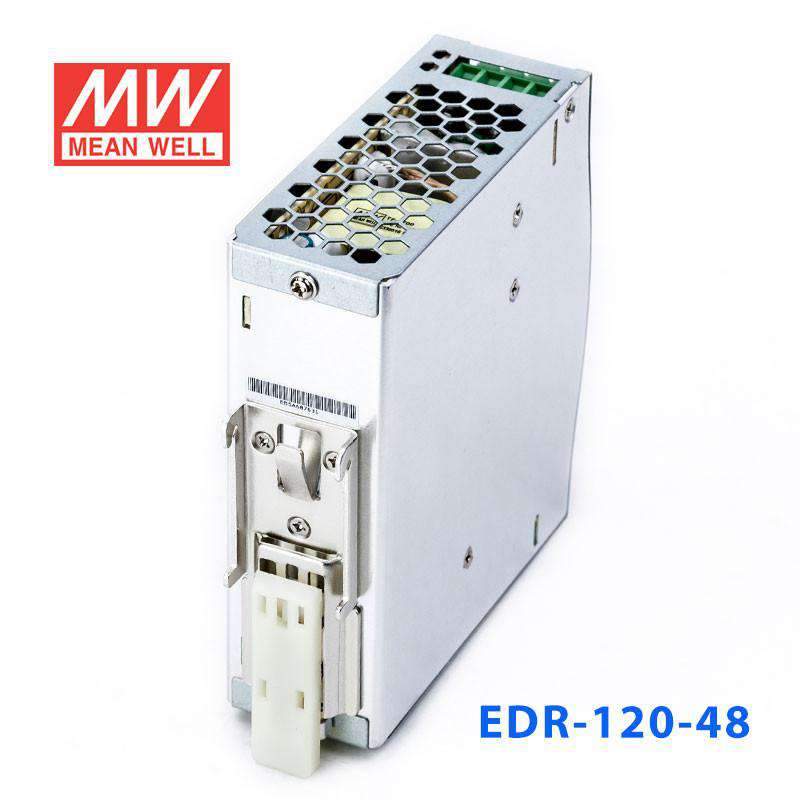

Mean Well EDR-120-48 Single Output Industrial Power Supply 120W 48V - DIN Rail

metal case, low cost, slim size, width:32~40mm, EMC EN55022 class A

|

Description

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

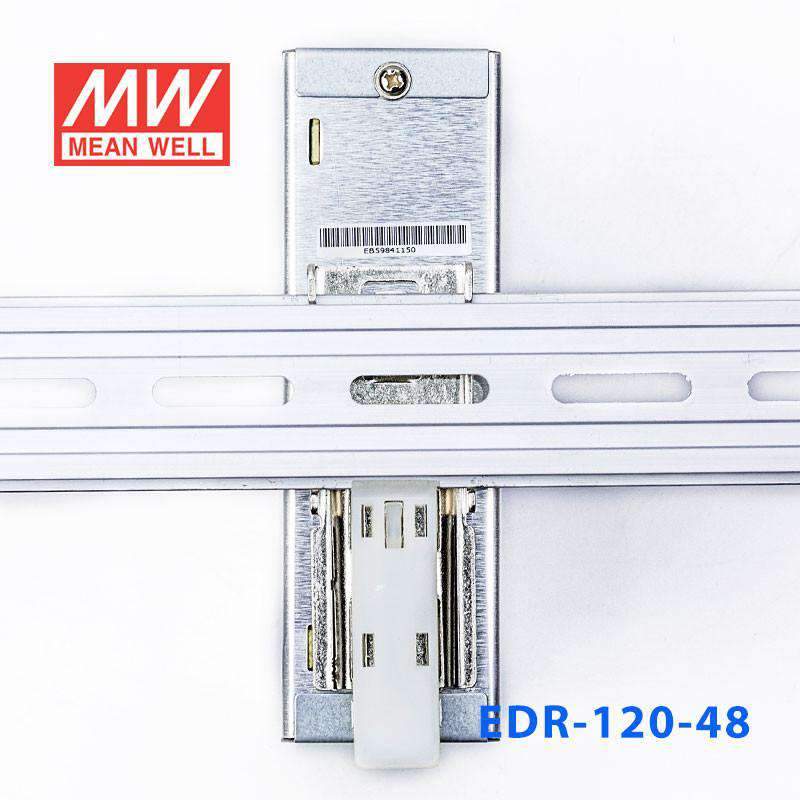

Can be installed on DIN rail TS35 / 7.5 or 15
UL508 (industrial control equipment) listed
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Low cost
3 years warranty for NDR series
2 years warranty for EDR series

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection 105%~130% Constant current limiting, auto-recovery
Over voltage protection 14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
Over temperature protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60!aC (refer to output derating curve
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm) 40x 125.2x 113.5

Specifications

  • Brand
    Mean Well
  • Series
    EDR Series
  • Power Rating
    120 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    2.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV
  • Operating Temperature
    -20°C~60°C
  • Warranty
    2 Year
  • Length
    12.52 cm
  • Width
    11.35 cm
  • Height
    4 cm
  • Weight
    0.6 kg
