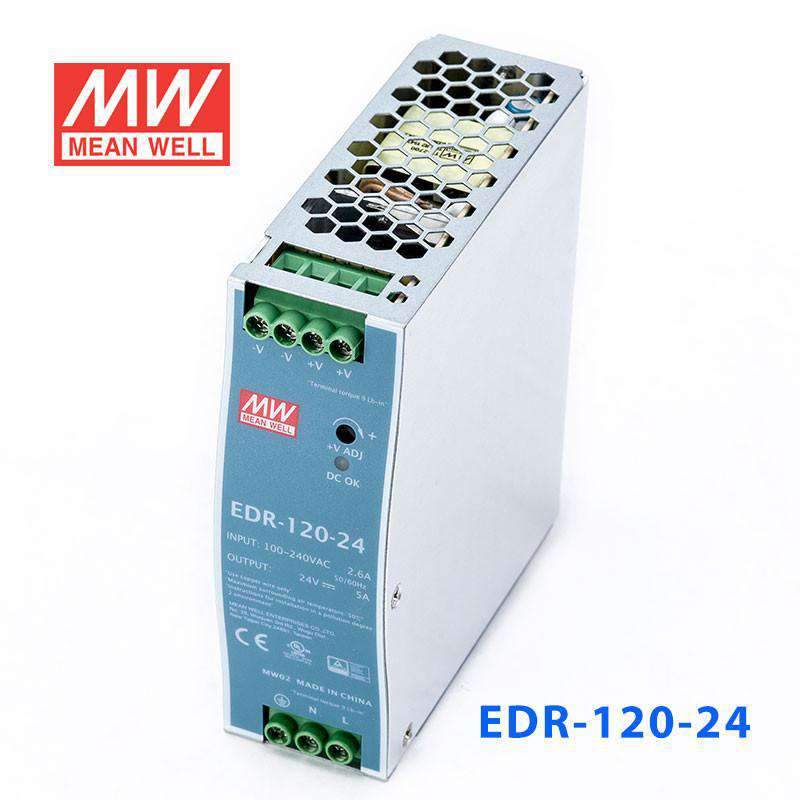

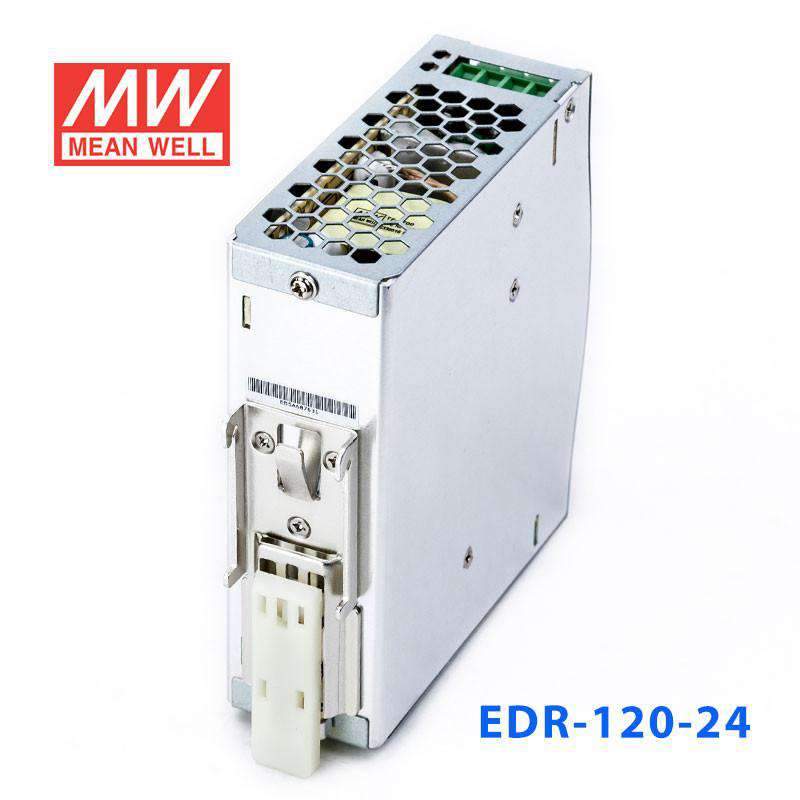

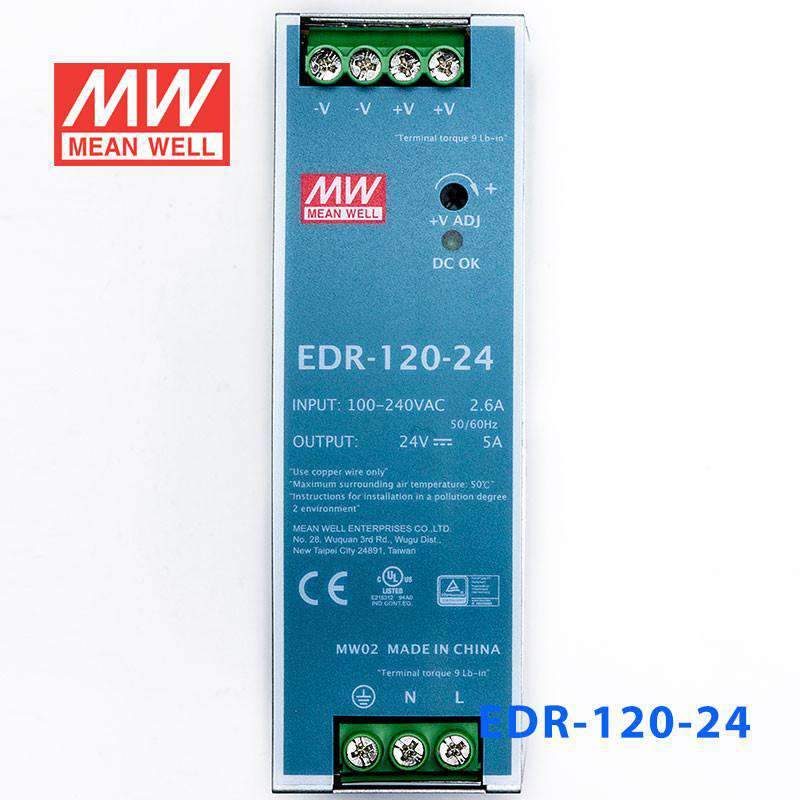

Mean Well EDR-120-24 Single Output Industrial Power Supply 120W 24V - DIN Rail

All three are 120W slim DIN rail power supplies in the same 125.2 × 113.5 × 40mm enclosure with 90–264VAC universal input. The EDR-120-12 outputs 12V at 10A, the EDR-120-24 outputs 24V at 5A, and the EDR-120-48 outputs 48V at 2.5A. Choose the voltage that matches your load equipment's rated input.

Yes. The EDR-120-24 delivers 24V DC at 5A (120W), which is the standard voltage for most PLCs, industrial sensors, and automation controllers. It mounts on standard DIN rail with a slim 40mm profile and meets EMC EN55022 Class A for low electromagnetic interference in industrial environments.

Yes. The EDR-120-24 provides 24V DC at up to 5A, compatible with 24V building management controllers, HVAC actuators, and access control systems. It accepts 90–264VAC universal input and is certified to CB, CE, cUL, TÜV, and EAC standards for commercial building installations.

While designed as an industrial power supply, the EDR-120-24 outputs a stable 24V DC at up to 5A (120W) and can power 24V constant-voltage LED strips. However, it is not waterproof (indoor use only) and does not include LED-specific features like dimming. For dedicated LED applications, consider the Mean Well LPV or HLG series.

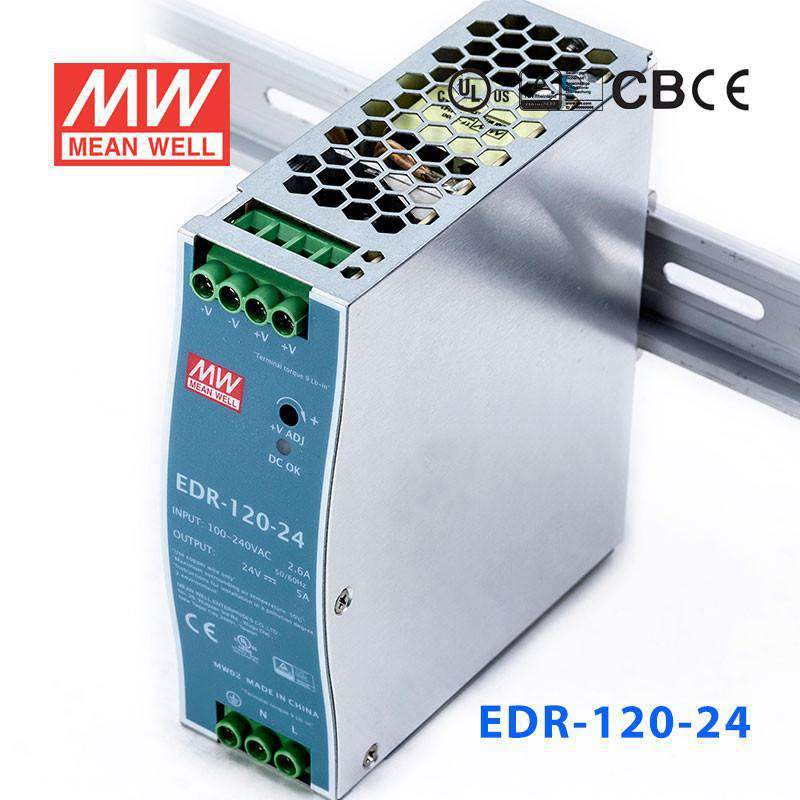

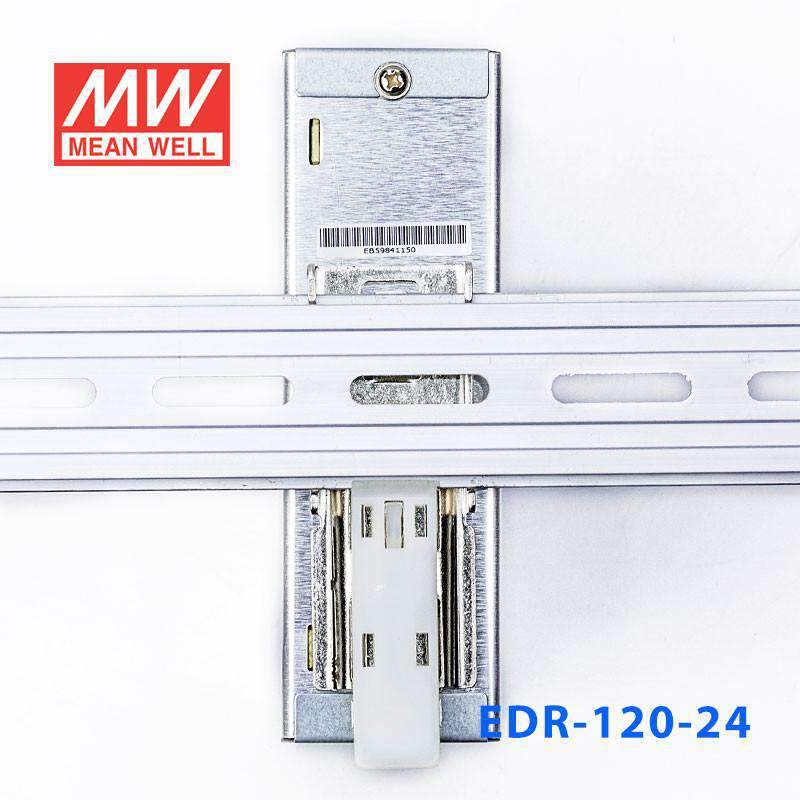

Yes, it is designed for DIN rail mounting inside control panels and electrical cabinets. It operates in ambient temperatures from −20°C to +60°C. Ensure adequate ventilation within the enclosure, as the unit is not waterproof and is rated for indoor use only.
