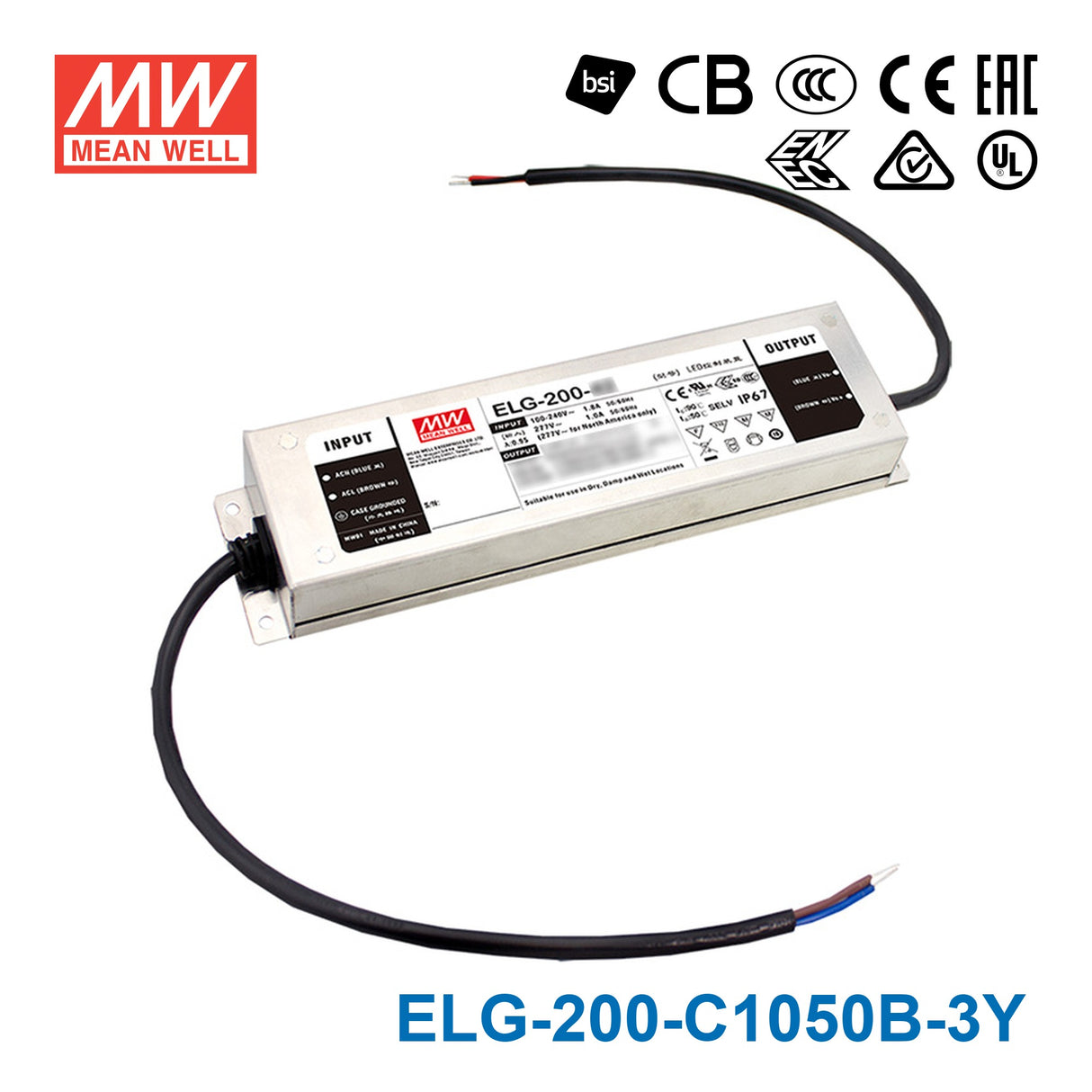

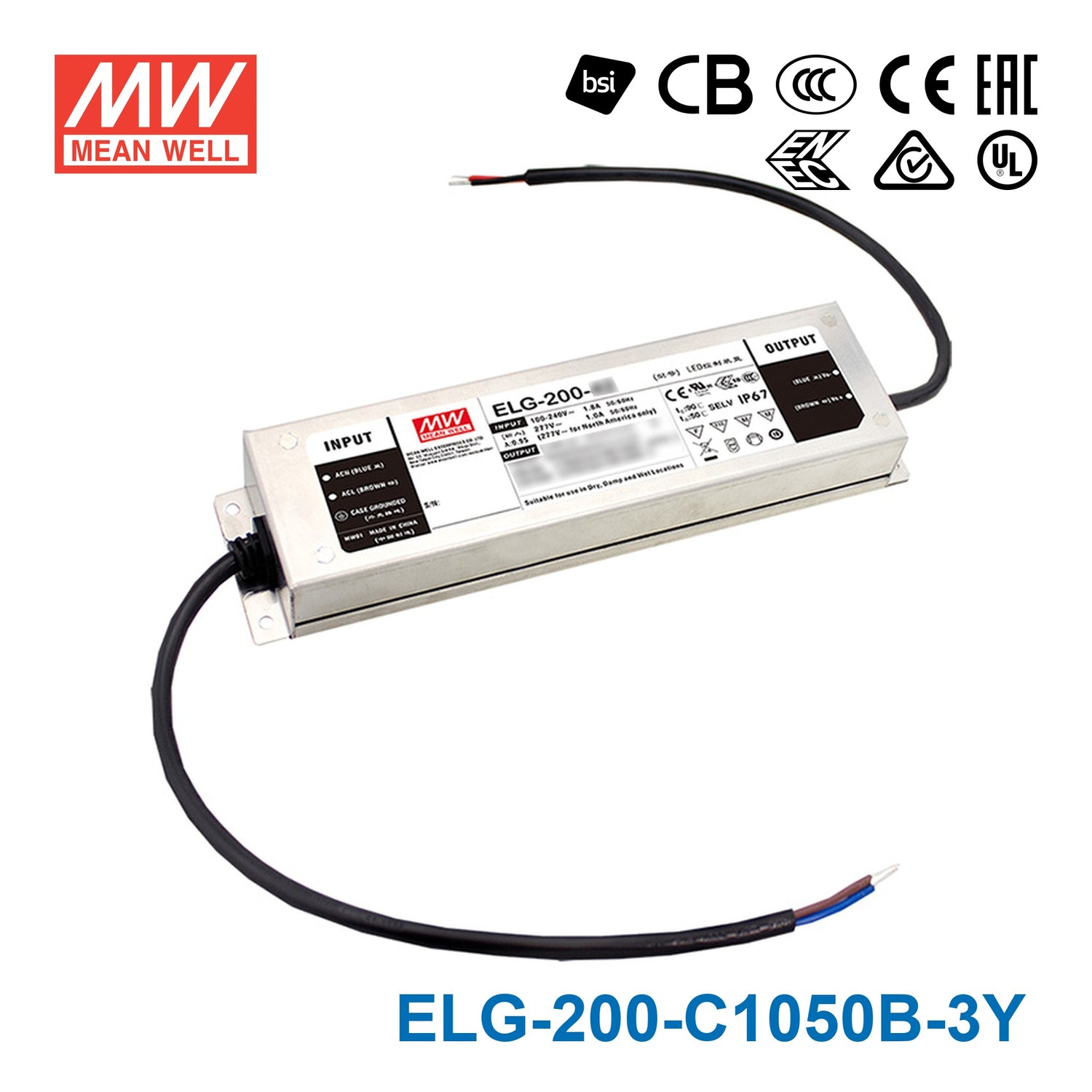

Mean Well ELG-200-C1050B-3Y Power Supply 200W 1050mA - Dimmable — 3-Wire Input (with Earth)

constant currentmetal caseIP675 years warranty

SKU ELG-200-C1050B-3Y

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

ELG-200-C1050B-3Y is the model of this series: rated current 1050mA, typical efficiency 93%. Type B + 3Y: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Model encoding

Type	Function
Blank	Io fixed; IP67
A	Io adjustable through built-in potentiometer; IP65
B (this model)	3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB	Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA	DALI control technology; IP67

Specifications

ELG-200-C1050B-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER 200VAC ~ 305VAC: 199.5W
RATED POWER 100VAC ~ 180VAC: 150.15W
CONSTANT CURRENT REGION^Note.2: 95 ~ 190V
OPEN CIRCUIT VOLTAGE(max.): 200V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: Standby power consumption <0.5W

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 205 ~ 250V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP67;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-200-C1050B-3Y BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-200-C1050B-3Y DIMMING OPERATION — DIMMING OPERATION

ELG-200-C1050B-3Y OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-200-C1050B-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-C1050B-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-C1050B-3Y LIFETIME(Kh) — LIFETIME(Kh)

ELG-200-C1050B-3Y Dimensions (mm) — Dimensions (mm)

ELG-200-C1050B-3Y ※ B/DA-Type — ※ B/DA-Type

ELG-200-C1050B-3Y ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-200-C1050B-3Y Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbar lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-C1050B-3Y datasheetELG-200-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-200-C)(EN) PDF Download

CB Certificate (ELG-200-C)(EN) PDF Download

EMC Certificate (ELG-200-C)(EN) PDF Download

ENEC Certificate (ELG-200-C)(EN) PDF Download

Test reports1

Test Report (ELG-200-C1050)(EN) PDF Download

FAQ

Is the ELG-200-C1050B-3Y rated for outdoor use in rainy or humid environments?

Yes. This driver carries an IP67 waterproof rating, protecting it against dust and temporary submersion, making it a solid choice for outdoor LED signage, parking garage fixtures, and other wet-location applications.

Can I use the ELG-200-C1050B-3Y to drive series-connected LED modules in architectural lighting?

Yes. The driver delivers constant current output suitable for series-connected LED modules. The actual number of modules depends on each module's forward voltage; the total combined forward voltage of the series string must be within the driver's 95–190V constant current range.

What does the '3Y' suffix mean on this product, and does it affect warranty coverage?

The '3Y' designation identifies the 3-wire input model: the AC input cable (SJOW 17AWGx3C / H05RN-F 1.0mm²) carries AC/L, AC/N and a PE (green/yellow) earth wire. For warranty terms, the sheet refers to the warranty statement on MEAN WELL's website.

Can this driver power LED downlights in a facility with high ambient temperatures?

Yes, within limits. The ELG-200-C1050B-3Y is rated for a maximum case temperature (Tcase) of +85°C, the same as the rest of the ELG-200-C series, and output load must be derated at high temperatures per the output load vs temperature curve. Keep the case at or below 85°C in enclosed fixtures.

Is the ELG-200-C1050B-3Y compatible with 277V branch circuits found in North American commercial buildings?

Yes. The driver accepts 100–305VAC input, so it operates on 120V, 208V, 240V, 277V, and international 220–240V mains without any manual range selection.

Can this driver be installed in an outdoor LED channel letter sign on a retail facade?

Yes. The IP67 rating and -40°C to +85°C case temperature (Tcase) rating make the ELG-200-C1050B-3Y suitable for channel letter sign power supplies exposed to weather, temperature swings, and moisture.
