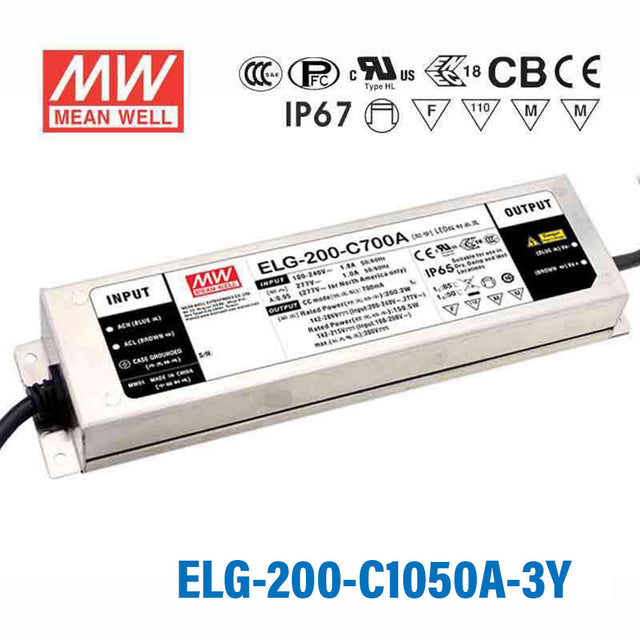

Mean Well ELG-200-C1050A Power Supply 200W 1050mA - Adjustable
Please Login for Pricing
Description
Description
Features
| Constant Current mode output |
| Metal housing design with functional ground |
| built-in active PFC function |
| No load / Standby power consumption < 0.5W |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI |
| Typical lifetime > 50000 hours |
| 5 years warranty |
General Specification
| input voltage range | 100 ~ 305VAC | 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| AC inrush current | COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410 |
| Over voltage protection |
Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75KVAC | I/P-FG:2.0KVAC | O/P-FG:1.5KVAC |
| Working temperature | -40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards |
UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB19510.14,GB19510.1;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 244 x 71 x 37.5 mm |
| Packing | 1.22Kg; 12pcs / 15.2kg / 0.72CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating199.5 Watt
-
Output Voltage200 Volt
-
Rated Current1.05 Ampere
-
Input Voltage142V~431V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length24.4 cm
-
Width7.1 cm
-
Height3.75 cm
-
Weight1.22 kg
