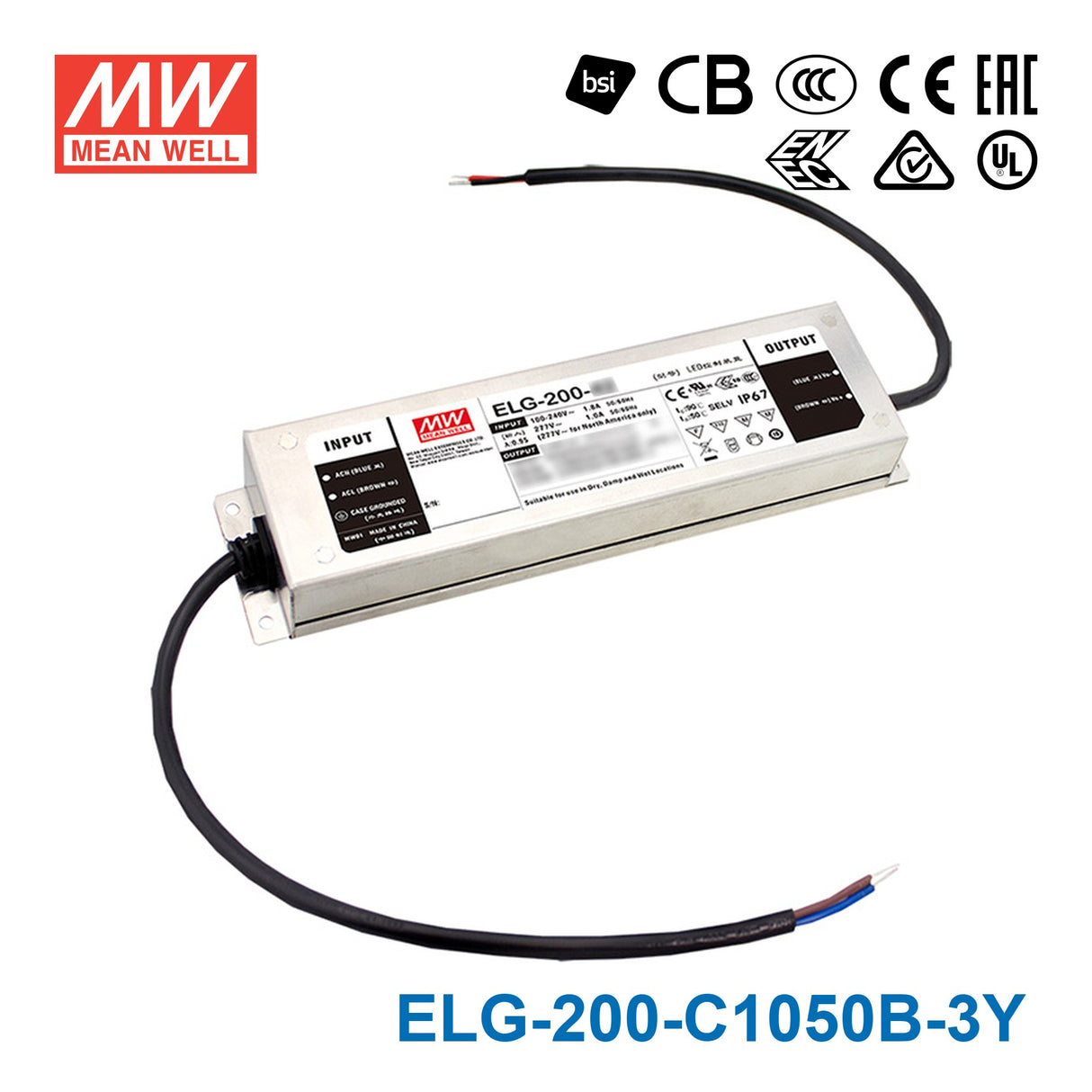

Mean Well ELG-200-C1050B-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC

contant currentmetal caseIP65/IP675 years warranty

SKU:

ELG-200-C1050B-3Y

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-200-C1050B is a 200W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+80℃).

Key Features

✓ Input voltage range: 100~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+80℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: SAFETY & EMC DALI STANDARDS
✓ 3 years warranty

Frequently Asked Questions

Is the ELG-200-C1050B-3Y rated for outdoor use in rainy or humid environments?

Yes. This driver carries an IP67 waterproof rating, allowing it to withstand temporary submersion up to 1 meter, making it a solid choice for outdoor LED signage, parking garage fixtures, and other wet-location applications.

Can I use the ELG-200-C1050B-3Y to drive series-connected LED modules in architectural lighting?

Yes. The driver delivers constant current output suitable for series-connected LED modules. The actual number of modules depends on each module's forward voltage; the total combined forward voltage of the series string must be verified against the driver's rated output range.

What does the '3Y' suffix mean on this product, and does it affect warranty coverage?

The '3Y' designation indicates a specific product certification or regional compliance variant within the ELG series. The warranty remains 5 years, consistent with the rest of the ELG-200 line.

Can this driver power LED downlights in a facility with high ambient temperatures?

Yes. The ELG-200-C1050B-3Y is rated for operating temperatures up to +90°C, which is slightly higher than most ELG-200 siblings. This makes it particularly suitable for enclosed fixtures or poorly ventilated mechanical rooms where heat builds up.

Is the ELG-200-C1050B-3Y compatible with 277V branch circuits found in North American commercial buildings?

Yes. The driver accepts 100–305VAC input, so it operates on 120V, 208V, 240V, 277V, and international 220–240V mains without any manual range selection.

Can this driver be installed in an outdoor LED channel letter sign on a retail facade?

Yes. The IP67 rating and -40°C to +90°C operating range make the ELG-200-C1050B-3Y suitable for channel letter sign power supplies exposed to weather, temperature swings, and moisture.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well ELG-200-24A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP65	View
Mean Well ELG-200-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 8.4A	200W	24V	8.4A	IP67	View
Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 16A	200W	12V	16A	IP67	View
Mean Well ELG-200-48A-3Y AC-DC Single output LED Driver Mix Mode CV+CC 200W 4.16A	200W	48V	4.16A	IP65	View
Mean Well ELG-200-48-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 4.16A	200W	48V	4.16A	IP67	View
Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable 8.4A	201.6W	24V	8.4A	IP67	View
Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable 16A	192W	12V	16A	IP65	View
Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug 8.4A	201.6W	24V	8.4A	IP65	View
